Things used in this project

Hardware components:
Ardgen 101
Arduino 101 & Genuino 101
Use in the Compost Satellite System and the Kitchen Compost Bin
×2
Intel.web.720.405
Intel Edison
Used to analyze the results, provide recommendations, and host the dashboard
×1
1899 00
Adafruit Humidity and Temperature Sensor
Used to measure ambient temperature
×1
Adafruit Waterproof DS18B20 Digital Temperature Sensor
Used to measure compost temperature [Note - will be replaced with a combo soil/moisture sensor]
×1
Phantom YoYo Arduino compatible Mini MQ4 Gas Sensor
×1
High Sensitivity Moisture Sensor
Used to measure compost moisture [Note - will be replaced with a combo soil/moisture sensor]
×1
Servo (generic)
Used to open/close air vent
×1
Water Pump (6-12V)
×1
Water Level Float Sensor
Used to measure water level
×1
Fairchild semiconductor 1n4004. image
1N4007 – High Voltage, High Current Rated Diode
To control water pump
×1
Mfr 25frf52 10k sml
Resistor 10k ohm
Used with the temperature probe
×1
Fairchild semiconductor tip120 image
Darlington High Power Transistor
to control water pump
×1
Mfr 25fbf52 4k75 sml
Resistor 4.75k ohm
to control the water pump
×1
Ultrasonic Digital Distance Sensor
Used to calculate amount in kitchen compost bin
×1
PVC
PVC Pipe for the air vent and gas sensor
×1
Water Hose
Hose to flow water to compost
×1
Project Box
Assorted project boxes to hold the components
×3
Openbuilds cable ties
OpenBuilds Cable Ties (10 Pack)
Assorted cables
×1
Ties and tees for water hose
×1
Reed Switch
Used to determine if Kitchen Compost Bin is open or closed (in conjunction with magnets)
×1
Rare Earth Magnets
Used to determine if Kitchen Compost Bin is open or closed (in conjunction with reed switch)
×1
Kitchen Compost Bin
×1
Shrink tubing
×1
3/8 in pipe for water
×1
Software apps and online services:
SQLite
database for saving results
Lightttpd
webserver
Hand tools and fabrication machines:
Drill
Hy gluegun
Hot glue gun (generic)
Heat Gun

Schematics

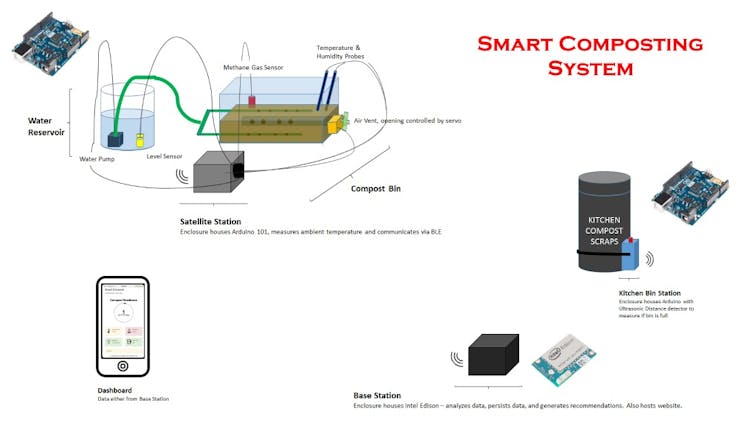

Smart Compost System - Satellite Schematic
The wiring for the main system
Smart compost v2bb 0m89h5t78z

Code

Smart Compost System
Git repo of code for the smart compost system

Credits

Dear world ncjofmxcr5
Darian Johnson
4 projects • 66 followers
Technologist. Music lover. Fitness enthusiast. Movie buff. Fan of sci-fi and comic books.
Contact
21316
Mike Bradford
0 projects • 0 followers
Contact

Replications

Did you replicate this project? Share it!

I made one

Love this project? Think it could be improved? Tell us what you think!

Give feedback
