Vivado LED Control via PYNQ on KR260

Overview

This project demonstrates how to create a simple PL design in Vivado to control the user-defined LEDs (DS7 and DS8) on the KR260 carrier board. The design uses an AXI GPIO IP core connected to the Zynq UltraScale+ Processing System (PS) via an AXI SmartConnect, enabling software control of the LEDs from Linux running on the APU.

This is a follow-up project to the Custom Yocto Linux & Network Boot for Xilinx KR260 post, which provides the foundation Linux environment with PYNQ, XRT, and network boot capabilities.

Problem Statement

When developing FPGA applications on the KR260, you often need to:

• Create custom PL designs that interact with the PS
• Rapidly prototype and test hardware designs without lengthy compilation cycles
• Validate hardware functionality before integrating with more complex applications
• Prepare hardware designs for integration with RPU firmware or custom Linux drivers

Traditional FPGA development workflows require:

• Writing HDL code or using IP integrator
• Synthesizing and implementing the design
• Generating bitstreams
• Flashing SD cards or manually loading bitstreams
• Writing C/C++ applications to interact with hardware

This project simplifies this workflow by:

• Using Vivado's IP Integrator for visual design
• Leveraging PYNQ for Python-based hardware interaction
• Enabling rapid iteration through network boot and dynamic bitstream loading

System Architecture

Hardware Architecture

The PL design consists of:

┌─────────────────────────────────────────────────────────────┐
│                    Zynq UltraScale+ PS                      │
│  ┌──────────────────────────────────────────────────────┐   │
│  │  M_AXI_HPM0_LPD (Master AXI)                         │   │
│  └──────────────-────┬─────────────────────────────────-┘   │
└──────────────────────┼──────────────────────────────────────┘
                       │
                       │ AXI4
                       │
┌──────────────────────▼──────────────────────────────────────┐
│              AXI SmartConnect (AXI SMC)                     │
│  ┌──────────────────────────────────────────────────────┐   │
│  │  S00_AXI (Slave) ────────► M00_AXI (Master)          │   │
│  └─────────────-─────┬──────────────────────────────-───┘   │
└──────────────────────┼──────────────────────────────────────┘
                       │
                       │ AXI4-Lite
                       │
┌──────────────────────▼──────────────────────────────────────┐
│                    AXI GPIO IP                              │
│  ┌──────────────────────────────────────────────────────┐   │
│  │  GPIO Channel 1 (2-bit output)                       │   │
│  └──────────────-────┬────────────────────────────-─────┘   │
└──────────────────────┼──────────────────────────────────────┘
                       │
                       │ GPIO[1:0]
                       │
┌──────────────────────▼──────────────────────────────────────┐

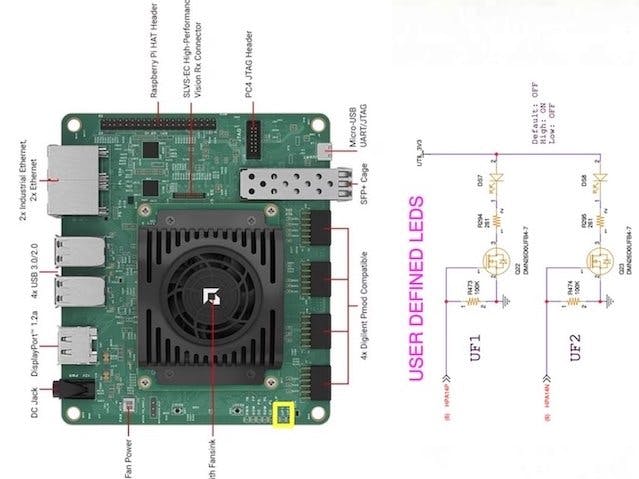

│              KR260 Carrier Board LEDs                       │
│  ┌──────────────────────────────────────────────────────┐   │
│  │  LED0 (DS8) - Pin E8 (LVCMOS18)                      │   │
│  │  LED1 (DS7) - Pin F8 (LVCMOS18)                      │   │
│  └──────────────────────────────────────────────────────┘   │
└─────────────────────────────────────────────────────────────┘

Software Architecture

┌────────────────────────────────────────────────────────────┐
│              Linux APU (Yocto + PYNQ)                      │
│  ┌─────────────────────────────────────────────────────┐   │
│  │  Jupyter Notebook Server (:9090)                    │   │
│  │  ┌──────────────────────────────────────────────┐   │   │
│  │  │  led_blink_pynq.ipynb                        │   │   │
│  │  │  - Load bitstream via PYNQ                   │   │   │
│  │  │  - Access AXI GPIO via Python                │   │   │
│  │  │  - Control LED patterns                      │   │   │
│  │  └──────────────────────────────────────────────┘   │   │
│  └─────────────────────────────────────────────────────┘   │
│  ┌─────────────────────────────────────────────────────┐   │
│  │  PYNQ Runtime                                       │   │
│  │  - Bitstream loading                                │   │
│  │  - Hardware description parsing (.hwh)              │   │
│  │  - IP register mapping                              │   │
│  └─────────────────────────────────────────────────────┘   │
│  ┌─────────────────────────────────────────────────────┐   │
│  │  XRT (Xilinx Runtime)                               │   │
│  │  - Device management                                │   │
│  │  - Bitstream programming                            │   │
│  └─────────────────────────────────────────────────────┘   │
└────────────────────────────────────────────────────────────┘

Design Components

Zynq UltraScale+ PS: Processing System with ARM Cortex-A53 cores

• M_AXI_HPM0_LPD: Low Power Domain Master port for PL access
• PL_CLK0: 100 MHz clock output to PL
• PL_RESETN0: Reset signal to PL

AXI SmartConnect: Interconnect IP for AXI bus routing

• Connects PS master to PL slaves
• Handles protocol conversion and address mapping

AXI GPIO: General Purpose I/O IP core

• 2-bit output channel (GPIO[1:0])
• AXI4-Lite slave interface
• Base address: Assigned by Vivado (typically in LPD address space 0x80000000-0x9FFFFFFF)

Processor System Reset: Reset controller

• Synchronizes reset signals
• Provides reset to PL logic

Prerequisites

Previous Project Setup

This project assumes you have completed the Custom Yocto Linux & Network Boot project, which provides:

• Network-bootable Yocto Linux image
• PYNQ 3.1.2 runtime
• XRT and ZOCL support
• Jupyter Notebook server on port 9090
• NFS root filesystem mounted at /nfsroot

Step-by-Step Guide

Step 1: Create Vivado Project

• Launch Vivado and select Create Project
• Project Settings:Project name: gpio_led
Project location: Choose your workspace directoryProject type: RTL Project (default)
• Add Sources: Click Next (we'll create the design using IP Integrator)
• Add Constraints: Click Next (we'll add constraints later)
• Default Part:Select Boards tabSearch for KR260 and select KR260 Robotics Starter KitClick Next and Finish

Step 2: Create Block Design

• In the Flow Navigator, click Create Block DesignDesign name: gpio_led
Click OK
• Add Zynq UltraScale+ PS:Click + button in the diagramSearch for Zynq UltraScale+ PSDouble-click to add zynq_ultra_ps_e_0


• Configure PS:Double-click the PS blockIn the PS Configuration window, navigate to PS-PL Configuration → GeneralEnable M_AXI_HPM0_LPD (Low Power Domain master port)Click Run Block AutomationThis will enable M_AXI_HPM0_LPD, PL_CLK0, and PL_RESETN0Click OK

Step 3: Add AXI GPIO IP

• Add AXI GPIO:Click + buttonSearch for AXI GPIODouble-click to add axi_gpio_0


• Configure AXI GPIO:Double-click the GPIO blockGPIO:Check All OutputsGPIO Width: 2Click OK

• Run Connection Automation:
• Click Run Connection Automation
• Select All Automation
• This will:Connect PS M_AXI_HPM0_LPD to AXI SmartConnectConnect AXI SmartConnect to AXI GPIOConnect clock and reset signals
• Click OK

Step 4: Make GPIO External

• Create External Port:Right-click on axi_gpio_0 GPIO portSelect Make ExternalRename the port to led_output
• Validate Design:Click Validate Design (F6)Ensure no errors or critical warnings
• Create HDL Wrapper:Right-click on gpio_led block design in SourcesSelect Create HDL WrapperChoose Let Vivado manage wrapper and auto-updateClick OK

Step 5: Add Pin Constraints

• Create Constraints File:In Sources, right-click Constraints → constrs_1Select Add Sources → Add or create constraintsClick Create FileFile name: gpio_led.xdc
Click OK and Finish

Add Pin Constraints: Open gpio_led.xdc and add:

# --- XDC for KR260 LED Demo ---

# KR260 carrier board D13/D14 connector:
# https://github.com/Xilinx/XilinxBoardStore/blob/2022.2/boards/Xilinx/kr260_carrier/1.0/board.xml#L221
# KR260-SoM for exact pin location:
# https://github.com/Xilinx/XilinxBoardStore/blob/2022.2/boards/Xilinx/kr260_som/1.1/part0_pins.xml#L64

# LED0 (DS8) - Pin E8 (HP Bank, using compatible LVCMOS18 standard)
set_property PACKAGE_PIN E8 [get_ports {led_output_tri_o[0]}]
set_property IOSTANDARD LVCMOS18 [get_ports {led_output_tri_o[0]}]

# LED1 (DS7) - Pin F8 (HP Bank, using compatible LVCMOS18 standard)
set_property PACKAGE_PIN F8 [get_ports {led_output_tri_o[1]}]
set_property IOSTANDARD LVCMOS18 [get_ports {led_output_tri_o[1]}]

• Save the constraints file

Step 6: Synthesize Design

• Run Synthesis:In Flow Navigator, click Run SynthesisWait for synthesis to complete (5-10 minutes depends on PC)
• Review Synthesis Results:Check for any errors or critical warningsVerify resource utilization is reasonable

Step 7: Implement Design

• Run Implementation:Click Run ImplementationWait for implementation to complete (10-20 minutes depends on PC)
• Review Implementation Results:Check timing closureVerify no critical warnings

Step 8: Generate Bitstream

• Generate Bitstream:Click Generate BitstreamWait for bitstream generation (5-10 minutes depends on PC)
• Verify Output Files: After bitstream generation, verify these files exist:gpio_led.runs/impl_1/gpio_led_wrapper.bit - Bitstream filegpio_led.gen/sources_1/bd/gpio_led/hw_handoff/gpio_led.hwh - Hardware description

Step 9: Export Hardware

• Export Hardware:In Flow Navigator, go to File → Export → Export HardwareSelect Include bitstreamClick NextExport location: Default (project directory)File name: gpio_led.xsa
Click FinishNote: The .xsa file will be used in the next project for RPU integration with Vitis.

Step 10: Copy Files to NFS Share

• Locate Generated Files:Bitstream: gpio_led.runs/impl_1/gpio_led_wrapper.bit
Hardware description: gpio_led.gen/sources_1/bd/gpio_led/hw_handoff/gpio_led.hwh

• Copy to NFS Root: On your NFS server (where /nfsroot is mounted):

# Copy bitstream (rename to gpio_led.bit)
cp gpio_led.runs/impl_1/gpio_led_wrapper.bit \
   /nfsroot/home/xilinx/Notebook/gpio_led.bit

# Copy hardware description (rename to gpio_led.hwh)
cp gpio_led.gen/sources_1/bd/gpio_led/hw_handoff/gpio_led.hwh \
   /nfsroot/home/xilinx/Notebook/gpio_led.hwh

# Set appropriate permissions
chmod 644 /nfsroot/home/xilinx/Notebook/gpio_led.bit
chmod 644 /nfsroot/home/xilinx/Notebook/gpio_led.hwh

Step 11: Create PYNQ Notebook

• Create Notebook File: Create led_blink_pynq.ipynb in /nfsroot/home/xilinx/Notebook/
Or create it as a Python script and convert, or use Jupyter's web interface.

Step 12: Validate on KR260

• Boot KR260:Ensure KR260 is network-booted (from previous project)Verify Jupyter is accessible at http://172.20.1.1:9090
• Open Jupyter Notebook:Navigate to Jupyter in your browserOpen led_blink_pynq.ipynb
• Run the Notebook:Execute the first cell to reset the PLExecute the second cell to load the bitstream and run the LED patternObserve LEDs DS7 and DS8 on the KR260 board

Expected Behavior:

• Expected Behavior:LED0 (DS8) and LED1 (DS7) will blink in a walking pattern:Pattern 1: LED0 ON, LED1 OFF (0x1)Pattern 2: LED0 OFF, LED1 ON (0x2)Pattern 3: Both LEDs ON (0x3)Pattern 4: LED0 OFF, LED1 ON (0x2)Repeat 5 times with 0.5s pause between cycles

Understanding the Code

PYNQ Overlay Loading

overlay = Overlay("gpio_led.bit")

PYNQ's Overlay class:

• Loads the bitstream into the FPGA
• Parses the .hwh file to understand the hardware structure
• Creates Python objects for each IP core (e.g., overlay.axi_gpio_0)

AXI GPIO Access

led_gpio = overlay.axi_gpio_0.channel1

• axi_gpio_0 is the instance name from the Vivado block design
• channel1 is the GPIO channel (Channel 1 is the first channel)
• The GPIO object provides read() and write() methods

LED Control

led_gpio.write(pattern, mask)

• pattern: Value to write (0x0 to 0x3 for 2 bits)
• mask: Bit mask indicating which bits to affect (0x3 = both bits)

Design Considerations

PS-PL Interface Selection

• M_AXI_HPM0_LPD (Low Power Domain) is used instead of FPD (Full Power Domain)
• Rationale: GPIO control requires low bandwidth, making LPD ideal for power efficiency
• LPD provides sufficient performance for GPIO operations while consuming less power
• FPD ports are better reserved for high-bandwidth applications (video processing, DMA, etc.)

Clock Domain

• PL clock: 100 MHz (from PS PL_CLK0)
• AXI bus clock: 100 MHz (synchronized with PL clock)
• GPIO update rate: Limited by Python loop speed (~4 Hz in this example)

GPIO Configuration

• All Outputs: GPIO configured as output-only (no input capability)
• Width: 2 bits (matching two LEDs)
• I/O Standard: LVCMOS18 (compatible with KR260 HP bank)

Address Space

• AXI GPIO base address: 0x80000000 (LPD address space)
• Address range: 64 KB (standard AXI4-Lite slave)
• Accessible from Linux userspace via PYNQ
• Note: LPD (Low Power Domain) uses the 0x80000000 address range, which is suitable for GPIO and other low-bandwidth peripherals

Next Steps

This project provides a foundation for more advanced PL development:

• Add More GPIO: Extend to control additional LEDs or read switches
• Custom IP Integration: Add custom AXI IP cores to the design
• Interrupt Support: Configure GPIO interrupts for event-driven control
• RPU Integration: Move LED control logic to RPU (see next project)

What's Next: RPU Integration with FreeRTOS

The next project in this series will demonstrate:

• Building FreeRTOS application for RPU using Xilinx Vitis Unified IDE
• Loading PL bitstream from APU using XRT
• Loading RPU firmware using remoteproc framework
• APU-RPU communication via libmetal and OpenAMP
• Shared memory between APU, RPU, and PL
• Real-time LED control from RPU while APU handles high-level tasks

This will showcase the full heterogeneous computing capabilities of the KR260, combining:

• APU: Linux for high-level control and networking
• RPU: FreeRTOS for real-time, deterministic tasks
• PL: Custom hardware accelerators and I/O

Resources

• Xilinx KR260 Documentation: Kria KR260 Documentation
• PYNQ Documentation: PYNQ.io
• Vivado Design Suite: Xilinx Vivado
• Previous Project: Custom Yocto Linux & Network Boot for KR260

Summary

This project demonstrated:

✅ Creating a PL design in Vivado using IP Integrator✅ Configuring AXI GPIO for LED control✅ Adding pin constraints for KR260 board✅ Generating bitstream and hardware description✅ Loading bitstream dynamically using PYNQ✅ Controlling hardware from Python/Jupyter✅ Rapid prototyping workflow for FPGA development

The combination of Vivado's visual design tools and PYNQ's Python interface creates a powerful, accessible platform for FPGA development on the KR260. This workflow enables rapid iteration and experimentation, making FPGA development more approachable for software engineers and embedded developers.
