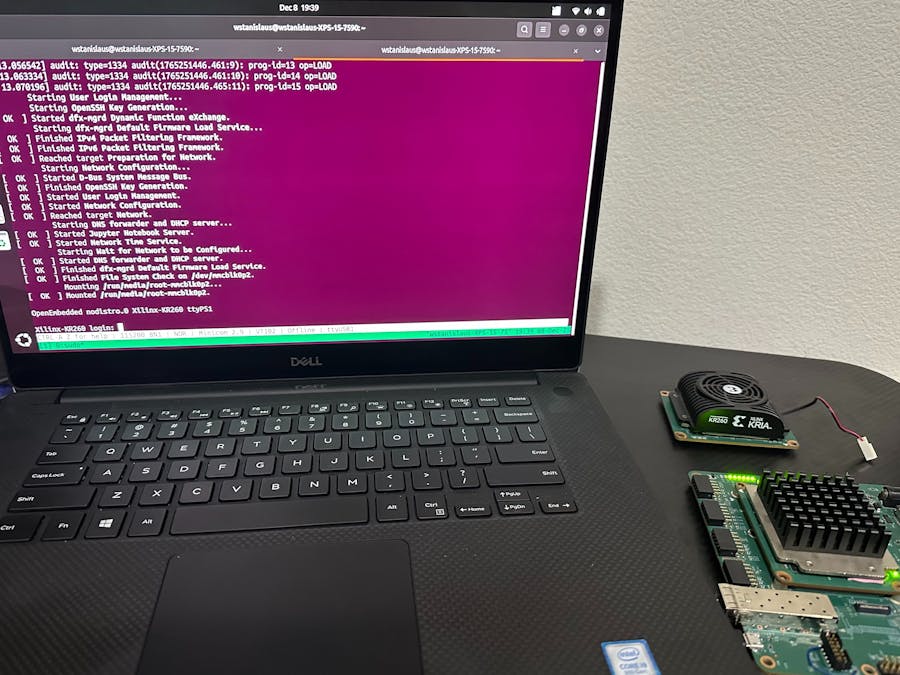

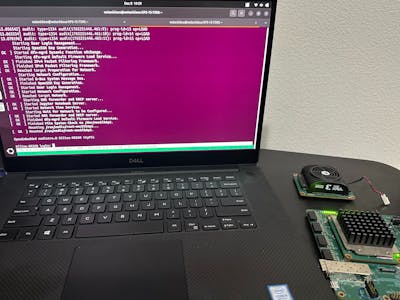

Custom Yocto Linux & Network Boot for Xilinx KR260

Building for the Xilinx KR260 has always been powerful, but not always fast. Every small change—kernel tweaks, device-tree edits, PL bitstream updates—usually meant flashing SD cards, rebooting boards, and waiting. I wanted a development environment that felt as fast and flexible as software engineering, not traditional embedded workflow.

That’s where this project began.

I set out to build a complete, production-ready custom Yocto Linux distribution for the KR260 that could network-boot instantly, load new kernels and root filesystems without SD cards, and support rapid FPGA and RPU development. The goal was simple: create a foundation that accelerates every future project on the KR260.

By combining Yocto Scarthgap (5.1) with Xilinx Tools 2025.2, I created a custom Linux image that integrates:

• PYNQ 3.1.2 for interactive FPGA development
• XRT & ZOCL for bitstream loading and accelerati
• Jupyter Notebook server for live experimentation at :9090
• Remoteproc for loading and controlling RPU firmware
• UIO drivers enabling userspace access to PL hardware
• Network booting via TFTP + NFS for instant iteration

With this setup, modifying a kernel parameter or deploying a new FPGA bitstream is as simple as updating a file on the NFS server—no flashing, no downtime, no friction.

System Architecture

Building the Yocto Project

Prerequisites

Build Host Requirements:

• Ubuntu 24.04 LTS recommended
• ≥250 GB free disk space
• ≥16 GB RAM (32 GB recommended)
• Standard Yocto build dependencies

Install Build Dependencies (Ubuntu 24.04):

sudo apt-get update
sudo apt-get install -y gawk wget git repo diffstat unzip texinfo gcc-multilib \
     build-essential chrpath socat cpio python3 python3-pip python3-pexpect \
     xz-utils debianutils iputils-ping python3-git python3-jinja2 \
     libsdl1.2-dev pylint xterm python3-subunit mesa-common-dev zstd liblz4-tool \
     libegl1-mesa-dev

Repository Structure

The project follows a standard Yocto layer structure:

Xilinx_KR260_Yocto/
├── Makefile                 # Top-level build orchestration
├── README.md                # Project documentation
├── conf/
│   ├── bblayers.conf.template    # Yocto layer configuration
│   └── local.conf.template       # Build configuration template
├── dts/
│   ├── kr260_overlay.dtso        # Device tree overlay for hardware
│   └── Makefile                  # DTS compilation
├── meta-kr260/              # Custom Yocto layer
│   ├── recipes-core/
│   │   └── images/
│   │       └── kria-image-kr260.bb    # Rootfs image recipe
│   ├── recipes-kernel/
│   │   └── linux/
│   │       └── linux-xlnx_%.bbappend # Kernel configuration
│   └── recipes-bsp/
│       └── u-boot/
│           └── u-boot-xlnx_%.bbappend  # U-Boot configuration
├── tools/
│   └── image.its            # FIT image template
└── qspi_image/
    └── BOOT.BIN             # Prebuilt boot image

Build Process

Step 1: Fetch Yocto Sources

The project uses Xilinx's official Yocto manifests for 2025.2:

make setup-sources

This command:

• Initializes the repo tool with Xilinx's Yocto manifest
• Syncs all required Yocto layers (poky, meta-xilinx, meta-kria, etc.)
• Downloads approximately 10-15 GB of source code

Step 2: Configure Build Environment

make setup-env

This creates the build configuration from templates, setting up:

• Machine: k26-smk-kr-sdt (KR260 with commercial SOM)
• Distribution: EDF (Embedded Development Framework)
• Network configuration: TFTP/NFS server IP, board IP, gateway, etc.

Step 3: Build Components

The build system provides several targets:

# Build kernel FIT image (kernel + device tree)
make build-kernel

# Build root filesystem
make build-rootfs

# Build SDK toolchain for cross-compilation
make build-sdk

# Build everything
make build-all

Build Outputs:

• Kernel FIT Image: build/tmp-glibc/deploy/images/k26-smk-kr-sdt/image.ub
• Rootfs Archive: build/tmp-glibc/deploy/images/k26-smk-kr-sdt/kria-image-kr260-k26-smk-kr-sdt.rootfs.tar.gz
• SDK Installer: build/tmp-glibc/deploy/sdk/kria-toolchain-kr260-sdk.sh

Custom Meta Layer: meta-kr260

The custom layer extends the base Kria image with FPGA development packages:

Key Recipes:

Image Recipe (recipes-core/images/kria-image-kr260.bb):

• Inherits from kria-image-full-cmdline
• Adds PYNQ 3.1.2, XRT, ZOCL, gRPC, libmetal
• Configures Jupyter Notebook server
• Sets up default user (xilinx/xilinx) with sudo privileges
• Image Recipe (recipes-core/images/kria-image-kr260.bb):Inherits from kria-image-full-cmdline
Adds PYNQ 3.1.2, XRT, ZOCL, gRPC, libmetalConfigures Jupyter Notebook serverSets up default user (xilinx/xilinx) with sudo privileges

Kernel Configuration (recipes-kernel/linux/linux-xlnx_%.bbappend):

• Enables UIO (Userspace I/O) drivers for direct hardware access
• Configures remoteproc support for RPU management
• Adds device tree overlay support
• Kernel Configuration (recipes-kernel/linux/linux-xlnx_%.bbappend):Enables UIO (Userspace I/O) drivers for direct hardware accessConfigures remoteproc support for RPU managementAdds device tree overlay support

U-Boot Configuration (recipes-bsp/u-boot/u-boot-xlnx_%.bbappend):

• Configures network boot parameters
• Sets up TFTP boot command
• U-Boot Configuration (recipes-bsp/u-boot/u-boot-xlnx_%.bbappend):Configures network boot parametersSets up TFTP boot command

Network Boot Configuration: TFTP and NFS

Why Network Boot?

Network booting provides significant advantages for FPGA development:

1. Rapid Development Cycles

• No SD Card Flashing: Eliminates the need to physically remove and flash SD cards
• Instant Updates: Kernel and rootfs changes take effect on next boot
• Multiple Board Support: One NFS server can serve multiple development boards
• Version Control: Easy rollback by switching NFS directories

2. Storage Flexibility

• Unlimited Rootfs Size: NFS rootfs is only limited by server storage, not SD card capacity
• Shared Development Environment: All developers work with the same rootfs
• Easy Package Management: Install packages on the server, available to all boards

3. Development Workflow Benefits

• Cross-Compilation: Build on host, test on board without file transfer
• Source Code Access: Edit code on host, compile and run on board via NFS
• Debugging: Attach debuggers without worrying about storage constraints
• Backup and Recovery: NFS rootfs can be versioned and backed up easily

Network Boot Architecture

Configuration

Network Settings (configurable in conf/local.conf):

# TFTP/NFS Server IP (development host)
NFS_SERVER = "172.20.1.1"

# Board IP address
BOARD_IP = "172.20.1.2"

# Network configuration
BOARD_GATEWAY = "172.20.1.1"
BOARD_NETMASK = "255.255.255.0"

# NFS root directory
NFS_ROOT = "/nfsroot"

U-Boot Boot Command (configured in device tree overlay):

bootcmd_tftp = "setenv serverip 172.20.1.1; \
                setenv ipaddr 172.20.1.2; \
                tftpboot 0x10000000 image.ub; \
                bootm 0x10000000"

Kernel Boot Arguments (from device tree overlay):

bootargs = "earlycon console=ttyPS1,115200 clk_ignore_unused \
            root=/dev/nfs rw \
            nfsroot=172.20.1.1:/nfsroot,tcp,vers=3,timeo=14 \
            ip=172.20.1.2::172.20.1.1:255.255.255.0:Xilinx-KR260:eth0:off \
            cma=900M \
            uio_pdrv_genirq.of_id=generic-uio"

Setting Up TFTP and NFS Servers

TFTP Server Setup (Ubuntu):

# Install TFTP server
sudo apt-get install tftpd-hpa

# Configure TFTP directory
sudo mkdir -p /tftpboot
sudo chmod 777 /tftpboot

# Install kernel image
sudo cp build/tmp-glibc/deploy/images/k26-smk-kr-sdt/image.ub /tftpboot/

NFS Server Setup (Ubuntu):

# Install NFS server
sudo apt-get install nfs-kernel-server

# Create NFS root directory
sudo mkdir -p /nfsroot

# Extract rootfs
sudo tar -xzf build/tmp-glibc/deploy/images/k26-smk-kr-sdt/kria-image-kr260-k26-smk-kr-sdt.rootfs.tar.gz -C /nfsroot

# Configure NFS exports
echo "/nfsroot *(rw,sync,no_subtree_check,no_root_squash)" | sudo tee -a /etc/exports

# Restart NFS server
sudo systemctl restart nfs-kernel-server

Automated Installation (using Makefile):

# Install kernel to TFTP
make install-kernel

# Install rootfs to NFS
make install-rootfs

Performance Considerations

• Network Speed: Gigabit Ethernet provides ~100 MB/s, sufficient for most development tasks
• NFS Version: Using NFSv3 (TCP) for reliability and compatibility
• Caching: Linux kernel caches NFS filesystem operations for improved performance
• Latency: Network latency is negligible for typical development workflows

Root Filesystem Features

Core Components

1. PYNQ 3.1.2 Runtime

PYNQ (Python Productivity for Zynq) provides a Python interface to the programmable logic:

# Example: Loading a bitstream and controlling hardware
from pynq import Overlay
overlay = Overlay("led_control.bit")
led_ctrl = overlay.led_control
led_ctrl.write(0x01, 0xFF)  # Turn on all LEDs

Benefits:

• Rapid Prototyping: Test FPGA designs without C/C++ compilation
• Interactive Development: Jupyter Notebooks provide immediate feedback
• Python Ecosystem: Leverage NumPy, Matplotlib, Pandas for data analysis
• Educational: Lower barrier to entry for FPGA development

2. XRT (Xilinx Runtime) and ZOCL

XRT provides the runtime infrastructure for FPGA acceleration:

• OpenCL Support: ZOCL (Zynq OpenCL) enables OpenCL kernels on the FPGA
• Device Management: /dev/dri/renderD128 for GPU/FPGA rendering
• Memory Management: CMA (Contiguous Memory Allocator) with 900MB reserved
• Bitstream Loading: Dynamic bitstream loading via XRT APIs

3. Jupyter Notebook Server

Pre-configured Jupyter server for interactive FPGA development:

• Port: 9090 (configurable)
• Authentication: Password-protected (xilinx/xilinx)
• Notebook Directory: /home/xilinx/Notebook
• Auto-start: Enabled via systemd service

Access:

http://172.20.1.2:9090

4. Remoteproc Support

Linux remoteproc framework enables APU to manage RPU firmware:

# List available remoteproc devices
ls /sys/class/remoteproc/

# Load and start RPU firmware
echo firmware.elf > /sys/class/remoteproc/remoteproc0/firmware
echo start > /sys/class/remoteproc/remoteproc0/state

# Stop RPU
echo stop > /sys/class/remoteproc/remoteproc0/state

Device Tree Configuration:

• R5F cluster in split mode (independent cores)
• 32MB reserved memory region for firmware loading
• IPI channels for APU-RPU communication

5. UIO (Userspace I/O) Drivers

UIO enables direct hardware access from userspace:

// Example: Accessing PL registers via UIO
int fd = open("/dev/uio0", O_RDWR);
void *ptr = mmap(NULL, 0x10000, PROT_READ|PROT_WRITE, MAP_SHARED, fd, 0);
uint32_t *reg = (uint32_t *)(ptr + 0x00);
*reg = 0x12345678;  // Write to PL register

Configured Devices:

• PL fabric registers (fabric@A0000000)
• Shared memory regions (APU-RPU, PL-RPU)
• IPI channels for inter-processor communication
• AXI interrupt controller

6. Development Tools

Python Development:

• Python 3.11+ with development headers
• pip, setuptools, wheel for package management
• Scientific stack: NumPy, Matplotlib, Pandas, Pillow

System Utilities:

• vim, nano for text editing
• htop for system monitoring
• net-tools, iputils for network debugging
• e2fsprogs for filesystem management

Network Tools:

• SSH server (OpenSSH) for remote access
• tcpdump for packet capture
• iptables for firewall configuration

7. gRPC and Protocol Buffers

For distributed systems and microservices:

# Example: gRPC service for remote FPGA control
import grpc
from proto import fpga_control_pb2_grpc

channel = grpc.insecure_channel('192.168.1.100:50051')
stub = fpga_control_pb2_grpc.FPGAControlStub(channel)
response = stub.LoadBitstream(fpga_control_pb2.BitstreamRequest(path='/path/to/bitstream.bit'))

8. Libmetal and OpenAMP

For shared-memory communication between APU, RPU, and PL:

• Libmetal: Low-level shared memory and messaging APIs
• OpenAMP: Remote processor management framework
• RPMsg: Remote processor messaging protocol

System Configuration

Default User:

• Username: xilinx
• Password: xilinx
• UID/GID: 1000/1000
• Sudo privileges: Enabled
• Home directory: /home/xilinx

Hostname:Xilinx-KR260

Init System: systemd (replaces SysV init)

Environment Variables:

XILINX_XRT=/usr
LD_LIBRARY_PATH=$LD_LIBRARY_PATH:/lib/xrt/module/

Device Tree Overlay for Hardware Configuration

The device tree overlay (dts/kr260_overlay.dtso) configures hardware resources for the KR260 platform.

RPU Configuration

rf5ss@ff9a0000 {
    compatible = "xlnx,zynqmp-r5fss";
    xlnx,cluster-mode = <1>;  // Split mode
    xlnx,tcm-mode = <1>;      // Split TCM

    r5f_0: r5f@0 {
        compatible = "xlnx,zynqmp-r5f";
        memory-region = <&rproc_0_reserved>;  // 32MB for firmware
    };
};

Memory Region:

• Base: 0x3ed00000
• Size: 32MB (0x2000000)
• Purpose: Firmware loading and RPU execution

PL Communication Infrastructure

Shared Memory Regions:

• shm0 (0x3ed80000, 16MB): APU-RPU shared memory
• shm1 (0x80010000, 512KB): PL-RPU shared memory (BRAM)

IPI Channels:

• ipi_ch0 (0xff300000): APU-RPU signaling
• ipi_ch7 (0xff340000): IPI with interrupt support (GIC SPI 29)

Message Passing:

• msg0 (0xff990000): APU to RPU0 message interface

PL Overlay Support:

• ploverlay0 (0x80000000): PL overlay control register
• intc0 (0x80001000): AXI interrupt controller for PL interrupts

All devices are exposed as generic-uio for userspace access.

Network Configuration

Ethernet Interface:

• MAC address: 00:0a:35:00:00:00
• Interface renaming: end0 → eth0 (via systemd service)

eMMC Support:

• Controller: mmc@ff160000
• Status: Enabled for standalone boot option

This foundation wasn’t built just for convenience—it unlocks three major follow-up projects:

Vivado LED Control via PYNQ

Build custom PL designs and interact with them instantly in Python/Jupyter.

• Vivado LED Control via PYNQBuild custom PL designs and interact with them instantly in Python/Jupyter.

Vitis FreeRTOS on RPU with Remoteproc

Load, start, and stop real-time firmware directly from Linux.

• Vitis FreeRTOS on RPU with RemoteprocLoad, start, and stop real-time firmware directly from Linux.

Custom Linux Kernel Driver

Expose FPGA hardware to userspace via standard sysfs interfaces.

• Custom Linux Kernel DriverExpose FPGA hardware to userspace via standard sysfs interfaces.

Each of these builds on the same Yocto image, creating a smooth progression from experimentation → real-time control → production-ready drivers.

What started as a desire to “speed things up” ultimately became a full development ecosystem for the KR260: fast to iterate, flexible to extend, and powerful enough for both academic and industrial FPGA workflows.

This is now my standard foundation whenever I begin a new FPGA project—and I hope it helps others build faster, learn deeper, and push the KR260 beyond what comes out-of-the-box.

Resources

• Repository: [GitHub Link]
• Xilinx Kria Documentation: https://xilinx.github.io/kria-apps-docs/
• PYNQ Documentation: https://pynq.readthedocs.io/
• Yocto Project: https://www.yoctoproject.org/

Acknowledgments

Built with:

• Xilinx Tools 2025.2
• Yocto Scarthgap (5.1)
• PYNQ 3.1.2
• XRT (Xilinx Runtime)
• meta-kria laye
