Monitoring Dump

The project helps to look after landfills, where all of our garbage generally goes.

IntermediateFull instructions provided5 hours1,032
Monitoring Dump

Things used in this project

Hardware components

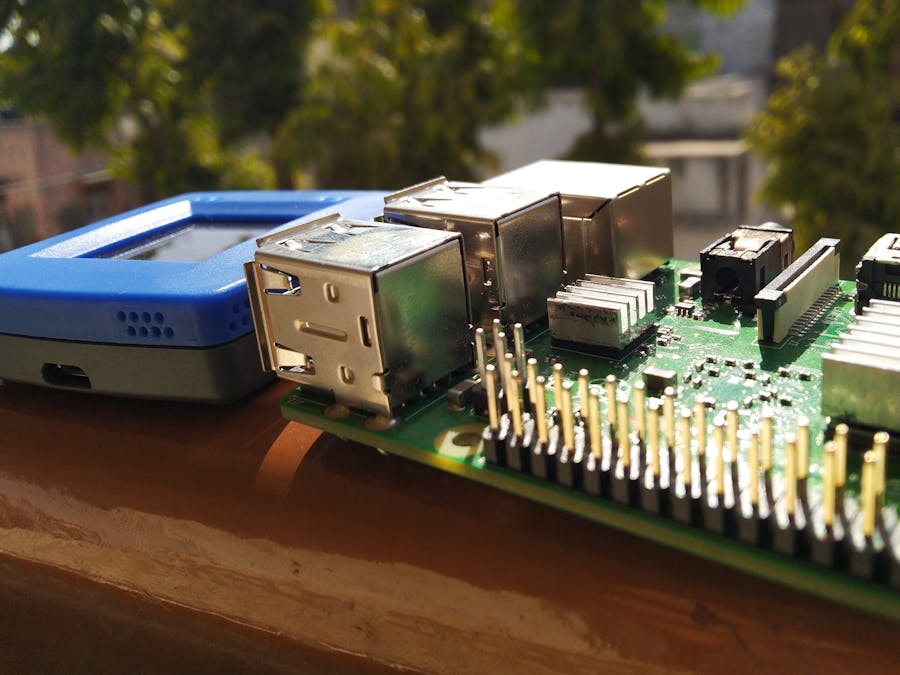

Rapid IoT Prototyping Kit
NXP Rapid IoT Prototyping Kit
A single package with a lot of sensors and more.
×1
Raspberry Pi 3 Model B+
Raspberry Pi 3 Model B+
RPi 3A+ will also do or any other BLE device. It connects to Rapid IOT via BLE and takes and manages the data.
×1

Software apps and online services

NXP Rapid IOT Online Studio (IDE)
Programming the Rapid IOT
Node-RED
Node-RED
Controlling flow of data.
InfluxDB
Data storage. The best alternative to boring SQL
Grafana
For displaying data and easily showing of previous history, The open platform for beautiful analytics and monitoring

Story

Read more

Schematics

Schematic?

There is no need for any physical connection!

GUI Code

for NXP Rapid IOT Kit
.
Full form

Code

Rapid IOT code

Plain text
In Atmo language.
Just add it into your project on Online/Offline IDE
#include "callbacks.h"

//HEADER START

//HEADER END

void ATMO_Setup() {


}


ATMO_Status_t getHPa_trigger(ATMO_Value_t *in, ATMO_Value_t *out) {
	unsigned int temp = 0;
	ATMO_GetUnsignedInt(in, &temp);
	ATMO_CreateValueUnsignedInt(out, temp/100);
	return ATMO_Status_Success;
}


ATMO_Status_t FastInterval_trigger(ATMO_Value_t *in, ATMO_Value_t *out) {
	return ATMO_Status_Success;
}


ATMO_Status_t FastInterval_setup(ATMO_Value_t *in, ATMO_Value_t *out) {

	ATMO_INTERVAL_Handle_t intervalHandle;
    ATMO_INTERVAL_AddAbilityInterval(
		ATMO_PROPERTY(FastInterval, instance),
		ATMO_ABILITY(FastInterval, interval),
		ATMO_PROPERTY(FastInterval, time),
		&intervalHandle
	);

	return ATMO_Status_Success;

}


ATMO_Status_t FastInterval_interval(ATMO_Value_t *in, ATMO_Value_t *out) {
	return ATMO_Status_Success;
}


ATMO_Status_t TempChar_trigger(ATMO_Value_t *in, ATMO_Value_t *out) {
	return ATMO_Status_Success;
}


ATMO_Status_t TempChar_setup(ATMO_Value_t *in, ATMO_Value_t *out) {

	ATMO_BLE_GATTSAddService(
		ATMO_PROPERTY(TempChar, instance),
		&ATMO_VARIABLE(TempChar, bleServiceHandle),
		ATMO_PROPERTY(TempChar, bleServiceUuid));

	uint8_t property = 0;
	uint8_t permission = 0;

	property |= ATMO_PROPERTY(TempChar, read) ? ATMO_BLE_Property_Read : 0;
	property |= ATMO_PROPERTY(TempChar, write) ? ATMO_BLE_Property_Write : 0;
	property |= ATMO_PROPERTY(TempChar, notify) ? ATMO_BLE_Property_Notify : 0;

	permission |= ATMO_PROPERTY(TempChar, read) ? ATMO_BLE_Permission_Read : 0;
	permission |= ATMO_PROPERTY(TempChar, write) ? ATMO_BLE_Permission_Write : 0;

	ATMO_DATATYPE types[3] = {ATMO_PROPERTY(TempChar, writeDataType), ATMO_PROPERTY(TempChar, readDataType), ATMO_PROPERTY(TempChar, notifyDataType)};

	ATMO_BLE_GATTSAddCharacteristic(
		ATMO_PROPERTY(TempChar, instance),
		&ATMO_VARIABLE(TempChar, bleCharacteristicHandle),
		ATMO_VARIABLE(TempChar, bleServiceHandle),
		ATMO_PROPERTY(TempChar, bleCharacteristicUuid),
		property, permission, ATMO_GetMaxValueSize(3, 64, types));

	ATMO_BLE_GATTSRegisterCharacteristicAbilityHandle(
		ATMO_PROPERTY(TempChar, instance),
		ATMO_VARIABLE(TempChar, bleCharacteristicHandle),
		ATMO_BLE_Characteristic_Written,
		ATMO_ABILITY(TempChar, written));

	return ATMO_Status_Success;

}


ATMO_Status_t TempChar_setValue(ATMO_Value_t *in, ATMO_Value_t *out) {


	// Convert to the desired write data type
	ATMO_Value_t convertedValue;
	ATMO_InitValue(&convertedValue);
	ATMO_CreateValueConverted(&convertedValue, ATMO_PROPERTY(TempChar, readDataType), in);

	ATMO_BLE_GATTSSetCharacteristic(
		ATMO_PROPERTY(TempChar, instance),
		ATMO_VARIABLE(TempChar, bleCharacteristicHandle),
		convertedValue.size,
		(uint8_t *)convertedValue.data,
		NULL);

	ATMO_FreeValue(&convertedValue);

	return ATMO_Status_Success;

}


ATMO_Status_t TempChar_written(ATMO_Value_t *in, ATMO_Value_t *out) {

	ATMO_CreateValueConverted(out, ATMO_PROPERTY(TempChar, writeDataType), in);
	return ATMO_Status_Success;

}


ATMO_Status_t TempChar_subscibed(ATMO_Value_t *in, ATMO_Value_t *out) {
	return ATMO_Status_Success;
}


ATMO_Status_t TempChar_unsubscribed(ATMO_Value_t *in, ATMO_Value_t *out) {
	return ATMO_Status_Success;
}


ATMO_Status_t HumidChar_trigger(ATMO_Value_t *in, ATMO_Value_t *out) {
	return ATMO_Status_Success;
}


ATMO_Status_t HumidChar_setup(ATMO_Value_t *in, ATMO_Value_t *out) {

	ATMO_BLE_GATTSAddService(
		ATMO_PROPERTY(HumidChar, instance),
		&ATMO_VARIABLE(HumidChar, bleServiceHandle),
		ATMO_PROPERTY(HumidChar, bleServiceUuid));

	uint8_t property = 0;
	uint8_t permission = 0;

	property |= ATMO_PROPERTY(HumidChar, read) ? ATMO_BLE_Property_Read : 0;
	property |= ATMO_PROPERTY(HumidChar, write) ? ATMO_BLE_Property_Write : 0;
	property |= ATMO_PROPERTY(HumidChar, notify) ? ATMO_BLE_Property_Notify : 0;

	permission |= ATMO_PROPERTY(HumidChar, read) ? ATMO_BLE_Permission_Read : 0;
	permission |= ATMO_PROPERTY(HumidChar, write) ? ATMO_BLE_Permission_Write : 0;

	ATMO_DATATYPE types[3] = {ATMO_PROPERTY(HumidChar, writeDataType), ATMO_PROPERTY(HumidChar, readDataType), ATMO_PROPERTY(HumidChar, notifyDataType)};

	ATMO_BLE_GATTSAddCharacteristic(
		ATMO_PROPERTY(HumidChar, instance),
		&ATMO_VARIABLE(HumidChar, bleCharacteristicHandle),
		ATMO_VARIABLE(HumidChar, bleServiceHandle),
		ATMO_PROPERTY(HumidChar, bleCharacteristicUuid),
		property, permission, ATMO_GetMaxValueSize(3, 64, types));

	ATMO_BLE_GATTSRegisterCharacteristicAbilityHandle(
		ATMO_PROPERTY(HumidChar, instance),
		ATMO_VARIABLE(HumidChar, bleCharacteristicHandle),
		ATMO_BLE_Characteristic_Written,
		ATMO_ABILITY(HumidChar, written));

	return ATMO_Status_Success;

}


ATMO_Status_t HumidChar_setValue(ATMO_Value_t *in, ATMO_Value_t *out) {


	// Convert to the desired write data type
	ATMO_Value_t convertedValue;
	ATMO_InitValue(&convertedValue);
	ATMO_CreateValueConverted(&convertedValue, ATMO_PROPERTY(HumidChar, readDataType), in);

	ATMO_BLE_GATTSSetCharacteristic(
		ATMO_PROPERTY(HumidChar, instance),
		ATMO_VARIABLE(HumidChar, bleCharacteristicHandle),
		convertedValue.size,
		(uint8_t *)convertedValue.data,
		NULL);

	ATMO_FreeValue(&convertedValue);

	return ATMO_Status_Success;

}


ATMO_Status_t HumidChar_written(ATMO_Value_t *in, ATMO_Value_t *out) {

	ATMO_CreateValueConverted(out, ATMO_PROPERTY(HumidChar, writeDataType), in);
	return ATMO_Status_Success;

}


ATMO_Status_t HumidChar_subscibed(ATMO_Value_t *in, ATMO_Value_t *out) {
	return ATMO_Status_Success;
}


ATMO_Status_t HumidChar_unsubscribed(ATMO_Value_t *in, ATMO_Value_t *out) {
	return ATMO_Status_Success;
}


ATMO_Status_t LightChar_trigger(ATMO_Value_t *in, ATMO_Value_t *out) {
	return ATMO_Status_Success;
}


ATMO_Status_t LightChar_setup(ATMO_Value_t *in, ATMO_Value_t *out) {

	ATMO_BLE_GATTSAddService(
		ATMO_PROPERTY(LightChar, instance),
		&ATMO_VARIABLE(LightChar, bleServiceHandle),
		ATMO_PROPERTY(LightChar, bleServiceUuid));

	uint8_t property = 0;
	uint8_t permission = 0;

	property |= ATMO_PROPERTY(LightChar, read) ? ATMO_BLE_Property_Read : 0;
	property |= ATMO_PROPERTY(LightChar, write) ? ATMO_BLE_Property_Write : 0;
	property |= ATMO_PROPERTY(LightChar, notify) ? ATMO_BLE_Property_Notify : 0;

	permission |= ATMO_PROPERTY(LightChar, read) ? ATMO_BLE_Permission_Read : 0;
	permission |= ATMO_PROPERTY(LightChar, write) ? ATMO_BLE_Permission_Write : 0;

	ATMO_DATATYPE types[3] = {ATMO_PROPERTY(LightChar, writeDataType), ATMO_PROPERTY(LightChar, readDataType), ATMO_PROPERTY(LightChar, notifyDataType)};

	ATMO_BLE_GATTSAddCharacteristic(
		ATMO_PROPERTY(LightChar, instance),
		&ATMO_VARIABLE(LightChar, bleCharacteristicHandle),
		ATMO_VARIABLE(LightChar, bleServiceHandle),
		ATMO_PROPERTY(LightChar, bleCharacteristicUuid),
		property, permission, ATMO_GetMaxValueSize(3, 64, types));

	ATMO_BLE_GATTSRegisterCharacteristicAbilityHandle(
		ATMO_PROPERTY(LightChar, instance),
		ATMO_VARIABLE(LightChar, bleCharacteristicHandle),
		ATMO_BLE_Characteristic_Written,
		ATMO_ABILITY(LightChar, written));

	return ATMO_Status_Success;

}


ATMO_Status_t LightChar_setValue(ATMO_Value_t *in, ATMO_Value_t *out) {


	// Convert to the desired write data type
	ATMO_Value_t convertedValue;
	ATMO_InitValue(&convertedValue);
	ATMO_CreateValueConverted(&convertedValue, ATMO_PROPERTY(LightChar, readDataType), in);

	ATMO_BLE_GATTSSetCharacteristic(
		ATMO_PROPERTY(LightChar, instance),
		ATMO_VARIABLE(LightChar, bleCharacteristicHandle),
		convertedValue.size,
		(uint8_t *)convertedValue.data,
		NULL);

	ATMO_FreeValue(&convertedValue);

	return ATMO_Status_Success;

}


ATMO_Status_t LightChar_written(ATMO_Value_t *in, ATMO_Value_t *out) {

	ATMO_CreateValueConverted(out, ATMO_PROPERTY(LightChar, writeDataType), in);
	return ATMO_Status_Success;

}


ATMO_Status_t LightChar_subscibed(ATMO_Value_t *in, ATMO_Value_t *out) {
	return ATMO_Status_Success;
}


ATMO_Status_t LightChar_unsubscribed(ATMO_Value_t *in, ATMO_Value_t *out) {
	return ATMO_Status_Success;
}


ATMO_Status_t PressureChar_trigger(ATMO_Value_t *in, ATMO_Value_t *out) {
	return ATMO_Status_Success;
}


ATMO_Status_t PressureChar_setup(ATMO_Value_t *in, ATMO_Value_t *out) {

	ATMO_BLE_GATTSAddService(
		ATMO_PROPERTY(PressureChar, instance),
		&ATMO_VARIABLE(PressureChar, bleServiceHandle),
		ATMO_PROPERTY(PressureChar, bleServiceUuid));

	uint8_t property = 0;
	uint8_t permission = 0;

	property |= ATMO_PROPERTY(PressureChar, read) ? ATMO_BLE_Property_Read : 0;
	property |= ATMO_PROPERTY(PressureChar, write) ? ATMO_BLE_Property_Write : 0;
	property |= ATMO_PROPERTY(PressureChar, notify) ? ATMO_BLE_Property_Notify : 0;

	permission |= ATMO_PROPERTY(PressureChar, read) ? ATMO_BLE_Permission_Read : 0;
	permission |= ATMO_PROPERTY(PressureChar, write) ? ATMO_BLE_Permission_Write : 0;

	ATMO_DATATYPE types[3] = {ATMO_PROPERTY(PressureChar, writeDataType), ATMO_PROPERTY(PressureChar, readDataType), ATMO_PROPERTY(PressureChar, notifyDataType)};

	ATMO_BLE_GATTSAddCharacteristic(
		ATMO_PROPERTY(PressureChar, instance),
		&ATMO_VARIABLE(PressureChar, bleCharacteristicHandle),
		ATMO_VARIABLE(PressureChar, bleServiceHandle),
		ATMO_PROPERTY(PressureChar, bleCharacteristicUuid),
		property, permission, ATMO_GetMaxValueSize(3, 64, types));

	ATMO_BLE_GATTSRegisterCharacteristicAbilityHandle(
		ATMO_PROPERTY(PressureChar, instance),
		ATMO_VARIABLE(PressureChar, bleCharacteristicHandle),
		ATMO_BLE_Characteristic_Written,
		ATMO_ABILITY(PressureChar, written));

	return ATMO_Status_Success;

}


ATMO_Status_t PressureChar_setValue(ATMO_Value_t *in, ATMO_Value_t *out) {


	// Convert to the desired write data type
	ATMO_Value_t convertedValue;
	ATMO_InitValue(&convertedValue);
	ATMO_CreateValueConverted(&convertedValue, ATMO_PROPERTY(PressureChar, readDataType), in);

	ATMO_BLE_GATTSSetCharacteristic(
		ATMO_PROPERTY(PressureChar, instance),
		ATMO_VARIABLE(PressureChar, bleCharacteristicHandle),
		convertedValue.size,
		(uint8_t *)convertedValue.data,
		NULL);

	ATMO_FreeValue(&convertedValue);

	return ATMO_Status_Success;

}


ATMO_Status_t PressureChar_written(ATMO_Value_t *in, ATMO_Value_t *out) {

	ATMO_CreateValueConverted(out, ATMO_PROPERTY(PressureChar, writeDataType), in);
	return ATMO_Status_Success;

}


ATMO_Status_t PressureChar_subscibed(ATMO_Value_t *in, ATMO_Value_t *out) {
	return ATMO_Status_Success;
}


ATMO_Status_t PressureChar_unsubscribed(ATMO_Value_t *in, ATMO_Value_t *out) {
	return ATMO_Status_Success;
}


ATMO_Status_t VOC_trigger(ATMO_Value_t *in, ATMO_Value_t *out) {
	return ATMO_Status_Success;
}


ATMO_Status_t VOC_setup(ATMO_Value_t *in, ATMO_Value_t *out) {

	ATMO_BLE_GATTSAddService(
		ATMO_PROPERTY(VOC, instance),
		&ATMO_VARIABLE(VOC, bleServiceHandle),
		ATMO_PROPERTY(VOC, bleServiceUuid));

	uint8_t property = 0;
	uint8_t permission = 0;

	property |= ATMO_PROPERTY(VOC, read) ? ATMO_BLE_Property_Read : 0;
	property |= ATMO_PROPERTY(VOC, write) ? ATMO_BLE_Property_Write : 0;
	property |= ATMO_PROPERTY(VOC, notify) ? ATMO_BLE_Property_Notify : 0;

	permission |= ATMO_PROPERTY(VOC, read) ? ATMO_BLE_Permission_Read : 0;
	permission |= ATMO_PROPERTY(VOC, write) ? ATMO_BLE_Permission_Write : 0;

	ATMO_DATATYPE types[3] = {ATMO_PROPERTY(VOC, writeDataType), ATMO_PROPERTY(VOC, readDataType), ATMO_PROPERTY(VOC, notifyDataType)};

	ATMO_BLE_GATTSAddCharacteristic(
		ATMO_PROPERTY(VOC, instance),
		&ATMO_VARIABLE(VOC, bleCharacteristicHandle),
		ATMO_VARIABLE(VOC, bleServiceHandle),
		ATMO_PROPERTY(VOC, bleCharacteristicUuid),
		property, permission, ATMO_GetMaxValueSize(3, 64, types));

	ATMO_BLE_GATTSRegisterCharacteristicAbilityHandle(
		ATMO_PROPERTY(VOC, instance),
		ATMO_VARIABLE(VOC, bleCharacteristicHandle),
		ATMO_BLE_Characteristic_Written,
		ATMO_ABILITY(VOC, written));

	return ATMO_Status_Success;

}


ATMO_Status_t VOC_setValue(ATMO_Value_t *in, ATMO_Value_t *out) {


	// Convert to the desired write data type
	ATMO_Value_t convertedValue;
	ATMO_InitValue(&convertedValue);
	ATMO_CreateValueConverted(&convertedValue, ATMO_PROPERTY(VOC, readDataType), in);

	ATMO_BLE_GATTSSetCharacteristic(
		ATMO_PROPERTY(VOC, instance),
		ATMO_VARIABLE(VOC, bleCharacteristicHandle),
		convertedValue.size,
		(uint8_t *)convertedValue.data,
		NULL);

	ATMO_FreeValue(&convertedValue);

	return ATMO_Status_Success;

}


ATMO_Status_t VOC_written(ATMO_Value_t *in, ATMO_Value_t *out) {

	ATMO_CreateValueConverted(out, ATMO_PROPERTY(VOC, writeDataType), in);
	return ATMO_Status_Success;

}


ATMO_Status_t VOC_subscibed(ATMO_Value_t *in, ATMO_Value_t *out) {
	return ATMO_Status_Success;
}


ATMO_Status_t VOC_unsubscribed(ATMO_Value_t *in, ATMO_Value_t *out) {
	return ATMO_Status_Success;
}


ATMO_Status_t MPL3115Pressure_trigger(ATMO_Value_t *in, ATMO_Value_t *out) {
	return ATMO_Status_Success;
}


ATMO_Status_t MPL3115Pressure_setup(ATMO_Value_t *in, ATMO_Value_t *out) {
	ATMO_MPL3115_Config_t config;
	config.address = ATMO_PROPERTY(MPL3115Pressure, i2cAddress);
	config.i2cDriverInstance = ATMO_PROPERTY(MPL3115Pressure, i2cInstance);
	config.MPLsettings.mode = MPL_MODE_PRESSURE;
	config.MPLsettings.oversample = MPL_OS_0;			// oversampling = 1
	config.MPLsettings.autoAcquisitionTime = MPL_ST_0;	// Auto acquisition time = 1s
	config.MPLsettings.pressureOffset = ATMO_PROPERTY(MPL3115Pressure, pressureOffset);	// Offset pressure correction = 4*-128 = -512Pa (8 bits signed integer)
	config.MPLsettings.altitudeOffset = ATMO_PROPERTY(MPL3115Pressure, altitudeOffset);	// Offset altitude correction = 128m (signed 8 bits integer)
	config.MPLsettings.tempOffset = ATMO_PROPERTY(MPL3115Pressure, tempOffset);			// Offset temperature correction -8°C (0.0625°C/LSB)
	config.MPLsettings.fifoMode = FIFO_DISABLED;		// FIFO mode disabled
	config.MPLsettings.fifoWatermark = 5;				// 6 bits to set the number of FIFO samples required to trigger a watermark interrupt.
	config.MPLsettings.fifoINTpin = FIFO_INT1;			// set pin INT1 as output for FIFO interrupt

	return ( ATMO_MPL3115_Init(&config) == ATMO_MPL3115_Status_Success ) ? ATMO_Status_Success : ATMO_Status_Fail;

}


ATMO_Status_t MPL3115Pressure_setEnabled(ATMO_Value_t *in, ATMO_Value_t *out) {
ATMO_MPL3115_SetEnabled(true);
return ATMO_Status_Success;
}


ATMO_Status_t MPL3115Pressure_setDisabled(ATMO_Value_t *in, ATMO_Value_t *out) {
ATMO_MPL3115_SetEnabled(false);
return ATMO_Status_Success;
}


ATMO_Status_t MPL3115Pressure_setEnabledDisabled(ATMO_Value_t *in, ATMO_Value_t *out) {
bool enabled = false;
ATMO_GetBool(in, &enabled);
ATMO_MPL3115_SetEnabled(enabled);
return ATMO_Status_Success;
}


ATMO_Status_t MPL3115Pressure_readAltitude(ATMO_Value_t *in, ATMO_Value_t *out) {
    uint32_t altitudeMeters;
    if(ATMO_MPL3115_GetAltitude(&altitudeMeters) != ATMO_MPL3115_Status_Success)
    {
        ATMO_CreateValueVoid(out);
        return ATMO_Status_Fail;
    }
    ATMO_CreateValueInt(out, (int)altitudeMeters);
    return ATMO_Status_Success;
}


ATMO_Status_t MPL3115Pressure_readPressure(ATMO_Value_t *in, ATMO_Value_t *out) {
    uint32_t pressurePa;
    if(ATMO_MPL3115_GetPressure(&pressurePa) != ATMO_MPL3115_Status_Success)
    {
        ATMO_CreateValueVoid(out);
        return ATMO_Status_Fail;
    }
    ATMO_CreateValueInt(out, (int)pressurePa);
    return ATMO_Status_Success;
}


ATMO_Status_t MPL3115Pressure_readPressureKpa(ATMO_Value_t *in, ATMO_Value_t *out) {
    uint32_t pressurePa;
    if(ATMO_MPL3115_GetPressure(&pressurePa) != ATMO_MPL3115_Status_Success)
    {
        ATMO_CreateValueVoid(out);
        return ATMO_Status_Fail;
    }
    ATMO_CreateValueInt(out, (int)(pressurePa/1000));
    return ATMO_Status_Success;
}


ATMO_Status_t TSL2572AmbientLight_trigger(ATMO_Value_t *in, ATMO_Value_t *out) {
	return ATMO_Status_Success;
}


ATMO_Status_t TSL2572AmbientLight_setup(ATMO_Value_t *in, ATMO_Value_t *out) {
	ATMO_TSL2572_Config_t config;
	config.address = ATMO_PROPERTY(TSL2572AmbientLight, i2cAddress);
	config.i2cDriverInstance = ATMO_PROPERTY(TSL2572AmbientLight, i2cInstance);

	return ( ATMO_TSL2572_Init(&config) == ATMO_TSL2572_Status_Success ) ? ATMO_Status_Success : ATMO_Status_Fail;

}


ATMO_Status_t TSL2572AmbientLight_setEnabled(ATMO_Value_t *in, ATMO_Value_t *out) {
ATMO_TSL2572_SetEnabled(true);
return ATMO_Status_Success;
}


ATMO_Status_t TSL2572AmbientLight_setDisabled(ATMO_Value_t *in, ATMO_Value_t *out) {
ATMO_TSL2572_SetEnabled(false);
return ATMO_Status_Success;
}


ATMO_Status_t TSL2572AmbientLight_setEnabledDisabled(ATMO_Value_t *in, ATMO_Value_t *out) {
bool enabled = false;
ATMO_GetBool(in, &enabled);
ATMO_TSL2572_SetEnabled(enabled);
return ATMO_Status_Success;
}


ATMO_Status_t TSL2572AmbientLight_readAmbientLight(ATMO_Value_t *in, ATMO_Value_t *out) {
    float lightLux;
    if(ATMO_TSL2572_GetAmbientLight(&lightLux) != ATMO_TSL2572_Status_Success)
    {
        ATMO_CreateValueVoid(out);
        return ATMO_Status_Fail;
    }
    ATMO_CreateValueInt(out, (int)lightLux);
    return ATMO_Status_Success;
}


ATMO_Status_t CCS811AirQuality_trigger(ATMO_Value_t *in, ATMO_Value_t *out) {
	return ATMO_Status_Success;
}


ATMO_Status_t CCS811AirQuality_setup(ATMO_Value_t *in, ATMO_Value_t *out) {
	ATMO_CCS811_Config_t config;
	config.operatingMode = ATMO_PROPERTY(CCS811AirQuality, operatingMode);
	config.address = ATMO_PROPERTY(CCS811AirQuality, i2cAddress);
	config.i2cDriverInstance = ATMO_PROPERTY(CCS811AirQuality, i2cInstance);

	return ( ATMO_CCS811_Init(&config) == ATMO_CCS811_Status_Success ) ? ATMO_Status_Success : ATMO_Status_Fail;

}


ATMO_Status_t CCS811AirQuality_setEnabled(ATMO_Value_t *in, ATMO_Value_t *out) {
ATMO_CCS811_SetEnabled(true);
return ATMO_Status_Success;
}


ATMO_Status_t CCS811AirQuality_setDisabled(ATMO_Value_t *in, ATMO_Value_t *out) {
ATMO_CCS811_SetEnabled(false);
return ATMO_Status_Success;
}


ATMO_Status_t CCS811AirQuality_setEnabledDisabled(ATMO_Value_t *in, ATMO_Value_t *out) {
bool enabled = false;
ATMO_GetBool(in, &enabled);
ATMO_CCS811_SetEnabled(enabled);
return ATMO_Status_Success;
}


ATMO_Status_t CCS811AirQuality_readTVOC(ATMO_Value_t *in, ATMO_Value_t *out) {
    uint16_t tvoc;

    if(ATMO_CCS811_GetTVOC(&tvoc) == ATMO_CCS811_Status_Success)
    {
        ATMO_CreateValueUnsignedInt(out, (unsigned int)tvoc);
    }
    else
    {
        ATMO_CreateValueVoid(out);
    }

    return ATMO_Status_Success;
}


ATMO_Status_t CCS811AirQuality_readCO2(ATMO_Value_t *in, ATMO_Value_t *out) {
    uint16_t co2;

    if(ATMO_CCS811_GetCO2(&co2) == ATMO_CCS811_Status_Success)
    {
        ATMO_CreateValueInt(out, (int)co2);
    }
    else
    {
        ATMO_CreateValueVoid(out);
    }

    return ATMO_Status_Success;
}


ATMO_Status_t Apps_trigger(ATMO_Value_t *in, ATMO_Value_t *out) {
	return ATMO_Status_Success;
}


ATMO_Status_t Apps_displayPage(ATMO_Value_t *in, ATMO_Value_t *out) {

	ATMO_UI_Page_DisplayPageByCoord(ATMO_PROPERTY(Apps, x), ATMO_PROPERTY(Apps, y), false);
	return ATMO_Status_Success;

}


ATMO_Status_t Apps_onDisplayed(ATMO_Value_t *in, ATMO_Value_t *out) {

	return ATMO_Status_Success;

}


ATMO_Status_t Apps_topRightButtonPressed(ATMO_Value_t *in, ATMO_Value_t *out) {

	return ATMO_Status_Success;

}


ATMO_Status_t Apps_bottomRightButtonPressed(ATMO_Value_t *in, ATMO_Value_t *out) {

	return ATMO_Status_Success;

}


ATMO_Status_t Apps_topLeftButtonPressed(ATMO_Value_t *in, ATMO_Value_t *out) {

	return ATMO_Status_Success;

}


ATMO_Status_t Apps_bottomLeftButtonPressed(ATMO_Value_t *in, ATMO_Value_t *out) {

	return ATMO_Status_Success;

}


ATMO_Status_t Apps_setup(ATMO_Value_t *in, ATMO_Value_t *out) {

    ATMO_UI_PAGE_Config_t config;
	config.hidden = ATMO_PROPERTY(Apps, pageHidden);
	config.textColor = ATMO_PROPERTY(Apps, textColor);
    config.activeButtons = ATMO_UI_Page_GetButtonMask(ATMO_PROPERTY(Apps, topRightButtonEnabled),
    ATMO_PROPERTY(Apps,bottomRightButtonEnabled), ATMO_PROPERTY(Apps, topLeftButtonEnabled), ATMO_PROPERTY(Apps, bottomLeftButtonEnabled));
	config.x = ATMO_PROPERTY(Apps, x);
    config.x = ATMO_PROPERTY(Apps, x);
    config.y = ATMO_PROPERTY(Apps, y);
	strncpy(config.topLeftButtonLabel, ATMO_PROPERTY(Apps, topLeftButtonLabel), ATMO_BUTTON_LABEL_MAXLEN);
	strncpy(config.topRightButtonLabel, ATMO_PROPERTY(Apps, topRightButtonLabel), ATMO_BUTTON_LABEL_MAXLEN);
	strncpy(config.bottomLeftButtonLabel, ATMO_PROPERTY(Apps, bottomLeftButtonLabel), ATMO_BUTTON_LABEL_MAXLEN);
	strncpy(config.bottomRightButtonLabel, ATMO_PROPERTY(Apps, bottomRightButtonLabel), ATMO_BUTTON_LABEL_MAXLEN);
    config.spanX = ATMO_PROPERTY(Apps, spanX);
	config.spanY = ATMO_PROPERTY(Apps, spanY);
    config.title = ATMO_PROPERTY(Apps, pageTitle);
    config.titleHidden = ATMO_PROPERTY(Apps, titleHidden);
	ATMO_UI_SINGLEICONTEXT_Init(&config);
	ATMO_VARIABLE(Apps, pageHandle) = config.templateInstance;
    ATMO_UI_SINGLEICONTEXT_SetMainText(config.templateInstance, ATMO_PROPERTY(Apps, label));
    ATMO_UI_SINGLEICONTEXT_SetIcon(config.templateInstance, ATMO_PROPERTY(Apps, icon));
    ATMO_UI_SINGLEICONTEXT_RegisterOnDisplayedAbilityHandle(ATMO_VARIABLE(Apps,pageHandle), ATMO_ABILITY(Apps, onDisplayed));
    ATMO_UI_SINGLEICONTEXT_RegisterButtonAbilityHandle(ATMO_VARIABLE(Apps,pageHandle), 1, ATMO_ABILITY(Apps, topRightButtonPressed));
	ATMO_UI_SINGLEICONTEXT_RegisterButtonAbilityHandle(ATMO_VARIABLE(Apps,pageHandle), 2, ATMO_ABILITY(Apps, bottomRightButtonPressed));
	ATMO_UI_SINGLEICONTEXT_RegisterButtonAbilityHandle(ATMO_VARIABLE(Apps,pageHandle), 3, ATMO_ABILITY(Apps, topLeftButtonPressed));
    ATMO_UI_SINGLEICONTEXT_RegisterButtonAbilityHandle(ATMO_VARIABLE(Apps,pageHandle), 4, ATMO_ABILITY(Apps, bottomLeftButtonPressed));
    ATMO_UI_SINGLEICONTEXT_RegisterOnLeaveAbilityHandle(config.templateInstance, ATMO_ABILITY(Apps, onLeave));
	return ATMO_Status_Success;

}


ATMO_Status_t Apps_onLeave(ATMO_Value_t *in, ATMO_Value_t *out) {

	return ATMO_Status_Success;

}


ATMO_Status_t Apps_setLabel(ATMO_Value_t *in, ATMO_Value_t *out) {

    char label[32];
    if(ATMO_GetString(in, label, 32) == ATMO_Status_Success)
    {
        ATMO_UI_SINGLEICONTEXT_SetMainText(ATMO_VARIABLE(Apps,pageHandle), label);
    }
    else
    {
        return ATMO_Status_Fail;
    }

    return ATMO_Status_Success;

}


ATMO_Status_t SlowInterval_trigger(ATMO_Value_t *in, ATMO_Value_t *out) {
	return ATMO_Status_Success;
}


ATMO_Status_t SlowInterval_setup(ATMO_Value_t *in, ATMO_Value_t *out) {

	ATMO_INTERVAL_Handle_t intervalHandle;
    ATMO_INTERVAL_AddAbilityInterval(
		ATMO_PROPERTY(SlowInterval, instance),
		ATMO_ABILITY(SlowInterval, interval),
		ATMO_PROPERTY(SlowInterval, time),
		&intervalHandle
	);

	return ATMO_Status_Success;

}


ATMO_Status_t SlowInterval_interval(ATMO_Value_t *in, ATMO_Value_t *out) {
	return ATMO_Status_Success;
}


ATMO_Status_t EmbeddedSystemStatusDisplay_trigger(ATMO_Value_t *in, ATMO_Value_t *out) {
	return ATMO_Status_Success;
}


ATMO_Status_t EmbeddedSystemStatusDisplay_displayPage(ATMO_Value_t *in, ATMO_Value_t *out) {

	ATMO_UI_Page_DisplayPageByCoord(ATMO_PROPERTY(EmbeddedSystemStatusDisplay, x), ATMO_PROPERTY(EmbeddedSystemStatusDisplay, y), false);
	return ATMO_Status_Success;

}


ATMO_Status_t EmbeddedSystemStatusDisplay_onDisplayed(ATMO_Value_t *in, ATMO_Value_t *out) {

	return ATMO_Status_Success;

}


ATMO_Status_t EmbeddedSystemStatusDisplay_setup(ATMO_Value_t *in, ATMO_Value_t *out) {

    ATMO_UI_PAGE_Config_t config;
    config.hidden = ATMO_PROPERTY(EmbeddedSystemStatusDisplay, pageHidden);
    config.activeButtons = ATMO_UI_Page_GetButtonMask(ATMO_PROPERTY(EmbeddedSystemStatusDisplay, topRightButtonEnabled),
    ATMO_PROPERTY(EmbeddedSystemStatusDisplay,bottomRightButtonEnabled), ATMO_PROPERTY(EmbeddedSystemStatusDisplay, topLeftButtonEnabled), ATMO_PROPERTY(EmbeddedSystemStatusDisplay, bottomLeftButtonEnabled));
    config.x = ATMO_PROPERTY(EmbeddedSystemStatusDisplay, x);
    config.y = ATMO_PROPERTY(EmbeddedSystemStatusDisplay, y);
	strncpy(config.topLeftButtonLabel, ATMO_PROPERTY(EmbeddedSystemStatusDisplay, topLeftButtonLabel), ATMO_BUTTON_LABEL_MAXLEN);
	strncpy(config.topRightButtonLabel, ATMO_PROPERTY(EmbeddedSystemStatusDisplay, topRightButtonLabel), ATMO_BUTTON_LABEL_MAXLEN);
	strncpy(config.bottomLeftButtonLabel, ATMO_PROPERTY(EmbeddedSystemStatusDisplay, bottomLeftButtonLabel), ATMO_BUTTON_LABEL_MAXLEN);
	strncpy(config.bottomRightButtonLabel, ATMO_PROPERTY(EmbeddedSystemStatusDisplay, bottomRightButtonLabel), ATMO_BUTTON_LABEL_MAXLEN);
    config.spanX = ATMO_PROPERTY(EmbeddedSystemStatusDisplay, spanX);
	config.spanY = ATMO_PROPERTY(EmbeddedSystemStatusDisplay, spanY);
    config.title = ATMO_PROPERTY(EmbeddedSystemStatusDisplay, pageTitle);
    config.titleHidden = ATMO_PROPERTY(EmbeddedSystemStatusDisplay, titleHidden);
    ATMO_UI_SYSTEMSTATUS_Init(&config);

}


ATMO_Status_t EmbeddedNxpRpkUserButtons_trigger(ATMO_Value_t *in, ATMO_Value_t *out) {
	return ATMO_Status_Success;
}


ATMO_Status_t EmbeddedNxpRpkUserButtons_setup(ATMO_Value_t *in, ATMO_Value_t *out) {

    ATMO_MK64F_GPIO_EnableResetCombo(ATMO_PROPERTY(EmbeddedNxpRpkUserButtons, enableResetCombo));
    ATMO_MK64F_GPIO_EnableDisplayToggleCombo(ATMO_PROPERTY(EmbeddedNxpRpkUserButtons, enableDisplayToggleCombo));
    ATMO_MK64F_UserButton_RegisterAbilityHandle(ATMO_MK64F_SW1_Pushed, ATMO_ABILITY(EmbeddedNxpRpkUserButtons, topRightPushed));
    ATMO_MK64F_UserButton_RegisterAbilityHandle(ATMO_MK64F_SW2_Pushed, ATMO_ABILITY(EmbeddedNxpRpkUserButtons, bottomRightPushed));
    ATMO_MK64F_UserButton_RegisterAbilityHandle(ATMO_MK64F_SW3_Pushed, ATMO_ABILITY(EmbeddedNxpRpkUserButtons, topLeftPushed));
    ATMO_MK64F_UserButton_RegisterAbilityHandle(ATMO_MK64F_SW4_Pushed, ATMO_ABILITY(EmbeddedNxpRpkUserButtons, bottomLeftPushed));
	return ATMO_Status_Success;

}


ATMO_Status_t EmbeddedNxpRpkUserButtons_topRightPushed(ATMO_Value_t *in, ATMO_Value_t *out) {

	return ATMO_Status_Success;

}


ATMO_Status_t EmbeddedNxpRpkUserButtons_bottomRightPushed(ATMO_Value_t *in, ATMO_Value_t *out) {

	return ATMO_Status_Success;

}


ATMO_Status_t EmbeddedNxpRpkUserButtons_topLeftPushed(ATMO_Value_t *in, ATMO_Value_t *out) {

	return ATMO_Status_Success;

}


ATMO_Status_t EmbeddedNxpRpkUserButtons_bottomLeftPushed(ATMO_Value_t *in, ATMO_Value_t *out) {

	return ATMO_Status_Success;

}


ATMO_Status_t SX9500Touch_trigger(ATMO_Value_t *in, ATMO_Value_t *out) {
	return ATMO_Status_Success;
}


ATMO_Status_t SX9500Touch_setup(ATMO_Value_t *in, ATMO_Value_t *out) {
	ATMO_SX9500_Config_t config;
	config.address = ATMO_PROPERTY(SX9500Touch, i2cAddress);
	config.i2cDriverInstance = ATMO_PROPERTY(SX9500Touch, i2cInstance);
	config.gpioDriverInstance = ATMO_PROPERTY(SX9500Touch, gpioInstance);
	config.interruptEnabled = ATMO_PROPERTY(SX9500Touch, interruptEnabled);
	config.interruptPin = ATMO_PROPERTY(SX9500Touch, interruptGpio);
	ATMO_SX9500_Init(&config);
	ATMO_SX9500_RegisterTouchedAbilityHandle(SX9500_Touched_Up, ATMO_ABILITY(SX9500Touch, pressUp));
	ATMO_SX9500_RegisterTouchedAbilityHandle(SX9500_Touched_Down, ATMO_ABILITY(SX9500Touch, pressDown));
	ATMO_SX9500_RegisterTouchedAbilityHandle(SX9500_Touched_Left, ATMO_ABILITY(SX9500Touch, pressLeft));
	ATMO_SX9500_RegisterTouchedAbilityHandle(SX9500_Touched_Right, ATMO_ABILITY(SX9500Touch, pressRight));
	return ATMO_Status_Success;
}


ATMO_Status_t SX9500Touch_getTouchData(ATMO_Value_t *in, ATMO_Value_t *out) {
	return;
}


ATMO_Status_t SX9500Touch_pressUp(ATMO_Value_t *in, ATMO_Value_t *out) {
SX9500_TouchState_t touchState;
ATMO_GetBinary(in, &touchState, sizeof(touchState));
ATMO_CreateValueBinary(out, &touchState, sizeof(touchState));
return ATMO_Status_Success;
}


ATMO_Status_t SX9500Touch_pressDown(ATMO_Value_t *in, ATMO_Value_t *out) {
SX9500_TouchState_t touchState;
ATMO_GetBinary(in, &touchState, sizeof(touchState));
ATMO_CreateValueBinary(out, &touchState, sizeof(touchState));
return ATMO_Status_Success;
}


ATMO_Status_t SX9500Touch_pressLeft(ATMO_Value_t *in, ATMO_Value_t *out) {
SX9500_TouchState_t touchState;
ATMO_GetBinary(in, &touchState, sizeof(touchState));
ATMO_CreateValueBinary(out, &touchState, sizeof(touchState));
return ATMO_Status_Success;
}


ATMO_Status_t SX9500Touch_pressRight(ATMO_Value_t *in, ATMO_Value_t *out) {
SX9500_TouchState_t touchState;
ATMO_GetBinary(in, &touchState, sizeof(touchState));
ATMO_CreateValueBinary(out, &touchState, sizeof(touchState));
return ATMO_Status_Success;
}


ATMO_Status_t EmbeddedPageController_trigger(ATMO_Value_t *in, ATMO_Value_t *out) {
	return ATMO_Status_Success;
}


ATMO_Status_t EmbeddedPageController_setup(ATMO_Value_t *in, ATMO_Value_t *out) {

	ATMO_UI_PAGE_CONTROLLER_Config_t config;
	config.enableUpDownNavLabels = ATMO_PROPERTY(EmbeddedPageController, upDownNavigationLabelsEnabled);
	config.enableLeftRightNavLabels = ATMO_PROPERTY(EmbeddedPageController, leftRightNavigationLabelsEnabled);
	ATMO_UI_Page_SetConfiguration(&config);
    return ATMO_Status_Success;

}


ATMO_Status_t EmbeddedPageController_displayRootPage(ATMO_Value_t *in, ATMO_Value_t *out) {


	ATMO_UI_Page_DisplayRootPage();
	return ATMO_Status_Success;

}


ATMO_Status_t EmbeddedPageController_navigateUp(ATMO_Value_t *in, ATMO_Value_t *out) {

	ATMO_UI_Page_ProcessNavButton(ATMO_UI_PAGE_NAV_UP);
	return ATMO_Status_Success;

}


ATMO_Status_t EmbeddedPageController_navigateDown(ATMO_Value_t *in, ATMO_Value_t *out) {

	ATMO_UI_Page_ProcessNavButton(ATMO_UI_PAGE_NAV_DOWN);
	return ATMO_Status_Success;

}


ATMO_Status_t EmbeddedPageController_navigateLeft(ATMO_Value_t *in, ATMO_Value_t *out) {

	ATMO_UI_Page_ProcessNavButton(ATMO_UI_PAGE_NAV_LEFT);
	return ATMO_Status_Success;

}


ATMO_Status_t EmbeddedPageController_navigateRight(ATMO_Value_t *in, ATMO_Value_t *out) {

	ATMO_UI_Page_ProcessNavButton(ATMO_UI_PAGE_NAV_RIGHT);
	return ATMO_Status_Success;

}


ATMO_Status_t EmbeddedPageController_processTopRightButton(ATMO_Value_t *in, ATMO_Value_t *out) {

	ATMO_UI_Page_ProcessUserButton(1);
	return ATMO_Status_Success;

}


ATMO_Status_t EmbeddedPageController_processBottomRightButton(ATMO_Value_t *in, ATMO_Value_t *out) {

	ATMO_UI_Page_ProcessUserButton(2);
	return ATMO_Status_Success;

}


ATMO_Status_t EmbeddedPageController_processTopLeftButton(ATMO_Value_t *in, ATMO_Value_t *out) {

...

This file has been truncated, please download it to see its full contents.

Code for RPi

Python
Code to get BLE readings and then send via MQTT.
import sys
import binascii
import struct
import time
from bluepy.btle import UUID, Peripheral
import datetime
import logging
import paho.mqtt.client as paho #mqtt library
#some libraries are also not required


broker="127.0.0.1" #the local device i.e., rpi is the host of MQTT though you can specify IP of any external server.

#define callback
def on_message(client, userdata, message):
    time.sleep(1)
    print("received message =",str(message.payload.decode("utf-8")))


client= paho.Client("client-001")
#create client object client1.on_publish = on_publish
#assign function to callback client1.connect(broker,port)
#establish connection client1.publish("house/bulb1","on")
######Bind function to callback

client.on_message=on_message

deviceID="NXP_1" #giving specific ID to device, so in large area where many are deployed its easy to identify the source of data.

#UUIDs= ID of data. You get them from rapid iot studio.
#Each one are for different fields
service_uuid = UUID("1305b3ca-096e-4366-9f68-1ae8df01f278")
char_light_uuid = UUID("1305b3ca-096e-4366-9f68-1ae8df01f27b")
char_temp_uuid = UUID("1305b3ca-096e-4366-9f68-1ae8df01f279")
char_humid_uuid = UUID("1305b3ca-096e-4366-9f68-1ae8df01f27a")
char_pressure_uuid = UUID("1305b3ca-096e-4366-9f68-1ae8df01f27c")
char_co2_uuid = UUID("bec2f36b-e4c4-455d-90a4-25b0e8c255b5")
char_voc_uuid = UUID("1305b3ca-096e-4366-9f68-1ae8df01f27d")

deviceFrequency=8
#delay of sending the data - 2

#takes input of device adress and if no adress present then logs error
#so that you dont need to run different scripts for different devices and only one will do the job
if len(sys.argv) != 2:
    print("Fatal, must pass device address:", sys.argv[0], "<device address="">")
    quit()

p = Peripheral(sys.argv[1])
print("Connected")

#for service in p.getServices():
#    print(service.uuid)

ButtonService=p.getServiceByUUID(service_uuid)
print("Got service")
try:
	ch_ligth = ButtonService.getCharacteristics(char_light_uuid)[0]
	ch_temp = ButtonService.getCharacteristics(char_temp_uuid)[0]
	ch_humid = ButtonService.getCharacteristics(char_humid_uuid)[0]
	ch_pressure = ButtonService.getCharacteristics(char_pressure_uuid)[0]
	ch_voc = ButtonService.getCharacteristics(char_voc_uuid)[0]
	ch_co2 = ButtonService.getCharacteristics(char_co2_uuid)[0]
  #trying to get and store the data

	print("Got characteristics")
	while 1:
		print("read")
		#parsing and converting the data to useab;e form
		lightVal = str(struct.unpack('<f', ch_ligth.read())[0])
		tempVal = str(struct.unpack('<f', ch_temp.read())[0])
		humidVal = str(struct.unpack('<f', ch_humid.read())[0])
		PressureVal = str(struct.unpack('<f', ch_pressure.read())[0])
		co2Val = str(struct.unpack('<f', ch_co2.read())[0])
		vocVal = str(struct.unpack('<f', ch_voc.read())[0])

    #printing all the values for debugging or else
		print ("Lux: ",lightVal)
		print ("Temp: ",tempVal)
		print ("Humidity: ",humidVal)
		print ("Pressure: ",PressureVal)
		print ("CO2_val: ",co2Val)
		print ("tVOC: ",vocVal)
		###########################################
		print("connecting to broker ",broker) #connecting ot MQTT broker
		client.username_pw_set(username="admin",password="admin") #set the username and password if the broker is secured, which is a must for security
		client.connect(broker)  #connect to the broker
		client.loop_start() #start loop to process received messages
		print("publishing ") #for debugging

		toPublish=deviceID+";"+"LightVal="+lightVal+";"+"Temp="+tempVal+";"+"Humidity="+humidVal+";"+"AP="+PressureVal+";"+"CO2="+co2Val+";"+"VOC="+vocVal
		#taking all the data and making into only one string to make it easier in handeling data from more than one nodes.

		DataToPublish=str(toPublish) #mostly the data is in float and gives error while publishing. So we convert it to string
		client.publish("MD/data",DataToPublish) #publish to given adress
		time.sleep(2) #a delay so that data is sent without any packet loss
		client.disconnect() #disconnect from server
		client.loop_stop() #stop loop
		time.sleep(deviceFrequency) #have more delay in sending next data
finally:
	print("will try again") #if it fails in getting reading then, it publishes messege for debugging and you have to rerun the script.

	#Code by: Vimarsh

Grafana Dashboard

JSON
Use this to not make all the graphs and things manually.
{
  "annotations": {
    "list": [
      {
        "builtIn": 1,
        "datasource": "-- Grafana --",
        "enable": true,
        "hide": true,
        "iconColor": "rgba(0, 211, 255, 1)",
        "name": "Annotations & Alerts",
        "type": "dashboard"
      }
    ]
  },
  "editable": true,
  "gnetId": null,
  "graphTooltip": 0,
  "id": 3,
  "links": [],
  "panels": [
    {
      "aliasColors": {},
      "bars": false,
      "dashLength": 10,
      "dashes": false,
      "datasource": "Monitoring Dump - Project",
      "fill": 1,
      "gridPos": {
        "h": 8,
        "w": 8,
        "x": 0,
        "y": 0
      },
      "id": 11,
      "legend": {
        "alignAsTable": true,
        "avg": true,
        "current": false,
        "max": true,
        "min": true,
        "rightSide": false,
        "show": true,
        "total": false,
        "values": true
      },
      "lines": false,
      "linewidth": 1,
      "links": [],
      "nullPointMode": "null",
      "percentage": false,
      "pointradius": 0.5,
      "points": true,
      "renderer": "flot",
      "seriesOverrides": [],
      "spaceLength": 10,
      "stack": false,
      "steppedLine": false,
      "targets": [
        {
          "alias": "Temperature (C)",
          "groupBy": [
            {
              "params": [
                "$__interval"
              ],
              "type": "time"
            },
            {
              "params": [
                "null"
              ],
              "type": "fill"
            }
          ],
          "measurement": "data",
          "orderByTime": "ASC",
          "policy": "autogen",
          "refId": "A",
          "resultFormat": "time_series",
          "select": [
            [
              {
                "params": [
                  "temp"
                ],
                "type": "field"
              },
              {
                "params": [],
                "type": "mean"
              }
            ]
          ],
          "tags": []
        },
        {
          "alias": "Humidity (%)",
          "groupBy": [
            {
              "params": [
                "$__interval"
              ],
              "type": "time"
            },
            {
              "params": [
                "null"
              ],
              "type": "fill"
            }
          ],
          "measurement": "data",
          "orderByTime": "ASC",
          "policy": "autogen",
          "refId": "B",
          "resultFormat": "time_series",
          "select": [
            [
              {
                "params": [
                  "Humidity"
                ],
                "type": "field"
              },
              {
                "params": [],
                "type": "mean"
              }
            ]
          ],
          "tags": []
        },
        {
          "alias": "Air Pressure (millibars)",
          "groupBy": [
            {
              "params": [
                "$__interval"
              ],
              "type": "time"
            },
            {
              "params": [
                "null"
              ],
              "type": "fill"
            }
          ],
          "measurement": "data",
          "orderByTime": "ASC",
          "policy": "autogen",
          "refId": "C",
          "resultFormat": "time_series",
          "select": [
            [
              {
                "params": [
                  "AP"
                ],
                "type": "field"
              },
              {
                "params": [],
                "type": "mean"
              }
            ]
          ],
          "tags": []
        }
      ],
      "thresholds": [],
      "timeFrom": null,
      "timeShift": null,
      "title": "Weather",
      "tooltip": {
        "shared": true,
        "sort": 0,
        "value_type": "individual"
      },
      "type": "graph",
      "xaxis": {
        "buckets": null,
        "mode": "time",
        "name": null,
        "show": true,
        "values": []
      },
      "yaxes": [
        {
          "decimals": null,
          "format": "none",
          "label": "",
          "logBase": 1,
          "max": null,
          "min": null,
          "show": true
        },
        {
          "format": "humidity",
          "label": "Humidity",
          "logBase": 1,
          "max": "200",
          "min": "0",
          "show": false
        }
      ],
      "yaxis": {
        "align": false,
        "alignLevel": 20
      }
    },
    {
      "aliasColors": {},
      "bars": false,
      "dashLength": 10,
      "dashes": false,
      "datasource": "Monitoring Dump - Project",
      "fill": 1,
      "gridPos": {
        "h": 8,
        "w": 8,
        "x": 8,
        "y": 0
      },
      "id": 9,
      "interval": "",
      "legend": {
        "alignAsTable": false,
        "avg": true,
        "current": false,
        "hideEmpty": true,
        "hideZero": true,
        "max": true,
        "min": true,
        "show": true,
        "total": false,
        "values": true
      },
      "lines": false,
      "linewidth": 1,
      "links": [],
      "nullPointMode": "null",
      "percentage": false,
      "pointradius": 1,
      "points": true,
      "renderer": "flot",
      "seriesOverrides": [],
      "spaceLength": 10,
      "stack": false,
      "steppedLine": false,
      "targets": [
        {
          "alias": "Light (lux)",
          "groupBy": [
            {
              "params": [
                "$__interval"
              ],
              "type": "time"
            },
            {
              "params": [
                "null"
              ],
              "type": "fill"
            }
          ],
          "measurement": "data",
          "orderByTime": "ASC",
          "policy": "autogen",
          "refId": "A",
          "resultFormat": "time_series",
          "select": [
            [
              {
                "params": [
                  "LightVal"
                ],
                "type": "field"
              },
              {
                "params": [],
                "type": "mean"
              }
            ]
          ],
          "tags": []
        }
      ],
      "thresholds": [],
      "timeFrom": null,
      "timeShift": null,
      "title": "Light",
      "tooltip": {
        "shared": true,
        "sort": 0,
        "value_type": "individual"
      },
      "type": "graph",
      "xaxis": {
        "buckets": null,
        "mode": "time",
        "name": null,
        "show": true,
        "values": []
      },
      "yaxes": [
        {
          "format": "lumens",
          "label": null,
          "logBase": 1,
          "max": null,
          "min": null,
          "show": true
        },
        {
          "format": "short",
          "label": null,
          "logBase": 1,
          "max": null,
          "min": null,
          "show": true
        }
      ],
      "yaxis": {
        "align": false,
        "alignLevel": null
      }
    },
    {
      "aliasColors": {},
      "bars": false,
      "dashLength": 10,
      "dashes": false,
      "datasource": "Monitoring Dump - Project",
      "fill": 1,
      "gridPos": {
        "h": 8,
        "w": 8,
        "x": 16,
        "y": 0
      },
      "id": 12,
      "legend": {
        "alignAsTable": true,
        "avg": true,
        "current": false,
        "max": true,
        "min": true,
        "rightSide": false,
        "show": true,
        "total": false,
        "values": true
      },
      "lines": false,
      "linewidth": 1,
      "links": [],
      "nullPointMode": "null",
      "percentage": false,
      "pointradius": 0.5,
      "points": true,
      "renderer": "flot",
      "seriesOverrides": [],
      "spaceLength": 10,
      "stack": false,
      "steppedLine": false,
      "targets": [
        {
          "alias": "CO2 (ppm)",
          "groupBy": [
            {
              "params": [
                "$__interval"
              ],
              "type": "time"
            },
            {
              "params": [
                "null"
              ],
              "type": "fill"
            }
          ],
          "measurement": "data",
          "orderByTime": "ASC",
          "policy": "autogen",
          "refId": "A",
          "resultFormat": "time_series",
          "select": [
            [
              {
                "params": [
                  "CO2"
                ],
                "type": "field"
              },
              {
                "params": [],
                "type": "mean"
              }
            ]
          ],
          "tags": []
        },
        {
          "alias": "VOC (ppb)",
          "groupBy": [
            {
              "params": [
                "$__interval"
              ],
              "type": "time"
            },
            {
              "params": [
                "null"
              ],
              "type": "fill"
            }
          ],
          "measurement": "data",
          "orderByTime": "ASC",
          "policy": "autogen",
          "refId": "B",
          "resultFormat": "time_series",
          "select": [
            [
              {
                "params": [
                  "VOC"
                ],
                "type": "field"
              },
              {
                "params": [],
                "type": "mean"
              }
            ]
          ],
          "tags": []
        }
      ],
      "thresholds": [],
      "timeFrom": null,
      "timeShift": null,
      "title": "Gas Concentrations",
      "tooltip": {
        "shared": true,
        "sort": 0,
        "value_type": "individual"
      },
      "type": "graph",
      "xaxis": {
        "buckets": null,
        "mode": "time",
        "name": null,
        "show": true,
        "values": []
      },
      "yaxes": [
        {
          "decimals": null,
          "format": "none",
          "label": "",
          "logBase": 1,
          "max": null,
          "min": null,
          "show": true
        },
        {
          "format": "humidity",
          "label": "Humidity",
          "logBase": 1,
          "max": "200",
          "min": "0",
          "show": false
        }
      ],
      "yaxis": {
        "align": false,
        "alignLevel": 20
      }
    },
    {
      "aliasColors": {},
      "bars": false,
      "dashLength": 10,
      "dashes": false,
      "datasource": "Monitoring Dump - Project",
      "fill": 1,
      "gridPos": {
        "h": 7,
        "w": 8,
        "x": 0,
        "y": 8
      },
      "id": 4,
      "legend": {
        "alignAsTable": false,
        "avg": true,
        "current": false,
        "max": true,
        "min": true,
        "rightSide": false,
        "show": true,
        "total": false,
        "values": true
      },
      "lines": false,
      "linewidth": 0,
      "links": [],
      "nullPointMode": "null",
      "percentage": false,
      "pointradius": 1,
      "points": true,
      "renderer": "flot",
      "seriesOverrides": [],
      "spaceLength": 10,
      "stack": false,
      "steppedLine": false,
      "targets": [
        {
          "alias": "Humidity (%)",
          "groupBy": [
            {
              "params": [
                "$__interval"
              ],
              "type": "time"
            },
            {
              "params": [
                "null"
              ],
              "type": "fill"
            }
          ],
          "measurement": "data",
          "orderByTime": "ASC",
          "policy": "autogen",
          "refId": "A",
          "resultFormat": "time_series",
          "select": [
            [
              {
                "params": [
                  "Humidity"
                ],
                "type": "field"
              },
              {
                "params": [],
                "type": "mean"
              }
            ]
          ],
          "tags": []
        }
      ],
      "thresholds": [],
      "timeFrom": null,
      "timeShift": null,
      "title": "Humidity",
      "tooltip": {
        "shared": true,
        "sort": 0,
        "value_type": "individual"
      },
      "type": "graph",
      "xaxis": {
        "buckets": null,
        "mode": "time",
        "name": null,
        "show": true,
        "values": []
      },
      "yaxes": [
        {
          "format": "percent",
          "label": null,
          "logBase": 1,
          "max": "100",
          "min": "0",
          "show": true
        },
        {
          "format": "short",
          "label": null,
          "logBase": 1,
          "max": null,
          "min": null,
          "show": true
        }
      ],
      "yaxis": {
        "align": false,
        "alignLevel": null
      }
    },
    {
      "aliasColors": {},
      "bars": false,
      "dashLength": 10,
      "dashes": false,
      "datasource": "Monitoring Dump - Project",
      "fill": 1,
      "gridPos": {
        "h": 7,
        "w": 8,
        "x": 8,
        "y": 8
      },
      "id": 2,
      "interval": "",
      "legend": {
        "alignAsTable": false,
        "avg": true,
        "current": false,
        "hideEmpty": true,
        "hideZero": true,
        "max": true,
        "min": true,
        "show": true,
        "total": false,
        "values": true
      },
      "lines": false,
      "linewidth": 1,
      "links": [],
      "nullPointMode": "null",
      "percentage": false,
      "pointradius": 1,
      "points": true,
      "renderer": "flot",
      "seriesOverrides": [],
      "spaceLength": 10,
      "stack": false,
      "steppedLine": false,
      "targets": [
        {
          "alias": "Temperature",
          "groupBy": [
            {
              "params": [
                "$__interval"
              ],
              "type": "time"
            },
            {
              "params": [
                "null"
              ],
              "type": "fill"
            }
          ],
          "measurement": "data",
          "orderByTime": "ASC",
          "policy": "autogen",
          "refId": "A",
          "resultFormat": "time_series",
          "select": [
            [
              {
                "params": [
                  "temp"
                ],
                "type": "field"
              },
              {
                "params": [],
                "type": "mean"
              }
            ]
          ],
          "tags": []
        }
      ],
      "thresholds": [],
      "timeFrom": null,
      "timeShift": null,
      "title": "Temperature",
      "tooltip": {
        "shared": true,
        "sort": 0,
        "value_type": "individual"
      },
      "type": "graph",
      "xaxis": {
        "buckets": null,
        "mode": "time",
        "name": null,
        "show": true,
        "values": []
      },
      "yaxes": [
        {
          "format": "celsius",
          "label": null,
          "logBase": 1,
          "max": "45",
          "min": "15",
          "show": true
        },
        {
          "format": "short",
          "label": null,
          "logBase": 1,
          "max": null,
          "min": null,
          "show": true
        }
      ],
      "yaxis": {
        "align": false,
        "alignLevel": null
      }
    },
    {
      "aliasColors": {},
      "bars": false,
      "dashLength": 10,
      "dashes": false,
      "datasource": "Monitoring Dump - Project",
      "fill": 1,
      "gridPos": {
        "h": 7,
        "w": 8,
        "x": 16,
        "y": 8
      },
      "id": 5,
      "legend": {
        "alignAsTable": false,
        "avg": true,
        "current": false,
        "max": true,
        "min": true,
        "rightSide": false,
        "show": true,
        "total": false,
        "values": true
      },
      "lines": false,
      "linewidth": 0,
      "links": [],
      "nullPointMode": "null",
      "percentage": false,
      "pointradius": 1,
      "points": true,
      "renderer": "flot",
      "seriesOverrides": [],
      "spaceLength": 10,
      "stack": false,
      "steppedLine": false,
      "targets": [
        {
          "alias": "Pressure (hPa)",
          "groupBy": [
            {
              "params": [
                "$__interval"
              ],
              "type": "time"
            },
            {
              "params": [
                "null"
              ],
              "type": "fill"
            }
          ],
          "measurement": "data",
          "orderByTime": "ASC",
          "policy": "autogen",
          "refId": "A",
          "resultFormat": "time_series",
          "select": [
            [
              {
                "params": [
                  "AP"
                ],
                "type": "field"
              },
              {
                "params": [],
                "type": "mean"
              }
            ]
          ],
          "tags": []
        }
      ],
      "thresholds": [],
      "timeFrom": null,
      "timeShift": null,
      "title": "Barometeric Pressure",
      "tooltip": {
        "shared": true,
        "sort": 0,
        "value_type": "individual"
      },
      "type": "graph",
      "xaxis": {
        "buckets": null,
        "mode": "time",
        "name": null,
        "show": true,
        "values": []
      },
      "yaxes": [
        {
          "decimals": null,
          "format": "pressurembar",
          "label": "",
          "logBase": 1,
          "max": "1085",
          "min": "870",
          "show": true
        },
        {
          "format": "short",
          "label": null,
          "logBase": 1,
          "max": null,
          "min": null,
          "show": true
        }
      ],
      "yaxis": {
        "align": false,
        "alignLevel": null
      }
    },
    {
      "aliasColors": {},
      "bars": false,
      "dashLength": 10,
      "dashes": false,
      "datasource": "Monitoring Dump - Project",
      "fill": 1,
      "gridPos": {
        "h": 9,
        "w": 12,
        "x": 0,
        "y": 15
      },
      "id": 13,
      "legend": {
        "alignAsTable": false,
        "avg": true,
        "current": false,
        "max": true,
        "min": true,
        "rightSide": false,
        "show": true,
        "total": false,
        "values": true
      },
      "lines": false,
      "linewidth": 0,
      "links": [],
      "nullPointMode": "null",
      "percentage": false,
      "pointradius": 1,
      "points": true,
      "renderer": "flot",
      "seriesOverrides": [],
      "spaceLength": 10,
      "stack": false,
      "steppedLine": false,
      "targets": [
        {
          "alias": "CO2 (ppm)",
          "groupBy": [
            {
              "params": [
                "$__interval"
              ],
              "type": "time"
            },
            {
              "params": [
                "null"
              ],
              "type": "fill"
            }
          ],
          "measurement": "data",
          "orderByTime": "ASC",
          "policy": "autogen",
          "refId": "A",
          "resultFormat": "time_series",
          "select": [
            [
              {
                "params": [
                  "CO2"
                ],
                "type": "field"
              },
              {
                "params": [],
                "type": "mean"
              }
            ]
          ],
          "tags": []
        }
      ],
      "thresholds": [],
      "timeFrom": null,
      "timeShift": null,
      "title": "Carbon Dioxide Concentration",
      "tooltip": {
        "shared": true,
        "sort": 0,
        "value_type": "individual"
      },
      "type": "graph",
      "xaxis": {
        "buckets": null,
        "mode": "time",
        "name": null,
        "show": true,
        "values": []
      },
      "yaxes": [
        {
          "decimals": null,
          "format": "ppm",
          "label": "",
          "logBase": 1,
          "max": null,
          "min": "0",
          "show": true
        },
        {
          "format": "short",
          "label": null,
          "logBase": 1,
          "max": null,
          "min": null,
          "show": true
        }
      ],
      "yaxis": {
        "align": false,
        "alignLevel": null
      }
    },
    {
      "aliasColors": {},
      "bars": false,
      "dashLength": 10,
      "dashes": false,
      "datasource": "Monitoring Dump - Project",
      "fill": 1,
      "gridPos": {
        "h": 9,
        "w": 12,
        "x": 12,
        "y": 15
      },
      "id": 8,
      "legend": {
        "alignAsTable": false,
        "avg": true,
        "current": false,
        "max": true,
        "min": true,
        "rightSide": false,
        "show": true,
        "total": false,
        "values": true
      },
      "lines": false,
      "linewidth": 0,
      "links": [],
      "nullPointMode": "null",
      "percentage": false,
      "pointradius": 1,
      "points": true,
      "renderer": "flot",
      "seriesOverrides": [],
      "spaceLength": 10,
      "stack": false,
      "steppedLine": false,
      "targets": [
        {
          "alias": "VOC (ppb)",
          "groupBy": [
            {
              "params": [
                "$__interval"
              ],
              "type": "time"
            },
            {
              "params": [
...

This file has been truncated, please download it to see its full contents.

Node-red flow

JSON
The flow of node-red of parsing the data and storing in the Database
[
    {
        "id": "d9a747e6.55694",
        "type": "tab",
        "label": "Landfills Monitoring - Just the data handeling",
        "disabled": false,
        "info": ""
    },
    {
        "id": "1e3dc690.705af1",
        "type": "function",
        "z": "d9a747e6.55694",
        "name": "Parsing message",
        "func": "var msg433 = {};\nmsg.payload = msg.payload.replace(/(\\r\\n|\\n|\\r)/gm,\"\");\nvar parts433 = msg.payload.split(\";\");\n\nmsg433.name = parts433[0];\nfor (var i=1; i<parts433.length; i++) {\n    var keyvalue = parts433[i].split(\"=\");\n    if (keyvalue.length===2) {\n        msg433[keyvalue[0]] = keyvalue[1];\n    }\n}\n\nmsg.msg433 = msg433;\nmsg.topic=\"rflink\";\n\nreturn msg;\n\n/*\n\n// So firstly a generic means of getting incoming items into an object\n\nvar the433 = {};\nmsg.payload = msg.payload.replace(/(\\r\\n|\\n|\\r)/gm,\"\");\nnode.warn(msg.payload);\nvar parts433 = msg.payload.split(\";\");\n\nthe433.p1 = parts433[0];\nthe433.p2 = parts433[1];\nthe433.name = parts433[2];\n\nvar a = 3;\nwhile (a < parts433.length) {\n    var bits433 = parts433[a].split(\"=\");\n    switch (bits433[0]) {\n        case \"ID\": the433.id = bits433[1]; break;\n        case \"SWITCH\": the433.switch = bits433[1]; break;\n        case \"CMD\": the433.cmd = bits433[1]; break;\n        case \"SET_LEVEL\": the433.set_level = parseInt(bits433[1], 10); break;\n        case \"TEMP\": the433.temp = parseInt(bits433[1], 16) / 10; break;\n        case \"HUM\": the433.hum = parseInt(bits433[1], 10); break;\n        case \"BARO\": the433.baro = parseInt(bits433[1], 16); break;\n        case \"HSTATUS\": the433.hstatus = parseInt(bits433[1], 10); break;\n        case \"BFORECAST\": the433.bforecast = parseInt(bits433[1], 10); break;\n        case \"UV\": the433.uv = parseInt(bits433[1], 16); break;\n        case \"LUX\": the433.lux = parseInt(bits433[1], 16); break;\n        case \"BAT\": the433.bat = bits433[1]; break;\n        case \"RAIN\": the433.rain = parseInt(bits433[1], 16) / 10; break;\n        case \"RAIN\": the433.rainrate = parseInt(bits433[1], 16) / 10; break;\n        case \"WINSP\": the433.winsp = parseInt(bits433[1], 16) / 10; break;\n        case \"AWINSP\": the433.awinsp = parseInt(bits433[1], 16) / 10; break;\n        case \"WINGS\": the433.wings = parseInt(bits433[1], 16); break;\n        case \"WINDIR\": the433.windir = parseInt(bits433[1], 10); break;\n        case \"WINCHL\": the433.winchl = parseInt(bits433[1], 16); break;\n        case \"WINTMP\": the433.wintmp = parseInt(bits433[1], 16); break;\n        case \"CHIME\": the433.chime = parseInt(bits433[1], 10); break;\n        case \"SMOKEALERT\": the433.smokealert = bits433[1]; break;\n        case \"PIR\": the433.pir = bits433[1]; break;\n        case \"CO2\": the433.co2 = parseInt(bits433[1], 10); break;\n        case \"SOUND\": the433.sound = parseInt(bits433[1], 10); break;\n        case \"KWATT\": the433.kwatt = parseInt(bits433[1], 16); break;\n        case \"WATT\": the433.watt = parseInt(bits433[1], 16); break;\n        case \"CURRENT\": the433.current = parseInt(bits433[1], 10); break;\n        case \"CURRENT2\": the433.current2 = parseInt(bits433[1], 10); break;\n        case \"CURRENT3\": the433.current3 = parseInt(bits433[1], 10); break;\n        case \"DIST\": the433.dist = parseInt(bits433[1], 10); break;\n        case \"METER\": the433.meter = parseInt(bits433[1], 10); break;\n        case \"VOLT\": the433.volt = parseInt(bits433[1], 10); break;\n        case \"RGBW\": the433.rgbc = parseInt(bits433[1].substring(0, 2), 16);\n            the433.rgbw = parseInt(bits433[1].substring(2, 4), 16); break;\n    }\n    a++;\n}\n\n// SO - the above is general... here is my specific setup for temporarily displaying\n// the Acurite info\nif ((the433.p1 == \"20\") && (the433.name == \"Acurite\") && (the433.id == \"c826\")) {\n    if (typeof the433.temp !== 'undefined') temp = the433.temp;\n    if (typeof the433.hum !== 'undefined') hum = the433.hum;\n    if (typeof the433.bat !== 'undefined') bat = the433.bat;\n    if (typeof the433.rain !== 'undefined') rain = the433.rain;\n    if (typeof the433.winsp !== 'undefined') winsp = the433.winsp;\n    if (typeof the433.windir !== 'undefined') windir = the433.windir;\n\n    node.warn(\"Temperature: \" + temp + \"c\");\n    node.warn(\"Humidity: \" + hum + \"%\");\n    node.warn(\"Battery: \" + bat);\n    node.warn(\"Rain: \" + rain + \"mm\");\n    node.warn(\"Wind Speed: \" + winsp + \"km/h\");\n    node.warn(\"Wind Dir: \" + (windir * 22.5) + \" degrees\");\n}\n\n*/",
        "outputs": 1,
        "noerr": 0,
        "x": 427.566650390625,
        "y": 78.56666564941406,
        "wires": [
            [
                "9be88463.3ad4f8"
            ]
        ]
    },
    {
        "id": "9be88463.3ad4f8",
        "type": "function",
        "z": "d9a747e6.55694",
        "name": "TEMP conversion",
        "func": "if (msg.msg433.Temp!==undefined) {\n    msg.msg433.Temp = parseInt(msg.msg433.Temp, 10);\n}\nelse msg.msg433.Temp=-999.0;\nnode.status({fill:\"blue\",shape:\"ring\",text: msg.msg433.Temp });\nreturn msg;",
        "outputs": 1,
        "noerr": 0,
        "x": 424.566650390625,
        "y": 151.56666564941406,
        "wires": [
            [
                "73fbfba4.09c13c"
            ]
        ]
    },
    {
        "id": "73fbfba4.09c13c",
        "type": "function",
        "z": "d9a747e6.55694",
        "name": "HUM conversion",
        "func": "if (msg.msg433.Humidity!==undefined) {\n    msg.msg433.Humidity = parseInt(msg.msg433.Humidity, 10);\n}\nelse msg.msg433.Humidity=-999.0;\nnode.status({fill:\"blue\",shape:\"ring\",text: msg.msg433.Humidity });\nreturn msg;\n",
        "outputs": 1,
        "noerr": 0,
        "x": 403.566650390625,
        "y": 212.56666564941406,
        "wires": [
            [
                "c1641c3a.d57a68"
            ]
        ]
    },
    {
        "id": "c1641c3a.d57a68",
        "type": "function",
        "z": "d9a747e6.55694",
        "name": "Lux Conversion",
        "func": "if (msg.msg433.LightVal!==undefined) {\n    msg.msg433.LightVal = parseInt(msg.msg433.LightVal);\n}\nelse msg.msg433.LightVal=-999.0;\nnode.status({fill:\"blue\",shape:\"ring\",text: msg.msg433.LightVal });\nreturn msg;\n",
        "outputs": 1,
        "noerr": 0,
        "x": 415.566650390625,
        "y": 324.56666564941406,
        "wires": [
            [
                "68b1c4dc.f99fe4"
            ]
        ]
    },
    {
        "id": "68b1c4dc.f99fe4",
        "type": "function",
        "z": "d9a747e6.55694",
        "name": "AP conversion",
        "func": "if (msg.msg433.AP!==undefined) {\n    msg.msg433.AP = parseInt(msg.msg433.AP);\n} else msg.msg433.AP=0;\nnode.status({fill:\"blue\",shape:\"ring\",text: msg.msg433.AP });\nreturn msg;\n",
        "outputs": 1,
        "noerr": 0,
        "x": 416.566650390625,
        "y": 386.56666564941406,
        "wires": [
            [
                "c1c568a8.94aed8"
            ]
        ]
    },
    {
        "id": "c1c568a8.94aed8",
        "type": "function",
        "z": "d9a747e6.55694",
        "name": "CO2 conversion",
        "func": "if (msg.msg433.CO2!==undefined) {\n    msg.msg433.CO2  = parseInt(msg.msg433.CO2);\n}\nelse msg.msg433.CO2=0;\nnode.status({fill:\"blue\",shape:\"ring\",text: msg.msg433.CO2 });\nreturn msg;\n",
        "outputs": 1,
        "noerr": 0,
        "x": 406.566650390625,
        "y": 456.56666564941406,
        "wires": [
            [
                "f25ba530.f937a"
            ]
        ]
    },
    {
        "id": "f25ba530.f937a",
        "type": "function",
        "z": "d9a747e6.55694",
        "name": "VOCconversion",
        "func": "if (msg.msg433.VOC!==undefined) {\n    msg.msg433.VOC  = parseInt(msg.msg433.VOC);\n}\nelse msg.msg433.VOC=-999.0;\nnode.status({fill:\"blue\",shape:\"ring\",text: msg.msg433.VOC });\nreturn msg;\n",
        "outputs": 1,
        "noerr": 0,
        "x": 409.566650390625,
        "y": 522.5666656494141,
        "wires": [
            [
                "366bce17.619cda"
            ]
        ]
    },
    {
        "id": "366bce17.619cda",
        "type": "change",
        "z": "d9a747e6.55694",
        "name": "Set Topic",
        "rules": [
            {
                "t": "set",
                "p": "topic",
                "pt": "msg",
                "to": "data",
                "tot": "str"
            }
        ],
        "action": "",
        "property": "",
        "from": "",
        "to": "",
        "reg": false,
        "x": 587.199462890625,
        "y": 725.8713531494141,
        "wires": [
            [
                "a6d8ae4e.64533",
                "72da7073.37e0e8"
            ]
        ]
    },
    {
        "id": "a6d8ae4e.64533",
        "type": "function",
        "z": "d9a747e6.55694",
        "name": "NXP_1",
        "func": "msg.payload = {\n    ID: msg.msg433.name,\n    temp: msg.msg433.Temp,\n    Humidity: msg.msg433.Humidity,\n    LightVal: msg.msg433.LightVal,\n    AP: msg.msg433.AP,\n    CO2: msg.msg433.CO2,\n    VOC: msg.msg433.VOC\n    /*,\n    humidity: msg.msg433.HUM,\n    battery: msg.msg433.BAT\n    */\n}\nreturn msg;",
        "outputs": 1,
        "noerr": 0,
        "x": 733.566650390625,
        "y": 725.5666656494141,
        "wires": [
            [
                "97206fac.6f7c48"
            ]
        ]
    },
    {
        "id": "71b1a85d.a3cd18",
        "type": "function",
        "z": "d9a747e6.55694",
        "name": "BAT conversion",
        "func": "if (msg.msg433.BAT === undefined) msg.msg433.BAT=\"\";\nnode.status({fill:\"blue\",shape:\"ring\",text: msg.msg433.BAT });\nreturn msg;\n",
        "outputs": 1,
        "noerr": 0,
        "x": 265.566650390625,
        "y": 661.566650390625,
        "wires": [
            []
        ]
    },
    {
        "id": "b013e816.66a948",
        "type": "inject",
        "z": "d9a747e6.55694",
        "name": "",
        "topic": "",
        "payload": "ID=NXP_test;LightVal=42;Temp=24.5;Humidity=56;AP=1002;CO2=400;VOC=14",
        "payloadType": "str",
        "repeat": "",
        "crontab": "",
        "once": false,
        "onceDelay": 0.1,
        "x": 192.566650390625,
        "y": 115.56666564941406,
        "wires": [
            [
                "1e3dc690.705af1"
            ]
        ]
    },
    {
        "id": "72da7073.37e0e8",
        "type": "debug",
        "z": "d9a747e6.55694",
        "name": "",
        "active": true,
        "tosidebar": true,
        "console": false,
        "tostatus": false,
        "complete": "true",
        "x": 839.566650390625,
        "y": 776.566650390625,
        "wires": []
    },
    {
        "id": "97206fac.6f7c48",
        "type": "influxdb out",
        "z": "d9a747e6.55694",
        "influxdb": "596bad19.de5c64",
        "name": "Weather",
        "measurement": "data",
        "precision": "s",
        "retentionPolicy": "",
        "x": 986.566650390625,
        "y": 721.5666656494141,
        "wires": []
    },
    {
        "id": "7392292e.3a1858",
        "type": "mqtt in",
        "z": "d9a747e6.55694",
        "name": "",
        "topic": "MD/data",
        "qos": "2",
        "broker": "aa2bd022.95a698",
        "x": 158,
        "y": 46,
        "wires": [
            [
                "1e3dc690.705af1"
            ]
        ]
    },
    {
        "id": "596bad19.de5c64",
        "type": "influxdb",
        "z": "",
        "hostname": "localhost",
        "port": "8086",
        "protocol": "http",
        "database": "MD",
        "name": "Landfill Monitoring",
        "usetls": false,
        "tls": ""
    },
    {
        "id": "aa2bd022.95a698",
        "type": "mqtt-broker",
        "z": "",
        "name": "Local MQTT",
        "broker": "127.0.0.1",
        "port": "1883",
        "clientid": "",
        "usetls": false,
        "compatmode": true,
        "keepalive": "60",
        "cleansession": true,
        "birthTopic": "",
        "birthQos": "0",
        "birthPayload": "",
        "closeTopic": "",
        "closeQos": "0",
        "closePayload": "",
        "willTopic": "",
        "willQos": "0",
        "willPayload": ""
    }
]

Source for NXP code

BatchFile
This is full source code so that the binary can be build upon
No preview (download only).

Credits

Vimarsh

Vimarsh

5 projects • 38 followers
Currently, a student studying Physics @ BITS Pilani. A maker and a learner :D
Thanks to Andreas Spiess and Attila Tőkés.

Comments
