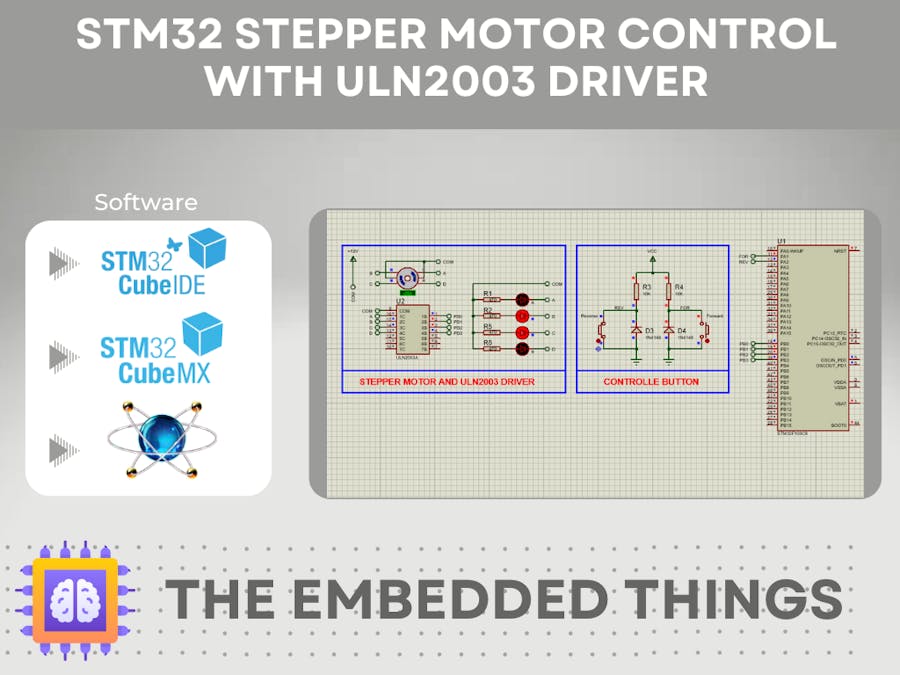

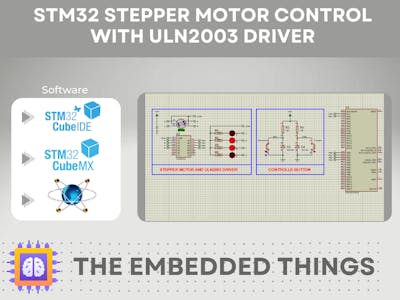

In this project, we demonstrate how to control a 28BYJ-48 stepper motor using an STM32F103C6 and the ULN2003 driver. The setup uses GPIO pins for coil control and buttons for direction control. A Proteus simulation is included for testing and validation.
What is the ULN2003?
The ULN2003 is a high-voltage, high-current Darlington transistor array designed to drive loads such as stepper motors, relays, and LEDs.
- 7 Darlington pairs → 500 mA per channel, 50V max.
- Logic-level inputs → Easily controlled by STM32 GPIO.
- Multiple outputs → Can drive several loads at once.
- Expandable → Outputs can be paralleled for higher current.
- Package → 16-pin DIP/TSSOP/SOIC.
Interfacing ULN2003 with 28BYJ-48 Stepper Motor
- The 28BYJ-48 is a unipolar stepper motor with 4 coils + 1 common wire (VCC).
- Coils (A, B, C, D) → Driven by ULN2003 outputs (IN1–IN4).
- Common wire → Connected to +5V.
- STM32 controls the coils by sending a sequence of signals via GPIO.
Control Logic
- MCU: STM32F103C6 (16 MHz clock)
- GPIO Configuration:
-
PB0–PB3
→ Outputs (Coil control)-
PA1–PA2
→ Inputs (Buttons with pull-up)
- Generate initialization code in STM32CubeIDE.
Key Functions – Stepper Motor STM32
- main()
-
Initializes MCU and peripherals.
-
Runs infinite loop to read buttons and move motor.
- Stepper Sequence Array
-
const uint8_t turn[] = {0x02,0x06,0x04,0x0C,0x08,0x09,0x01,0x03};
-
Defines the half-step sequence for motor coils.
- Button Handling
Required Components
- STM32F103C6
- ULN2003 Driver
- 28BYJ-48 Stepper Motor
- Push Buttons + Resistors
Connections
- PB0–PB3 → ULN2003 IN1–IN4
- PA1–PA2 → Buttons for direction control
Steps
- Load the.hex file from CubeIDE.
- Press forward/reverse buttons.
- Observe motor rotation in simulation.
If you have any questions or suggestions don't hesitate to leave a comment below
