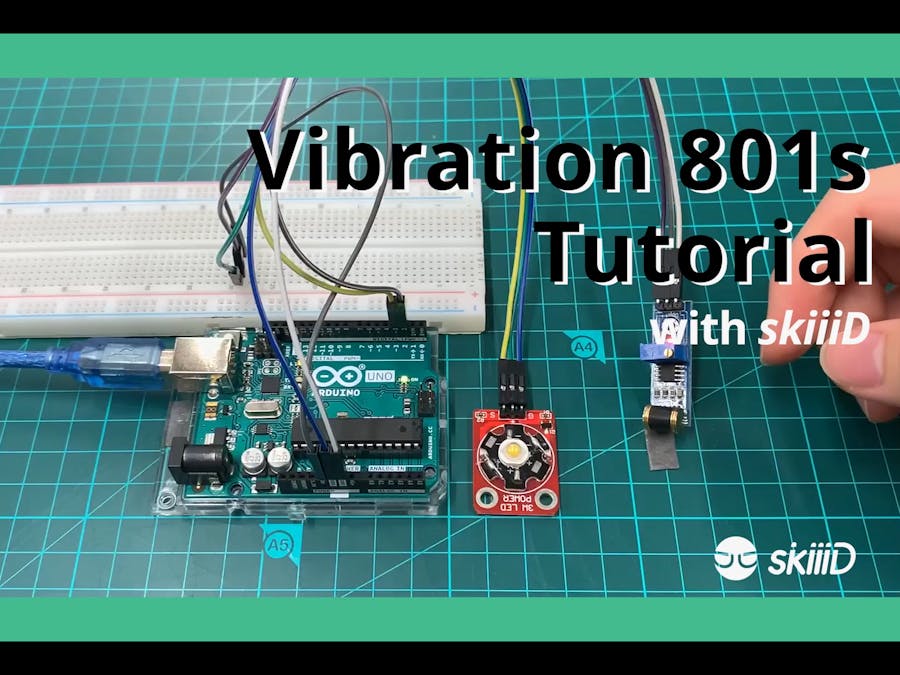

How to use Vibration 801s with skiiiD

Before start, below URL link is a basic tutorial for how to use skiiiD

https://www.hackster.io/skiiid/getting-started-with-skiiid-editor-f69b5d

Video Instruction

Step 1. Launch skiiiD and select Arduino UNO

#1 Launch skiiiD and select New button

#2 Select ①Arduino Uno and then click ②OK button

*This is Tutorial, and we use Arduino UNO. Other boards(Mega, Nano) have the same process.

Step 2. Add Component

#1 Click '+' (Add Component Button) to search and select the component.

#2 ① Type 'Vibration' on the search bar or find the Search Vibration801s on the list.

#3②Select Vibration801s.

#4 then you can see ③ pin indication. (You can configure it.)

*This module has 3 pins to connect

skiiiD Editor automatically indicate pin setting *configuration available

[Default Pin Indication for Vibration801s] in case of Arduino UNO

GND: GND

Dout: 2

VCC: 5V

#5 After configuring pins ④ click ADD button on the right below side

#6⑤Added Modulehas appeared on the right panel

skiiiD Code of Vibration 801s.

skiiiD Code is intuitive function-based codes. This is based on skiiiD libraries

isVibrated()
"If vibration is detected return true, else return false."

Contact and Feedback

We are working on components and boards libraries. Feel free to use it and feedback us, please. Below is contact methods
