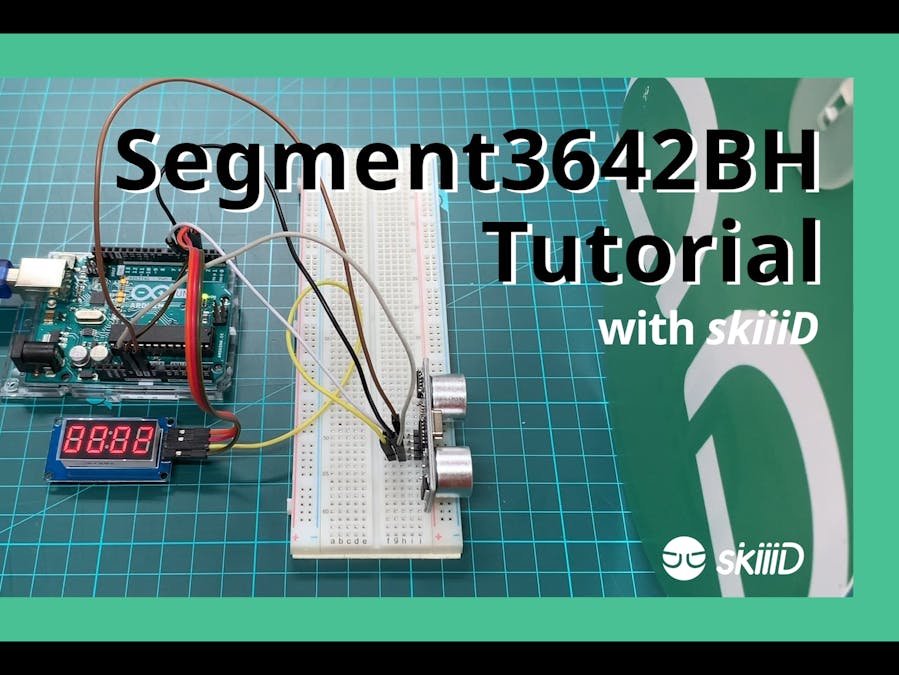

How to Use Segment 3642BH with skiiiD

Story

Before start, below URL link is a basic tutorial for how to use skiiiD

https://www.hackster.io/skiiid/getting-started-with-skiiid-editor-f69b5d

Video Instruction

Step 1. Launch skiiiD and select Arduino UNO

#1 Launch skiiiD and select New button

#2 Select ①Arduino Uno and then click ②OK button

*This is Tutorial, and we use Arduino UNO. Other boards(Mega, Nano) have the same process.

Step 2. Add Component

#1 Click '+' (Add Component Button) to search and select the component.

#2 ① Type 'Segment' on the search bar or find the Button Module on the list.

#3②Select Segment 3642BH

#4 then you can see ③ pin indication. (You can configure it.)

*This module has 4 pins to connect

skiiiD Editor automatically indicate pin setting *configuration available

[Default Pin Indication for Segment Module] in case of Arduino UNO

CLK: 0

DIO: 1

VCC: 5V

GND: GND

#5 After configuring pins ④ click ADD button on the right below side

#6⑤Added Modulehas appeared on the right panel

skiiiD Code of Segment 3642BH

skiiiD Code is intuitive function-based codes. This is based on skiiiD libraries.

clear() - Clear display."
setColon() - Initialize colon on the center of the segment.
    If 'mode' is equal to 0, colon is off.
    If 'mode' is equal to 1, colon is on.
    Default: off or 0.
setBrightness() - Set brightness of the segment.
    The range of brightness is 0~7 and the default is 2(BRIGHTNESS_NORMAL).
displayNumber() - number': Display 4-digit positive number or 3-digit negative number.

Contact and Feedback

We are working on components and boards libraries. Feel free to use it and feedback us, please. Below is contact methods
