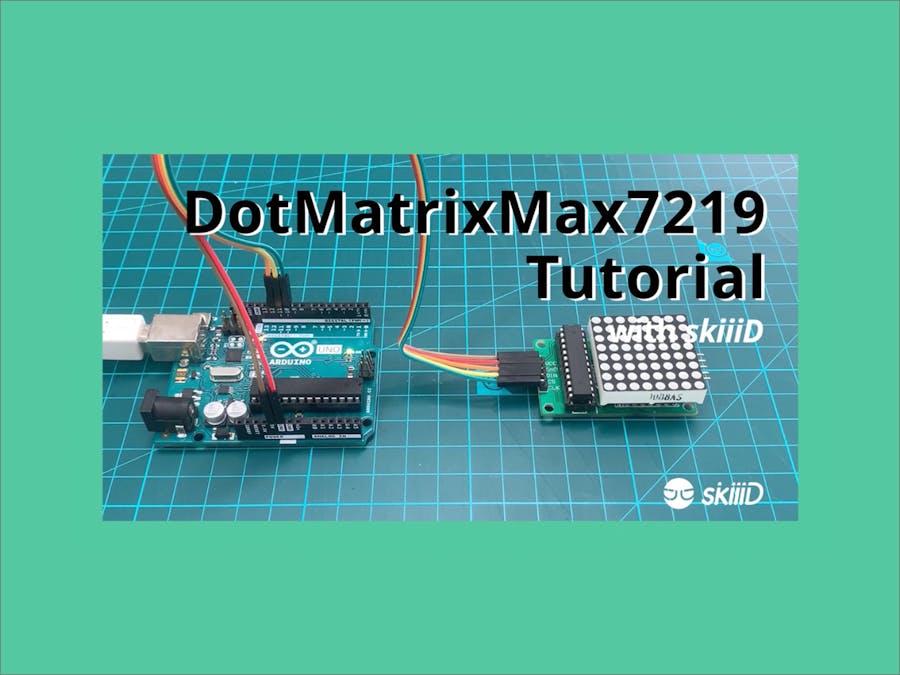

Before start, there is a basic tutorial for how to use skiiiD
https://www.hackster.io/skiiid/getting-started-with-skiiid-editor-f69b5d
Step 1. Launch skiiiD and select Arduino UNO#1 Launch skiiiD and select New button
#2 Select ①Arduino Uno and then click ②OK button
*This is Tutorial, and we use Arduino UNO. Other boards(Mega, Nano) have same process.
Step 2. Add Component#1 Click '+' (Add Component Button) to search and select the component.
#2 ① Type'Dot matrix' on the search bar or find Dot matrix module on the list.
#3 ②Select Dot matrix
#4 then you can see ③ pin indication. (You can configure it.)
*This module has 5 Pin to connect
skiiiD Editor automatically indicate pin setting *configuration available
[Default Pin Indication for Max7219 Dot Matrix Module] in case of Arduino UNO
VCC: 5V
GND: GND
DIN: 0
CS: 1
CLK: 2
#5 After configuring pins ④ click ADD buttonon the right below side
#6⑤Added Modulehas appeared on right panel
skiiiD Code of Dot Matrix Max7219skiiiD Code is intuitive function-based codes. This is based on skiiiD libraries.
clear() - Turn off all Dot LEDs
on() - Turn on a specific coordinate of dot LED
off() - Turn off a specific coordinate of dot LED
setBrightness() - Set a brightness of led light (0 ~ 9)
displayNumber() - Display a number
displayAlphabet() - Display an alphabet
