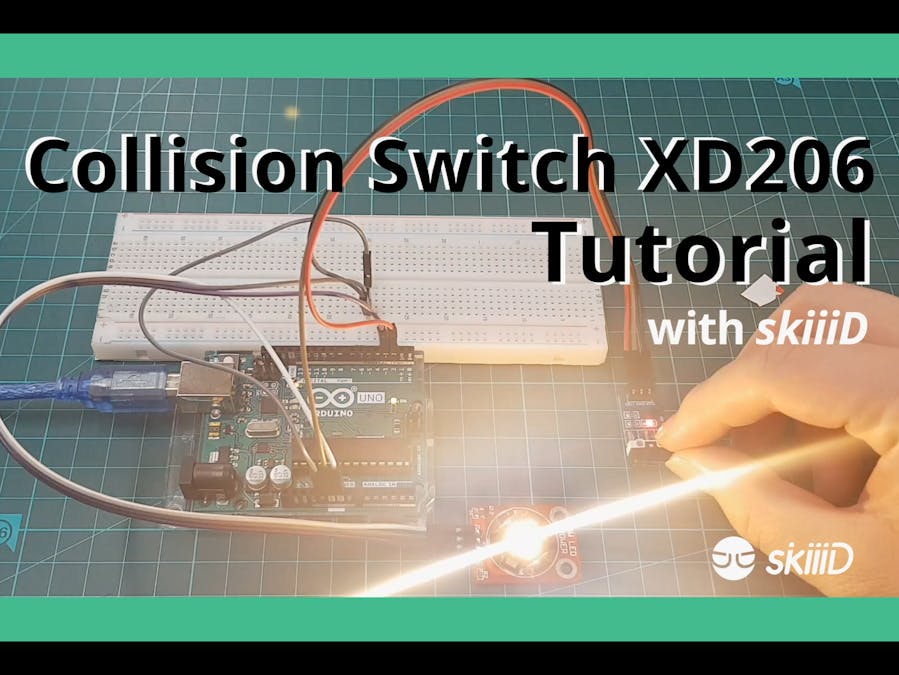

How to use Collision Switch XD206 with skiiiD

Before start, below URL link is a basic tutorial for how to use skiiiD

https://www.hackster.io/skiiid/getting-started-with-skiiid-editor-f69b5d

Video Instruction

Step 1. Launch skiiiD and select Arduino UNO

#1 Launch skiiiD and select New button

#2 Select ①Arduino Uno and then click ②OK button

*This is Tutorial, and we use Arduino UNO. Other boards(Mega, Nano) have the same process.

Step 2. Add Component

#1 Click '+' (Add Component Button) to search and select the component.

#2 ① Type 'Collision' on the search bar or find the Search Collision Switch XD206on the list.

#3②Select Collision Switch XD206.

#4 then you can see ③ pin indication. (You can configure it.)

*This module has 3 pins to connect

skiiiD Editor automatically indicate pin setting *configuration available

[Default Pin Indication for CollisionSwitch XD206Module] in case of Arduino UNO

OUT: 2

GND: GND

VCC: 5V

#5 After configuring pins ④ click ADD button on the right below side

#6⑤Added Modulehas appeared on the right panel

skiiiD Code of Collision Switch XD206

skiiiD Code is intuitive function-based codes. This is based on skiiiD libraries

 void CollisionSwitchXD2060Interrupt0() {
	if(digitalRead(2) == HIGH) {
		// When triggerd

	} else {
		// When released

	}

Contact and Feedback
