How to Use BMP180 with skiiiD

Story

Before start, below URL link is a basic tutorial for how to use skiiiD

https://www.hackster.io/skiiid/getting-started-with-skiiid-editor-f69b5d

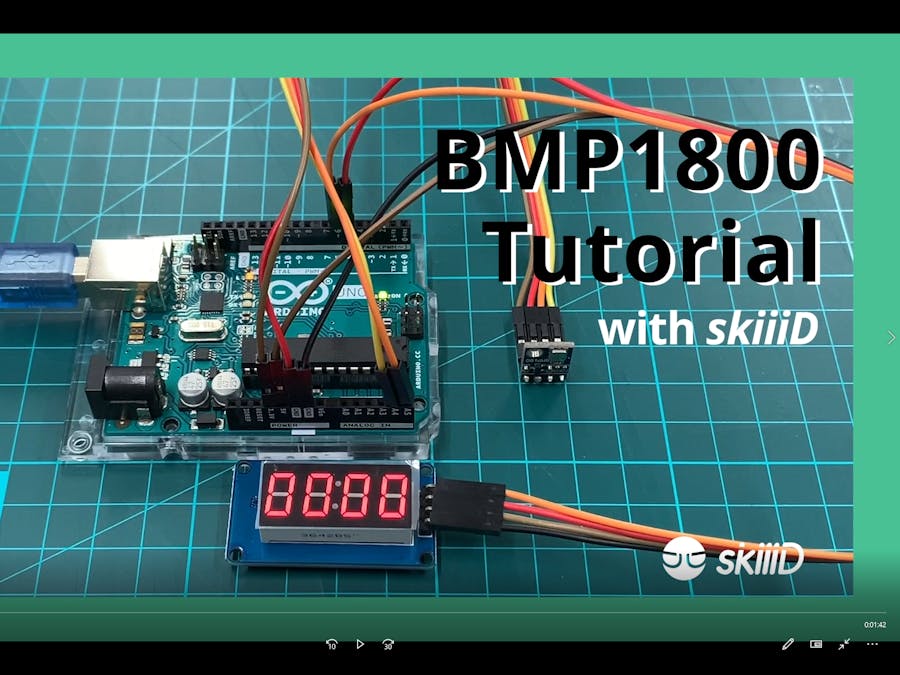

Video Instruction

Step 1. Launch skiiiD and select Arduino UNO

#1 Launch skiiiD and select New button

#2 Select ①Arduino Uno and then click ②OK button

*This is Tutorial, and we use Arduino UNO. Other boards(Mega, Nano) have the same process.

Step 2. Add Component

#1 Click '+' (Add Component Button) to search and select the component.

#2 ① Type 'BMP' on the search bar or find the BMP180 on the list.

#3②Select BMP180.

#4 then you can see ③ pin indication. (You can configure it.)

*This module has 4 pins to connect

skiiiD Editor automatically indicate pin setting *configuration available

[Default Pin Indication for BMP180 Module] in case of Arduino UNO

VIN: 3.3V

GND: GND

SCL: A5

SDA: A4

#5 After configuring pins ④ click ADD button on the right below side

#6⑤Added Modulehas appeared on the right panel

skiiiD Code of BMP180

skiiiD Code is intuitive function-based codes. This is based on skiiiD libraries

getPressure()
"Method that allows identifying current absolute or relative pressure.
If set mode as 0, return relative pressure value.
If set mode as 1, return relative pressure value.
The default of mode is 0."
getTemperature()
"Method that allows identifying current Celsius, Fahrenheit, or Absolute temperature.
If set mode as 0, return Celsius temperature value.
If set mode as 1, return Fahrenheit temperature value.
If set mode as 2, return Absolute temperature value.
The default of mode is 0."
getAltitude()
"Method that allows converting altitude value to meter or feet unit.
If set mode as 0, return altitude value to meter.
If set mode as 1, return altitude value to feet.
The default of mode is 0."
