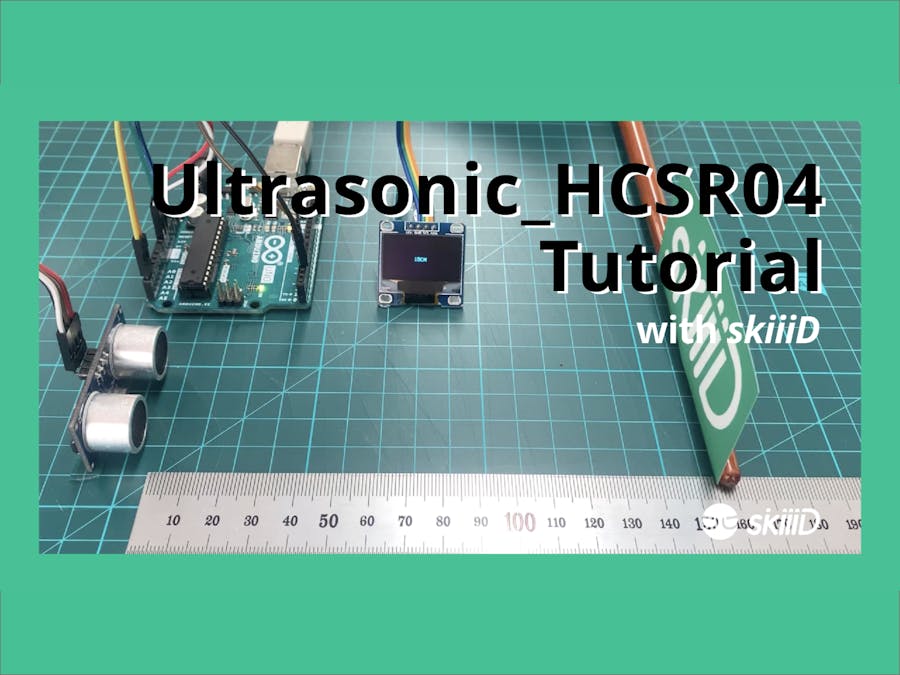

How to Use an HC-SR04 Ultrasonic Module with "skiiiD"

Before start, there is a basic tutorial for how to use skiiiD

https://www.hackster.io/skiiid/getting-started-with-skiiid-editor-f69b5d

Launch skiiiD and select Arduino UNO

#1 Launch skiiiD and select New button

#2 Select ①Arduino Uno and then click ②OK button

Add Ultrasonic Component

#1 Click '+' (Add Component Button) to search and select the component.

#2 ① search UltrasonicModule on thesearch bar and

#3②Click Joystick Module,

#3 then you can see ③ pin indication. (You can configure it.)

#4 ④ click ADD button

#5⑤Added Modulehas appeared on right pane on the editor page.

Two Functions of Ultrasonic

#1 skiiiD library provides 2 functions

1) getDistance - As it says, get distance from the module to an obstacle.

2) getDuration - this function measures the travel time of ultrasonic from module to an obstacle.
