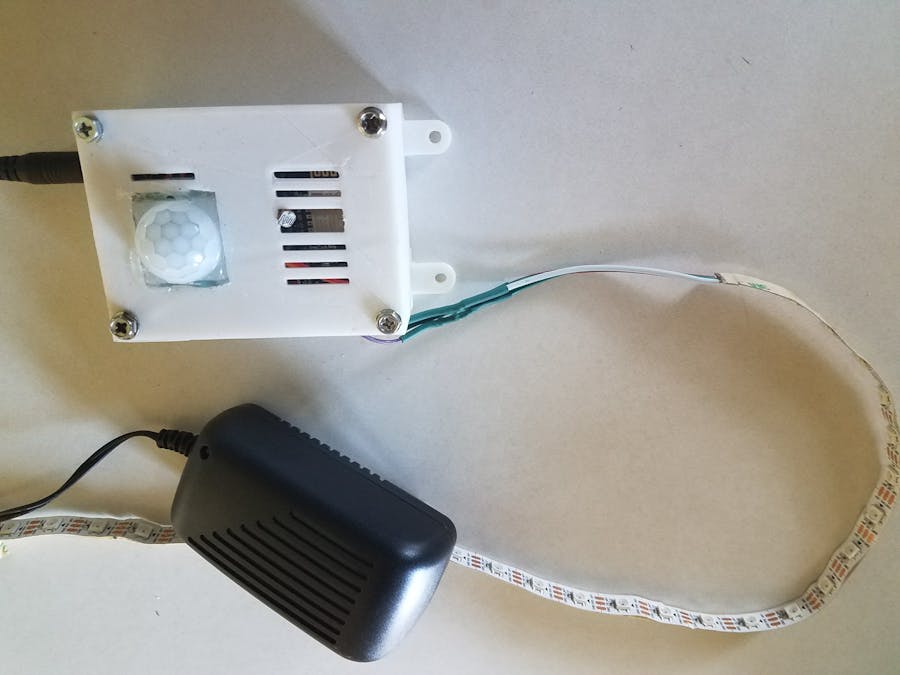

Heat Motion Activated Night Light

Do you get up at night? use IR motion detection to temporarily light your way.

BeginnerShowcase (no instructions)2 hours1,502
Heat Motion Activated Night Light

Things used in this project

Hardware components

Photo resistor
Photo resistor
×1
PIR Motion Sensor (generic)
PIR Motion Sensor (generic)
×1
Resistor 10k ohm
Resistor 10k ohm
×1
NeoPixel strip
NeoPixel strip
×1
Jumper wires (generic)
Jumper wires (generic)
×1
L7805CV 5v 1A MOFSET
×1
ESP8266 ESP-12E
Espressif ESP8266 ESP-12E
×1
LM1085 5v 5A MOFSET
×1
12V 3A Power supply
×1

Software apps and online services

Arduino IDE
Arduino IDE

Hand tools and fabrication machines

3D Printer (generic)
3D Printer (generic)
Hot glue gun (generic)
Hot glue gun (generic)

Story

Read more

Custom parts and enclosures

small project box

Schematics

Fritz File

Code

BedNightLight Arduino code

Arduino
#include "FastLED.h"
// LED control pin
#define LED_PIN     D2
// # of LED's defined
#define NUM_LEDS    30
// LED Brightness
#define BRIGHTNESS  254
// LED Type
#define LED_TYPE    WS2812
// LED Strip color order
#define COLOR_ORDER GRB
// LED Object
CRGB leds[NUM_LEDS];

// Photoresistor pin
int LDR_Pin = A0; //analog pin 0
// Photoresistor Trigger Val
//(value of light when low enough to warrent a check of the PIR)
int TriggerVal = 250;
// PIR Pin
int pirPin = D6; // Input for HC-S501
// PIR Read Value
int pirValue; // Place to store read PIR Value
// When Activated, how long does LED Stay on before shutting off.
// (milliseconds) seconds * 1000
long LEDOnLength = 90000;
// for Serial Display
int LEDOnLengthSeconds = LEDOnLength/1000;
// variable to handle current state of Lights (ON/OFF)
int currState;

// Photoresistor class that returns current
// photo resistor value on the update function.
class PhotoResistorReader
{
  // Reader Pin
  int _PhotoResistor_Pin;

  // Constructor - creates a PhotoResistorReader
  public:
  PhotoResistorReader(int Sensor_Pin)
  {
    _PhotoResistor_Pin = Sensor_Pin;
  }
  int Update()
  {
    return analogRead(_PhotoResistor_Pin);
  }
};
PhotoResistorReader pRR(LDR_Pin);

void setup(){
  // Start Serial Communication
  Serial.begin(9600);
  // SET LED pin for output
  pinMode(LED_PIN, OUTPUT);
  // Set PIR pin for input
  pinMode(pirPin, INPUT);
  // Set LED's type and details
  FastLED.addLeds<LED_TYPE, LED_PIN, COLOR_ORDER>(leds, NUM_LEDS).setCorrection(TypicalPixelString );
  // Set inital LED State.
  currState = SetLEDsOFF();
  // PIR is unstable for the about the first 60 seconds (according to docs)
  // So delay until baseline reached.
  for(int i=1; i <= 60; i++){
    Serial.print("Initializing PIR (60 seconds) second:");
    Serial.println(i);
    delay(1000);
  }
}

void loop(){

  // do Photo resistor read
  int currReading = pRR.Update();
  Serial.println(currReading);
  // if lights on, and reading is less than trigger value, then shut lights off.
  if (currState == 1){
    if (currReading < TriggerVal){
        currState = SetLEDsOFF();
    }
  } else {
    // if reading >= the trigger value, then check PIR for movement,
    //if movement, then turn on LED's for period described above
    if (currReading >= TriggerVal){
      delay(1000);
      pirValue = digitalRead(pirPin);
      Serial.print("PirVal: ");
      Serial.println(pirValue);
      if (pirValue == 1){
        currState = SetLEDsON();
        Serial.print("Delay ");
        Serial.print(LEDOnLengthSeconds);
        Serial.println(" seconds (with lights on).");
        for (int j=0; j < LEDOnLengthSeconds; j++){
          Serial.print("LED ON Seconds: " );
          SetLEDsON();
          Serial.println(j);
          delay(1000);
        }
        // when done, turn off lights.
        currState = SetLEDsOFF();
      }
    }
  }
  delay(1000); //check once per second
}

// Function to turn on lights, and set current state = 1
int SetLEDsON(){
  for( int i = NUM_LEDS-1; i >= 0; i--) {
    leds[i] = CRGB::White;
  }
  FastLED.show();
  Serial.println("Turn On LEDS");
  return 1;
}
// Function to run off lights and set current state = 0
int SetLEDsOFF(){
  for( int i = NUM_LEDS-1; i >= 0; i--) {
    leds[i] = CRGB::Black;
  }
  FastLED.show();
  Serial.println("Turn Off LEDS");
  return 0;
}
