GKKRM. Ramanadha
Created October 26, 2017 © GPL3+

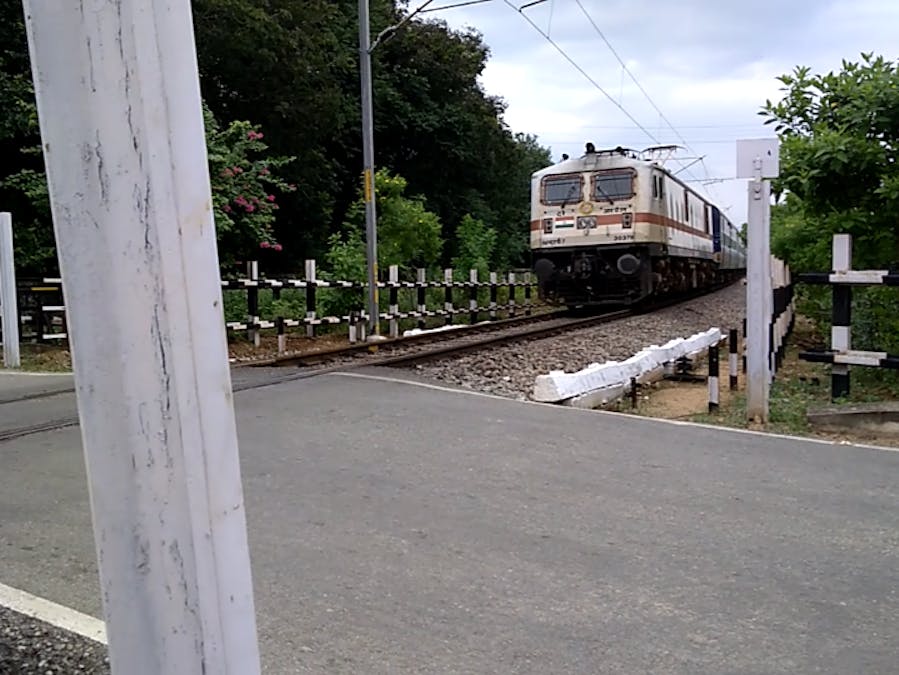

Safety Device for Railways

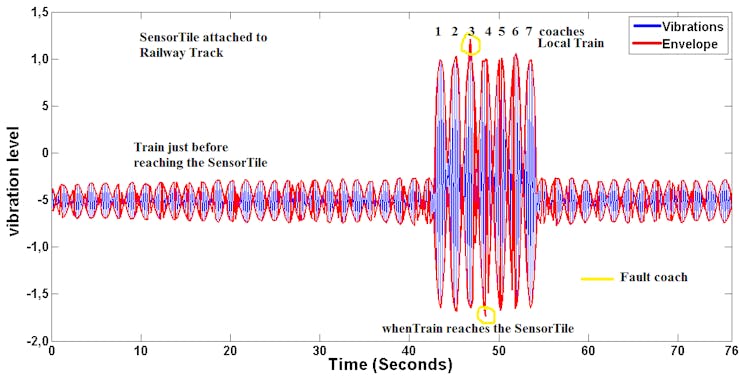

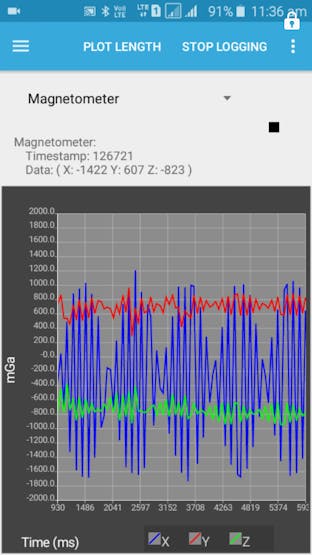

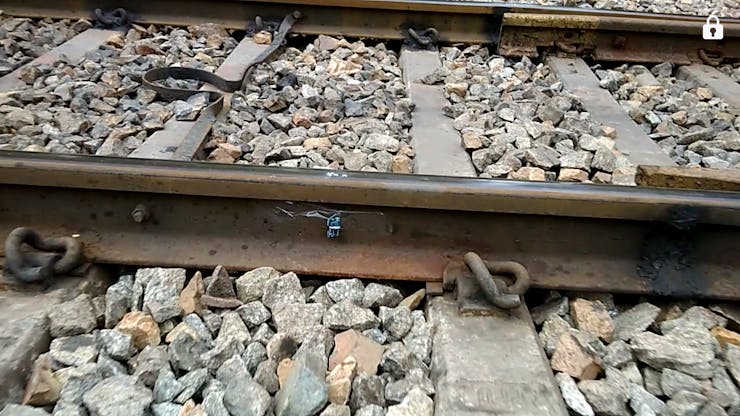

Train running on track status can be monitor by identify the rolling wheels motion and vibrations.

BeginnerFull instructions provided1 hour364

Things used in this project

Software apps and online services

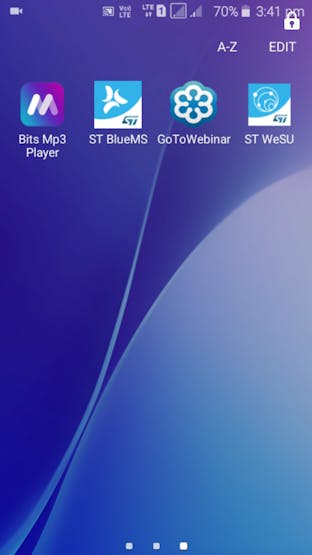

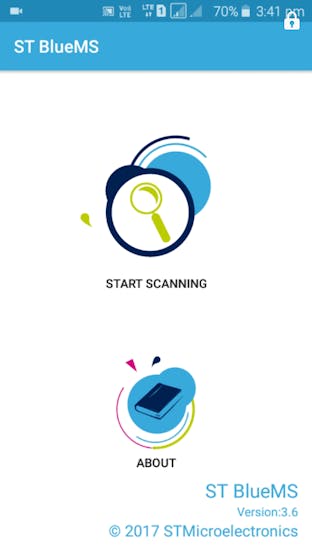

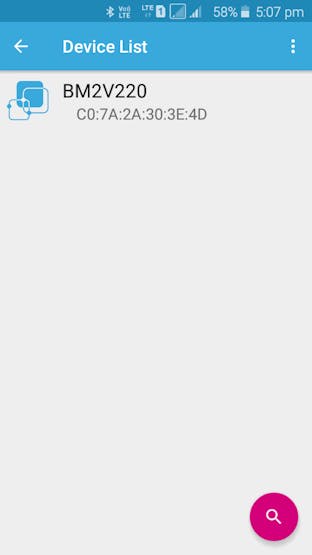

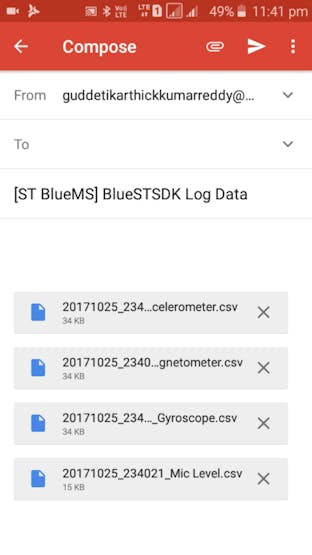

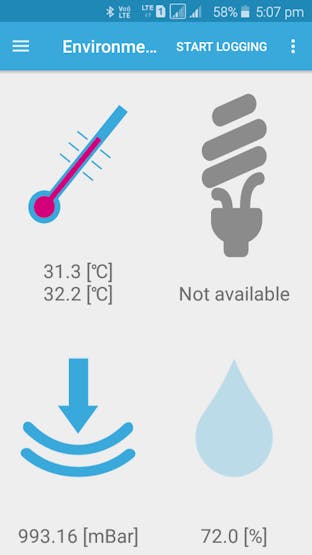

STM32 ST BlueMS

Story

Read more

Custom parts and enclosures

SensorTile box top case

Case to protect Sensortile

SensorTile box bottom case

Protective case for sensortile

Cradle+ SensorTile

CAD file for cradle and sensortile

Schematics

SensorTile Schematic

Document showing the Schematic diagrams

Code

SensorTile code

C/C++
C code to monitor the parameter in Sensortile
/**
  ******************************************************************************
  * @file    main.c
  * @author  Central Labs
  * @version V2.0.0
  * @date    27-April-2017
  * @brief   Main program body
  ******************************************************************************
  * @attention
  *
  * <h2><center>&copy; Copyright (c) 2016 STMicroelectronics International N.V.
  * All rights reserved.</center></h2>
  *
  * Redistribution and use in source and binary forms, with or without
  * modification, are permitted, provided that the following conditions are met:
  *
  * 1. Redistribution of source code must retain the above copyright notice,
  *    this list of conditions and the following disclaimer.
  * 2. Redistributions in binary form must reproduce the above copyright notice,
  *    this list of conditions and the following disclaimer in the documentation
  *    and/or other materials provided with the distribution.
  * 3. Neither the name of STMicroelectronics nor the names of other
  *    contributors to this software may be used to endorse or promote products
  *    derived from this software without specific written permission.
  * 4. This software, including modifications and/or derivative works of this
  *    software, must execute solely and exclusively on microcontroller or
  *    microprocessor devices manufactured by or for STMicroelectronics.
  * 5. Redistribution and use of this software other than as permitted under
  *    this license is void and will automatically terminate your rights under
  *    this license.
  *
  * THIS SOFTWARE IS PROVIDED BY STMICROELECTRONICS AND CONTRIBUTORS "AS IS"
  * AND ANY EXPRESS, IMPLIED OR STATUTORY WARRANTIES, INCLUDING, BUT NOT
  * LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A
  * PARTICULAR PURPOSE AND NON-INFRINGEMENT OF THIRD PARTY INTELLECTUAL PROPERTY
  * RIGHTS ARE DISCLAIMED TO THE FULLEST EXTENT PERMITTED BY LAW. IN NO EVENT
  * SHALL STMICROELECTRONICS OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT,
  * INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT
  * LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA,
  * OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF
  * LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING
  * NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE,
  * EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
  *
  ******************************************************************************
  */

/* Includes ------------------------------------------------------------------*/
#include "main.h"
#include "cmsis_os.h"
#include "datalog_application.h"

/* Private typedef -----------------------------------------------------------*/
/* Private define ------------------------------------------------------------*/

#define DATAQUEUE_SIZE     ((uint32_t)100)

typedef enum
{
  THREAD_1 = 0,
  THREAD_2
} Thread_TypeDef;

/* Private variables ---------------------------------------------------------*/

osThreadId GetDataThreadId, WriteDataThreadId;

osMessageQId dataQueue_id;
osMessageQDef(dataqueue, DATAQUEUE_SIZE, int);

osPoolId sensorPool_id;
osPoolDef(sensorPool, DATAQUEUE_SIZE, T_SensorsData);

osSemaphoreId readDataSem_id;
osSemaphoreDef(readDataSem);

osSemaphoreId doubleTapSem_id;
osSemaphoreDef(doubleTapSem);

/* LoggingInterface = USB_Datalog  --> Save sensors data on SDCard (enable with double click) */
/* LoggingInterface = SDCARD_Datalog  --> Send sensors data via USB */
LogInterface_TypeDef LoggingInterface = USB_Datalog;

USBD_HandleTypeDef  USBD_Device;
static volatile uint8_t MEMSInterrupt = 0;
volatile uint8_t no_H_HTS221 = 0;
volatile uint8_t no_T_HTS221 = 0;

void *LSM6DSM_X_0_handle = NULL;
void *LSM6DSM_G_0_handle = NULL;
void *LSM303AGR_X_0_handle = NULL;
void *LSM303AGR_M_0_handle = NULL;
void *LPS22HB_P_0_handle = NULL;
void *LPS22HB_T_0_handle = NULL;
void *HTS221_H_0_handle = NULL;
void *HTS221_T_0_handle = NULL;

/* Private function prototypes -----------------------------------------------*/
static void GetData_Thread(void const *argument);
static void WriteData_Thread(void const *argument);

static void Error_Handler( void );
static void initializeAllSensors( void );
void enableAllSensors( void );
void disableAllSensors( void );
void setOdrAllSensors( void );

void dataTimer_Callback(void const *arg);
void dataTimerStart(void);
void dataTimerStop(void);

osTimerId sensorTimId;
osTimerDef(SensorTimer, dataTimer_Callback);

uint32_t  exec;
/* Private functions ---------------------------------------------------------*/

/**
  * @brief  Main program
  * @param  None
  * @retval None
  */
int main(void)
{
  HAL_Init();

  /* Configure the System clock to 80 MHz */
  SystemClock_Config();

  if(LoggingInterface == USB_Datalog)
  {
    /* Initialize LED */
    BSP_LED_Init(LED1);
    BSP_LED_Off(LED1);
  }

  /* enable USB power on Pwrctrl CR2 register */
  HAL_PWREx_EnableVddUSB();

  if(LoggingInterface == USB_Datalog) /* Configure the USB */
  {
    /*** USB CDC Configuration ***/
    /* Init Device Library */
    USBD_Init(&USBD_Device, &VCP_Desc, 0);
    /* Add Supported Class */
    USBD_RegisterClass(&USBD_Device, USBD_CDC_CLASS);
    /* Add Interface callbacks for AUDIO and CDC Class */
    USBD_CDC_RegisterInterface(&USBD_Device, &USBD_CDC_fops);
    /* Start Device Process */
    USBD_Start(&USBD_Device);
  }
  else /* Configure the SDCard */
  {
    DATALOG_SD_Init();
  }

  /* Thread 1 definition */
  osThreadDef(THREAD_1, GetData_Thread, osPriorityAboveNormal, 0, configMINIMAL_STACK_SIZE*4);

  /* Thread 2 definition */
  osThreadDef(THREAD_2, WriteData_Thread, osPriorityNormal, 0, configMINIMAL_STACK_SIZE*4);

  /* Start thread 1 */
  GetDataThreadId = osThreadCreate(osThread(THREAD_1), NULL);

  /* Start thread 2 */
  WriteDataThreadId = osThreadCreate(osThread(THREAD_2), NULL);

  /* Start scheduler */
  osKernelStart();

  /* We should never get here as control is now taken by the scheduler */
  for (;;);

}

/**
  * @brief  Get data raw from sensors to queue
  * @param  thread not used
  * @retval None
  */
static void GetData_Thread(void const *argument)
{
  (void) argument;
  uint8_t doubleTap = 0;
  T_SensorsData *mptr;

  sensorPool_id = osPoolCreate(osPool(sensorPool));
  dataQueue_id = osMessageCreate(osMessageQ(dataqueue), NULL);

  readDataSem_id = osSemaphoreCreate(osSemaphore(readDataSem), 1);
  osSemaphoreWait(readDataSem_id, osWaitForever);

  doubleTapSem_id = osSemaphoreCreate(osSemaphore(doubleTapSem), 1);
  osSemaphoreWait(doubleTapSem_id, osWaitForever);

  /* Configure and disable all the Chip Select pins */
  Sensor_IO_SPI_CS_Init_All();

  /* Initialize and Enable the available sensors */
  initializeAllSensors();
  enableAllSensors();

  if(LoggingInterface == USB_Datalog)
  {
    dataTimerStart();
  }

  for (;;)
  {
    osSemaphoreWait(readDataSem_id, osWaitForever);
    if(MEMSInterrupt && LoggingInterface == SDCARD_Datalog)
    {
      MEMSInterrupt = 0;
      BSP_ACCELERO_Get_Double_Tap_Detection_Status_Ext(LSM6DSM_X_0_handle, &doubleTap);
      if(doubleTap)
      {
        if(SD_Log_Enabled)
        {
          dataTimerStop();
          osMessagePut(dataQueue_id, 0x00000007, osWaitForever);
        }
        else
        {
          osMessagePut(dataQueue_id, 0x00000007, osWaitForever);
        }
      }
    }
    else
    {
      /* Try to allocate a memory block and check if is not NULL */
      mptr = osPoolAlloc(sensorPool_id);
      if(mptr != NULL)
      {
        /* Get Data from Sensors */
        if(getSensorsData(mptr) == COMPONENT_OK)
        {
          /* Push the new memory Block in the Data Queue */
          if(osMessagePut(dataQueue_id, (uint32_t)mptr, osWaitForever) != osOK)
          {
             Error_Handler();
          }
        }
        else
        {
          Error_Handler();
        }
      }
      else
      {
        Error_Handler();
      }
    }
  }
}


/**
  * @brief  Write data in the queue on file or streaming via USB
  * @param  argument not used
  * @retval None
  */
static void WriteData_Thread(void const *argument)
{
  (void) argument;
  osEvent evt;
  T_SensorsData *rptr;
  int size;
  char data_s[256];

  for (;;)
  {
    evt = osMessageGet(dataQueue_id, osWaitForever);  // wait for message
    if (evt.status == osEventMessage)
    {
      if(evt.value.v == 0x00000007)
      {
        if (SD_Log_Enabled)
        {
          DATALOG_SD_Log_Disable();
          SD_Log_Enabled=0;
        }
        else
        {
          while(SD_Log_Enabled != 1)
          {
            if(DATALOG_SD_Log_Enable())
            {
              SD_Log_Enabled=1;
              osDelay(100);
              dataTimerStart();
            }
            else
            {
              //DATALOG_SD_Log_Disable();
              DATALOG_SD_DeInit();
              DATALOG_SD_Init();
              osDelay(100);
            }
          }
        }
      }
      else
      {
        rptr = evt.value.p;

        if(LoggingInterface == USB_Datalog)
        {
          size = sprintf(data_s, "TimeStamp: %d\r\n Acc_X: %d, Acc_Y: %d, Acc_Z :%d\r\n Gyro_X:%d, Gyro_Y:%d, Gyro_Z:%d\r\n Magn_X:%d, Magn_Y:%d, Magn_Z:%d\r\n Press:%5.2f, Temp:%5.2f, Hum:%4.1f\r\n",
                       rptr->ms_counter,
                       (int)rptr->acc.AXIS_X, (int)rptr->acc.AXIS_Y, (int)rptr->acc.AXIS_Z,
                       (int)rptr->gyro.AXIS_X, (int)rptr->gyro.AXIS_Y, (int)rptr->gyro.AXIS_Z,
                       (int)rptr->mag.AXIS_X, (int)rptr->mag.AXIS_Y, (int)rptr->mag.AXIS_Z,
                       rptr->pressure, rptr->temperature, rptr->humidity);
          osPoolFree(sensorPool_id, rptr);      // free memory allocated for message
          BSP_LED_Toggle(LED1);
          CDC_Fill_Buffer(( uint8_t * )data_s, size);
        }
        else
        {
          size = sprintf(data_s, "%d, %d, %d, %d, %d, %d, %d, %d, %d, %d, %5.2f, %5.2f, %4.1f\r\n",
                       rptr->ms_counter,
                       (int)rptr->acc.AXIS_X, (int)rptr->acc.AXIS_Y, (int)rptr->acc.AXIS_Z,
                       (int)rptr->gyro.AXIS_X, (int)rptr->gyro.AXIS_Y, (int)rptr->gyro.AXIS_Z,
                       (int)rptr->mag.AXIS_X, (int)rptr->mag.AXIS_Y, (int)rptr->mag.AXIS_Z,
                       rptr->pressure, rptr->temperature, rptr->humidity);
          osPoolFree(sensorPool_id, rptr);      // free memory allocated for message
          DATALOG_SD_writeBuf(data_s, size);
        }
      }
    }
  }
}


void dataTimer_Callback(void const *arg)
{
  osSemaphoreRelease(readDataSem_id);
}


void dataTimerStart(void)
{
  osStatus  status;

  // Create periodic timer
  exec = 1;
  sensorTimId = osTimerCreate(osTimer(SensorTimer), osTimerPeriodic, &exec);
  if (sensorTimId)  {
    status = osTimerStart (sensorTimId, DATA_PERIOD_MS);                // start timer
    if (status != osOK)  {
      // Timer could not be started
    }
  }
}

void dataTimerStop(void)
{
  osTimerStop(sensorTimId);
}




/**
* @brief  Initialize all sensors
* @param  None
* @retval None
*/
static void initializeAllSensors( void )
{
  if (BSP_ACCELERO_Init( LSM6DSM_X_0, &LSM6DSM_X_0_handle ) != COMPONENT_OK)
  {
    while(1);
  }

  if (BSP_GYRO_Init( LSM6DSM_G_0, &LSM6DSM_G_0_handle ) != COMPONENT_OK)
  {
    while(1);
  }

  if (BSP_ACCELERO_Init( LSM303AGR_X_0, &LSM303AGR_X_0_handle ) != COMPONENT_OK)
  {
    while(1);
  }

  if (BSP_MAGNETO_Init( LSM303AGR_M_0, &LSM303AGR_M_0_handle ) != COMPONENT_OK)
  {
    while(1);
  }

  if (BSP_PRESSURE_Init( LPS22HB_P_0, &LPS22HB_P_0_handle ) != COMPONENT_OK)
  {
    while(1);
  }

  if (BSP_TEMPERATURE_Init( LPS22HB_T_0, &LPS22HB_T_0_handle ) != COMPONENT_OK)
  {
    while(1);
  }

  if(BSP_TEMPERATURE_Init( HTS221_T_0, &HTS221_T_0_handle ) == COMPONENT_ERROR)
  {
    no_T_HTS221 = 1;
  }

  if(BSP_HUMIDITY_Init( HTS221_H_0, &HTS221_H_0_handle ) == COMPONENT_ERROR)
  {
    no_H_HTS221 = 1;
  }

  if(LoggingInterface == SDCARD_Datalog)
  {
    /* Enable HW Double Tap detection */
    BSP_ACCELERO_Enable_Double_Tap_Detection_Ext(LSM6DSM_X_0_handle, INT2_PIN);
    BSP_ACCELERO_Set_Tap_Threshold_Ext(LSM6DSM_X_0_handle, LSM6DSM_TAP_THRESHOLD_MID);
  }

}

/**
* @brief  Enable all sensors
* @param  None
* @retval None
*/
void enableAllSensors( void )
{
  BSP_ACCELERO_Sensor_Enable( LSM6DSM_X_0_handle );
  BSP_GYRO_Sensor_Enable( LSM6DSM_G_0_handle );
  BSP_ACCELERO_Sensor_Enable( LSM303AGR_X_0_handle );
  BSP_MAGNETO_Sensor_Enable( LSM303AGR_M_0_handle );
  BSP_PRESSURE_Sensor_Enable( LPS22HB_P_0_handle );
  BSP_TEMPERATURE_Sensor_Enable( LPS22HB_T_0_handle );
  if(!no_T_HTS221)
  {
    BSP_TEMPERATURE_Sensor_Enable( HTS221_T_0_handle );
  }
  if(!no_H_HTS221)
  {
    BSP_HUMIDITY_Sensor_Enable( HTS221_H_0_handle );
  }
}
/**
* @brief  Set ODR all sensors
* @param  None
* @retval None
*/
void setOdrAllSensors( void )
{
  BSP_ACCELERO_Set_ODR_Value( LSM303AGR_X_0_handle, ACCELERO_ODR);
  BSP_MAGNETO_Set_ODR_Value( LSM303AGR_M_0_handle, MAGNETO_ODR);
  BSP_GYRO_Set_ODR_Value(LSM6DSM_G_0_handle, GYRO_ODR);
  BSP_PRESSURE_Set_ODR_Value( LPS22HB_P_0_handle, PRESSURE_ODR);
  BSP_TEMPERATURE_Set_ODR_Value( HTS221_T_0_handle, TEMPERATURE_ODR);
  BSP_HUMIDITY_Set_ODR_Value( HTS221_H_0_handle, TEMPERATURE_ODR );
}


/**
* @brief  Disable all sensors
* @param  None
* @retval None
*/
void disableAllSensors( void )
{
  BSP_ACCELERO_Sensor_Disable( LSM6DSM_X_0_handle );
  BSP_ACCELERO_Sensor_Disable( LSM303AGR_X_0_handle );
  BSP_GYRO_Sensor_Disable( LSM6DSM_G_0_handle );
  BSP_MAGNETO_Sensor_Disable( LSM303AGR_M_0_handle );
  BSP_HUMIDITY_Sensor_Disable( HTS221_H_0_handle );
  BSP_TEMPERATURE_Sensor_Disable( HTS221_T_0_handle );
  BSP_TEMPERATURE_Sensor_Disable( LPS22HB_T_0_handle );
  BSP_PRESSURE_Sensor_Disable( LPS22HB_P_0_handle );
}

/**
* @brief  EXTI line detection callbacks
* @param  GPIO_Pin: Specifies the pins connected EXTI line
* @retval None
*/
void HAL_GPIO_EXTI_Callback( uint16_t GPIO_Pin )
{
  MEMSInterrupt=1;
  osSemaphoreRelease(readDataSem_id);
}

/**
* @brief  This function is executed in case of error occurrence
* @param  None
* @retval None
*/
static void Error_Handler( void )
{
  while (1)
  {}
}


#ifdef  USE_FULL_ASSERT

/**
  * @brief  Reports the name of the source file and the source line number
  *   where the assert_param error has occurred.
  * @param  file: pointer to the source file name
  * @param  line: assert_param error line source number
  * @retval None
  */
void assert_failed(uint8_t *file, uint32_t line)
{
  /* User can add his own implementation to report the file name and line number,
     ex: printf("Wrong parameters value: file %s on line %d\r\n", file, line) */

  /* Infinite loop */
  while (1)
  {}
}
#endif

/************************ (C) COPYRIGHT STMicroelectronics *****END OF FILE****/

Credits

GKKR

GKKR

2 projects • 3 followers
Hobbyist, Design Engineer.
M. Ramanadha

M. Ramanadha

4 projects • 4 followers
Student

Comments
