Private IoT with Blynk on Local Server

Concerned about IoT privacy on the cloud? Blynk offers an interesting option for improved security with a local server.

AdvancedFull instructions provided21,515

Things used in this project

Hardware components

Texas Instruments CC3200-LAUNCHXL SimpleLink CC3200 Wi-Fi LaunchPad

Seeed Studio Grove Starter Kit for LaunchPad

BeagleBoard.org BeagleBone Black

Software apps and online services

Texas Instruments Energia

Blynk

embedXcode

Story

Concerned about IoT privacy on the cloud? The Blynk solution offers an interesting option for improved security with a local server.

I tested it with the following configuration:

The LaunchPad TM4C123 programmed with Energia performs the data acquisition with the Grove BoosterPack and the same sensors as in the Weather and Security Station with Blynk. Connection to the server is done through WiFi with the CC3100 WiFi BoosterPack.

A BeagleBone White running on Debian hosts the server, with Blynk server release 0.8.0,

The Blynk version 1.0 RC7 for Android displays the data on a Slate 7 Plus tablet from Hewlett Packard running on Android 4.2.2 .

Prepare the Hardware

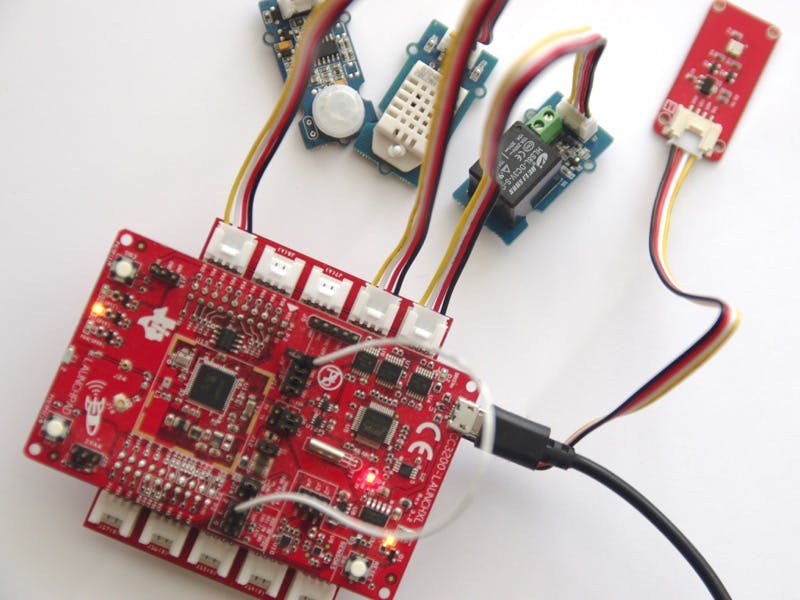

As for the project Weather and Security Station with Blynk, the hardware includes a LaunchPad CC3200 and a Grove BoosterPack with 4 elements:

a PIR detector (input pin 27),
a DHT22 temperature and humidity sensor (input pin 24),
a BMP180 pressure sensor (I²C port) and
a relay (output pin 23).

The Grove system makes connections very easy. Just plug and play!

Plug and play!

Configure the Server

The server is hosted in a BeagleBone, connected through Ethernet to a WiFi router.

$ java -version java version "1.8.0_60" Java(TM) SE Runtime Environment (build 1.8.0_60-b27) Java HotSpot(TM) 64-Bit Server VM (build 25.60-b23, mixed mode)

First install Java 8 following this procedure

# apt-get install oracle-java8-installer

Second, create a Blynk folder and install the Blynk server

# mkdir ~/Blynk# wget https://github.com/blynkkk/blynk-server/releases/download/v0.8.0/server-0.8.0.jar

Third and finally, launch the server and note the IP address of the BeagleBone.

# cd ~/Blynk# java -jar server-0.8.0.jar -dataFolder ~/Blynk &

Open the Blynk Application

Connecting the Blynk application to the server was the tricky part. I wasn't able to connect to the server directly from the application. d> The procedure should have been:

On the main screen, select the server to connect to.
On the Server Settings, select Custom and enter the IP Address of the server.
Press OK to return to the main screen.
Press Create Account and enter the credentials.

1 / 2

The credentials consist on an e-mail address with a @ and a . like in name@mail.com, and a non-empty password. Both are compulsory. Otherwise, the app displays a cryptic message.This last part didn't work for me. I reported the bug and Blynk is working on an fix.

As an option, Blynk provides a client to emulate a smartphone, with handy commands to create and configure a client.

First, check Java 8 is installed. If required, download and install it.

$ java -version java version "1.8.0_60" Java(TM) SE Runtime Environment (build 1.8.0_60-b27) Java HotSpot(TM) 64-Bit Server VM (build 25.60-b23, mixed mode)

Second, download the client.

$ wget https://github.com/blynkkk/blynk-server/releases/download/v0.8.0/client-0.8.0.jar

Third, launch the client. 192.168.1.26 is the IP address of the BeagleBone and 8443 is the default port of the Blynk server.

$ /usr/bin/java -jar client-0.8.0.jar -mode app -host 192.168.1.26 -port 8443

Finally, create the user, a dashboard and note the authentication string, like "1a2b3c4d5e6f7g8h9i0j1k2l3m4n5o6p".

register name@mail.com passwordlogin name@mail.com passwordsaveProfile {"dashBoards":[{"id":1, "name":"Local Weather", "boardType":"LaunchPad CC3200"}]}getToken 1activate 1

Back to the tablet,

Launch the Blynk application and select Log In.
Proceed as before for selecting the server and entering the IP address of the BeagleBone.
Type in the credentials name@mail.com and password, and press the Log In button.

Blynk grants access and shows the empty dashboard previously created with the client.

1 / 2

Adapt the Sketch

Just edit the Blynk.begin() and add the IP address of the server.

Conclusion

The Blynk sever offers many more options, as e-mail, debug log level, number of users, data storage, SSL certificates. Contrary to other options like Phant used by Sparkfun Data, there's no need to stop Apache.

The only difficult part was the configuration process, which is being fixed. The forum was of great help on solving this issue.

The Blynk server offers a very interesting solution for private cloud, from start to finish.

Pros: Private cloud, Data retention
Cons: Connection to the server from the Blynk application not as easy as expected
Wrap-Up: Very interesting solution for private cloud, Highly recommended

Links

Blynk server download and documentation
Blynk website

blynkweather.ino

///
/// @mainpage	blynkWeather
///
/// @details	Blynk with Weather for CC3200
/// @n
/// @n
/// @n @a		Developed with [embedXcode+](http://embedXcode.weebly.com)
///
/// @author		Rei Vilo
/// @author		http://embeddedcomputing.weebly.com
/// @date		23/07/2015 13:58
/// @version	101
///
/// @copyright	(c) Rei Vilo, 2015
/// @copyright	CC = BY SA NC
///
/// @see		ReadMe.txt for references
///


///
/// @file		blynkWeather.ino
/// @brief		Main sketch
///
/// @details	Example sketch
/// @n @a		Developed with [embedXcode+](http://embedXcode.weebly.com)
///
/// @author		Rei Vilo
/// @author		http://embeddedcomputing.weebly.com
/// @date		23/07/2015 13:58
/// @version	101
///
/// @copyright	(c) Rei Vilo, 2015
/// @copyright	CC = BY SA NC
///
/// @see		ReadMe.txt for references
/// @n
///


// Core library for code-sense - IDE-based
#if defined(ENERGIA) // LaunchPad specific
#include "Energia.h"
#else // error
#error Platform not defined
#endif // end IDE

// Include application, user and local libraries
#include "Wire.h"
#include "Sensor_BMP180.h"
#include "Sensor_DHT.h"
#include "Sensor_PIR.h"

#ifndef __CC3200R1M1RGC__ // Do not include SPI for CC3200 LaunchPad
#include <SPI.h>
#endif
#include "WiFi.h"
#include <WiFiClient.h>
#include <BlynkSimpleCC3200.h>
#include "SimpleTimer.h"


// Prototypes


// Define variables and constants
Sensor_BMP180 myBMP180;
Sensor_DHT myDHT(24, DHT22);
Sensor_PIR myPIR(27);


#define BLYNK_PRINT Serial    // Comment this out to disable prints and save space


// You should get Auth Token in the Blynk App.
// Go to the Project Settings (nut icon).
char auth[] = "AuthToken";
SimpleTimer Timer;
const uint8_t myRelay = 23;

bool alarm = false;

void sendUptime()
{
    myPIR.get();
    alarm |= myPIR.status();
    BLYNK_LOG("myPIR    %8i %8i", myPIR.status(), alarm);
    digitalWrite(RED_LED, alarm);

    // You can send any value at any time.
    // Please don't send more that 10 values per second.
    Blynk.virtualWrite(4, alarm);
}

// Add setup code
void setup()
{
    Serial.begin(9600);

    Wire.begin(); // required by BMP180
    myBMP180.begin(3);
    myDHT.begin();
    myPIR.begin();

    pinMode(RED_LED, OUTPUT);
    digitalWrite(RED_LED, HIGH);
    delay(1000);
    digitalWrite(RED_LED, LOW);

    Blynk.begin(auth, "SSID", "password", 0); // WLAN_SEC_WPA2

    // Setup a function to be called every second
    Timer.setInterval(1000L, sendUptime);
}

// Add loop code
void loop()
{
    Blynk.run();
    Timer.run();
}

// This function tells Arduino what to do if there is a Widget
// which is requesting data for Virtual Pin (0)
BLYNK_READ(0)
{
    myBMP180.get();
    float t1 = myBMP180.temperature();
    float p  = myBMP180.pressure();
    // This command writes t1 to Virtual Pin (0)
    Blynk.virtualWrite(0, t1);
    // This command writes p to Virtual Pin (0)
    Blynk.virtualWrite(1, p);
    BLYNK_LOG("myBMP180 %8.1f %8.1f", t1, p);
}

// This function tells Arduino what to do if there is a Widget
// which is requesting data for Virtual Pin (2)
BLYNK_READ(2)
{
    myDHT.get();
    float t2 = myDHT.temperature();
    float rh = myDHT.humidity();
    // This command writes t2 to Virtual Pin (2)
    Blynk.virtualWrite(2, t2);
    // This command writes rh to Virtual Pin (3)
    Blynk.virtualWrite(3, rh);
    BLYNK_LOG("myDHT    %8.1f %8.1f", t2, rh);
}

// This function will be called every time
// when App writes value to Virtual Pin 5
BLYNK_WRITE(5)
{
    BLYNK_LOG("Reset alarm %s", param.asStr());
    // You can also use: asInt() and asDouble()
    if (param.asInt() > 0) alarm = false; // reset
}
