Cold Chain Auditor: Real-Time Trust Score & Web Dashboard

An ESP32-based cold chain monitoring system that evaluates temperature, handling, and access conditions into a real-time trust score with au

IntermediateFull instructions provided5 hours14

Cold Chain Auditor: Real-Time Trust Score & Web Dashboard

Things used in this project

Hardware components

Espressif ESP32 Development Board - Developer Edition

Main microcontroller and WiFi server

Adafruit Waterproof DS18B20 Digital temperature sensor

Waterproof sensor for continuous temperature monitoring

DFRobot 6 DOF Sensor - MPU6050

Detects physical impacts and vibrations

Seeed Studio Grove - OLED Display 0.66" (SSD1306)- IIC - 3.3V/5V

128x64 display for on-device status

Bitcraze Micro SD card deck

Logs real-time data to a microSD card

Reed Switch, SPST-NO

Detects door open/close events using a magnet

5 mm LED: Red

Visual indicator for Compromised status.

5 mm LED: Green

Visual indicator for Safe status.

Resistor 4.75k ohm

Required pull-up for the DS18B20 data line

Resistor 220 ohm

Current limiting for the status LEDs

Breadboard (generic)

Jumper wires (generic)

Software apps and online services

Arduino IDE

The core environment used to write and upload the C++ firmware

Hand tools and fabrication machines

Soldering iron (generic)

Solder Wire, Lead Free

Solder Flux, Soldering

Wire Stripper & Cutter, 18-10 AWG / 0.75-4mm² Capacity Wires

Hot glue gun (generic)

Story

Why This Project Exists?

Every year, an estimated 50% of vaccines are wasted globally. A significant fraction of that waste comes from cold chain failures — vaccines that were exposed to temperatures outside the 2–8°C safe range at some point during transport or storage, but no one knew until it was too late.

Traditional cold chain monitoring tools are either expensive dedicated loggers that are difficult to read in the field, or simple max/min thermometers that only tell you a breach happened — not when, for how long, or how bad. Neither gives a healthcare worker a simple, actionable answer to the question: "Is this vial still safe?"

This project answers that question with a single number: the Cold Chain Trust Score (CTS). Inspired by how credit bureaus score financial reliability, CTS starts at 100 and decays in real time based on every monitored condition — temperature excursion, door left open, physical impact. A score above 70 is Safe. Between 40–70 is At Risk. Below 40 is Compromised.

The system runs on an ESP32 with commodity sensors, logs every second to a microSD card, and serves a beautiful live dashboard over WiFi — no internet required, no cloud dependency, no subscription.

What It Does?

Hardware Monitoring Strategy

The system coordinates five specialized monitoring vectors to ensure no breach goes undetected:

DS18B20 Waterproof Sensor: Provides high-precision thermal monitoring within the 2–8°C "Goldilocks zone, " with continuous polling every 500ms.
MPU6050 Accelerometer: Monitors physical integrity by detecting impacts and rough handling. It utilizes rising-edge detection logic so that a single sustained bump (like a vehicle vibration) counts as one event rather than a continuous penalty.
Magnetic Reed Switch: Tracks every door open/close event. This allows the system to differentiate between routine vaccine retrieval and a door left dangerously ajar.
MicroSD Card (SPI): Acts as a secure "Black Box" recorder, logging the timestamp, temperature, CTS score, motion, and door state every second to a permanent .csv file.
Dual Red/Green LEDs offer instant visual diagnostics: Solid Green for Safe and Solid Red for Compromised.
Visual Interface (OLED & LEDs): The SSD1306 OLED provides an on-device status dashboard for field workers without smartphone access.

Cold Chain Trust Score (CTS) Logic

CTS is a real-time integrity score from 0–100. It is designed to be practically meaningful:

• A brief 30-second door opening should not tank the score — it should warn, not condemn

• A sustained 2-hour temperature excursion should clearly matter

• A single bump during transport should register but not catastrophise

• When everything is normal, the score slowly recovers — representing restored monitoring confidence

Web Dashboard

• Live status banner: Safe / At Risk / Compromised

• 4 metric cards: Temperature, CTS Score, Breach Events, Motion Events

• Door status indicator with live countdown to CTS penalty activation

• Motion indicator with pulse animation when active

• CTS Trust Score panel with progress bar and trend chart

• Temperature chart with 2–8°C safe-zone reference lines

• CTS Drop Rate bar chart — colour-coded by severity (green/amber/red)

• Scrolling event log with timestamps

• One-click CSV download of the full SD card log

Dashboard

OLED Display

• Status line: SAFE / AT RISK / COMPROMISED

• Large temperature reading

• CTS value with fill bar

• Icon row: D:CLSD | M:N | SD:Y | W:Y (Door / Motion / SD / WiFi)

OLED Output

Step-by-Step Build Instructions

Step 1-Setting Up Arduino IDE

1. Download and install Arduino IDE 2.x from arduino.cc/en/software

2. Open File → Preferences and add the ESP32 board URL to Additional Board Manager URLs:

https://dl.espressif.com/dl/package_esp32_index.json

3. Open Tools → Board → Board Manager, search for "esp32" and install the Espressif Systems package

4. Install all 5 libraries via Tools → Manage Libraries (search each by name)

5. Select your board: Tools → Board → ESP32 Dev Module

6. Select your COM port: Tools → Port

Step 2- Preparing the SD Card

7. Format a microSD card as FAT32 (use the official SD Card Formatter tool from sdcard.org)

8. The firmware automatically creates /log.csv with a header row on first boot if it doesn't exist — no manual prep needed

Step 3- Gather All Parts

9. Source all components before starting. Having everything on hand avoids a half-built circuit sitting idle. Total build time is approximately 2–3 hours for a breadboard prototype

ESP32 Dev Board

Step 4- Wire DS18B20 First and Test

10. Connect DS18B20 VCC → 3.3V, GND → GND, Data → GPIO 4

11. Add 4.7kΩ resistor between Data and VCC

12. Flash a minimal sketch using the DallasTemperature library and confirm you get a valid reading in Serial Monitor

Tip: If you get -127°C, the pull-up resistor is missing or the data wire is wrong

DS18B20 Waterproof Temp Sensor

Step 5- Add MPU6050

13. Connect SDA → GPIO 21, SCL → GPIO 22, VCC → 3.3V, GND → GND

14. Add mpu.initialize() and mpu.testConnection() to your sketch

15. Confirm "MPU OK" in Serial Monitor before continuing

MPU6050 Accelerometer

Step 6- Add OLED

16. The OLED shares the same I2C bus (GPIO 21/22). Both devices have different I2C addresses so they coexist without issue. Confirm the OLED shows text using a basic Adafruit SSD1306 example sketch.

SSD1306 OLED 128×64 (I2C)

Step 7- Add SD Card Module

17. Connect MOSI → GPIO 23, MISO → GPIO 19, SCK → GPIO 18, CS → GPIO 5

18. Insert a FAT32-formatted microSD card

19. Test with the SD library's CardInfo example sketch to confirm detection

Micro SD Card Module

Step 8- Wire Reed Switch and LEDs

20. Connect one leg of the reed switch to GPIO 27, the other leg to GND

21. Red LED: GPIO 25 → 220Ω → LED anode, cathode to GND

22. Green LED: GPIO 26 → 220Ω → LED anode, cathode to GND

Reed Switch

Step 9- Flash the Full Firmware

23. Open the cold_chain_full.ino file in Arduino IDE

24. Update ssid and password with your WiFi credentials

25. Select ESP32 Dev Module, set Upload Speed to 921600

26. Click Upload

27. Open Serial Monitor at 115200 baud — you should see: MPU6050 OK, SD Ready, WiFi Connected, and the IP address

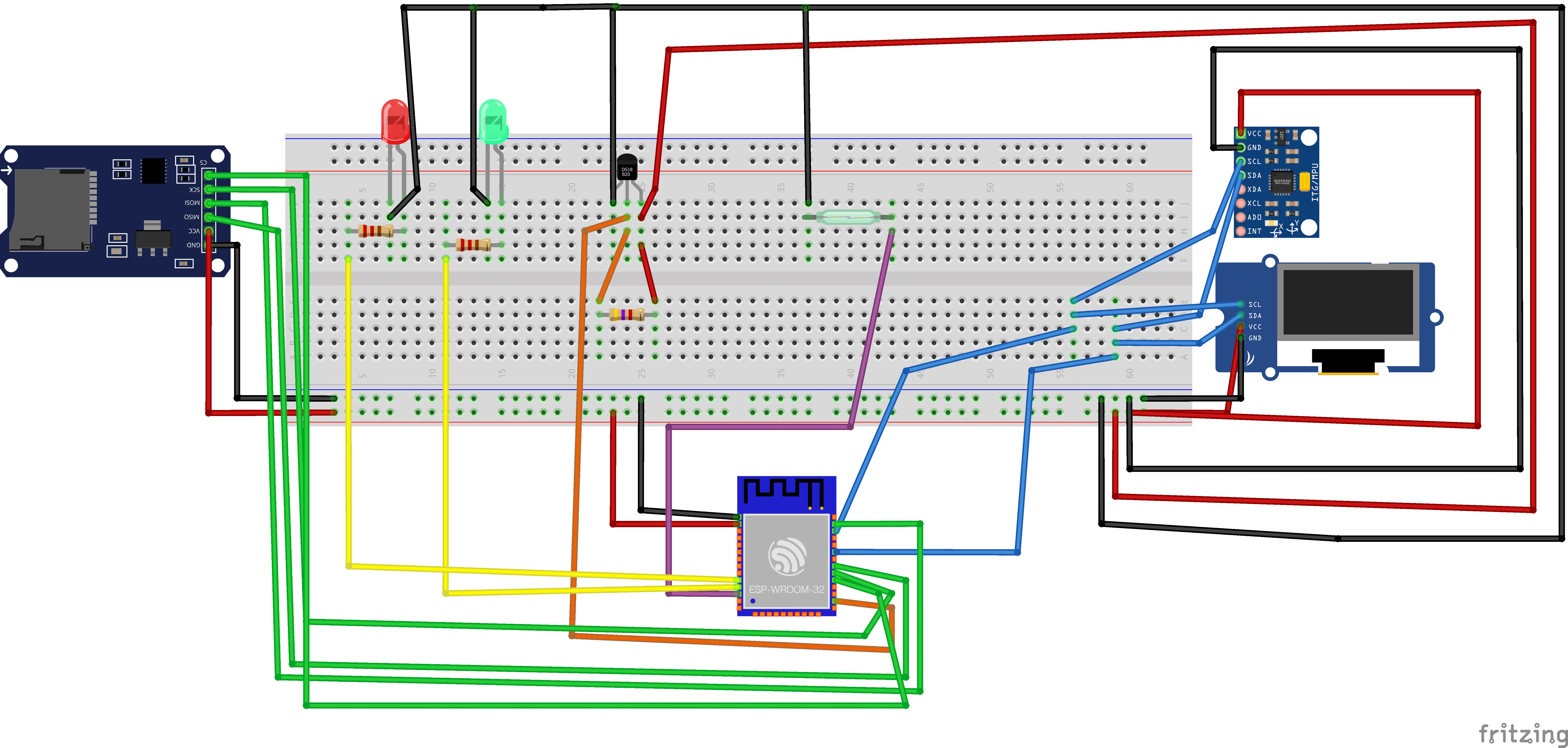

Circuit Setup

Step 10- Open the Dashboard

28. On any device connected to the same WiFi network, open a browser

29. Navigate to http://[IP-ADDRESS-FROM-SERIAL]/

30. The dashboard should load and begin updating every second

31. Test: open the fridge door — the door indicator should turn red

Dashboard when the door is open and closed

32. Test: tap the sensor — a motion event should appear in the event log

33. Test: click Download CSV — the log.csv file should download

Using the System in the Field

The OLED is designed to be readable without a phone or browser. The status line at the top tells you the overall chain state immediately. The bottom icon row confirms SD logging and WiFi are active.

Interpreting the CTS Score

Downloading and Analysing the Log:

Click "Download CSV" in the web dashboard to retrieve the full log file. The CSV format is:

Time_ms, Temp_C, CTS, Motion, Door

1000, 4.25, 100.00, 0, 0

2000, 4.31, 99.99, 0, 0

Import into Excel, Google Sheets, or Python/pandas for post-journey analysis. The timestamp column (milliseconds since boot) can be converted to relative time for graphing.

Demonstration Video

Code

Cold Chain Auditor – ESP32 Firmware

// Cold Chain Auditor Firmware (ESP32)

#include <WiFi.h>
#include <Wire.h>
#include <MPU6050.h>
#include <OneWire.h>
#include <DallasTemperature.h>
#include <Adafruit_GFX.h>
#include <Adafruit_SSD1306.h>
#include <SPI.h>
#include <SD.h>

//  WiFi
const char* ssid     = "Nishaanth";   //Put your own WiFi Username
const char* password = "nisco@06";    //Put your WiFi Password
WiFiServer server(80);

//  OLED
#define SCREEN_WIDTH  128
#define SCREEN_HEIGHT  64
Adafruit_SSD1306 display(SCREEN_WIDTH, SCREEN_HEIGHT, &Wire, -1);

//  Pins
#define ONE_WIRE_BUS  4
#define RED_PIN      25
#define GREEN_PIN    26
#define REED_PIN     27
#define SD_CS         5

//  Sensors
OneWire oneWire(ONE_WIRE_BUS);
DallasTemperature sensors(&oneWire);
MPU6050 mpu;

//  State
float    temp          = 4.0f;
float    cts           = 100.0f;
bool     motion        = false;
bool     doorOpen      = false;
bool     sdReady       = false;
bool     wifiConnected = false;

// Door tracking
unsigned long doorOpenSince     = 0;
bool          doorWasOpen       = false;
bool          doorPenaltyActive = false;

// Counters
int  motionEventCount = 0;
int  breachEventCount = 0;
bool lastInRange      = true;

// Timers
unsigned long lastLogMs    = 0;
unsigned long lastSensorMs = 0;
unsigned long lastOledMs   = 0;

// CTS decay parameters (temperature, door, motion)

const float TEMP_HIGH_RATE   = 0.003f;   // per C above 8C, per second
const float TEMP_LOW_RATE    = 0.005f;   // per C below 2C, per second
const float TEMP_FREEZE_XTRA = 0.010f;   // extra per second when below 0C

const float DOOR_OPEN_RATE   = 0.008f;   // per second while door open >20 s

// Motion: one-shot penalty on each rising edge (not per-second)
const float MOTION_PENALTY   = 0.05f;    // deducted once per motion event

// Slow recovery when everything is fine  restores monitoring confidence
const float RECOVERY_RATE    = 0.001f;   // per second when all is well

const unsigned long DOOR_THRESHOLD_MS = 20000UL;

//  SD LOG
void logData() {
  if (!sdReady) return;
  File f = SD.open("/log.csv", FILE_APPEND);
  if (f) {
    f.printf("%lu,%.2f,%.2f,%d,%d\n",
             millis(), temp, cts, (int)motion, (int)doorOpen);
    f.close();
  }
}

//  OLED DRAW
void drawOLED() {
  display.clearDisplay();
  display.setTextColor(WHITE);

  // Row 0: Safe / At Risk / Compromised
  display.setTextSize(1);
  display.setCursor(0, 0);
  const char* status = cts >= 70 ? "** SAFE **"
                     : cts >= 40 ? "** AT RISK **"
                     :             "** COMPROMISED **";
  // Centre it roughly
  int px = max(0, (128 - (int)strlen(status) * 6) / 2);
  display.setCursor(px, 0);
  display.print(status);

  display.drawLine(0, 9, 127, 9, WHITE);

  // Row 1: Temp large
  display.setCursor(0, 12);
  display.setTextSize(1);
  display.print("TEMP");
  display.setTextSize(2);
  display.setCursor(30, 10);
  char tbuf[10];
  snprintf(tbuf, sizeof(tbuf), "%.1fC", temp);
  display.print(tbuf);

  // Row 2: CTS bar
  display.setTextSize(1);
  display.setCursor(0, 30);
  char cbuf[16];
  snprintf(cbuf, sizeof(cbuf), "CTS %.1f", cts);
  display.print(cbuf);

  display.drawRect(0, 40, 128, 6, WHITE);
  int bw = constrain((int)(cts / 100.0f * 124), 0, 124);
  if (bw > 0) display.fillRect(2, 42, bw, 2, WHITE);

  // Row 3: icons row
  display.setTextSize(1);
  display.setCursor(0, 50);
  // Door | Motion | SD | WiFi
  display.printf("D:%-5s M:%c SD:%c W:%c",
    doorOpen ? "OPEN" : "CLSD",
    motion        ? 'Y' : 'N',
    sdReady       ? 'Y' : '-',
    wifiConnected ? 'Y' : '-');

  display.display();
}

//
void setup() {
  Serial.begin(115200);

  Wire.begin(21, 22);
  Wire.setClock(100000);
  delay(100);

  // OLED init
  if (!display.begin(SSD1306_SWITCHCAPVCC, 0x3C)) {
    Serial.println("OLED not found");
  } else {
    display.clearDisplay();
    display.setTextSize(1);
    display.setTextColor(WHITE);
    display.setCursor(0, 0);
    display.println("Cold Chain Auditor");
    display.println("Booting...");
    display.display();
  }

  // GPIO
  pinMode(RED_PIN,   OUTPUT);
  pinMode(GREEN_PIN, OUTPUT);
  pinMode(REED_PIN,  INPUT_PULLUP);
  digitalWrite(RED_PIN,   LOW);
  digitalWrite(GREEN_PIN, LOW);

  // Sensors
  sensors.begin();
  mpu.initialize();
  mpu.setSleepEnabled(false);
  Serial.println(mpu.testConnection() ? "MPU6050 OK" : "MPU6050 FAIL");

  // SD
  if (SD.begin(SD_CS)) {
    sdReady = true;
    if (!SD.exists("/log.csv")) {
      File f = SD.open("/log.csv", FILE_WRITE);
      if (f) { f.println("Time_ms,Temp_C,CTS,Motion,Door"); f.close(); }
    }
    Serial.println("SD Ready");
  } else {
    Serial.println("SD Failed");
  }

  // WiFi
  display.clearDisplay();
  display.setCursor(0, 0);
  display.println("Connecting WiFi...");
  display.display();

  WiFi.begin(ssid, password);
  for (int i = 0; i < 24 && WiFi.status() != WL_CONNECTED; i++) {
    delay(500); Serial.print(".");
  }
  wifiConnected = (WiFi.status() == WL_CONNECTED);

  if (wifiConnected) {
    server.begin();
    Serial.printf("\nWiFi: %s\n", WiFi.localIP().toString().c_str());
    display.clearDisplay();
    display.setCursor(0, 0);
    display.println("WiFi Connected");
    display.println(WiFi.localIP().toString());
    display.display();
    delay(1500);
  } else {
    Serial.println("\nWiFi failed  running offline");
  }
}

//
void loop() {
  unsigned long now = millis();

  //  Sensor + CTS update every 500 ms
  if (now - lastSensorMs >= 500) {
    lastSensorMs = now;

    // Temperature
    sensors.requestTemperatures();
    float raw = sensors.getTempCByIndex(0);
    if (raw > -55.0f) temp = raw;

    // MPU6050  rising-edge motion detection
    int16_t ax, ay, az;
    mpu.getAcceleration(&ax, &ay, &az);
    bool motNow = (abs(ax) > 7000 || abs(ay) > 7000 || abs(az - 16384) > 7000);
    if (motNow && !motion) {
      // Rising edge only
      cts -= MOTION_PENALTY;
      motionEventCount++;
    }
    motion = motNow;

    // Reed switch: LOW = magnet = door CLOSED
    doorOpen = (digitalRead(REED_PIN) == HIGH);

    if (doorOpen) {
      if (!doorWasOpen) doorOpenSince = now;
      doorWasOpen = true;
    } else {
      doorWasOpen       = false;
      doorPenaltyActive = false;
    }
    unsigned long openMs = doorOpen ? (now - doorOpenSince) : 0;
    doorPenaltyActive    = doorOpen && (openMs > DOOR_THRESHOLD_MS);

    //  CTS decay (dt = 0.5 s)
    const float dt       = 0.5f;
    bool        inRange  = (temp >= 2.0f && temp <= 8.0f);

    if (temp > 8.0f)
      cts -= TEMP_HIGH_RATE * (temp - 8.0f) * dt;
    if (temp < 2.0f)
      cts -= TEMP_LOW_RATE  * (2.0f - temp)  * dt;
    if (temp < 0.0f)
      cts -= TEMP_FREEZE_XTRA * dt;
    if (doorPenaltyActive)
      cts -= DOOR_OPEN_RATE * dt;

    // Slow recovery when everything is fine
    if (inRange && !doorPenaltyActive && cts < 100.0f)
      cts += RECOVERY_RATE * dt;

    if (!inRange && lastInRange) breachEventCount++;
    lastInRange = inRange;

    cts = constrain(cts, 0.0f, 100.0f);

    //  LEDs
    if (cts >= 70) {
      digitalWrite(GREEN_PIN, HIGH);
      digitalWrite(RED_PIN,   LOW);
    } else if (cts >= 40) {
      bool blink = (now / 600) & 1;
      digitalWrite(GREEN_PIN, blink);
      digitalWrite(RED_PIN,   !blink);
    } else {
      digitalWrite(GREEN_PIN, LOW);
      digitalWrite(RED_PIN,   HIGH);
    }

    //  SD log every 1 s
    if (now - lastLogMs >= 1000) {
      logData();
      lastLogMs = now;
    }
  }

  //  OLED refresh every 1 s
  if (now - lastOledMs >= 1000) {
    lastOledMs = now;
    drawOLED();
  }

  //  Web server
  if (!wifiConnected) { delay(5); return; }

  WiFiClient client = server.available();
  if (!client) { delay(5); return; }

  client.setTimeout(300);
  String req = client.readStringUntil('\r');
  client.flush();

  //  /data  JSON
  if (req.indexOf("GET /data") != -1) {
    unsigned long openSec = doorOpen ? (millis() - doorOpenSince) / 1000UL : 0;
    client.println("HTTP/1.1 200 OK");
    client.println("Content-Type: application/json");
    client.println("Access-Control-Allow-Origin: *");
    client.println("Connection: close");
    client.println();
    client.printf(
      "{\"temp\":%.2f,\"cts\":%.2f,\"motion\":%s,\"door\":%s,"
      "\"doorOpenSec\":%lu,\"motionEvents\":%d,\"breachEvents\":%d,"
      "\"sdReady\":%s,\"wifi\":%s}",
      temp, cts,
      motion        ? "true" : "false",
      doorOpen      ? "true" : "false",
      openSec,
      motionEventCount, breachEventCount,
      sdReady       ? "true" : "false",
      wifiConnected ? "true" : "false"
    );
    client.stop();
    return;
  }

  //  /download  send log.csv
  if (req.indexOf("GET /download") != -1) {
    if (!sdReady) {
      client.println("HTTP/1.1 503 Service Unavailable\r\nConnection: close\r\n");
      client.println("SD not available."); client.stop(); return;
    }
    File f = SD.open("/log.csv", FILE_READ);
    if (!f) {
      client.println("HTTP/1.1 404 Not Found\r\nConnection: close\r\n");
      client.println("Log file missing."); client.stop(); return;
    }
    client.println("HTTP/1.1 200 OK");
    client.println("Content-Type: text/csv");
    client.println("Content-Disposition: attachment; filename=\"cold_chain_log.csv\"");
    client.println("Connection: close");
    client.println();
    uint8_t buf[512];
    while (f.available()) {
      int n = f.read(buf, sizeof(buf));
      client.write(buf, n);
    }
    f.close();
    client.stop();
    return;
  }

  //  /  Dashboard HTML
  client.println("HTTP/1.1 200 OK");
  client.println("Content-Type: text/html; charset=utf-8");
  client.println("Connection: close");
  client.println();
  client.print(R"rawliteral(<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="UTF-8"/>
<meta name="viewport" content="width=device-width,initial-scale=1"/>
<title>Cold Chain Auditor</title>
<link rel="preconnect" href="https://fonts.googleapis.com"/>
<link href="https://fonts.googleapis.com/css2?family=DM+Mono:wght@400;500&family=DM+Sans:wght@300;400;500;600&display=swap" rel="stylesheet"/>
<script src="https://cdn.jsdelivr.net/npm/chart.js@4.4.1/dist/chart.umd.min.js"></script>
<style>
:root{
  --bg:#0d1117; --surf:#161b22; --surf2:#1c2128;
  --bdr:rgba(255,255,255,0.07);
  --txt:#e6edf3; --muted:#7d8590;
  --safe:#3fb950; --safe-bg:rgba(63,185,80,.10); --safe-bdr:rgba(63,185,80,.22);
  --warn:#d29922; --warn-bg:rgba(210,153,34,.10); --warn-bdr:rgba(210,153,34,.22);
  --dngr:#f85149; --dngr-bg:rgba(248,81,73,.10);  --dngr-bdr:rgba(248,81,73,.22);
  --blue:#58a6ff; --blue-bg:rgba(88,166,255,.08); --blue-bdr:rgba(88,166,255,.20);
  --mono:'DM Mono',monospace; --sans:'DM Sans',sans-serif;
  --r:10px; --rl:14px;
}
*,*::before,*::after{box-sizing:border-box;margin:0;padding:0;}
body{background:var(--bg);color:var(--txt);font-family:var(--sans);min-height:100vh;padding:1.5rem 1rem 3rem;}
.wrap{max-width:1000px;margin:0 auto;display:flex;flex-direction:column;gap:.875rem;}

/* header */
.hdr{display:flex;align-items:center;justify-content:space-between;padding-bottom:1rem;border-bottom:1px solid var(--bdr);}
.hl{display:flex;align-items:center;gap:12px;}
.h-icon{width:38px;height:38px;border-radius:10px;background:var(--blue-bg);border:1px solid var(--blue-bdr);display:flex;align-items:center;justify-content:center;}
.h-icon svg{width:18px;height:18px;}
.h-title{font-size:17px;font-weight:600;letter-spacing:-.01em;}
.h-sub{font-size:11px;color:var(--muted);font-family:var(--mono);margin-top:2px;}
.live{display:flex;align-items:center;gap:7px;font-size:11px;color:var(--muted);font-family:var(--mono);}
.ldot{width:7px;height:7px;border-radius:50%;background:var(--safe);animation:blink 2s infinite;}
@keyframes blink{0%,100%{opacity:1}50%{opacity:.25}}

/* banner */
.banner{border-radius:var(--r);padding:.8rem 1.1rem;display:flex;align-items:center;gap:12px;border:1px solid;transition:all .4s;}
.banner.safe  {background:var(--safe-bg);border-color:var(--safe-bdr);}
.banner.warn  {background:var(--warn-bg);border-color:var(--warn-bdr);}
.banner.danger{background:var(--dngr-bg);border-color:var(--dngr-bdr);}
.b-ico{width:28px;height:28px;border-radius:50%;display:flex;align-items:center;justify-content:center;flex-shrink:0;}
.safe .b-ico{background:var(--safe);}.warn .b-ico{background:var(--warn);}.danger .b-ico{background:var(--dngr);}
.b-ico svg{width:13px;height:13px;}
.b-title{font-size:14px;font-weight:600;}
.safe .b-title{color:var(--safe);}.warn .b-title{color:var(--warn);}.danger .b-title{color:var(--dngr);}
.b-sub{font-size:11px;color:var(--muted);font-family:var(--mono);margin-top:2px;}
.b-right{margin-left:auto;}
.dl-btn{display:flex;align-items:center;gap:6px;background:var(--blue-bg);border:1px solid var(--blue-bdr);color:var(--blue);font-family:var(--mono);font-size:11px;padding:6px 14px;border-radius:20px;cursor:pointer;text-decoration:none;transition:background .2s;white-space:nowrap;}
.dl-btn:hover{background:rgba(88,166,255,.15);}
.dl-btn svg{width:12px;height:12px;}

/* metrics */
.metrics{display:grid;grid-template-columns:repeat(4,minmax(0,1fr));gap:10px;}
.mc{background:var(--surf);border:1px solid var(--bdr);border-radius:var(--rl);padding:1rem 1.1rem;}
.mc-lbl{font-size:10px;text-transform:uppercase;letter-spacing:.07em;color:var(--muted);font-family:var(--mono);margin-bottom:10px;}
.mc-val{font-size:30px;font-weight:300;line-height:1;letter-spacing:-.02em;}
.mc-unit{font-size:13px;color:var(--muted);margin-left:2px;}
.mc-tag{display:inline-flex;align-items:center;font-size:11px;font-weight:500;padding:3px 10px;border-radius:20px;margin-top:10px;font-family:var(--mono);}
.ts{background:var(--safe-bg);color:var(--safe);border:1px solid var(--safe-bdr);}
.tw{background:var(--warn-bg);color:var(--warn);border:1px solid var(--warn-bdr);}
.td{background:var(--dngr-bg);color:var(--dngr);border:1px solid var(--dngr-bdr);}

/* indicators */
.inds{display:grid;grid-template-columns:1fr 1fr;gap:10px;}
.ind{background:var(--surf);border:1px solid var(--bdr);border-radius:var(--rl);padding:1rem 1.1rem;display:flex;align-items:center;gap:14px;transition:border-color .3s;}
.i-blob{width:44px;height:44px;border-radius:12px;display:flex;align-items:center;justify-content:center;flex-shrink:0;transition:background .3s,border-color .3s;}
.i-blob svg{width:21px;height:21px;}
.i-lbl{font-size:10px;text-transform:uppercase;letter-spacing:.06em;color:var(--muted);font-family:var(--mono);margin-bottom:4px;}
.i-status{font-size:15px;font-weight:600;transition:color .3s;}
.i-sub{font-size:11px;color:var(--muted);margin-top:3px;font-family:var(--mono);}

.door-ok  .ind{border-color:var(--safe-bdr);}
.door-ok  .i-blob{background:var(--safe-bg);border:1px solid var(--safe-bdr);}
.door-ok  .i-status{color:var(--safe);}
.door-bad .ind{border-color:var(--dngr-bdr);}
.door-bad .i-blob{background:var(--dngr-bg);border:1px solid var(--dngr-bdr);}
.door-bad .i-status{color:var(--dngr);}

.mot-still .ind{border-color:var(--bdr);}
.mot-still .i-blob{background:var(--surf2);border:1px solid var(--bdr);}
.mot-still .i-status{color:var(--muted);}
.mot-still .i-blob svg{opacity:.35;}
.mot-act .ind{border-color:var(--warn-bdr);}
.mot-act .i-blob{background:var(--warn-bg);border:1px solid var(--warn-bdr);animation:mp .5s infinite;}
.mot-act .i-status{color:var(--warn);}
@keyframes mp{0%,100%{opacity:1}50%{opacity:.55}}

/* CTS panel */
.cts-panel{background:var(--surf);border:1px solid var(--bdr);border-radius:var(--rl);padding:1.25rem 1.4rem;}
.cts-top{display:flex;align-items:flex-start;justify-content:space-between;margin-bottom:1.1rem;}
.cts-lbl{font-size:10px;text-transform:uppercase;letter-spacing:.08em;color:var(--muted);font-family:var(--mono);margin-bottom:6px;}
.cts-num{font-size:52px;font-weight:300;line-height:1;letter-spacing:-.03em;transition:color .4s;}
.cts-denom{font-size:18px;color:var(--muted);}
.cts-leg{text-align:right;display:flex;flex-direction:column;gap:5px;padding-top:4px;}
.cts-leg-r{display:flex;align-items:center;gap:6px;justify-content:flex-end;font-size:11px;font-family:var(--mono);}
.cts-leg-d{width:6px;height:6px;border-radius:50%;}
.cts-track{background:var(--surf2);border-radius:4px;height:6px;overflow:hidden;margin-bottom:6px;}
.cts-fill{height:100%;border-radius:4px;transition:width .6s cubic-bezier(.4,0,.2,1),background .4s;}
.cts-ticks{display:flex;justify-content:space-between;font-size:10px;color:var(--muted);font-family:var(--mono);}
.cts-chart{position:relative;height:120px;border-top:1px solid var(--bdr);padding-top:1rem;margin-top:.875rem;}

/* charts row */
.charts{display:grid;grid-template-columns:1fr 1fr;gap:10px;}
.cc{background:var(--surf);border:1px solid var(--bdr);border-radius:var(--rl);padding:1.1rem 1.25rem;}
.cc-hdr{display:flex;justify-content:space-between;align-items:center;margin-bottom:.875rem;}
.cc-title{font-size:12px;font-weight:600;}
.cc-tag{font-size:10px;font-family:var(--mono);background:var(--surf2);color:var(--muted);padding:3px 8px;border-radius:20px;}
.cc-wrap{position:relative;height:150px;}

/* log */
.log{background:var(--surf);border:1px solid var(--bdr);border-radius:var(--rl);padding:1.1rem 1.25rem;}
.log-hdr{display:flex;justify-content:space-between;align-items:center;margin-bottom:.75rem;}
.log-title{font-size:12px;font-weight:600;}
.log-cnt{font-size:10px;font-family:var(--mono);color:var(--muted);background:var(--surf2);padding:2px 8px;border-radius:20px;}
.li{display:flex;align-items:baseline;gap:10px;padding:5px 0;border-bottom:1px solid var(--bdr);font-size:11px;}
.li:last-child{border-bottom:none;}
.li-pip{width:5px;height:5px;border-radius:50%;flex-shrink:0;margin-top:1px;}
.li-ts{font-family:var(--mono);color:var(--muted);min-width:60px;}
.li-msg{color:var(--txt);}

/* footer */
.foot{display:flex;justify-content:space-between;font-size:11px;color:var(--muted);font-family:var(--mono);padding-top:.5rem;border-top:1px solid var(--bdr);}

@media(max-width:640px){
  .metrics{grid-template-columns:1fr 1fr;}
  .charts{grid-template-columns:1fr;}
}
</style>
</head>
<body>
<div class="wrap">

<!-- Header -->
<div class="hdr">
  <div class="hl">
    <div class="h-icon">
      <svg viewBox="0 0 18 18" fill="none">
        <rect x="8" y="1" width="2" height="10" rx="1" fill="#58a6ff"/>
        <circle cx="9" cy="13" r="3" fill="#58a6ff"/>
        <rect x="10.5" y="3" width="2.5" height="1.5" rx=".5" fill="#79c0ff"/>
        <rect x="10.5" y="6" width="2" height="1.5" rx=".5" fill="#79c0ff"/>
      </svg>
    </div>
    <div>
      <div class="h-title">Cold Chain Auditor</div>
      <div class="h-sub">ESP32  DS18B20  MPU6050  SD  OLED</div>
    </div>
  </div>
  <div class="live"><span class="ldot"></span><span id="updated">connecting...</span></div>
</div>

<!-- Banner -->
<div class="banner safe" id="banner">
  <div class="b-ico">
    <svg viewBox="0 0 13 13" fill="none">
      <path id="b-path" d="M2 7l3 3 6-6" stroke="white" stroke-width="2" stroke-linecap="round" stroke-linejoin="round"/>
    </svg>
  </div>
  <div>
    <div class="b-title" id="b-title">Safe  Chain Integrity Maintained</div>
    <div class="b-sub"  id="b-sub">All parameters within acceptable range</div>
  </div>
  <div class="b-right">
    <a href="/download" class="dl-btn">
      <svg viewBox="0 0 12 12" fill="none"><path d="M6 1v7M3 6l3 3 3-3M1 10h10" stroke="currentColor" stroke-width="1.4" stroke-linecap="round" stroke-linejoin="round"/></svg>
      Download CSV
    </a>
  </div>
</div>

<!-- Metrics -->
<div class="metrics">
  <div class="mc">
    <div class="mc-lbl">Temperature</div>
    <div><span class="mc-val" id="m-temp">--</span><span class="mc-unit">C</span></div>
    <div class="mc-tag ts" id="temp-tag">In range</div>
  </div>
  <div class="mc">
    <div class="mc-lbl">CTS Score</div>
    <div><span class="mc-val" id="m-cts">--</span><span class="mc-unit">/100</span></div>
    <div class="mc-tag ts" id="cts-tag">Excellent</div>
  </div>
  <div class="mc">
    <div class="mc-lbl">Temp Breaches</div>
    <div><span class="mc-val" id="m-breach">0</span></div>
    <div style="font-size:11px;color:var(--muted);margin-top:10px;font-family:var(--mono);">excursion events</div>
  </div>
  <div class="mc">
    <div class="mc-lbl">Motion Events</div>
    <div><span class="mc-val" id="m-motev">0</span></div>
    <div style="font-size:11px;color:var(--muted);margin-top:10px;font-family:var(--mono);">impacts / vibrations</div>
  </div>
</div>

<!-- Indicators -->
<div class="inds">
  <div class="door-ok" id="door-wrap">
    <div class="ind" id="door-card">
      <div class="i-blob">
        <svg viewBox="0 0 21 21" fill="none">
          <rect x="4" y="2" width="13" height="17" rx="2" stroke="#3fb950" stroke-width="1.5" id="door-rect"/>
          <circle cx="14" cy="10.5" r="1.2" fill="#3fb950" id="door-knob"/>
          <line x1="4" y1="2" x2="4" y2="19" stroke="#3fb950" stroke-width="1.5" id="door-line"/>
        </svg>
      </div>
      <div>
        <div class="i-lbl">Door Status</div>
        <div class="i-status" id="door-status">Closed</div>
        <div class="i-sub" id="door-sub">Sealed  no entry</div>
      </div>
    </div>
  </div>
  <div class="mot-still" id="mot-wrap">
    <div class="ind" id="mot-card">
      <div class="i-blob">
        <svg viewBox="0 0 21 21" fill="none">
          <path d="M10.5 3v4M10.5 14v4M3 10.5h4M14 10.5h4" stroke="#7d8590" stroke-width="1.5" stroke-linecap="round" id="mot-lines"/>
          <circle cx="10.5" cy="10.5" r="3.5" stroke="#7d8590" stroke-width="1.5" id="mot-circle"/>
        </svg>
      </div>
      <div>
        <div class="i-lbl">Motion / Impact</div>
        <div class="i-status" id="mot-status">Still</div>
        <div class="i-sub" id="mot-sub">No vibration detected</div>
      </div>
    </div>
  </div>
</div>

<!-- CTS Panel -->
<div class="cts-panel">
  <div class="cts-top">
    <div>
      <div class="cts-lbl">Cold Chain Trust Score</div>
      <div><span class="cts-num" id="cts-big" style="color:var(--safe)">--</span><span class="cts-denom">/100</span></div>
    </div>
    <div class="cts-leg">
      <div class="cts-leg-r"><span class="cts-leg-d" style="background:var(--safe)"></span><span style="color:var(--safe)">Safe  70</span></div>
      <div class="cts-leg-r"><span class="cts-leg-d" style="background:var(--warn)"></span><span style="color:var(--warn)">At Risk 4070</span></div>
      <div class="cts-leg-r"><span class="cts-leg-d" style="background:var(--dngr)"></span><span style="color:var(--dngr)">Compromised &lt;40</span></div>
    </div>
  </div>
  <div class="cts-track"><div class="cts-fill" id="cts-bar" style="width:100%;background:#3fb950"></div></div>
  <div class="cts-ticks"><span>0</span><span>20</span><span>40</span><span>60</span><span>80</span><span>100</span></div>
  <div class="cts-chart"><canvas id="ctsChart" role="img" aria-label="CTS trend">CTS trend</canvas></div>
</div>

<!-- Charts -->
<div class="charts">
  <div class="cc">
    <div class="cc-hdr">
      <span class="cc-title">Temperature</span>
      <span class="cc-tag">C  safe zone 28C</span>
    </div>
    <div class="cc-wrap"><canvas id="tempChart" role="img" aria-label="Temperature trend">Temperature</canvas></div>
  </div>
  <div class="cc">
    <div class="cc-hdr">
      <span class="cc-title">CTS Drop Rate</span>
      <span class="cc-tag">points / min</span>
    </div>
    <div class="cc-wrap"><canvas id="dropChart" role="img" aria-label="CTS drop rate">Drop rate</canvas></div>
  </div>
</div>

<!-- Event log -->
<div class="log">
  <div class="log-hdr">
    <span class="log-title">Event Log</span>
    <span class="log-cnt" id="log-cnt">0 events</span>
  </div>
  <div id="log-list">
    <div class="li">
      <span class="li-pip" style="background:var(--safe)"></span>
      <span class="li-ts" id="start-ts">--:--:--</span>
      <span class="li-msg">Monitoring started</span>
    </div>
  </div>
</div>

<!-- Footer -->
<div class="foot">
  <span>ESP32  DS18B20  MPU6050  Reed  SD  OLED</span>
  <span id="sample-cnt">0 samples</span>
</div>

</div><!-- /wrap -->
<script>
const MAX=40;
const lb=[],ta=[],ca=[],da=[];
let samples=0,logN=0;
let lCts=null,lTemp=null,lDoor=false,lMot=false;
let pCts=null,pCtsT=null;

function ts(){return new Date().toLocaleTimeString();}

function addLog(msg,col){
  const list=document.getElementById('log-list');
  const el=document.createElement('div');el.className='li';
  el.innerHTML=`<span class="li-pip" style="background:${col}"></span>`+
    `<span class="li-ts">${ts()}</span><span class="li-msg">${msg}</span>`;
  list.insertBefore(el,list.firstChild);
  if(list.children.length>12)list.removeChild(list.lastChild);
  logN++;document.getElementById('log-cnt').textContent=logN+' events';
}

const gOpts={
  responsive:true,maintainAspectRatio:false,animation:{duration:250},
  plugins:{legend:{display:false}},
  elements:{line:{tension:.35,borderWidth:1.5},point:{radius:0}}
};
const grid='rgba(255,255,255,0.05)';
const tick={color:'#7d8590',font:{family:"'DM Mono',monospace",size:9}};

const tempChart=new Chart(document.getElementById('tempChart'),{
  type:'line',
  data:{labels:lb,datasets:[
    {label:'Temp',data:ta,borderColor:'#58a6ff',backgroundColor:'rgba(88,166,255,.06)',fill:true},
    {label:'Lo',data:[],borderColor:'rgba(63,185,80,.4)',borderDash:[4,4],borderWidth:1,pointRadius:0,fill:false},
    {label:'Hi',data:[],borderColor:'rgba(248,81,73,.4)',borderDash:[4,4],borderWidth:1,pointRadius:0,fill:false}
  ]},
  options:{...gOpts,scales:{x:{display:false},y:{min:-3,max:14,grid:{color:grid},ticks:{...tick,maxTicksLimit:5},border:{color:'transparent'}}}}
});

const ctsChart=new Chart(document.getElementById('ctsChart'),{
  type:'line',
  data:{labels:lb,datasets:[{label:'CTS',data:ca,borderColor:'#3fb950',backgroundColor:'rgba(63,185,80,.06)',fill:true}]},
  options:{...gOpts,scales:{x:{display:false},y:{min:0,max:100,grid:{color:grid},ticks:{...tick,maxTicksLimit:4},border:{color:'transparent'}}}}
});

const dropChart=new Chart(document.getElementById('dropChart'),{
  type:'bar',
  data:{labels:lb,datasets:[{label:'Drop',data:da,backgroundColor:'rgba(248,81,73,.5)',borderColor:'#f85149',borderWidth:1,borderRadius:2}]},
  options:{responsive:true,maintainAspectRatio:false,animation:{duration:150},
    plugins:{legend:{display:false}},
    scales:{x:{display:false},y:{min:0,grid:{color:grid},ticks:{...tick,maxTicksLimit:4},border:{color:'transparent'}}}}
});

function push(arr,v){arr.push(v);if(arr.length>MAX)arr.shift();}

function ctsCol(v){return v>=70?'#3fb950':v>=40?'#d29922':'#f85149';}
function ctsBg(v) {return v>=70?'#3fb950':v>=40?'#d29922':'#f85149';}
function ctsCls(v){
  if(v>=80)return['Excellent','ts'];if(v>=70)return['Good','ts'];
  if(v>=40)return['At Risk','tw'];return['Compromised','td'];
}
function tCls(t){
  if(t>=2&&t<=8) return['In range','ts'];
  if(t>8&&t<=10) return['Warm','tw'];
  if(t<2&&t>=0)  return['Cool','tw'];
  if(t>10)       return['Hot  breach','td'];
  return['Freeze risk','td'];
}

function updateBanner(cts,temp,door,mot){
  const b=document.getElementById('banner');
  b.className='banner ';
  const bt=document.getElementById('b-title');
  const bs=document.getElementById('b-sub');
  if(cts<40){
    b.className+='danger';bt.textContent='Compromised  Escalate Immediately';
    bs.textContent='CTS critically low  chain integrity may be violated';
  }else if(cts<70){
    b.className+='warn';bt.textContent='At Risk  Review Conditions';
    bs.textContent='Conditions outside safe range  immediate attention required';
  }else{
    b.className+='safe';bt.textContent='Safe  Chain Integrity Maintained';
    bs.textContent='Temp '+temp.toFixed(1)+'C  CTS '+cts.toFixed(1)+'  Door '+(door?'OPEN':'CLOSED')+'  Motion '+(mot?'YES':'NO');
  }
}

let fails=0;
async function update(){
  let d;
  try{const r=await fetch('/data');d=await r.json();fails=0;}
  catch(e){if(++fails===3)document.getElementById('updated').textContent='connection lost';return;}

  const{temp,cts,motion,door,doorOpenSec,motionEvents,breachEvents}=d;
  samples++;

  const now=ts();
  push(lb,now);push(ta,+temp.toFixed(2));push(ca,+cts.toFixed(2));

  // safe-zone reference lines
  [1,2].forEach(i=>{
    tempChart.data.datasets[i].data.push(i===1?2:8);
    if(tempChart.data.datasets[i].data.length>MAX)tempChart.data.datasets[i].data.shift();
  });

  // drop rate
  const nowMs=Date.now();
  let dr=0;
  if(pCts!==null&&pCtsT!==null){
    const dtm=(nowMs-pCtsT)/60000;
    dr=Math.max(0,(pCts-cts)/dtm);
  }
  pCts=cts;pCtsT=nowMs;
  push(da,+dr.toFixed(3));
  dropChart.data.datasets[0].backgroundColor=da.map(v=>
    v>3?'rgba(248,81,73,.75)':v>1?'rgba(210,153,34,.6)':'rgba(63,185,80,.4)');

  tempChart.update('none');ctsChart.update('none');dropChart.update('none');

  // metrics
  document.getElementById('m-temp').textContent   =temp.toFixed(1);
  document.getElementById('m-cts').textContent    =cts.toFixed(1);
  document.getElementById('m-breach').textContent =breachEvents??0;
  document.getElementById('m-motev').textContent  =motionEvents??0;
  document.getElementById('updated').textContent  =now;
  document.getElementById('sample-cnt').textContent=samples+' samples';

  const[tl,tc]=tCls(temp);const tt=document.getElementById('temp-tag');tt.textContent=tl;tt.className='mc-tag '+tc;
  const[cl,cc]=ctsCls(cts);const ct=document.getElementById('cts-tag');ct.textContent=cl;ct.className='mc-tag '+cc;

  const cn=document.getElementById('cts-big');cn.textContent=cts.toFixed(1);cn.style.color=ctsCol(cts);
  const bar=document.getElementById('cts-bar');bar.style.width=cts.toFixed(1)+'%';bar.style.background=ctsBg(cts);

  updateBanner(cts,temp,door,motion);

  // door
  const dw=document.getElementById('door-wrap');
  dw.className=door?'door-bad':'door-ok';
  document.getElementById('door-status').textContent=door?'Open':'Closed';
  document.getElementById('door-sub').textContent=door
    ?(doorOpenSec>20?`Open ${doorOpenSec}s  CTS penalty active`:`Open ${doorOpenSec}s  threshold in ${20-doorOpenSec}s`)
    :'Sealed  no entry';

  // motion
  const mw=document.getElementById('mot-wrap');
  mw.className=motion?'mot-act':'mot-still';
  document.getElementById('mot-status').textContent=motion?'Motion Detected':'Still';
  document.getElementById('mot-sub').textContent=motion?'Vibration/impact in progress':'No vibration detected';

  // log events
  if(door&&!lDoor) addLog('Door opened','#f85149');
  if(!door&&lDoor) addLog('Door closed','#3fb950');
  if(motion&&!lMot) addLog('Motion event detected','#d29922');
  if(cts<40&&(lCts===null||lCts>=40)) addLog('CTS critical  below 40 (Compromised)','#f85149');
  else if(cts<70&&(lCts===null||lCts>=70)) addLog('CTS at risk  below 70','#d29922');
  if((temp>8||temp<2)&&lTemp!==null&&lTemp>=2&&lTemp<=8)
    addLog('Temperature excursion: '+temp.toFixed(1)+'C','#f85149');
  if(door&&doorOpenSec===20) addLog('Door open >20s  CTS drain active','#d29922');

  lCts=cts;lTemp=temp;lDoor=door;lMot=motion;
}

document.getElementById('start-ts').textContent=ts();
update();setInterval(update,1000);
</script>
</body>
</html>)rawliteral");

  client.stop();
}

Credits

Nishaanth Sundararajan

1 project • 1 follower

Cold Chain Auditor: Real-Time Trust Score & Web Dashboard

Things used in this project

Hardware components

Software apps and online services

Hand tools and fabrication machines

Story

Why This Project Exists?

What It Does?

Hardware Monitoring Strategy

Cold Chain Trust Score (CTS) Logic

Web Dashboard

OLED Display

Step-by-Step Build Instructions

Step 1-Setting Up Arduino IDE

Step 2- Preparing the SD Card

Step 3- Gather All Parts

Step 4- Wire DS18B20 First and Test

Step 5- Add MPU6050

Step 6- Add OLED

Step 7- Add SD Card Module

Step 8- Wire Reed Switch and LEDs

Step 9- Flash the Full Firmware

Step 10- Open the Dashboard

Using the System in the Field

Schematics

Fritzing Circuit Design – Cold Chain Auditor

Code

Cold Chain Auditor – ESP32 Firmware

Cold Chain Auditor – Complete Source Code

Credits

Nishaanth Sundararajan

Comments

Embed the widget on your own site

Cold Chain Auditor: Real-Time Trust Score & Web Dashboard

Cold Chain Auditor: Real-Time Trust Score & Web Dashboard

Things used in this project

Hardware components

Software apps and online services

Hand tools and fabrication machines

Story

Why This Project Exists?

What It Does?

Hardware Monitoring Strategy

Cold Chain Trust Score (CTS) Logic

Web Dashboard

OLED Display

Step-by-Step Build Instructions

Step 1-Setting Up Arduino IDE

Step 2- Preparing the SD Card

Step 3- Gather All Parts

Step 4- Wire DS18B20 First and Test

Step 5- Add MPU6050

Step 6- Add OLED

Step 7- Add SD Card Module

Step 8- Wire Reed Switch and LEDs

Step 9- Flash the Full Firmware

Step 10- Open the Dashboard

Using the System in the Field

Schematics

Fritzing Circuit Design – Cold Chain Auditor

Code

Cold Chain Auditor – ESP32 Firmware

Cold Chain Auditor – Complete Source Code

Credits

Nishaanth Sundararajan

Comments

Related channels and tags
