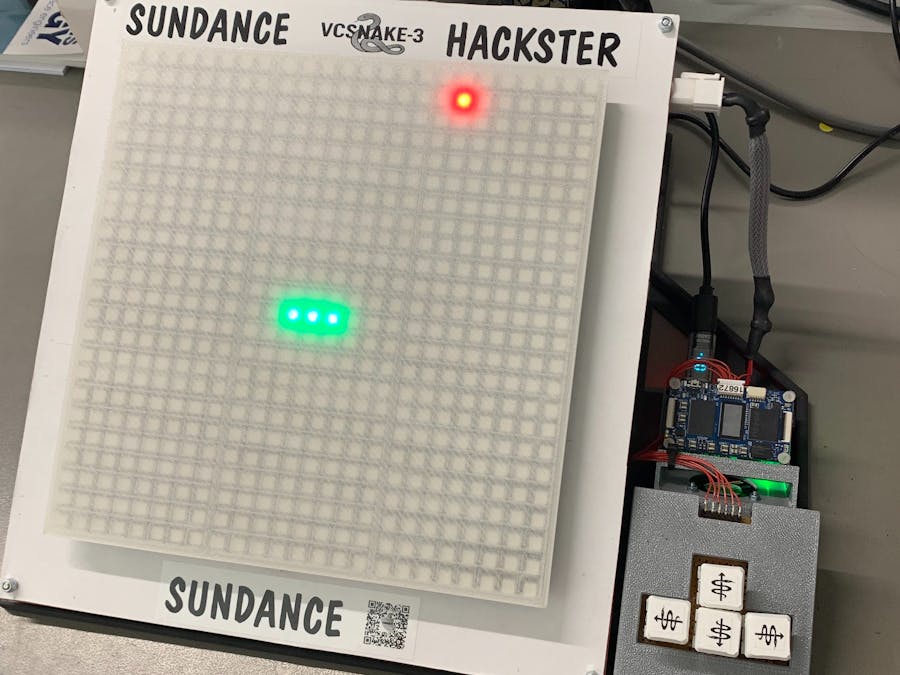

FPGA snake!

#include <stdio.h>
#include "xbram_hw.h"
#include "xil_printf.h"
#include "xparameters.h"
#include "xbram.h"
#include "sleep.h"
#include "xgpio.h"
#include "numbers.h"


// ============ LED MATRIX VARIABLES ============
#define PANEL_X 8
#define PANEL_Y 8
#define EDGE_NUM 3
#define WIDTH (PANEL_X * EDGE_NUM)   // 24
#define HEIGHT (PANEL_Y * EDGE_NUM)  // 24
#define LED_NUM (WIDTH * HEIGHT)     // 576

XBram Bram;
u32 BramBase = XPAR_XBRAM_0_BASEADDR;
u16 ledMap[HEIGHT][WIDTH]; // ledMap 2D array
static u32 leds[LED_NUM]; // LED matrix state array


// ============ GPIO VARIABLES ============
#define GPIO_CHANNEL 1

XGpio Gpio;
u32 GpioBase = XPAR_XGPIO_0_BASEADDR;

#define BTN_UP_MASK    0x01 // GPIO0
#define BTN_DOWN_MASK  0x02 // GPIO1
#define BTN_LEFT_MASK  0x04 // GPIO2
#define BTN_RIGHT_MASK 0x08 // GPIO3


// ============ GAME SETTINGS ============
#define TICK_MS 120 // game tick speed - 120 is an ideal middle ground between gpio sensitivity and speed
#define MAX_SNAKE_LENGTH (WIDTH * HEIGHT) // full board is max points


// ============ GAME STATE VARIABLE SETUP ============
typedef struct {int x, y; } Point;
typedef enum {UP = 0, DOWN = 1, LEFT = 2, RIGHT = 3} Direction; // define directions

static Point snake[MAX_SNAKE_LENGTH]; // initialise snake array
static int snakeLength = 0;           // initial snake length is zero
static Direction dir = RIGHT;         // initial direction is right
static Point food;                    // initialise food location
static int alive = 1;                 // state to check end of game


// ============ USEFUL FUNCTIONS ============
static inline void colour_clear(u32 colour) { // clears the whole frame to a colour
    for(int i = 0; i < LED_NUM; i++) {
        leds[i] = colour;
    }
}

static inline void pix_set(int x, int y, u32 colour) { // sets one pixel colour using ledMap to translate (x,y) to hardware index
    if((unsigned)x < WIDTH && (unsigned)y < HEIGHT) {
        leds[ ledMap[y][x] ] = colour;
    }
}

static u32 rng_state = 0x12345678u;
static inline u32 xor_shift32(void) { // random placement function (for food) - pulled from internet
    u32 x = rng_state;
    x ^= x << 13;
    x ^= x >> 17;
    x ^= x << 5;
    rng_state = x ? x : 0x6AC690C5u;
    return rng_state;
}


// ============ LED MAPPING FUNCTION ============
void build_led_map(void) { // sorts out daisy-chain serpentine wiring of physical boards

    int ledex = 0; // LED index

    for(int panelX = 0; panelX < 3; panelX++) { // panelX is x position of the panel within the 3x3 matrix (0, 1, 2 from L - R), col is the x position of the column
        // middle column reads right to left bottom to top
        int reversed = (panelX == 1);

        if(!reversed) {
            for(int panelY = 0; panelY < 3; panelY++) { // panelY is y position of the panel within the 3x3 matrix (0, 1, 2 from T - B). row is the y position of the row
                for(int row = 0; row < PANEL_X; row++) {
                    // left and right panel columns read left to right top to bottom
                    for(int col = 0; col < PANEL_Y; col++) {
                        int X = panelX * PANEL_X + col; // sorts out which LED column is being accessed
                        int Y = panelY * PANEL_Y + row; // sorts out which LED row is being accessed
                        ledMap[Y][X] = ledex++; // builds ledMap from top left corner, Y axis positive downwards, X axis positive left to right
                    }
                }
            }
        }
        else {
            for(int panelY = EDGE_NUM - 1; panelY >=0; panelY--) { // for middle column, panelY is y position of the panel within the 3x3 matrix (0, 1, 2 from B - T). row is the y position of the row
                for(int row = PANEL_Y - 1; row >= 0; row--) { // bottom to top for middle column of panels
                    // right to left for middle column of panels
                    for(int col = PANEL_X - 1; col >= 0; col--) {
                        int X = panelX * PANEL_X + col;
                        int Y = panelY * PANEL_Y + row;
                        ledMap[Y][X] = ledex++;
                    }
                }
            }

        }
    }

}


// ============ SEND FRAME TO LEDS ============
void show_frame(u32 *frame) { // writes the current game frame to BRAM, taken into LED driver
    u32 EffectiveAddr = 0x04; // first LED data memory position
    for (int led = 0; led < LED_NUM; led++) {
        XBram_WriteReg(BramBase, 0, 0x240); // tell ip to expect 576 LEDs
        XBram_WriteReg(BramBase, EffectiveAddr, frame[led]); // write LED data for one pixel
        EffectiveAddr += 4; // increment Bram address
        XBram_WriteReg(BramBase, 0, 0); // force FSM reset
    }

}


// ============ GPIO I/P CHECK AND DEBOUNCE ============
static Direction pendingDir = RIGHT; //updated by gpio i/p, applied per clock pulse

static void read_input(void) {

    u32 raw = XGpio_DiscreteRead(&Gpio, GPIO_CHANNEL); // read gpio input (if any)

    // make sure 180 degree turns are impossible - 90 is max per tick
    if (raw & BTN_UP_MASK)    { if (dir != DOWN)  pendingDir = UP; }
    if (raw & BTN_DOWN_MASK)  { if (dir != UP)    pendingDir = DOWN; }
    if (raw & BTN_LEFT_MASK)  { if (dir != RIGHT) pendingDir = LEFT; }
    if (raw & BTN_RIGHT_MASK) { if (dir != LEFT)  pendingDir = RIGHT; }
}


// ============ GAME LOGIC FUNCTIONS ============
static void spawn_food(void) { // food spawn function
    while(1) {
        int x = (int)(xor_shift32() % WIDTH);
        int y = (int)(xor_shift32() % HEIGHT); // choose random position
        int collision = 0;
        for (int pix = 0; pix < snakeLength; pix++) { // check this isnt in the snake
            if(snake[pix].x == x && snake[pix].y == y) {
                collision = 1;
                break;
            }
        }
        if(!collision) {
            food.x = x, food.y = y; // if not, place food here
            return;
        }
    }
}

static void death_screen(void) { // flash red pulses on death
    for(int k = 0; k < snakeLength; k++) {
        pix_set(snake[k].x, snake[k].y, 0x00043300); // set snake pixels
    }
    show_frame(leds);
    usleep(500000);
    for(int k = 0; k < snakeLength; k++) {
        pix_set(snake[k].x, snake[k].y, 0x00021f00); // snake dies out in steps
    }
    show_frame(leds);
    usleep(200000);
    for(int k = 0; k < snakeLength; k++) {
        pix_set(snake[k].x, snake[k].y, 0x00000f00);
    }
    show_frame(leds);
    usleep(150000);
    for(int k = 0; k < snakeLength; k++) {
        pix_set(snake[k].x, snake[k].y, 0x00000200);
    }
    show_frame(leds);
    usleep(100000);
}

static void draw_digit(int digit, int x, int y, u32 colour) { // draw digit 0-9 to display score upon death
    if(digit < 0 || digit > 9) return;
    for(int row = 0; row < 5; row++) {
        for(int col = 0; col < 3; col++) {
            if(font3x5[digit][row] & (1 << (2 - col))) { // from numbers.h header - font3x5 is binary layout of numbers on pixel display
                pix_set(x + col, y + row, colour);
            }
        }
    }
}

static void show_score(int score) { // write out the numbers on the board (drawing the frame with the score on it)
    char buf[6];
    snprintf(buf, sizeof(buf), "%d", score); // convert number to string

    colour_clear(0x00000000); // clear board

    int len = strlen(buf);
    int startX = (WIDTH - (len * 4 - 1)) / 2; // center horizontally
    int startY = (HEIGHT - 5) / 2;            // center vertically

    for(int i = 0; i < len; i++) {
        draw_digit(buf[i] - '0', startX + i * 4, startY, 0x00001133); // blue numbers
    }
    show_frame(leds);
}

static void reset_game(void) {

    // reset game to start point
    snakeLength = 3;
    int x0 = WIDTH / 2;
    int y0 = HEIGHT / 2;
    snake[0].x = x0;     snake[0].y = y0; // build 3 pixel snake in 2x2 array
    snake[1].x = x0 - 1; snake[1].y = y0;
    snake[2].x = x0 - 2; snake[2].y = y0;
    dir = RIGHT; // starting direction is right
    pendingDir = dir;
    alive = 1;
    spawn_food();
}

static void draw_game_frame(void) {
    colour_clear(0x00000000); // clear panel
    for(int pix = 0; pix < snakeLength; pix++) {
        pix_set(snake[pix].x, snake[pix].y, 0x00220001); // set snake pixels
    }
    pix_set(food.x, food.y, 0x00003300); // set food pixel
    show_frame(leds); // output this game frame to show_frame function
}

static void wait(void) {
    while(1) {
        u32 pend = XGpio_DiscreteRead(&Gpio, GPIO_CHANNEL); // read gpio input (if any)
        if(pend & BTN_RIGHT_MASK) { return; }
        else { draw_game_frame(), usleep(1000 * TICK_MS); }
    }
}

static void game_tick(void) {
    dir = pendingDir; // update direction every tick, checking for gpio inputs

    Point head = snake[0];
    switch(dir) { // switch operator to save memory
        case UP:    head.y -= 1; break; // move up
        case DOWN:  head.y += 1; break; // move down
        case LEFT:  head.x -= 1; break; // move left
        case RIGHT: head.x += 1; break; // move right
    }

    // check for collisions
    if(head.x < 0 || head.x >= WIDTH || head.y < 0 || head.y >= HEIGHT) {
        alive = 0; // wall collision this frame
        return;
    }
    for(int pix = 0; pix < snakeLength; pix++) {
        if(snake[pix].x == head.x && snake[pix].y == head.y) {
            alive = 0; // self collision this frame
            return;
        }
    }

    // shift snake along one pixel
    if (snakeLength < MAX_SNAKE_LENGTH) {
        for(int i = snakeLength; i > 0; i--) {
            snake[i] = snake[i - 1];
        }
    }
    else {
        for(int i = snakeLength - 1; i > 0; i--) {
            snake[i] = snake[i - 1];
        }
    }
    snake[0] = head; // reinstate where head is

    if(head.x == food.x && head.y == food.y) {  // check if snake eats food this frame
        if(snakeLength < MAX_SNAKE_LENGTH) {
        snakeLength++;
        spawn_food();
        }
    }
}


// ============ COMBINED LOGIC FUNCTION (MAIN) ============
int main() {

    build_led_map(); // build LED 2D lookup table

    // ============ INIT BRAM ============
    XBram_Config *ConfigPtr;
    ConfigPtr = XBram_LookupConfig(BramBase);
    XBram_CfgInitialize(&Bram, ConfigPtr, ConfigPtr->CtrlBaseAddress);

    // ============ INIT GPIO ============
    XGpio_Initialize(&Gpio, GpioBase);
    XGpio_SetDataDirection(&Gpio, GPIO_CHANNEL, 0xf); // set direction as inputs


    // ============ GAME LOOP ============
    rng_state ^= (u32)BramBase ^ 0x9E3779B9u; // random seed
    reset_game(); // reset to start position to begin
    wait(); // hold frame until right button pressed to start the game

    while(1) {
        read_input(); // loop checking input from buttons

        if(alive) {
            game_tick(); // run a tick of the game
            draw_game_frame(); // draw the current game frame - which then writes this frame to LEDs with show_frame
        }
        else {
            xil_printf("Game Over! Score: %d\r\n", snakeLength - 3);
            death_screen(); // flash death screen
            show_score(snakeLength - 3); // pixel score
            usleep(2000000); // hold score for 2s
            reset_game(); // if collision occurs, reset
            wait(); // hold frame until right button pressed to restart the game
        }

        usleep(TICK_MS * 1000); // game tick speed (change TICK_MS to increase or decrease this)
    }

return 0;
}
