PHPoC: Web-Based Thermometer

This project allows you to check the temperature at home from anywhere using a web browser.

BeginnerFull instructions provided3,129

Things used in this project

Hardware components

PHPoC Blue

We can use PHPoC Black if using Ethernet instead of WiFi

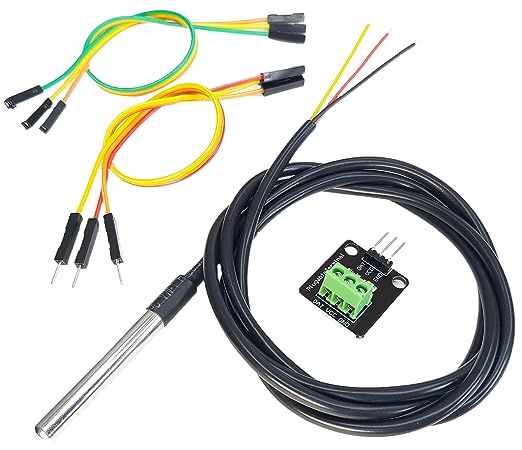

DIYables DS18B20 Temperature Sensor

DIYables Jumper Wires

DIYables Starter Kit

Story

I made a similar project using Arduino here.

Demo

Data Flow

PHPoC ---> Web browser

PHPoC reads temperature from the sensor and sends it to the web browser via WebSocket. The JavaScript function visualizes the temperature value on UI.

Source Code

Source code includes two files:

index.php: This file is client side code. When receiving HTTP request from web browser, PHPoC interprets PHP script in this file, and then send the interpreted file to web browser. The interpreted file (contains HTML, CSS and JavaScript code) provides UI (User Interface), visualizing temperature received from PHPoC.

task0.php: This file is server side code. It is run in infinite loop to read temperature from sensor and send it to web browser via WebSocket.

Code

<?php
include_once "/lib/sd_340.php";
include_once "/lib/sn_tcp_ws.php";

//bus reset
function begin()
{
    global $pid_ht_in, $pid_ht_out;

    pid_ioctl($pid_ht_in, "set repc 4");
    pid_ioctl($pid_ht_in, "start");

    pid_ioctl($pid_ht_out, "set count 1 600");
    pid_ioctl($pid_ht_out, "set repc 2");
    pid_ioctl($pid_ht_out, "start");
    while(pid_ioctl($pid_ht_out, "get state"))
        ;
    pid_ioctl($pid_ht_out, "stop");

    while(pid_ioctl($pid_ht_in, "get state"))
        ;
    pid_ioctl($pid_ht_in, "stop");

    $presence_pulse = pid_ioctl($pid_ht_in, "get count 3");
    if(($presence_pulse < 60) || ($presence_pulse > 240))
        return false;
    else
        return true;
}

//1byte send
function write_byte($seq_str)
{
    global $pid_ht_out;
    pid_ioctl($pid_ht_out, "set count $seq_str");

    pid_ioctl($pid_ht_out, "set repc 16");
    pid_ioctl($pid_ht_out, "start");
    while(pid_ioctl($pid_ht_out, "get state"))
        ;
    pid_ioctl($pid_ht_out, "stop");
}

//1byte recieve
function read_byte()
{
    global $pid_ht_out, $pid_ht_in;
    $seq_read = "1 3 63 3 63 3 63 3 63 3 63 3 63 3 63 3";
    $sum = 0;
    $value = 0;


    pid_ioctl($pid_ht_in, "set repc 16");
    pid_ioctl($pid_ht_in, "start");

    pid_ioctl($pid_ht_out, "set count $seq_read");
    pid_ioctl($pid_ht_out, "set repc 16");
    pid_ioctl($pid_ht_out, "start");
    while(pid_ioctl($pid_ht_out, "get state"))
        ;
    pid_ioctl($pid_ht_out, "stop");

    while(pid_ioctl($pid_ht_in, "get state"))
        ;
    pid_ioctl($pid_ht_in, "stop");

    for($i = 0; $i < 8; $i++)
    {
        $cnt = $i * 2 + 1;
        $cnt_val = pid_ioctl($pid_ht_in, "get count $cnt");
        if($cnt_val < 15)
            $value = 1;
        else
            $value = 0;

        $value <<= $i;
        $sum += $value;
    }

    return $sum;
}

//SKIP ROM command
function skip_rom()
{
    global $seq_skip_rom;
    write_byte($seq_skip_rom);
}

//CONVERT T command
function convert_t()
{
    global $seq_convert_t;

    begin();
    skip_rom();

    write_byte($seq_convert_t);
    usleep(750000);
}

//READ SCRATCHPAD
function read_scratchpad()
{
    global $seq_read_scratchpad;
    $str = "";

    write_byte($seq_read_scratchpad);

    for($i = 0; $i < 9; $i++)
    {
        $data = read_byte();
        $str .= int2bin($data, 1);
        if($i == 8)
            $crc_scratchpad = $data;
    }

    $crc = (int)system("crc 8 %1 00 8c lsb", substr($str, 0, -1));
    if($crc != $crc_scratchpad)
    {
        echo "CRC Error!\r\n";
        return false;
    }
    else
        return $str;
}

//read temperature
function read_temp()
{
    begin();
    skip_rom();

    $scratchpad_data = read_scratchpad();
    if($scratchpad_data === false)
        return false;

    $temp = bin2int(substr($scratchpad_data, 0, 2), 0, 2);

    $temp_int = $temp >> 4;
    $temp_dec = 0;
    $dec_flag = 0;

    for($i = 0; $i < 4; $i++)
    {
        if($temp & 0x01)
        {
            $dec_flag = 1;
            $temp_dec += 1.0 / pow(2, (4-$i));
        }
        $temp >>= 1;
    }

    if($dec_flag)
    {
        $temp_tot = $temp_int + $temp_dec;
        return (float) $temp_tot;
    }
    else
        return (float) $temp_int;
}

//timing
$seq_skip_rom        = "1 65 5 65 5 10 55 10 55 65 5 65 5 10 55 10";   // 0xcc
$seq_convert_t       = "1 65 5 65 5 10 55 65 5 65 5 65 5 10 55 65";    // 0x44
$seq_read_scratchpad = "1 65 5 10 55 10 55 10 55 10 55 10 55 65 5 10"; // 0xbe

//init HT1
$pid_ht_in = pid_open("/mmap/ht1");
pid_ioctl($pid_ht_in, "set div us");
pid_ioctl($pid_ht_in, "set mode capture toggle");
pid_ioctl($pid_ht_in, "set trigger from pin fall");

//init HT0
$pid_ht_out = pid_open("/mmap/ht0");
pid_ioctl($pid_ht_out, "set div us");
pid_ioctl($pid_ht_out, "set mode output toggle");
pid_ioctl($pid_ht_out, "set output od");
pid_ioctl($pid_ht_out, "set output high");

ws_setup(0, "thermometer", "text.phpoc");

while(1)
{
	convert_t();
	$temp = read_temp();

	$temp = sprintf("%.01f", $temp);

	if(ws_state(0) == TCP_CONNECTED)
	{
		ws_write(0, "$temp\r\n");
	}

	usleep(200000);
}
?>

<!DOCTYPE html>
<html>
<head>
<title>PHPoC - Thermometer</title>
<meta name="viewport" content="width=device-width, initial-scale=0.7, maximum-scale=0.7">
<meta charset="utf-8">
<style>
body { text-align: center; font-size: width/2pt; }
h1 { font-weight: bold; font-size: width/2pt; }
h2 { font-weight: bold; font-size: width/2pt; }
button { font-weight: bold; font-size: width/2pt; }
</style>
<script>
var canvas_width = 200, canvas_height = 450;

var ws;
var buffer = "";

function init()
{
	var canvas = document.getElementById("remote");
	//canvas.style.backgroundColor = "#999999";
	canvas.width = canvas_width;
	canvas.height = canvas_height;

	var ctx = canvas.getContext("2d");

	ctx.translate(canvas_width/2, canvas_height - 80);

	update_view(0);
}
function connect_onclick()
{
	if(ws == null)
	{
		var ws_host_addr = "<?echo _SERVER("HTTP_HOST")?>";
		if((navigator.platform.indexOf("Win") != -1) && (ws_host_addr.charAt(0) == "["))
		{
			// network resource identifier to UNC path name conversion
			ws_host_addr = ws_host_addr.replace(/[\[\]]/g, '');
			ws_host_addr = ws_host_addr.replace(/:/g, "-");
			ws_host_addr += ".ipv6-literal.net";
		}

		ws = new WebSocket("ws://" + ws_host_addr + "/thermometer", "text.phpoc");
		document.getElementById("ws_state").innerHTML = "CONNECTING";
		ws.onopen = ws_onopen;
		ws.onclose = ws_onclose;
		ws.onmessage = ws_onmessage;
		//ws.binaryType = "arraybuffer";
	}
	else
		ws.close();
}
function ws_onopen()
{
	document.getElementById("ws_state").innerHTML = "<font color='blue'>CONNECTED</font>";
	document.getElementById("bt_connect").innerHTML = "Disconnect";
	ws.send("wsm_baud=9600\r\n");
	ws.send("B\r\n");
	update_view(0);
}
function ws_onclose()
{
	document.getElementById("ws_state").innerHTML = "<font color='gray'>CLOSED</font>";
	document.getElementById("bt_connect").innerHTML = "Connect";
	ws.onopen = null;
	ws.onclose = null;
	ws.onmessage = null;
	ws = null;
	update_view(0);
}
function ws_onmessage(e_msg)
{
	e_msg = e_msg || window.event; // MessageEvent

	console.log(e_msg.data);

	update_view(parseFloat(e_msg.data));
}
function update_view(temp)
{
	var canvas = document.getElementById("remote");
	var ctx = canvas.getContext("2d");

	var radius = 70;
	var offset = 5;
	var width = 45;
	var height = 330;

	ctx.clearRect(-canvas_width/2, -350, canvas_width, canvas_height);

	if(ws != null)
	{
		ctx.strokeStyle="blue";
		ctx.fillStyle="blue";
	}
	else
	{
		ctx.strokeStyle="Gray";
		ctx.fillStyle="Gray";
	}

	//5-step Degree
	var x = -width/2;
	ctx.lineWidth=2;
	for (var i = 0; i <= 100; i+=5)
	{
		var y = -(height - radius)*i/100 - radius - 5;
		ctx.beginPath();
		ctx.lineTo(x, y);
		ctx.lineTo(x - 20, y);
		ctx.stroke();
	}

	//20-step Degree
	ctx.lineWidth=5;
	for (var i = 0; i <= 100; i+=20)
	{
		var y = -(height - radius)*i/100 - radius - 5;
		ctx.beginPath();
		ctx.lineTo(x, y);
		ctx.lineTo(x - 25, y);
		ctx.stroke();

		ctx.font="20px Georgia";
		ctx.textBaseline="middle";
		ctx.textAlign="right";
		ctx.fillText(i.toString(), x - 35, y);
	}

	// shape
	ctx.lineWidth=16;
	ctx.beginPath();
	ctx.arc(0, 0, radius, 0, 2 * Math.PI);
	ctx.stroke();

	ctx.beginPath();
	ctx.rect(-width/2, -height, width, height);
	ctx.stroke();

	ctx.beginPath();
	ctx.arc(0, -height, width/2, 0, 2 * Math.PI);
	ctx.stroke();

	ctx.fillStyle="#e6e6ff";
	ctx.beginPath();
	ctx.arc(0, 0, radius, 0, 2 * Math.PI);
	ctx.fill();

	ctx.beginPath();
	ctx.rect(-width/2, -height, width, height);
	ctx.fill();

	ctx.beginPath();
	ctx.arc(0, -height, width/2, 0, 2 * Math.PI);
	ctx.fill();

	// temperature value
	if(ws != null)
		ctx.fillStyle="#ff1a1a";
	else
		ctx.fillStyle="Gray";

	ctx.beginPath();
	ctx.arc(0, 0, radius - offset, 0, 2 * Math.PI);
	ctx.fill();

	temp = Math.round(temp);
	var y = (height - radius)*temp/100.0 + radius + 5;
	ctx.beginPath();
	ctx.rect(-width/2 + offset, -y, width - 2*offset, y);
	ctx.fill();

	if(ws != null)
	{
		ctx.fillStyle="white";
		ctx.font="bold 34px Georgia";
		ctx.textBaseline="middle";
		ctx.textAlign="center";
		ctx.fillText(temp.toString() + "°C", 0, 0);
	}
}

window.onload = init;
</script>
</head>

<body>

<p>
<h1>PHPoC - Web Thermometer</h1>
</p>

<canvas id="remote"></canvas>

<h2>
<p>
WebSocket : <span id="ws_state">null</span>
</p>
<button id="bt_connect" type="button" onclick="connect_onclick();">Connect</button>
</h2>

</body>
</html>
