FreeRTOS is a well-known RTOS with ports to many CPUs, including both the A53 and R5 cores present in the Zynq Ultrascale+ MPSoC FPGAs.
One of the characteristics of the R5 dual core in the Zynq MPSoC is the ability to run in lock-step mode, that is, both CPU will perform exactly the same operations at the same time and any discrepancy will raise an exception that will trigger a reset, of either the CPUs or the whole system (PL + PS).
Lock-step is used in critical environments where immediate error detection is needed. It is present in some automotive, aerospace and medical applications, to name just a few.

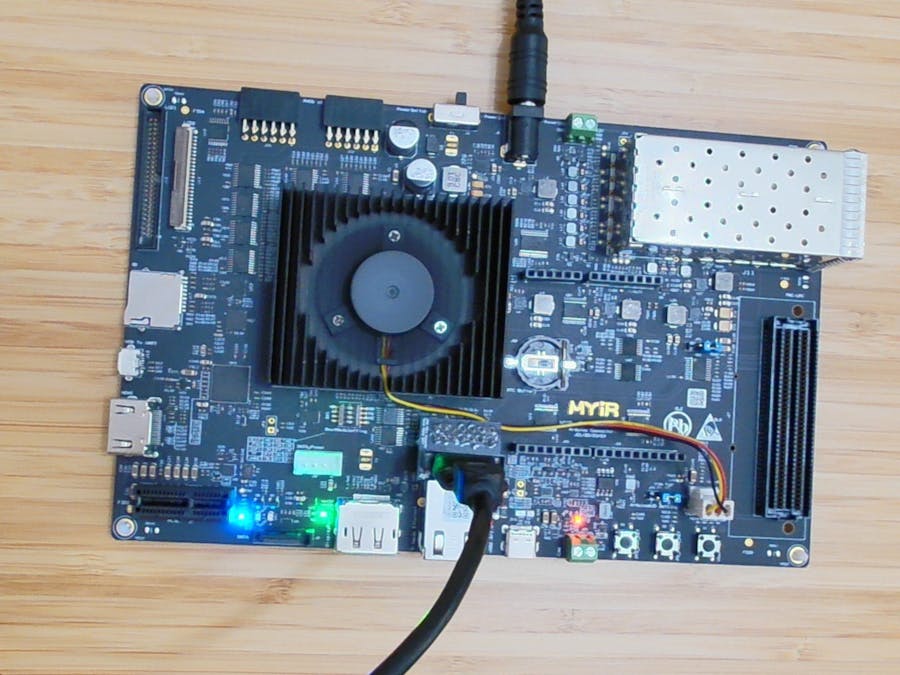

For this tutorial, I'm using my favourite development board, the MYD-CZU3EG by MYIR to create the hardware and software to guide developers to get started with R5 in lock-step mode.
Create the hardware projectFor this project, as it doesn't involve Linux, I'm using Vivado and Vitis 2023.1 on Windows 10, but you should be able to use any other release and OS.
Start Vivado as usual and create an RTL project. I call it MYD_R5_locked_step
Choose the part in the MYD-CZU3EG development board, that is XCZU3EG-SFVC784-1-I:
Once the project opens, create a block diagram. Not needed, but I like changing the name to 'bd' (you can choose anything):
On the block diagram that opens, click the '+' sign to add an IP and type PS to shortlist the MPSoC PS:
Double click on it to add it then double click on the generated block to configure it. Click on Presets > Apply configuration to load the base PS configuration:
Browse for the configuration tcl file (find it included in the project files):
FreeRTOS needs a ticker timer enabled. I will also disable some peripherals not needed. After the base configuration is applied, click on I/O configuration and expand all the options:
I disable the CAN and I2C peripherals (optional):
And enable the TTC0 timer (necessary for FreeRTOS):
Once done, click OK to finish and save the block diagram (CTRL + S).
In the Sources panel, right click on the block diagram name and select Create HDL wrapper:
Next select the option 'Let Vivado manage wrapper and auto-update'.
Once the wrapper is created, click on Generate bitstream in Flow Navigator:
That should run quickly and without troubles:
Last step is to export the hardware as XSA to use in Vitis. Click on File > Export > Export Hardware:
And either leave the default name or choose a name for the XSA file. I call it MYD_R5_locked_step:
Once this is done, we can close Vivado.
Create the software projectOpen Vitis and create a new workspace. Here I call it MYD_R5_locked_step:
Then click on Create Platform Project:
Choose a name for the platform. I go for 'plat'. Then click on Browse to select the created XSA as a base for the platform:
That should be present in the Vivado project folder:
Once the XSA is selected, select:
- The operating system as freertos10_xilinx
- Processor: psu_cortexr5_0
- Tick the 'Generate boot components' box
- Select psu_cortexr5_0 as the target for FSBL
Once the platform is created, check that it builds without errors:
On Vitis, click on File > New > Application project.
Leave the selected platform (the recently created plat).
Next also leave the default settings, a system project to be created (app_system) and the R5 processor selected.
Next from the available templates for the applications, select the FreeRTOS Hello World:
After that the project is populated and the main function present in freertos_hello_world.c:
Build the application by selecting app_system and clicking Build on the Assistant panel:
A debug > sd_card folder with a BOOT.BIN file is created, however we will create from scratch to show the process.
The MYD-CZU3EG board can boot from JTAG, QSPI, SD card or eMMC depending on the boot switches selection on the board. SD card is quite a standard method and here I will show you how to create the boot media from scratch.
On the tool bar, click on Vitis > Create Boot Image > Zynq and Zynq Ultrascale:
On the Architecture, select Zynq MP and next to the Output BIF file path click Brose to create a BIF file in a location of yout choice. I call it 'boot_bif':
A number of elements have to be added as partitions:
- The FSBL (First Stage Bootloader)
- The PMU firmware (that we will modify it for error injection)
- The bitstream
- The application binary
Click on the Add button to add a partition then browse for the fsbl_r5.elf file present in the plat/zynqmp_fsbl folder. Set thepartition as PS and destination as PS and R5_lockstep:
Repeat the process to add the PMU fw into the pmu partition:
Next the bitstream goes into the datafile partition and PL as destination:
Last the application (app.elf) as datafile and destination PS and R5_lockstep:
After the 4 partitions have been added, it should look like this. Then click Create Image.
A message should tell you about the completion and where the BOOT.BIN file is:
Insert a FAT32 formatted SD card and copy the BOOT.BIN file into it:
Then on the board, set the boot switches to SD card, insert the SD card, connect a USB cable between the board and computer and... power it on!
The standard FreeRTOS Hello World has two tasks, one sending a string and the other receiving it and printing it out. It does that for ten times and finish.
Next we will try the error injection feature.
R5 lock-step error injection setupfollow this article for more information about error injection and interrupt set up for the R5 dual core.
Any lock-step error is handled by the PMU firmware that will either enforce an RPU reset (default action) or System reset.
First add a source file to the project by right clicking on the app project src folder and selecting New > File:
Call it error_inject.c:
Then add the function below (file also included in project files):
/*
* Injects and error to the RPU in locked step mode
*/
#include "xil_printf.h"
#include "xil_io.h"
void inject_error (void) {
Xil_Out32(0xFFD805A0 , 0xC0);
xil_printf("Enable Lockstep Error, ERROR_EN_1: 0x%0X\r\n", Xil_In32(0x00FFD805A0));
xil_printf("ERROR_STATUS_1 register value before error: 0x%0X\r\n", Xil_In32(0xFFD80530 ));
xil_printf("Trigger the Lock-step error\r\n");
Xil_Out32(0xFF9A0020, 0xFFF);
Xil_Out32(0xFF9A0020, 0x0); //reset the RPU_ERR_INJ register
}And in freertos_hello_world.c inser the decalration before main:
void inject_error(void);And these lines in vTimerCallback function:
if (RxtaskCntr >= 7){
inject_error();
while(1);
}Compile the app project again.
Set up PMU fw for error handlingIn the explorer panel, expand the zynqmp_pmufw folder in the platform project:
And open the xpfw_config.h file. Two defines need to be changed:
Change ENABLE_EM_VALUE to 1:
And XPFW_DEBUG_ERROR_VAL to 1:
Then build the platform again.
After that, create the boot image, this time by importing the BIF file (the one created previously) and just clicking on Create Image. It will regenerate the BOOT.BIN with the rebuilt files.
Copy that BOOT.BIN into the SD card and boot the board again. This time we see the error injected and the RPU resetting:
In this tutorial we have seen:
- How to create a hw project in Vivado for sw development
- How to create a sw platform project in Vitis
- How to create a sw application project in Vitis based on FreeRTOS template
- How to build the application to run on the R5 processor in lock-step
- How to generate the boot media in SD card
- How to add an error injection function for the R5 processor
proc getPresetInfo {} {
return [dict create name {myd-czu3-ps-config} description {myd-czu3-ps-config} vlnv xilinx.com:ip:zynq_ultra_ps_e:3.5 display_name {myd-czu3-ps-config} ]
}
proc validate_preset {IPINST} { return true }
proc apply_preset {IPINST} {
return [dict create \
CONFIG.PSU_VALUE_SILVERSION {3} \
CONFIG.PSU__USE__DDR_INTF_REQUESTED {0} \
CONFIG.PSU__EN_AXI_STATUS_PORTS {0} \
CONFIG.PSU__PSS_REF_CLK__FREQMHZ {33.3333333} \
CONFIG.PSU__PSS_ALT_REF_CLK__FREQMHZ {33.333} \
CONFIG.PSU__VIDEO_REF_CLK__FREQMHZ {33.333} \
CONFIG.PSU__AUX_REF_CLK__FREQMHZ {33.333} \
CONFIG.PSU__GT_REF_CLK__FREQMHZ {33.333} \
CONFIG.PSU__VIDEO_REF_CLK__ENABLE {0} \
CONFIG.PSU__PSS_ALT_REF_CLK__ENABLE {0} \
CONFIG.PSU__CAN0__PERIPHERAL__ENABLE {1} \
CONFIG.PSU__CAN0__PERIPHERAL__IO {EMIO} \
CONFIG.PSU__CAN0__GRP_CLK__ENABLE {0} \
CONFIG.PSU__CAN1__PERIPHERAL__ENABLE {0} \
CONFIG.PSU__CAN1__PERIPHERAL__IO {<Select>} \
CONFIG.PSU__CAN1__GRP_CLK__ENABLE {0} \
CONFIG.PSU__CAN0_LOOP_CAN1__ENABLE {0} \
CONFIG.PSU__DPAUX__PERIPHERAL__ENABLE {1} \
CONFIG.PSU__DPAUX__PERIPHERAL__IO {MIO 27 .. 30} \
CONFIG.PSU__ACT_DDR_FREQ_MHZ {1200.000000} \
CONFIG.PSU__GEM__TSU__ENABLE {0} \
CONFIG.PSU__ENET0__PERIPHERAL__ENABLE {0} \
CONFIG.PSU__ENET1__PERIPHERAL__ENABLE {0} \
CONFIG.PSU__FPGA_PL0_ENABLE {1} \
CONFIG.PSU__FPGA_PL1_ENABLE {0} \
CONFIG.PSU__FPGA_PL2_ENABLE {0} \
CONFIG.PSU__FPGA_PL3_ENABLE {0} \
CONFIG.PSU__ENET2__PERIPHERAL__ENABLE {0} \
CONFIG.PSU__ENET3__PERIPHERAL__ENABLE {1} \
CONFIG.PSU__ENET3__FIFO__ENABLE {0} \
CONFIG.PSU__ENET3__PTP__ENABLE {0} \
CONFIG.PSU__ENET3__PERIPHERAL__IO {MIO 64 .. 75} \
CONFIG.PSU__ENET3__GRP_MDIO__ENABLE {1} \
CONFIG.PSU__ENET3__GRP_MDIO__IO {MIO 76 .. 77} \
CONFIG.PSU__GPIO_EMIO__PERIPHERAL__ENABLE {1} \
CONFIG.PSU__GPIO_EMIO__PERIPHERAL__IO {95} \
CONFIG.PSU__GPIO0_MIO__PERIPHERAL__ENABLE {1} \
CONFIG.PSU__GPIO0_MIO__IO {MIO 0 .. 25} \
CONFIG.PSU__GPIO1_MIO__PERIPHERAL__ENABLE {1} \
CONFIG.PSU__GPIO1_MIO__IO {MIO 26 .. 51} \
CONFIG.PSU__GPIO2_MIO__PERIPHERAL__ENABLE {0} \
CONFIG.PSU__GPIO2_MIO__IO {<Select>} \
CONFIG.PSU__I2C0__PERIPHERAL__ENABLE {1} \
CONFIG.PSU__I2C0__PERIPHERAL__IO {EMIO} \
CONFIG.PSU__I2C0__GRP_INT__ENABLE {0} \
CONFIG.PSU__I2C1__PERIPHERAL__ENABLE {1} \
CONFIG.PSU__I2C1__PERIPHERAL__IO {MIO 24 .. 25} \
CONFIG.PSU__I2C1__GRP_INT__ENABLE {0} \
CONFIG.PSU__I2C0_LOOP_I2C1__ENABLE {0} \
CONFIG.PSU__TESTSCAN__PERIPHERAL__ENABLE {0} \
CONFIG.PSU__PCIE__PERIPHERAL__ENABLE {0} \
CONFIG.PSU__PCIE__PERIPHERAL__ENDPOINT_ENABLE {1} \
CONFIG.PSU__PCIE__PERIPHERAL__ROOTPORT_ENABLE {0} \
CONFIG.PSU__PCIE__PERIPHERAL__ENDPOINT_IO {<Select>} \
CONFIG.PSU__PCIE__LANE0__ENABLE {0} \
CONFIG.PSU__PCIE__LANE0__IO {<Select>} \
CONFIG.PSU__PCIE__LANE1__ENABLE {0} \
CONFIG.PSU__PCIE__LANE2__ENABLE {0} \
CONFIG.PSU__PCIE__LANE3__ENABLE {0} \
CONFIG.PSU__PCIE__RESET__POLARITY {Active Low} \
CONFIG.PSU__GT__LINK_SPEED {HBR} \
CONFIG.PSU__GT__VLT_SWNG_LVL_4 {0} \
CONFIG.PSU__GT__PRE_EMPH_LVL_4 {0} \
CONFIG.PSU__USB0__REF_CLK_SEL {<Select>} \
CONFIG.PSU__USB0__REF_CLK_FREQ {<Select>} \
CONFIG.PSU__DP__REF_CLK_SEL {Ref Clk2} \
CONFIG.PSU__DP__REF_CLK_FREQ {27} \
CONFIG.PSU__SATA__REF_CLK_SEL {Ref Clk1} \
CONFIG.PSU__SATA__REF_CLK_FREQ {150} \
CONFIG.PSU__PCIE__REF_CLK_SEL {<Select>} \
CONFIG.PSU__PCIE__REF_CLK_FREQ {<Select>} \
CONFIG.PSU__DP__LANE_SEL {Single Higher} \
CONFIG.PSU__PCIE__DEVICE_PORT_TYPE {<Select>} \
CONFIG.PSU__PCIE__MAXIMUM_LINK_WIDTH {<Select>} \
CONFIG.PSU__PCIE__LINK_SPEED {<Select>} \
CONFIG.PSU__PCIE__BAR0_ENABLE {0} \
CONFIG.PSU__PCIE__BAR0_TYPE {<Select>} \
CONFIG.PSU__PCIE__BAR0_SCALE {<Select>} \
CONFIG.PSU__PCIE__BAR0_64BIT {0} \
CONFIG.PSU__PCIE__BAR0_SIZE {<Select>} \
CONFIG.PSU__PCIE__BAR0_VAL {} \
CONFIG.PSU__PCIE__BAR0_PREFETCHABLE {0} \
CONFIG.PSU__PCIE__BAR1_ENABLE {0} \
CONFIG.PSU__PCIE__BAR1_64BIT {0} \
CONFIG.PSU__PCIE__BAR1_VAL {} \
CONFIG.PSU__PCIE__BAR1_PREFETCHABLE {0} \
CONFIG.PSU__PCIE__BAR2_ENABLE {0} \
CONFIG.PSU__PCIE__BAR2_64BIT {0} \
CONFIG.PSU__PCIE__BAR2_VAL {} \
CONFIG.PSU__PCIE__BAR2_PREFETCHABLE {0} \
CONFIG.PSU__PCIE__BAR3_ENABLE {0} \
CONFIG.PSU__PCIE__BAR3_64BIT {0} \
CONFIG.PSU__PCIE__BAR3_VAL {} \
CONFIG.PSU__PCIE__BAR3_PREFETCHABLE {0} \
CONFIG.PSU__PCIE__BAR4_ENABLE {0} \
CONFIG.PSU__PCIE__BAR4_64BIT {0} \
CONFIG.PSU__PCIE__BAR4_VAL {} \
CONFIG.PSU__PCIE__BAR4_PREFETCHABLE {0} \
CONFIG.PSU__PCIE__BAR5_ENABLE {0} \
CONFIG.PSU__PCIE__BAR5_64BIT {0} \
CONFIG.PSU__PCIE__BAR5_VAL {} \
CONFIG.PSU__PCIE__BAR5_PREFETCHABLE {0} \
CONFIG.PSU__PCIE__EROM_ENABLE {0} \
CONFIG.PSU__PCIE__EROM_VAL {} \
CONFIG.PSU__PCIE__MAX_PAYLOAD_SIZE {<Select>} \
CONFIG.PSU__PCIE__VENDOR_ID {0x10EE} \
CONFIG.PSU__PCIE__DEVICE_ID {0xD011} \
CONFIG.PSU__PCIE__REVISION_ID {0x0} \
CONFIG.PSU__PCIE__SUBSYSTEM_VENDOR_ID {0x10EE} \
CONFIG.PSU__PCIE__SUBSYSTEM_ID {0x7} \
CONFIG.PSU__PCIE__CLASS_CODE_BASE {0x05} \
CONFIG.PSU__PCIE__CLASS_CODE_SUB {0x80} \
CONFIG.PSU__PCIE__CLASS_CODE_INTERFACE {0x0} \
CONFIG.PSU__PCIE__CLASS_CODE_VALUE {} \
CONFIG.PSU__PCIE__AER_CAPABILITY {0} \
CONFIG.PSU__PCIE__ACS_VIOLAION {0} \
CONFIG.PSU__PCIE__CRS_SW_VISIBILITY {0} \
CONFIG.PSU__PCIE__INTX_GENERATION {1} \
CONFIG.PSU__PCIE__INTX_PIN {INTA} \
CONFIG.PSU__PCIE__MSI_CAPABILITY {0} \
CONFIG.PSU__PCIE__MSIX_CAPABILITY {0} \
CONFIG.PSU__PCIE__MSIX_BAR_INDICATOR {} \
CONFIG.PSU__PCIE__MSIX_PBA_BAR_INDICATOR {} \
CONFIG.PSU__PCIE__BRIDGE_BAR_INDICATOR {<Select>} \
CONFIG.PSU_IMPORT_BOARD_PRESET {} \
CONFIG.PSU__PROTECTION__SUBSYSTEMS {PMU Firmware:PMU|Secure Subsystem:} \
CONFIG.PSU__PROTECTION__MASTERS_TZ {GEM0:NonSecure|SD1:NonSecure|GEM2:NonSecure|GEM1:NonSecure|GEM3:NonSecure|PCIe:NonSecure|DP:NonSecure|NAND:NonSecure|GPU:NonSecure|USB1:NonSecure|USB0:NonSecure|LDMA:NonSecure|FDMA:NonSecure|QSPI:NonSecure|SD0:NonSecure} \
CONFIG.PSU__PROTECTION__MASTERS {USB1:NonSecure;0|USB0:NonSecure;1|S_AXI_LPD:NA;0|S_AXI_HPC1_FPD:NA;0|S_AXI_HPC0_FPD:NA;0|S_AXI_HP3_FPD:NA;0|S_AXI_HP2_FPD:NA;0|S_AXI_HP1_FPD:NA;0|S_AXI_HP0_FPD:NA;0|S_AXI_ACP:NA;0|S_AXI_ACE:NA;0|SD1:NonSecure;1|SD0:NonSecure;1|SATA1:NonSecure;1|SATA0:NonSecure;1|RPU1:Secure;1|RPU0:Secure;1|QSPI:NonSecure;1|PMU:NA;1|PCIe:NonSecure;0|NAND:NonSecure;0|LDMA:NonSecure;1|GPU:NonSecure;1|GEM3:NonSecure;1|GEM2:NonSecure;0|GEM1:NonSecure;0|GEM0:NonSecure;0|FDMA:NonSecure;1|DP:NonSecure;1|DAP:NA;1|Coresight:NA;1|CSU:NA;1|APU:NA;1} \
CONFIG.PSU__PROTECTION__DDR_SEGMENTS {NONE} \
CONFIG.PSU__PROTECTION__OCM_SEGMENTS {NONE} \
CONFIG.PSU__PROTECTION__LPD_SEGMENTS {SA:0xFF980000; SIZE:64; UNIT:KB; RegionTZ:Secure; WrAllowed:Read/Write; subsystemId:PMU Firmware| SA:0xFF5E0000; SIZE:2560; UNIT:KB; RegionTZ:Secure; WrAllowed:Read/Write; subsystemId:PMU Firmware| SA:0xFFCC0000; SIZE:64; UNIT:KB; RegionTZ:Secure; WrAllowed:Read/Write; subsystemId:PMU Firmware| SA:0xFF180000; SIZE:768; UNIT:KB; RegionTZ:Secure; WrAllowed:Read/Write; subsystemId:PMU Firmware| SA:0xFF410000; SIZE:640; UNIT:KB; RegionTZ:Secure; WrAllowed:Read/Write; subsystemId:PMU Firmware| SA:0xFFA70000; SIZE:64; UNIT:KB; RegionTZ:Secure; WrAllowed:Read/Write; subsystemId:PMU Firmware| SA:0xFF9A0000; SIZE:64; UNIT:KB; RegionTZ:Secure; WrAllowed:Read/Write; subsystemId:PMU Firmware|SA:0xFF5E0000 ; SIZE:2560; UNIT:KB; RegionTZ:Secure ; WrAllowed:Read/Write; subsystemId:Secure Subsystem|SA:0xFFCC0000 ; SIZE:64; UNIT:KB; RegionTZ:Secure ; WrAllowed:Read/Write; subsystemId:Secure Subsystem|SA:0xFF180000 ; SIZE:768; UNIT:KB; RegionTZ:Secure ; WrAllowed:Read/Write; subsystemId:Secure Subsystem|SA:0xFF9A0000 ; SIZE:64; UNIT:KB; RegionTZ:Secure ; WrAllowed:Read/Write; subsystemId:Secure Subsystem} \
CONFIG.PSU__PROTECTION__FPD_SEGMENTS {SA:0xFD1A0000; SIZE:1280; UNIT:KB; RegionTZ:Secure; WrAllowed:Read/Write; subsystemId:PMU Firmware| SA:0xFD000000; SIZE:64; UNIT:KB; RegionTZ:Secure; WrAllowed:Read/Write; subsystemId:PMU Firmware| SA:0xFD010000; SIZE:64; UNIT:KB; RegionTZ:Secure; WrAllowed:Read/Write; subsystemId:PMU Firmware| SA:0xFD020000; SIZE:64; UNIT:KB; RegionTZ:Secure; WrAllowed:Read/Write; subsystemId:PMU Firmware| SA:0xFD030000; SIZE:64; UNIT:KB; RegionTZ:Secure; WrAllowed:Read/Write; subsystemId:PMU Firmware| SA:0xFD040000; SIZE:64; UNIT:KB; RegionTZ:Secure; WrAllowed:Read/Write; subsystemId:PMU Firmware| SA:0xFD050000; SIZE:64; UNIT:KB; RegionTZ:Secure; WrAllowed:Read/Write; subsystemId:PMU Firmware| SA:0xFD610000; SIZE:512; UNIT:KB; RegionTZ:Secure; WrAllowed:Read/Write; subsystemId:PMU Firmware| SA:0xFD5D0000; SIZE:64; UNIT:KB; RegionTZ:Secure; WrAllowed:Read/Write; subsystemId:PMU Firmware|SA:0xFD1A0000 ; SIZE:1280; UNIT:KB; RegionTZ:Secure ; WrAllowed:Read/Write; subsystemId:Secure Subsystem} \
CONFIG.PSU__PROTECTION__SLAVES {LPD;USB3_1_XHCI;FE300000;FE3FFFFF;0|LPD;USB3_1;FF9E0000;FF9EFFFF;0|LPD;USB3_0_XHCI;FE200000;FE2FFFFF;1|LPD;USB3_0;FF9D0000;FF9DFFFF;1|LPD;UART1;FF010000;FF01FFFF;0|LPD;UART0;FF000000;FF00FFFF;1|LPD;TTC3;FF140000;FF14FFFF;0|LPD;TTC2;FF130000;FF13FFFF;0|LPD;TTC1;FF120000;FF12FFFF;0|LPD;TTC0;FF110000;FF11FFFF;0|FPD;SWDT1;FD4D0000;FD4DFFFF;0|LPD;SWDT0;FF150000;FF15FFFF;0|LPD;SPI1;FF050000;FF05FFFF;0|LPD;SPI0;FF040000;FF04FFFF;0|FPD;SMMU_REG;FD5F0000;FD5FFFFF;1|FPD;SMMU;FD800000;FDFFFFFF;1|FPD;SIOU;FD3D0000;FD3DFFFF;1|FPD;SERDES;FD400000;FD47FFFF;1|LPD;SD1;FF170000;FF17FFFF;1|LPD;SD0;FF160000;FF16FFFF;1|FPD;SATA;FD0C0000;FD0CFFFF;1|LPD;RTC;FFA60000;FFA6FFFF;1|LPD;RSA_CORE;FFCE0000;FFCEFFFF;1|LPD;RPU;FF9A0000;FF9AFFFF;1|LPD;R5_TCM_RAM_GLOBAL;FFE00000;FFE3FFFF;1|LPD;R5_1_Instruction_Cache;FFEC0000;FFECFFFF;1|LPD;R5_1_Data_Cache;FFED0000;FFEDFFFF;1|LPD;R5_1_BTCM_GLOBAL;FFEB0000;FFEBFFFF;1|LPD;R5_1_ATCM_GLOBAL;FFE90000;FFE9FFFF;1|LPD;R5_0_Instruction_Cache;FFE40000;FFE4FFFF;1|LPD;R5_0_Data_Cache;FFE50000;FFE5FFFF;1|LPD;R5_0_BTCM_GLOBAL;FFE20000;FFE2FFFF;1|LPD;R5_0_ATCM_GLOBAL;FFE00000;FFE0FFFF;1|LPD;QSPI_Linear_Address;C0000000;DFFFFFFF;1|LPD;QSPI;FF0F0000;FF0FFFFF;1|LPD;PMU_RAM;FFDC0000;FFDDFFFF;1|LPD;PMU_GLOBAL;FFD80000;FFDBFFFF;1|FPD;PCIE_MAIN;FD0E0000;FD0EFFFF;0|FPD;PCIE_LOW;E0000000;EFFFFFFF;0|FPD;PCIE_HIGH2;8000000000;BFFFFFFFFF;0|FPD;PCIE_HIGH1;600000000;7FFFFFFFF;0|FPD;PCIE_DMA;FD0F0000;FD0FFFFF;0|FPD;PCIE_ATTRIB;FD480000;FD48FFFF;0|LPD;OCM_XMPU_CFG;FFA70000;FFA7FFFF;1|LPD;OCM_SLCR;FF960000;FF96FFFF;1|OCM;OCM;FFFC0000;FFFFFFFF;1|LPD;NAND;FF100000;FF10FFFF;0|LPD;MBISTJTAG;FFCF0000;FFCFFFFF;1|LPD;LPD_XPPU_SINK;FF9C0000;FF9CFFFF;1|LPD;LPD_XPPU;FF980000;FF98FFFF;1|LPD;LPD_SLCR_SECURE;FF4B0000;FF4DFFFF;1|LPD;LPD_SLCR;FF410000;FF4AFFFF;1|LPD;LPD_GPV;FE100000;FE1FFFFF;1|LPD;LPD_DMA_7;FFAF0000;FFAFFFFF;1|LPD;LPD_DMA_6;FFAE0000;FFAEFFFF;1|LPD;LPD_DMA_5;FFAD0000;FFADFFFF;1|LPD;LPD_DMA_4;FFAC0000;FFACFFFF;1|LPD;LPD_DMA_3;FFAB0000;FFABFFFF;1|LPD;LPD_DMA_2;FFAA0000;FFAAFFFF;1|LPD;LPD_DMA_1;FFA90000;FFA9FFFF;1|LPD;LPD_DMA_0;FFA80000;FFA8FFFF;1|LPD;IPI_CTRL;FF380000;FF3FFFFF;1|LPD;IOU_SLCR;FF180000;FF23FFFF;1|LPD;IOU_SECURE_SLCR;FF240000;FF24FFFF;1|LPD;IOU_SCNTRS;FF260000;FF26FFFF;1|LPD;IOU_SCNTR;FF250000;FF25FFFF;1|LPD;IOU_GPV;FE000000;FE0FFFFF;1|LPD;I2C1;FF030000;FF03FFFF;1|LPD;I2C0;FF020000;FF02FFFF;1|FPD;GPU;FD4B0000;FD4BFFFF;1|LPD;GPIO;FF0A0000;FF0AFFFF;1|LPD;GEM3;FF0E0000;FF0EFFFF;1|LPD;GEM2;FF0D0000;FF0DFFFF;0|LPD;GEM1;FF0C0000;FF0CFFFF;0|LPD;GEM0;FF0B0000;FF0BFFFF;0|FPD;FPD_XMPU_SINK;FD4F0000;FD4FFFFF;1|FPD;FPD_XMPU_CFG;FD5D0000;FD5DFFFF;1|FPD;FPD_SLCR_SECURE;FD690000;FD6CFFFF;1|FPD;FPD_SLCR;FD610000;FD68FFFF;1|FPD;FPD_DMA_CH7;FD570000;FD57FFFF;1|FPD;FPD_DMA_CH6;FD560000;FD56FFFF;1|FPD;FPD_DMA_CH5;FD550000;FD55FFFF;1|FPD;FPD_DMA_CH4;FD540000;FD54FFFF;1|FPD;FPD_DMA_CH3;FD530000;FD53FFFF;1|FPD;FPD_DMA_CH2;FD520000;FD52FFFF;1|FPD;FPD_DMA_CH1;FD510000;FD51FFFF;1|FPD;FPD_DMA_CH0;FD500000;FD50FFFF;1|LPD;EFUSE;FFCC0000;FFCCFFFF;1|FPD;Display Port;FD4A0000;FD4AFFFF;1|FPD;DPDMA;FD4C0000;FD4CFFFF;1|FPD;DDR_XMPU5_CFG;FD050000;FD05FFFF;1|FPD;DDR_XMPU4_CFG;FD040000;FD04FFFF;1|FPD;DDR_XMPU3_CFG;FD030000;FD03FFFF;1|FPD;DDR_XMPU2_CFG;FD020000;FD02FFFF;1|FPD;DDR_XMPU1_CFG;FD010000;FD01FFFF;1|FPD;DDR_XMPU0_CFG;FD000000;FD00FFFF;1|FPD;DDR_QOS_CTRL;FD090000;FD09FFFF;1|FPD;DDR_PHY;FD080000;FD08FFFF;1|DDR;DDR_LOW;0;7FFFFFFF;1|DDR;DDR_HIGH;800000000;87FFFFFFF;1|FPD;DDDR_CTRL;FD070000;FD070FFF;1|LPD;Coresight;FE800000;FEFFFFFF;1|LPD;CSU_DMA;FFC80000;FFC9FFFF;1|LPD;CSU;FFCA0000;FFCAFFFF;1|LPD;CRL_APB;FF5E0000;FF85FFFF;1|FPD;CRF_APB;FD1A0000;FD2DFFFF;1|FPD;CCI_REG;FD5E0000;FD5EFFFF;1|LPD;CAN1;FF070000;FF07FFFF;0|LPD;CAN0;FF060000;FF06FFFF;1|FPD;APU;FD5C0000;FD5CFFFF;1|LPD;APM_INTC_IOU;FFA20000;FFA2FFFF;1|LPD;APM_FPD_LPD;FFA30000;FFA3FFFF;1|FPD;APM_5;FD490000;FD49FFFF;1|FPD;APM_0;FD0B0000;FD0BFFFF;1|LPD;APM2;FFA10000;FFA1FFFF;1|LPD;APM1;FFA00000;FFA0FFFF;1|LPD;AMS;FFA50000;FFA5FFFF;1|FPD;AFI_5;FD3B0000;FD3BFFFF;1|FPD;AFI_4;FD3A0000;FD3AFFFF;1|FPD;AFI_3;FD390000;FD39FFFF;1|FPD;AFI_2;FD380000;FD38FFFF;1|FPD;AFI_1;FD370000;FD37FFFF;1|FPD;AFI_0;FD360000;FD36FFFF;1|LPD;AFIFM6;FF9B0000;FF9BFFFF;1|FPD;ACPU_GIC;F9010000;F907FFFF;1} \
CONFIG.PSU__PROTECTION__PRESUBSYSTEMS {NONE} \
CONFIG.PSU__PROTECTION__ENABLE {0} \
CONFIG.PSU__DDR_SW_REFRESH_ENABLED {1} \
CONFIG.PSU__EP__IP {0} \
CONFIG.PSU__ACTUAL__IP {1} \
CONFIG.SUBPRESET1 {Custom} \
CONFIG.SUBPRESET2 {Custom} \
CONFIG.PSU_MIO_TREE_PERIPHERALS {Quad SPI Flash#Quad SPI Flash#Quad SPI Flash#Quad SPI Flash#Quad SPI Flash#Quad SPI Flash#GPIO0 MIO#Quad SPI Flash#Quad SPI Flash#Quad SPI Flash#Quad SPI Flash#Quad SPI Flash#Quad SPI Flash#SD 0#SD 0#SD 0#SD 0#SD 0#SD 0#SD 0#SD 0#SD 0#SD 0#SD 0#I2C 1#I2C 1#GPIO1 MIO#DPAUX#DPAUX#DPAUX#DPAUX#GPIO1 MIO#GPIO1 MIO#GPIO1 MIO#UART 0#UART 0#GPIO1 MIO#GPIO1 MIO#GPIO1 MIO#GPIO1 MIO#GPIO1 MIO#GPIO1 MIO#GPIO1 MIO#GPIO1 MIO#SD 1#SD 1#SD 1#SD 1#SD 1#SD 1#SD 1#SD 1#USB 0#USB 0#USB 0#USB 0#USB 0#USB 0#USB 0#USB 0#USB 0#USB 0#USB 0#USB 0#Gem 3#Gem 3#Gem 3#Gem 3#Gem 3#Gem 3#Gem 3#Gem 3#Gem 3#Gem 3#Gem 3#Gem 3#MDIO 3#MDIO 3} \
CONFIG.PSU_MIO_TREE_SIGNALS {sclk_out#miso_mo1#mo2#mo3#mosi_mi0#n_ss_out#gpio0[6]#n_ss_out_upper#mo_upper[0]#mo_upper[1]#mo_upper[2]#mo_upper[3]#sclk_out_upper#sdio0_data_out[0]#sdio0_data_out[1]#sdio0_data_out[2]#sdio0_data_out[3]#sdio0_data_out[4]#sdio0_data_out[5]#sdio0_data_out[6]#sdio0_data_out[7]#sdio0_cmd_out#sdio0_clk_out#sdio0_bus_pow#scl_out#sda_out#gpio1[26]#dp_aux_data_out#dp_hot_plug_detect#dp_aux_data_oe#dp_aux_data_in#gpio1[31]#gpio1[32]#gpio1[33]#rxd#txd#gpio1[36]#gpio1[37]#gpio1[38]#gpio1[39]#gpio1[40]#gpio1[41]#gpio1[42]#gpio1[43]#sdio1_wp#sdio1_cd_n#sdio1_data_out[0]#sdio1_data_out[1]#sdio1_data_out[2]#sdio1_data_out[3]#sdio1_cmd_out#sdio1_clk_out#ulpi_clk_in#ulpi_dir#ulpi_tx_data[2]#ulpi_nxt#ulpi_tx_data[0]#ulpi_tx_data[1]#ulpi_stp#ulpi_tx_data[3]#ulpi_tx_data[4]#ulpi_tx_data[5]#ulpi_tx_data[6]#ulpi_tx_data[7]#rgmii_tx_clk#rgmii_txd[0]#rgmii_txd[1]#rgmii_txd[2]#rgmii_txd[3]#rgmii_tx_ctl#rgmii_rx_clk#rgmii_rxd[0]#rgmii_rxd[1]#rgmii_rxd[2]#rgmii_rxd[3]#rgmii_rx_ctl#gem3_mdc#gem3_mdio_out} \
CONFIG.PSU_PERIPHERAL_BOARD_PRESET {} \
CONFIG.PSU__NAND__PERIPHERAL__ENABLE {0} \
CONFIG.PSU__NAND__READY_BUSY__ENABLE {0} \
CONFIG.PSU__PJTAG__PERIPHERAL__ENABLE {0} \
CONFIG.PSU__PMU__PERIPHERAL__ENABLE {0} \
CONFIG.PSU__PMU__GPO2__POLARITY {high} \
CONFIG.PSU__CSU__PERIPHERAL__ENABLE {0} \
CONFIG.PSU__QSPI__PERIPHERAL__ENABLE {1} \
CONFIG.PSU__QSPI__PERIPHERAL__IO {MIO 0 .. 12} \
CONFIG.PSU__QSPI__PERIPHERAL__MODE {Dual Parallel} \
CONFIG.PSU__QSPI__PERIPHERAL__DATA_MODE {x4} \
CONFIG.PSU__QSPI__GRP_FBCLK__ENABLE {0} \
CONFIG.PSU__SD0__PERIPHERAL__ENABLE {1} \
CONFIG.PSU__SD0__PERIPHERAL__IO {MIO 13 .. 22} \
CONFIG.PSU__SD0__GRP_POW__ENABLE {1} \
CONFIG.PSU__SD0__GRP_POW__IO {MIO 23} \
CONFIG.PSU__SD0__SLOT_TYPE {eMMC} \
CONFIG.PSU__SD0__RESET__ENABLE {1} \
CONFIG.PSU__SD0__DATA_TRANSFER_MODE {8Bit} \
CONFIG.PSU__SD0__CLK_50_SDR_ITAP_DLY {0x15} \
CONFIG.PSU__SD0__CLK_50_SDR_OTAP_DLY {0x6} \
CONFIG.PSU__SD0__CLK_50_DDR_ITAP_DLY {0x12} \
CONFIG.PSU__SD0__CLK_50_DDR_OTAP_DLY {0x6} \
CONFIG.PSU__SD0__CLK_100_SDR_OTAP_DLY {0x0} \
CONFIG.PSU__SD0__CLK_200_SDR_OTAP_DLY {0x3} \
CONFIG.PSU__SD1__PERIPHERAL__ENABLE {1} \
CONFIG.PSU__SD1__PERIPHERAL__IO {MIO 46 .. 51} \
CONFIG.PSU__SD1__GRP_CD__ENABLE {1} \
CONFIG.PSU__SD1__GRP_CD__IO {MIO 45} \
CONFIG.PSU__SD1__GRP_POW__ENABLE {0} \
CONFIG.PSU__SD1__GRP_WP__ENABLE {1} \
CONFIG.PSU__SD1__GRP_WP__IO {MIO 44} \
CONFIG.PSU__SD1__SLOT_TYPE {SD 2.0} \
CONFIG.PSU__SD1__DATA_TRANSFER_MODE {4Bit} \
CONFIG.PSU__SD1__CLK_50_SDR_ITAP_DLY {0x15} \
CONFIG.PSU__SD1__CLK_50_SDR_OTAP_DLY {0x5} \
CONFIG.PSU__SD1__CLK_50_DDR_ITAP_DLY {0x0} \
CONFIG.PSU__SD1__CLK_50_DDR_OTAP_DLY {0x0} \
CONFIG.PSU__SD1__CLK_100_SDR_OTAP_DLY {0x0} \
CONFIG.PSU__SD1__CLK_200_SDR_OTAP_DLY {0x0} \
CONFIG.PSU__DEVICE_TYPE {EG} \
CONFIG.PSU_SMC_CYCLE_T0 {NA} \
CONFIG.PSU_SMC_CYCLE_T1 {NA} \
CONFIG.PSU_SMC_CYCLE_T2 {NA} \
CONFIG.PSU_SMC_CYCLE_T3 {NA} \
CONFIG.PSU_SMC_CYCLE_T4 {NA} \
CONFIG.PSU_SMC_CYCLE_T5 {NA} \
CONFIG.PSU_SMC_CYCLE_T6 {NA} \
CONFIG.PSU__SPI0__PERIPHERAL__ENABLE {0} \
CONFIG.PSU__SPI1__PERIPHERAL__ENABLE {0} \
CONFIG.PSU__SPI0_LOOP_SPI1__ENABLE {0} \
CONFIG.PSU__LPD_SLCR__CSUPMU_WDT_CLK_SEL__SELECT {APB} \
CONFIG.PSU__SWDT0__PERIPHERAL__ENABLE {0} \
CONFIG.PSU__SWDT0__CLOCK__ENABLE {0} \
CONFIG.PSU__SWDT0__RESET__ENABLE {0} \
CONFIG.PSU__SWDT0__PERIPHERAL__IO {NA} \
CONFIG.PSU__SWDT1__PERIPHERAL__ENABLE {0} \
CONFIG.PSU__SWDT1__CLOCK__ENABLE {0} \
CONFIG.PSU__SWDT1__RESET__ENABLE {0} \
CONFIG.PSU__SWDT1__PERIPHERAL__IO {NA} \
CONFIG.PSU__UART0__BAUD_RATE {115200} \
CONFIG.PSU__TRACE__PERIPHERAL__ENABLE {0} \
CONFIG.PSU__TRACE__INTERNAL_WIDTH {32} \
CONFIG.PSU_SD0_INTERNAL_BUS_WIDTH {8} \
CONFIG.PSU__TTC0__PERIPHERAL__ENABLE {0} \
CONFIG.PSU__TTC0__CLOCK__ENABLE {0} \
CONFIG.PSU__TTC0__WAVEOUT__ENABLE {0} \
CONFIG.PSU__TTC0__PERIPHERAL__IO {NA} \
CONFIG.PSU__TTC1__PERIPHERAL__ENABLE {0} \
CONFIG.PSU__TTC1__PERIPHERAL__IO {NA} \
CONFIG.PSU__TTC1__CLOCK__ENABLE {0} \
CONFIG.PSU__TTC1__WAVEOUT__ENABLE {0} \
CONFIG.PSU__TTC2__PERIPHERAL__ENABLE {0} \
CONFIG.PSU__TTC2__PERIPHERAL__IO {NA} \
CONFIG.PSU__TTC2__CLOCK__ENABLE {0} \
CONFIG.PSU__TTC2__WAVEOUT__ENABLE {0} \
CONFIG.PSU__TTC3__PERIPHERAL__ENABLE {0} \
CONFIG.PSU__TTC3__PERIPHERAL__IO {NA} \
CONFIG.PSU__TTC3__CLOCK__ENABLE {0} \
CONFIG.PSU__TTC3__WAVEOUT__ENABLE {0} \
CONFIG.PSU__CSUPMU__PERIPHERAL__VALID {0} \
CONFIG.PSU__DDRC__AL {0} \
CONFIG.PSU__DDRC__BUS_WIDTH {64 Bit} \
CONFIG.PSU__DDRC__CL {16} \
CONFIG.PSU__DDRC__CLOCK_STOP_EN {0} \
CONFIG.PSU__DDRC__RANK_ADDR_COUNT {0} \
CONFIG.PSU__DDRC__CWL {12} \
CONFIG.PSU__DDRC__BG_ADDR_COUNT {1} \
CONFIG.PSU__DDRC__DEVICE_CAPACITY {8192 MBits} \
CONFIG.PSU__DDRC__DRAM_WIDTH {16 Bits} \
CONFIG.PSU__DDRC__ECC {Disabled} \
CONFIG.PSU__DDRC__ECC_SCRUB {0} \
CONFIG.PSU__DDRC__ENABLE {1} \
CONFIG.PSU__DDRC__FREQ_MHZ {1} \
CONFIG.PSU__DDRC__MEMORY_TYPE {DDR 4} \
CONFIG.PSU__DDRC__ROW_ADDR_COUNT {16} \
CONFIG.PSU__DDRC__SPEED_BIN {DDR4_2400P} \
CONFIG.PSU__DDRC__T_FAW {30.0} \
CONFIG.PSU__DDRC__T_RAS_MIN {32.0} \
CONFIG.PSU__DDRC__T_RC {45.32} \
CONFIG.PSU__DDRC__T_RCD {16} \
CONFIG.PSU__DDRC__T_RP {16} \
CONFIG.PSU__DDRC__TRAIN_DATA_EYE {1} \
CONFIG.PSU__DDRC__TRAIN_READ_GATE {1} \
CONFIG.PSU__DDRC__TRAIN_WRITE_LEVEL {1} \
CONFIG.PSU__DDRC__VREF {1} \
CONFIG.PSU__DDRC__VIDEO_BUFFER_SIZE {0} \
CONFIG.PSU__DDRC__BRC_MAPPING {ROW_BANK_COL} \
CONFIG.PSU__DDRC__STATIC_RD_MODE {0} \
CONFIG.PSU__DDRC__DDR4_MAXPWR_SAVING_EN {0} \
CONFIG.PSU__DDRC__PWR_DOWN_EN {0} \
CONFIG.PSU__DDRC__PLL_BYPASS {0} \
CONFIG.PSU__DDRC__DDR4_T_REF_MODE {0} \
CONFIG.PSU__DDRC__DDR4_T_REF_RANGE {Normal (0-85)} \
CONFIG.PSU__DDRC__PHY_DBI_MODE {0} \
CONFIG.PSU__DDRC__DM_DBI {DM_NO_DBI} \
CONFIG.PSU__DDRC__COMPONENTS {Components} \
CONFIG.PSU__DDRC__PARITY_ENABLE {0} \
CONFIG.PSU__DDRC__DDR4_CAL_MODE_ENABLE {0} \
CONFIG.PSU__DDRC__DDR4_CRC_CONTROL {0} \
CONFIG.PSU__DDRC__FGRM {1X} \
CONFIG.PSU__DDRC__SB_TARGET {15-15-15} \
CONFIG.PSU__DDRC__LP_ASR {manual normal} \
CONFIG.PSU__DDRC__DDR4_ADDR_MAPPING {0} \
CONFIG.PSU__DDRC__SELF_REF_ABORT {0} \
CONFIG.PSU__DDRC__EN_2ND_CLK {0} \
CONFIG.PSU__DDRC__LPDDR3_DUALRANK_SDP {0} \
CONFIG.PSU__DDRC__PER_BANK_REFRESH {0} \
CONFIG.PSU__DDRC__ENABLE_DP_SWITCH {0} \
CONFIG.PSU__DDRC__ENABLE_2T_TIMING {0} \
CONFIG.PSU__DDRC__RD_DQS_CENTER {0} \
CONFIG.PSU_DDR_RAM_HIGHADDR {0xFFFFFFFF} \
CONFIG.PSU_DDR_RAM_HIGHADDR_OFFSET {0x800000000} \
CONFIG.PSU_DDR_RAM_LOWADDR_OFFSET {0x80000000} \
CONFIG.PSU__DDR_QOS_ENABLE {0} \
CONFIG.PSU__DDR_QOS_HP0_RDQOS {} \
CONFIG.PSU__DDR_QOS_HP0_WRQOS {} \
CONFIG.PSU__DDR_QOS_HP1_RDQOS {} \
CONFIG.PSU__DDR_QOS_HP1_WRQOS {} \
CONFIG.PSU__DDR_QOS_HP2_RDQOS {} \
CONFIG.PSU__DDR_QOS_HP2_WRQOS {} \
CONFIG.PSU__DDR_QOS_HP3_RDQOS {} \
CONFIG.PSU__DDR_QOS_HP3_WRQOS {} \
CONFIG.PSU__OVERRIDE_HPX_QOS {0} \
CONFIG.PSU__FP__POWER__ON {1} \
CONFIG.PSU__PL__POWER__ON {1} \
CONFIG.PSU__OCM_BANK0__POWER__ON {1} \
CONFIG.PSU__OCM_BANK1__POWER__ON {1} \
CONFIG.PSU__OCM_BANK2__POWER__ON {1} \
CONFIG.PSU__OCM_BANK3__POWER__ON {1} \
CONFIG.PSU__TCM0A__POWER__ON {1} \
CONFIG.PSU__TCM0B__POWER__ON {1} \
CONFIG.PSU__TCM1A__POWER__ON {1} \
CONFIG.PSU__TCM1B__POWER__ON {1} \
CONFIG.PSU__RPU__POWER__ON {1} \
CONFIG.PSU__L2_BANK0__POWER__ON {1} \
CONFIG.PSU__GPU_PP0__POWER__ON {1} \
CONFIG.PSU__GPU_PP1__POWER__ON {1} \
CONFIG.PSU__ACPU0__POWER__ON {1} \
CONFIG.PSU__ACPU1__POWER__ON {1} \
CONFIG.PSU__ACPU2__POWER__ON {1} \
CONFIG.PSU__ACPU3__POWER__ON {1} \
CONFIG.PSU__UART0__PERIPHERAL__ENABLE {1} \
CONFIG.PSU__UART0__PERIPHERAL__IO {MIO 34 .. 35} \
CONFIG.PSU__UART0__MODEM__ENABLE {0} \
CONFIG.PSU__UART1__PERIPHERAL__ENABLE {0} \
CONFIG.PSU__UART0_LOOP_UART1__ENABLE {0} \
CONFIG.PSU__USB0__PERIPHERAL__ENABLE {1} \
CONFIG.PSU__USB0__PERIPHERAL__IO {MIO 52 .. 63} \
CONFIG.PSU__USB0__RESET__ENABLE {0} \
CONFIG.PSU__USB0__RESET__IO {<Select>} \
CONFIG.PSU__USB__RESET__MODE {Boot Pin} \
CONFIG.PSU__USB__RESET__POLARITY {Active Low} \
CONFIG.PSU__USB1__PERIPHERAL__ENABLE {0} \
CONFIG.PSU__USB1__RESET__ENABLE {0} \
CONFIG.PSU__USB3_0__PERIPHERAL__ENABLE {0} \
CONFIG.PSU__USB3_0__PERIPHERAL__IO {<Select>} \
CONFIG.PSU__USB3_0__EMIO__ENABLE {0} \
CONFIG.PSU__USB2_0__EMIO__ENABLE {0} \
CONFIG.PSU__USE__USB3_0_HUB {0} \
CONFIG.PSU__USE__USB3_1_HUB {0} \
CONFIG.PSU__USE__ADMA {0} \
CONFIG.PSU__USE__M_AXI_GP0 {0} \
CONFIG.PSU__M_AXI_GP0_SUPPORTS_NARROW_BURST {1} \
CONFIG.PSU__USE__M_AXI_GP1 {0} \
CONFIG.PSU__M_AXI_GP1_SUPPORTS_NARROW_BURST {1} \
CONFIG.PSU__USE__M_AXI_GP2 {0} \
CONFIG.PSU__M_AXI_GP2_SUPPORTS_NARROW_BURST {1} \
CONFIG.PSU__USE__S_AXI_ACP {0} \
CONFIG.PSU__USE__S_AXI_GP0 {0} \
CONFIG.PSU__USE__S_AXI_GP1 {0} \
CONFIG.PSU__USE__S_AXI_GP2 {0} \
CONFIG.PSU__USE__S_AXI_GP3 {0} \
CONFIG.PSU__USE__S_AXI_GP4 {0} \
CONFIG.PSU__USE__S_AXI_GP5 {0} \
CONFIG.PSU__USE__S_AXI_GP6 {0} \
CONFIG.PSU__USE__S_AXI_ACE {0} \
CONFIG.PSU__EN_EMIO_TRACE {0} \
CONFIG.PSU__USE__AUDIO {0} \
CONFIG.PSU__USE__VIDEO {0} \
CONFIG.PSU__USE__PROC_EVENT_BUS {0} \
CONFIG.PSU__USE__FTM {0} \
CONFIG.PSU__USE__CROSS_TRIGGER {0} \
CONFIG.PSU__FTM__CTI_IN_0 {0} \
CONFIG.PSU__FTM__CTI_IN_1 {0} \
CONFIG.PSU__FTM__CTI_IN_2 {0} \
CONFIG.PSU__FTM__CTI_IN_3 {0} \
CONFIG.PSU__FTM__CTI_OUT_0 {0} \
CONFIG.PSU__FTM__CTI_OUT_1 {0} \
CONFIG.PSU__FTM__CTI_OUT_2 {0} \
CONFIG.PSU__FTM__CTI_OUT_3 {0} \
CONFIG.PSU__FTM__GPO {0} \
CONFIG.PSU__FTM__GPI {0} \
CONFIG.PSU__USE__GDMA {0} \
CONFIG.PSU__USE__IRQ {0} \
CONFIG.PSU__USE__IRQ0 {0} \
CONFIG.PSU__USE__IRQ1 {0} \
CONFIG.PSU__USE__CLK0 {0} \
CONFIG.PSU__USE__CLK1 {0} \
CONFIG.PSU__USE__CLK2 {0} \
CONFIG.PSU__USE__CLK3 {0} \
CONFIG.PSU__USE__RST0 {0} \
CONFIG.PSU__USE__RST1 {0} \
CONFIG.PSU__USE__RST2 {0} \
CONFIG.PSU__USE__RST3 {0} \
CONFIG.PSU__USE__FABRIC__RST {1} \
CONFIG.PSU__USE__RTC {0} \
CONFIG.PSU__PRESET_APPLIED {0} \
CONFIG.PSU__USE__EVENT_RPU {0} \
CONFIG.PSU__USE__APU_LEGACY_INTERRUPT {0} \
CONFIG.PSU__USE__RPU_LEGACY_INTERRUPT {0} \
CONFIG.PSU__USE__STM {0} \
CONFIG.PSU__USE__DEBUG__TEST {0} \
CONFIG.PSU__HIGH_ADDRESS__ENABLE {1} \
CONFIG.PSU__DDR_HIGH_ADDRESS_GUI_ENABLE {1} \
CONFIG.PSU__EXPAND__LOWER_LPS_SLAVES {0} \
CONFIG.PSU__EXPAND__CORESIGHT {0} \
CONFIG.PSU__EXPAND__GIC {0} \
CONFIG.PSU__EXPAND__FPD_SLAVES {0} \
CONFIG.PSU__EXPAND__UPPER_LPS_SLAVES {0} \
CONFIG.PSU_MIO_0_PULLUPDOWN {pullup} \
CONFIG.PSU_MIO_0_DRIVE_STRENGTH {12} \
CONFIG.PSU_MIO_0_SLEW {fast} \
CONFIG.PSU_MIO_0_DIRECTION {out} \
CONFIG.PSU_MIO_1_PULLUPDOWN {pullup} \
CONFIG.PSU_MIO_1_DRIVE_STRENGTH {12} \
CONFIG.PSU_MIO_1_INPUT_TYPE {cmos} \
CONFIG.PSU_MIO_1_SLEW {fast} \
CONFIG.PSU_MIO_1_DIRECTION {inout} \
CONFIG.PSU_MIO_2_PULLUPDOWN {pullup} \
CONFIG.PSU_MIO_2_DRIVE_STRENGTH {12} \
CONFIG.PSU_MIO_2_INPUT_TYPE {cmos} \
CONFIG.PSU_MIO_2_SLEW {fast} \
CONFIG.PSU_MIO_2_DIRECTION {inout} \
CONFIG.PSU_MIO_3_PULLUPDOWN {pullup} \
CONFIG.PSU_MIO_3_DRIVE_STRENGTH {12} \
CONFIG.PSU_MIO_3_INPUT_TYPE {cmos} \
CONFIG.PSU_MIO_3_SLEW {fast} \
CONFIG.PSU_MIO_3_DIRECTION {inout} \
CONFIG.PSU_MIO_4_PULLUPDOWN {pullup} \
CONFIG.PSU_MIO_4_DRIVE_STRENGTH {12} \
CONFIG.PSU_MIO_4_INPUT_TYPE {cmos} \
CONFIG.PSU_MIO_4_SLEW {fast} \
CONFIG.PSU_MIO_4_DIRECTION {inout} \
CONFIG.PSU_MIO_5_PULLUPDOWN {pullup} \
CONFIG.PSU_MIO_5_DRIVE_STRENGTH {12} \
CONFIG.PSU_MIO_5_SLEW {fast} \
CONFIG.PSU_MIO_5_DIRECTION {out} \
CONFIG.PSU_MIO_6_PULLUPDOWN {pullup} \
CONFIG.PSU_MIO_6_DRIVE_STRENGTH {12} \
CONFIG.PSU_MIO_6_POLARITY {Default} \
CONFIG.PSU_MIO_6_INPUT_TYPE {cmos} \
CONFIG.PSU_MIO_6_SLEW {fast} \
CONFIG.PSU_MIO_6_DIRECTION {inout} \
CONFIG.PSU_MIO_7_PULLUPDOWN {pullup} \
CONFIG.PSU_MIO_7_DRIVE_STRENGTH {12} \
CONFIG.PSU_MIO_7_SLEW {fast} \
CONFIG.PSU_MIO_7_DIRECTION {out} \
CONFIG.PSU_MIO_8_PULLUPDOWN {pullup} \
CONFIG.PSU_MIO_8_DRIVE_STRENGTH {12} \
CONFIG.PSU_MIO_8_INPUT_TYPE {cmos} \
CONFIG.PSU_MIO_8_SLEW {fast} \
CONFIG.PSU_MIO_8_DIRECTION {inout} \
CONFIG.PSU_MIO_9_PULLUPDOWN {pullup} \
CONFIG.PSU_MIO_9_DRIVE_STRENGTH {12} \
CONFIG.PSU_MIO_9_INPUT_TYPE {cmos} \
CONFIG.PSU_MIO_9_SLEW {fast} \
CONFIG.PSU_MIO_9_DIRECTION {inout} \
CONFIG.PSU_MIO_10_PULLUPDOWN {pullup} \
CONFIG.PSU_MIO_10_DRIVE_STRENGTH {12} \
CONFIG.PSU_MIO_10_INPUT_TYPE {cmos} \
CONFIG.PSU_MIO_10_SLEW {fast} \
CONFIG.PSU_MIO_10_DIRECTION {inout} \
CONFIG.PSU_MIO_11_PULLUPDOWN {pullup} \
CONFIG.PSU_MIO_11_DRIVE_STRENGTH {12} \
CONFIG.PSU_MIO_11_INPUT_TYPE {cmos} \
CONFIG.PSU_MIO_11_SLEW {fast} \
CONFIG.PSU_MIO_11_DIRECTION {inout} \
CONFIG.PSU_MIO_12_PULLUPDOWN {pullup} \
CONFIG.PSU_MIO_12_DRIVE_STRENGTH {12} \
CONFIG.PSU_MIO_12_SLEW {fast} \
CONFIG.PSU_MIO_12_DIRECTION {out} \
CONFIG.PSU_MIO_13_PULLUPDOWN {pullup} \
CONFIG.PSU_MIO_13_DRIVE_STRENGTH {12} \
CONFIG.PSU_MIO_13_INPUT_TYPE {cmos} \
CONFIG.PSU_MIO_13_SLEW {fast} \
CONFIG.PSU_MIO_13_DIRECTION {inout} \
CONFIG.PSU_MIO_14_PULLUPDOWN {pullup} \
CONFIG.PSU_MIO_14_DRIVE_STRENGTH {12} \
CONFIG.PSU_MIO_14_INPUT_TYPE {cmos} \
CONFIG.PSU_MIO_14_SLEW {fast} \
CONFIG.PSU_MIO_14_DIRECTION {inout} \
CONFIG.PSU_MIO_15_PULLUPDOWN {pullup} \
CONFIG.PSU_MIO_15_DRIVE_STRENGTH {12} \
CONFIG.PSU_MIO_15_INPUT_TYPE {cmos} \
CONFIG.PSU_MIO_15_SLEW {fast} \
CONFIG.PSU_MIO_15_DIRECTION {inout} \
CONFIG.PSU_MIO_16_PULLUPDOWN {pullup} \
CONFIG.PSU_MIO_16_DRIVE_STRENGTH {12} \
CONFIG.PSU_MIO_16_INPUT_TYPE {cmos} \
CONFIG.PSU_MIO_16_SLEW {fast} \
CONFIG.PSU_MIO_16_DIRECTION {inout} \
CONFIG.PSU_MIO_17_PULLUPDOWN {pullup} \
CONFIG.PSU_MIO_17_DRIVE_STRENGTH {12} \
CONFIG.PSU_MIO_17_INPUT_TYPE {cmos} \
CONFIG.PSU_MIO_17_SLEW {fast} \
CONFIG.PSU_MIO_17_DIRECTION {inout} \
CONFIG.PSU_MIO_18_PULLUPDOWN {pullup} \
CONFIG.PSU_MIO_18_DRIVE_STRENGTH {12} \
CONFIG.PSU_MIO_18_INPUT_TYPE {cmos} \
CONFIG.PSU_MIO_18_SLEW {fast} \
CONFIG.PSU_MIO_18_DIRECTION {inout} \
CONFIG.PSU_MIO_19_PULLUPDOWN {pullup} \
CONFIG.PSU_MIO_19_DRIVE_STRENGTH {12} \
CONFIG.PSU_MIO_19_INPUT_TYPE {cmos} \
CONFIG.PSU_MIO_19_SLEW {fast} \
CONFIG.PSU_MIO_19_DIRECTION {inout} \
CONFIG.PSU_MIO_20_PULLUPDOWN {pullup} \
CONFIG.PSU_MIO_20_DRIVE_STRENGTH {12} \
CONFIG.PSU_MIO_20_INPUT_TYPE {cmos} \
CONFIG.PSU_MIO_20_SLEW {fast} \
CONFIG.PSU_MIO_20_DIRECTION {inout} \
CONFIG.PSU_MIO_21_PULLUPDOWN {pullup} \
CONFIG.PSU_MIO_21_DRIVE_STRENGTH {12} \
CONFIG.PSU_MIO_21_INPUT_TYPE {cmos} \
CONFIG.PSU_MIO_21_SLEW {fast} \
CONFIG.PSU_MIO_21_DIRECTION {inout} \
CONFIG.PSU_MIO_22_PULLUPDOWN {pullup} \
CONFIG.PSU_MIO_22_DRIVE_STRENGTH {12} \
CONFIG.PSU_MIO_22_SLEW {fast} \
CONFIG.PSU_MIO_22_DIRECTION {out} \
CONFIG.PSU_MIO_23_PULLUPDOWN {pullup} \
CONFIG.PSU_MIO_23_DRIVE_STRENGTH {12} \
CONFIG.PSU_MIO_23_SLEW {fast} \
CONFIG.PSU_MIO_23_DIRECTION {out} \
CONFIG.PSU_MIO_24_PULLUPDOWN {pullup} \
CONFIG.PSU_MIO_24_DRIVE_STRENGTH {12} \
CONFIG.PSU_MIO_24_POLARITY {Default} \
CONFIG.PSU_MIO_24_INPUT_TYPE {cmos} \
CONFIG.PSU_MIO_24_SLEW {fast} \
CONFIG.PSU_MIO_24_DIRECTION {inout} \
CONFIG.PSU_MIO_25_PULLUPDOWN {pullup} \
CONFIG.PSU_MIO_25_DRIVE_STRENGTH {12} \
CONFIG.PSU_MIO_25_POLARITY {Default} \
CONFIG.PSU_MIO_25_INPUT_TYPE {cmos} \
CONFIG.PSU_MIO_25_SLEW {fast} \
CONFIG.PSU_MIO_25_DIRECTION {inout} \
CONFIG.PSU_MIO_26_PULLUPDOWN {pullup} \
CONFIG.PSU_MIO_26_DRIVE_STRENGTH {12} \
CONFIG.PSU_MIO_26_POLARITY {Default} \
CONFIG.PSU_MIO_26_INPUT_TYPE {cmos} \
CONFIG.PSU_MIO_26_SLEW {fast} \
CONFIG.PSU_MIO_26_DIRECTION {inout} \
CONFIG.PSU_MIO_27_PULLUPDOWN {pullup} \
CONFIG.PSU_MIO_27_DRIVE_STRENGTH {12} \
CONFIG.PSU_MIO_27_SLEW {fast} \
CONFIG.PSU_MIO_27_DIRECTION {out} \
CONFIG.PSU_MIO_28_PULLUPDOWN {pullup} \
CONFIG.PSU_MIO_28_INPUT_TYPE {cmos} \
CONFIG.PSU_MIO_28_DIRECTION {in} \
CONFIG.PSU_MIO_29_PULLUPDOWN {pullup} \
CONFIG.PSU_MIO_29_DRIVE_STRENGTH {12} \
CONFIG.PSU_MIO_29_SLEW {fast} \
CONFIG.PSU_MIO_29_DIRECTION {out} \
CONFIG.PSU_MIO_30_PULLUPDOWN {pullup} \
CONFIG.PSU_MIO_30_INPUT_TYPE {cmos} \
CONFIG.PSU_MIO_30_DIRECTION {in} \
CONFIG.PSU_MIO_31_PULLUPDOWN {pullup} \
CONFIG.PSU_MIO_31_DRIVE_STRENGTH {12} \
CONFIG.PSU_MIO_31_POLARITY {Default} \
CONFIG.PSU_MIO_31_INPUT_TYPE {cmos} \
CONFIG.PSU_MIO_31_SLEW {fast} \
CONFIG.PSU_MIO_31_DIRECTION {inout} \
CONFIG.PSU_MIO_32_PULLUPDOWN {pullup} \
CONFIG.PSU_MIO_32_DRIVE_STRENGTH {12} \
CONFIG.PSU_MIO_32_POLARITY {Default} \
CONFIG.PSU_MIO_32_INPUT_TYPE {cmos} \
CONFIG.PSU_MIO_32_SLEW {fast} \
CONFIG.PSU_MIO_32_DIRECTION {inout} \
CONFIG.PSU_MIO_33_PULLUPDOWN {pullup} \
CONFIG.PSU_MIO_33_DRIVE_STRENGTH {12} \
CONFIG.PSU_MIO_33_POLARITY {Default} \
CONFIG.PSU_MIO_33_INPUT_TYPE {cmos} \
CONFIG.PSU_MIO_33_SLEW {fast} \
CONFIG.PSU_MIO_33_DIRECTION {inout} \
CONFIG.PSU_MIO_34_PULLUPDOWN {pullup} \
CONFIG.PSU_MIO_34_INPUT_TYPE {cmos} \
CONFIG.PSU_MIO_34_DIRECTION {in} \
CONFIG.PSU_MIO_35_PULLUPDOWN {pullup} \
CONFIG.PSU_MIO_35_DRIVE_STRENGTH {12} \
CONFIG.PSU_MIO_35_SLEW {fast} \
CONFIG.PSU_MIO_35_DIRECTION {out} \
CONFIG.PSU_MIO_36_PULLUPDOWN {pullup} \
CONFIG.PSU_MIO_36_DRIVE_STRENGTH {12} \
CONFIG.PSU_MIO_36_POLARITY {Default} \
CONFIG.PSU_MIO_36_INPUT_TYPE {cmos} \
CONFIG.PSU_MIO_36_SLEW {fast} \
CONFIG.PSU_MIO_36_DIRECTION {inout} \
CONFIG.PSU_MIO_37_PULLUPDOWN {pullup} \
CONFIG.PSU_MIO_37_DRIVE_STRENGTH {12} \
CONFIG.PSU_MIO_37_POLARITY {Default} \
CONFIG.PSU_MIO_37_INPUT_TYPE {cmos} \
CONFIG.PSU_MIO_37_SLEW {fast} \
CONFIG.PSU_MIO_37_DIRECTION {inout} \
CONFIG.PSU_MIO_38_PULLUPDOWN {pullup} \
CONFIG.PSU_MIO_38_DRIVE_STRENGTH {12} \
CONFIG.PSU_MIO_38_POLARITY {Default} \
CONFIG.PSU_MIO_38_INPUT_TYPE {cmos} \
CONFIG.PSU_MIO_38_SLEW {fast} \
CONFIG.PSU_MIO_38_DIRECTION {inout} \
CONFIG.PSU_MIO_39_PULLUPDOWN {pullup} \
CONFIG.PSU_MIO_39_DRIVE_STRENGTH {12} \
CONFIG.PSU_MIO_39_POLARITY {Default} \
CONFIG.PSU_MIO_39_INPUT_TYPE {cmos} \
CONFIG.PSU_MIO_39_SLEW {fast} \
CONFIG.PSU_MIO_39_DIRECTION {inout} \
CONFIG.PSU_MIO_40_PULLUPDOWN {pullup} \
CONFIG.PSU_MIO_40_DRIVE_STRENGTH {12} \
CONFIG.PSU_MIO_40_POLARITY {Default} \
CONFIG.PSU_MIO_40_INPUT_TYPE {cmos} \
CONFIG.PSU_MIO_40_SLEW {fast} \
CONFIG.PSU_MIO_40_DIRECTION {inout} \
CONFIG.PSU_MIO_41_PULLUPDOWN {pullup} \
CONFIG.PSU_MIO_41_DRIVE_STRENGTH {12} \
CONFIG.PSU_MIO_41_POLARITY {Default} \
CONFIG.PSU_MIO_41_INPUT_TYPE {cmos} \
CONFIG.PSU_MIO_41_SLEW {fast} \
CONFIG.PSU_MIO_41_DIRECTION {inout} \
CONFIG.PSU_MIO_42_PULLUPDOWN {pullup} \
CONFIG.PSU_MIO_42_DRIVE_STRENGTH {12} \
CONFIG.PSU_MIO_42_POLARITY {Default} \
CONFIG.PSU_MIO_42_INPUT_TYPE {cmos} \
CONFIG.PSU_MIO_42_SLEW {fast} \
CONFIG.PSU_MIO_42_DIRECTION {inout} \
CONFIG.PSU_MIO_43_PULLUPDOWN {pullup} \
CONFIG.PSU_MIO_43_DRIVE_STRENGTH {12} \
CONFIG.PSU_MIO_43_POLARITY {Default} \
CONFIG.PSU_MIO_43_INPUT_TYPE {cmos} \
CONFIG.PSU_MIO_43_SLEW {fast} \
CONFIG.PSU_MIO_43_DIRECTION {inout} \
CONFIG.PSU_MIO_44_PULLUPDOWN {pullup} \
CONFIG.PSU_MIO_44_INPUT_TYPE {cmos} \
CONFIG.PSU_MIO_44_DIRECTION {in} \
CONFIG.PSU_MIO_45_PULLUPDOWN {pullup} \
CONFIG.PSU_MIO_45_INPUT_TYPE {cmos} \
CONFIG.PSU_MIO_45_DIRECTION {in} \
CONFIG.PSU_MIO_46_PULLUPDOWN {pullup} \
CONFIG.PSU_MIO_46_DRIVE_STRENGTH {12} \
CONFIG.PSU_MIO_46_INPUT_TYPE {cmos} \
CONFIG.PSU_MIO_46_SLEW {fast} \
CONFIG.PSU_MIO_46_DIRECTION {inout} \
CONFIG.PSU_MIO_47_PULLUPDOWN {pullup} \
CONFIG.PSU_MIO_47_DRIVE_STRENGTH {12} \
CONFIG.PSU_MIO_47_INPUT_TYPE {cmos} \
CONFIG.PSU_MIO_47_SLEW {fast} \
CONFIG.PSU_MIO_47_DIRECTION {inout} \
CONFIG.PSU_MIO_48_PULLUPDOWN {pullup} \
CONFIG.PSU_MIO_48_DRIVE_STRENGTH {12} \
CONFIG.PSU_MIO_48_INPUT_TYPE {cmos} \
CONFIG.PSU_MIO_48_SLEW {fast} \
CONFIG.PSU_MIO_48_DIRECTION {inout} \
CONFIG.PSU_MIO_49_PULLUPDOWN {pullup} \
CONFIG.PSU_MIO_49_DRIVE_STRENGTH {12} \
CONFIG.PSU_MIO_49_INPUT_TYPE {cmos} \
CONFIG.PSU_MIO_49_SLEW {fast} \
CONFIG.PSU_MIO_49_DIRECTION {inout} \
CONFIG.PSU_MIO_50_PULLUPDOWN {pullup} \
CONFIG.PSU_MIO_50_DRIVE_STRENGTH {12} \
CONFIG.PSU_MIO_50_POLARITY {Default} \
CONFIG.PSU_MIO_50_INPUT_TYPE {cmos} \
CONFIG.PSU_MIO_50_SLEW {fast} \
CONFIG.PSU_MIO_50_DIRECTION {inout} \
CONFIG.PSU_MIO_51_PULLUPDOWN {pullup} \
CONFIG.PSU_MIO_51_DRIVE_STRENGTH {12} \
CONFIG.PSU_MIO_51_POLARITY {Default} \
CONFIG.PSU_MIO_51_INPUT_TYPE {cmos} \
CONFIG.PSU_MIO_51_SLEW {fast} \
CONFIG.PSU_MIO_51_DIRECTION {out} \
CONFIG.PSU_MIO_52_PULLUPDOWN {pullup} \
CONFIG.PSU_MIO_52_INPUT_TYPE {cmos} \
CONFIG.PSU_MIO_52_DIRECTION {in} \
CONFIG.PSU_MIO_53_PULLUPDOWN {pullup} \
CONFIG.PSU_MIO_53_INPUT_TYPE {cmos} \
CONFIG.PSU_MIO_53_DIRECTION {in} \
CONFIG.PSU_MIO_54_PULLUPDOWN {pullup} \
CONFIG.PSU_MIO_54_DRIVE_STRENGTH {12} \
CONFIG.PSU_MIO_54_INPUT_TYPE {cmos} \
CONFIG.PSU_MIO_54_SLEW {fast} \
CONFIG.PSU_MIO_54_DIRECTION {inout} \
CONFIG.PSU_MIO_55_PULLUPDOWN {pullup} \
CONFIG.PSU_MIO_55_INPUT_TYPE {cmos} \
CONFIG.PSU_MIO_55_DIRECTION {in} \
CONFIG.PSU_MIO_56_PULLUPDOWN {pullup} \
CONFIG.PSU_MIO_56_DRIVE_STRENGTH {12} \
CONFIG.PSU_MIO_56_INPUT_TYPE {cmos} \
CONFIG.PSU_MIO_56_SLEW {fast} \
CONFIG.PSU_MIO_56_DIRECTION {inout} \
CONFIG.PSU_MIO_57_PULLUPDOWN {pullup} \
CONFIG.PSU_MIO_57_DRIVE_STRENGTH {12} \
CONFIG.PSU_MIO_57_INPUT_TYPE {cmos} \
CONFIG.PSU_MIO_57_SLEW {fast} \
CONFIG.PSU_MIO_57_DIRECTION {inout} \
CONFIG.PSU_MIO_58_PULLUPDOWN {pullup} \
CONFIG.PSU_MIO_58_DRIVE_STRENGTH {12} \
CONFIG.PSU_MIO_58_SLEW {fast} \
CONFIG.PSU_MIO_58_DIRECTION {out} \
CONFIG.PSU_MIO_59_PULLUPDOWN {pullup} \
CONFIG.PSU_MIO_59_DRIVE_STRENGTH {12} \
CONFIG.PSU_MIO_59_INPUT_TYPE {cmos} \
CONFIG.PSU_MIO_59_SLEW {fast} \
CONFIG.PSU_MIO_59_DIRECTION {inout} \
CONFIG.PSU_MIO_60_PULLUPDOWN {pullup} \
CONFIG.PSU_MIO_60_DRIVE_STRENGTH {12} \
CONFIG.PSU_MIO_60_INPUT_TYPE {cmos} \
CONFIG.PSU_MIO_60_SLEW {fast} \
CONFIG.PSU_MIO_60_DIRECTION {inout} \
CONFIG.PSU_MIO_61_PULLUPDOWN {pullup} \
CONFIG.PSU_MIO_61_DRIVE_STRENGTH {12} \
CONFIG.PSU_MIO_61_INPUT_TYPE {cmos} \
CONFIG.PSU_MIO_61_SLEW {fast} \
CONFIG.PSU_MIO_61_DIRECTION {inout} \
CONFIG.PSU_MIO_62_PULLUPDOWN {pullup} \
CONFIG.PSU_MIO_62_DRIVE_STRENGTH {12} \
CONFIG.PSU_MIO_62_INPUT_TYPE {cmos} \
CONFIG.PSU_MIO_62_SLEW {fast} \
CONFIG.PSU_MIO_62_DIRECTION {inout} \
CONFIG.PSU_MIO_63_PULLUPDOWN {pullup} \
CONFIG.PSU_MIO_63_DRIVE_STRENGTH {12} \
CONFIG.PSU_MIO_63_INPUT_TYPE {cmos} \
CONFIG.PSU_MIO_63_SLEW {fast} \
CONFIG.PSU_MIO_63_DIRECTION {inout} \
CONFIG.PSU_MIO_64_PULLUPDOWN {pullup} \
CONFIG.PSU_MIO_64_DRIVE_STRENGTH {12} \
CONFIG.PSU_MIO_64_SLEW {fast} \
CONFIG.PSU_MIO_64_DIRECTION {out} \
CONFIG.PSU_MIO_65_PULLUPDOWN {pullup} \
CONFIG.PSU_MIO_65_DRIVE_STRENGTH {12} \
CONFIG.PSU_MIO_65_SLEW {fast} \
CONFIG.PSU_MIO_65_DIRECTION {out} \
CONFIG.PSU_MIO_66_PULLUPDOWN {pullup} \
CONFIG.PSU_MIO_66_DRIVE_STRENGTH {12} \
CONFIG.PSU_MIO_66_SLEW {fast} \
CONFIG.PSU_MIO_66_DIRECTION {out} \
CONFIG.PSU_MIO_67_PULLUPDOWN {pullup} \
CONFIG.PSU_MIO_67_DRIVE_STRENGTH {12} \
CONFIG.PSU_MIO_67_SLEW {fast} \
CONFIG.PSU_MIO_67_DIRECTION {out} \
CONFIG.PSU_MIO_68_PULLUPDOWN {pullup} \
CONFIG.PSU_MIO_68_DRIVE_STRENGTH {12} \
CONFIG.PSU_MIO_68_SLEW {fast} \
CONFIG.PSU_MIO_68_DIRECTION {out} \
CONFIG.PSU_MIO_69_PULLUPDOWN {pullup} \
CONFIG.PSU_MIO_69_DRIVE_STRENGTH {12} \
CONFIG.PSU_MIO_69_SLEW {fast} \
CONFIG.PSU_MIO_69_DIRECTION {out} \
CONFIG.PSU_MIO_70_PULLUPDOWN {pullup} \
CONFIG.PSU_MIO_70_INPUT_TYPE {cmos} \
CONFIG.PSU_MIO_70_DIRECTION {in} \
CONFIG.PSU_MIO_71_PULLUPDOWN {pullup} \
CONFIG.PSU_MIO_71_INPUT_TYPE {cmos} \
CONFIG.PSU_MIO_71_DIRECTION {in} \
CONFIG.PSU_MIO_72_PULLUPDOWN {pullup} \
CONFIG.PSU_MIO_72_INPUT_TYPE {cmos} \
CONFIG.PSU_MIO_72_DIRECTION {in} \
CONFIG.PSU_MIO_73_PULLUPDOWN {pullup} \
CONFIG.PSU_MIO_73_INPUT_TYPE {cmos} \
CONFIG.PSU_MIO_73_DIRECTION {in} \
CONFIG.PSU_MIO_74_PULLUPDOWN {pullup} \
CONFIG.PSU_MIO_74_INPUT_TYPE {cmos} \
CONFIG.PSU_MIO_74_DIRECTION {in} \
CONFIG.PSU_MIO_75_PULLUPDOWN {pullup} \
CONFIG.PSU_MIO_75_INPUT_TYPE {cmos} \
CONFIG.PSU_MIO_75_DIRECTION {in} \
CONFIG.PSU_MIO_76_PULLUPDOWN {pullup} \
CONFIG.PSU_MIO_76_DRIVE_STRENGTH {12} \
CONFIG.PSU_MIO_76_SLEW {fast} \
CONFIG.PSU_MIO_76_DIRECTION {out} \
CONFIG.PSU_MIO_77_PULLUPDOWN {pullup} \
CONFIG.PSU_MIO_77_DRIVE_STRENGTH {12} \
CONFIG.PSU_MIO_77_INPUT_TYPE {cmos} \
CONFIG.PSU_MIO_77_SLEW {fast} \
CONFIG.PSU_MIO_77_DIRECTION {inout} \
CONFIG.PSU_BANK_0_IO_STANDARD {LVCMOS18} \
CONFIG.PSU_BANK_1_IO_STANDARD {LVCMOS18} \
CONFIG.PSU_BANK_2_IO_STANDARD {LVCMOS18} \
CONFIG.PSU_BANK_3_IO_STANDARD {LVCMOS18} \
CONFIG.PSU__CRF_APB__APLL_CTRL__FRACDATA {0} \
CONFIG.PSU__CRF_APB__VPLL_CTRL__FRACDATA {0} \
CONFIG.PSU__CRF_APB__DPLL_CTRL__FRACDATA {0} \
CONFIG.PSU__CRL_APB__IOPLL_CTRL__FRACDATA {0} \
CONFIG.PSU__CRL_APB__RPLL_CTRL__FRACDATA {0} \
CONFIG.PSU__CRF_APB__DPLL_CTRL__DIV2 {1} \
CONFIG.PSU__CRF_APB__APLL_CTRL__DIV2 {1} \
CONFIG.PSU__CRF_APB__VPLL_CTRL__DIV2 {1} \
CONFIG.PSU__CRL_APB__IOPLL_CTRL__DIV2 {1} \
CONFIG.PSU__CRL_APB__RPLL_CTRL__DIV2 {1} \
CONFIG.PSU__CRF_APB__APLL_CTRL__FBDIV {72} \
CONFIG.PSU__CRF_APB__DPLL_CTRL__FBDIV {72} \
CONFIG.PSU__CRF_APB__VPLL_CTRL__FBDIV {63} \
CONFIG.PSU__CRF_APB__APLL_TO_LPD_CTRL__DIVISOR0 {3} \
CONFIG.PSU__CRF_APB__DPLL_TO_LPD_CTRL__DIVISOR0 {3} \
CONFIG.PSU__CRF_APB__VPLL_TO_LPD_CTRL__DIVISOR0 {2} \
CONFIG.PSU__CRF_APB__ACPU_CTRL__DIVISOR0 {1} \
CONFIG.PSU__CRF_APB__DBG_TRACE_CTRL__DIVISOR0 {5} \
CONFIG.PSU__DISPLAYPORT__PERIPHERAL__ENABLE {1} \
CONFIG.PSU__DISPLAYPORT__LANE0__ENABLE {1} \
CONFIG.PSU__DISPLAYPORT__LANE0__IO {GT Lane3} \
CONFIG.PSU__DISPLAYPORT__LANE1__ENABLE {0} \
CONFIG.PSU__CRF_APB__DBG_FPD_CTRL__DIVISOR0 {2} \
CONFIG.PSU__CRF_APB__APM_CTRL__DIVISOR0 {1} \
CONFIG.PSU__CRF_APB__DP_VIDEO_REF_CTRL__DIVISOR0 {4} \
CONFIG.PSU__CRF_APB__DP_VIDEO_REF_CTRL__DIVISOR1 {1} \
CONFIG.PSU__CRF_APB__DP_AUDIO_REF_CTRL__DIVISOR0 {42} \
CONFIG.PSU__CRF_APB__DP_AUDIO_REF_CTRL__DIVISOR1 {1} \
CONFIG.PSU__CRF_APB__DP_STC_REF_CTRL__DIVISOR0 {4} \
CONFIG.PSU__CRF_APB__DP_STC_REF_CTRL__DIVISOR1 {10} \
CONFIG.PSU__CRF_APB__DDR_CTRL__DIVISOR0 {2} \
CONFIG.PSU__CRF_APB__GPU_REF_CTRL__DIVISOR0 {2} \
CONFIG.PSU__CRF_APB__AFI0_REF_CTRL__DIVISOR0 {2} \
CONFIG.PSU__CRF_APB__AFI0_REF__ENABLE {0} \
CONFIG.PSU__CRF_APB__AFI1_REF_CTRL__DIVISOR0 {2} \
CONFIG.PSU__CRF_APB__AFI1_REF__ENABLE {0} \
CONFIG.PSU__CRF_APB__AFI2_REF_CTRL__DIVISOR0 {2} \
CONFIG.PSU__CRF_APB__AFI2_REF__ENABLE {0} \
CONFIG.PSU__CRF_APB__AFI3_REF_CTRL__DIVISOR0 {2} \
CONFIG.PSU__CRF_APB__AFI3_REF__ENABLE {0} \
CONFIG.PSU__CRF_APB__AFI4_REF_CTRL__DIVISOR0 {2} \
CONFIG.PSU__CRF_APB__AFI4_REF__ENABLE {0} \
CONFIG.PSU__CRF_APB__AFI5_REF_CTRL__DIVISOR0 {2} \
CONFIG.PSU__CRF_APB__AFI5_REF__ENABLE {0} \
CONFIG.PSU__CRF_APB__SATA_REF_CTRL__DIVISOR0 {2} \
CONFIG.PSU__SATA__PERIPHERAL__ENABLE {1} \
CONFIG.PSU__SATA__LANE0__ENABLE {0} \
CONFIG.PSU__SATA__LANE1__ENABLE {1} \
CONFIG.PSU__SATA__LANE1__IO {GT Lane1} \
CONFIG.PSU__CRF_APB__PCIE_REF_CTRL__DIVISOR0 {6} \
CONFIG.PSU__CRL_APB__PL0_REF_CTRL__DIVISOR0 {12} \
CONFIG.PSU__CRL_APB__PL1_REF_CTRL__DIVISOR0 {4} \
CONFIG.PSU__CRL_APB__PL2_REF_CTRL__DIVISOR0 {4} \
CONFIG.PSU__CRL_APB__PL3_REF_CTRL__DIVISOR0 {4} \
CONFIG.PSU__CRL_APB__PL0_REF_CTRL__DIVISOR1 {1} \
CONFIG.PSU__CRL_APB__PL1_REF_CTRL__DIVISOR1 {1} \
CONFIG.PSU__CRL_APB__PL2_REF_CTRL__DIVISOR1 {1} \
CONFIG.PSU__CRL_APB__PL3_REF_CTRL__DIVISOR1 {1} \
CONFIG.PSU__CRL_APB__AMS_REF_CTRL__DIVISOR0 {30} \
CONFIG.PSU__CRL_APB__AMS_REF_CTRL__DIVISOR1 {1} \
CONFIG.PSU__CRL_APB__TIMESTAMP_REF_CTRL__DIVISOR0 {1} \
CONFIG.PSU__CRL_APB__AFI6_REF_CTRL__DIVISOR0 {3} \
CONFIG.PSU__CRL_APB__AFI6__ENABLE {0} \
CONFIG.PSU__CRL_APB__USB3_DUAL_REF_CTRL__DIVISOR0 {5} \
CONFIG.PSU__CRL_APB__USB3_DUAL_REF_CTRL__DIVISOR1 {15} \
CONFIG.PSU_USB3__DUAL_CLOCK_ENABLE {1} \
CONFIG.PSU__CRL_APB__USB3__ENABLE {0} \
CONFIG.PSU__CRF_APB__GDMA_REF_CTRL__DIVISOR0 {2} \
CONFIG.PSU__USE__CLK {0} \
CONFIG.PSU__CRF_APB__DPDMA_REF_CTRL__DIVISOR0 {2} \
CONFIG.PSU__CRF_APB__TOPSW_MAIN_CTRL__DIVISOR0 {2} \
CONFIG.PSU__CRF_APB__TOPSW_LSBUS_CTRL__DIVISOR0 {5} \
CONFIG.PSU__CRF_APB__GTGREF0_REF_CTRL__DIVISOR0 {-1} \
CONFIG.PSU__CRF_APB__GTGREF0__ENABLE {NA} \
CONFIG.PSU__CRF_APB__DBG_TSTMP_CTRL__DIVISOR0 {2} \
CONFIG.PSU__CRL_APB__IOPLL_CTRL__FBDIV {90} \
CONFIG.PSU__CRL_APB__RPLL_CTRL__FBDIV {72} \
CONFIG.PSU__CRL_APB__IOPLL_TO_FPD_CTRL__DIVISOR0 {3} \
CONFIG.PSU__CRL_APB__RPLL_TO_FPD_CTRL__DIVISOR0 {3} \
CONFIG.PSU__CRL_APB__GEM0_REF_CTRL__DIVISOR0 {12} \
CONFIG.PSU__CRL_APB__GEM1_REF_CTRL__DIVISOR0 {12} \
CONFIG.PSU__CRL_APB__GEM2_REF_CTRL__DIVISOR0 {12} \
CONFIG.PSU__CRL_APB__GEM3_REF_CTRL__DIVISOR0 {12} \
CONFIG.PSU__CRL_APB__GEM0_REF_CTRL__DIVISOR1 {1} \
CONFIG.PSU__CRL_APB__GEM1_REF_CTRL__DIVISOR1 {1} \
CONFIG.PSU__CRL_APB__GEM2_REF_CTRL__DIVISOR1 {1} \
CONFIG.PSU__CRL_APB__GEM3_REF_CTRL__DIVISOR1 {1} \
CONFIG.PSU__CRL_APB__GEM_TSU_REF_CTRL__DIVISOR0 {6} \
CONFIG.PSU__CRL_APB__GEM_TSU_REF_CTRL__DIVISOR1 {1} \
CONFIG.PSU__CRL_APB__USB0_BUS_REF_CTRL__DIVISOR0 {6} \
CONFIG.PSU__CRL_APB__USB0_BUS_REF_CTRL__DIVISOR1 {1} \
CONFIG.PSU__CRL_APB__USB1_BUS_REF_CTRL__DIVISOR0 {6} \
CONFIG.PSU__CRL_APB__USB1_BUS_REF_CTRL__DIVISOR1 {1} \
CONFIG.PSU__CRL_APB__QSPI_REF_CTRL__DIVISOR0 {5} \
CONFIG.PSU__CRL_APB__QSPI_REF_CTRL__DIVISOR1 {1} \
CONFIG.PSU__CRL_APB__SDIO0_REF_CTRL__DIVISOR0 {6} \
CONFIG.PSU__CRL_APB__SDIO0_REF_CTRL__DIVISOR1 {1} \
CONFIG.PSU__CRL_APB__SDIO1_REF_CTRL__DIVISOR0 {6} \
CONFIG.PSU__CRL_APB__SDIO1_REF_CTRL__DIVISOR1 {1} \
CONFIG.PSU__CRL_APB__UART0_REF_CTRL__DIVISOR0 {15} \
CONFIG.PSU__CRL_APB__UART0_REF_CTRL__DIVISOR1 {1} \
CONFIG.PSU__CRL_APB__UART1_REF_CTRL__DIVISOR0 {15} \
CONFIG.PSU__CRL_APB__UART1_REF_CTRL__DIVISOR1 {1} \
CONFIG.PSU__CRL_APB__I2C0_REF_CTRL__DIVISOR0 {15} \
CONFIG.PSU__CRL_APB__I2C0_REF_CTRL__DIVISOR1 {1} \
CONFIG.PSU__CRL_APB__I2C1_REF_CTRL__DIVISOR0 {15} \
CONFIG.PSU__CRL_APB__I2C1_REF_CTRL__DIVISOR1 {1} \
CONFIG.PSU__CRL_APB__SPI0_REF_CTRL__DIVISOR0 {7} \
CONFIG.PSU__CRL_APB__SPI0_REF_CTRL__DIVISOR1 {1} \
CONFIG.PSU__CRL_APB__SPI1_REF_CTRL__DIVISOR0 {7} \
CONFIG.PSU__CRL_APB__SPI1_REF_CTRL__DIVISOR1 {1} \
CONFIG.PSU__CRL_APB__CAN0_REF_CTRL__DIVISOR0 {15} \
CONFIG.PSU__CRL_APB__CAN0_REF_CTRL__DIVISOR1 {1} \
CONFIG.PSU__CRL_APB__CAN1_REF_CTRL__DIVISOR0 {15} \
CONFIG.PSU__CRL_APB__CAN1_REF_CTRL__DIVISOR1 {1} \
CONFIG.PSU__CRL_APB__DEBUG_R5_ATCLK_CTRL__DIVISOR0 {6} \
CONFIG.PSU__CRL_APB__CPU_R5_CTRL__DIVISOR0 {3} \
CONFIG.PSU__CRL_APB__OCM_MAIN_CTRL__DIVISOR0 {3} \
CONFIG.PSU__CRL_APB__IOU_SWITCH_CTRL__DIVISOR0 {5} \
CONFIG.PSU__CRL_APB__CSU_PLL_CTRL__DIVISOR0 {3} \
CONFIG.PSU__CRL_APB__PCAP_CTRL__DIVISOR0 {2} \
CONFIG.PSU__CRL_APB__LPD_LSBUS_CTRL__DIVISOR0 {15} \
CONFIG.PSU__CRL_APB__LPD_SWITCH_CTRL__DIVISOR0 {3} \
CONFIG.PSU__CRL_APB__DBG_LPD_CTRL__DIVISOR0 {6} \
CONFIG.PSU__CRL_APB__NAND_REF_CTRL__DIVISOR0 {15} \
CONFIG.PSU__CRL_APB__NAND_REF_CTRL__DIVISOR1 {1} \
CONFIG.PSU__CRL_APB__ADMA_REF_CTRL__DIVISOR0 {3} \
CONFIG.PSU__CRF_APB__APLL_CTRL__SRCSEL {PSS_REF_CLK} \
CONFIG.PSU__CRF_APB__DPLL_CTRL__SRCSEL {PSS_REF_CLK} \
CONFIG.PSU__CRF_APB__VPLL_CTRL__SRCSEL {PSS_REF_CLK} \
CONFIG.PSU__CRF_APB__ACPU_CTRL__SRCSEL {APLL} \
CONFIG.PSU__CRF_APB__DBG_TRACE_CTRL__SRCSEL {IOPLL} \
CONFIG.PSU__CRF_APB__DBG_FPD_CTRL__SRCSEL {IOPLL} \
CONFIG.PSU__CRF_APB__DP_VIDEO_REF_CTRL__SRCSEL {DPLL} \
CONFIG.PSU__CRF_APB__DP_AUDIO_REF_CTRL__SRCSEL {VPLL} \
CONFIG.PSU__CRF_APB__DP_STC_REF_CTRL__SRCSEL {VPLL} \
CONFIG.PSU__CRF_APB__DDR_CTRL__SRCSEL {DPLL} \
CONFIG.PSU__CRF_APB__GPU_REF_CTRL__SRCSEL {DPLL} \
CONFIG.PSU__CRF_APB__AFI0_REF_CTRL__SRCSEL {DPLL} \
CONFIG.PSU__CRF_APB__AFI1_REF_CTRL__SRCSEL {DPLL} \
CONFIG.PSU__CRF_APB__AFI2_REF_CTRL__SRCSEL {DPLL} \
CONFIG.PSU__CRF_APB__AFI3_REF_CTRL__SRCSEL {DPLL} \
CONFIG.PSU__CRF_APB__AFI4_REF_CTRL__SRCSEL {DPLL} \
CONFIG.PSU__CRF_APB__AFI5_REF_CTRL__SRCSEL {DPLL} \
CONFIG.PSU__CRF_APB__SATA_REF_CTRL__SRCSEL {IOPLL} \
CONFIG.PSU__CRF_APB__PCIE_REF_CTRL__SRCSEL {IOPLL} \
CONFIG.PSU__CRL_APB__PL0_REF_CTRL__SRCSEL {RPLL} \
CONFIG.PSU__CRF_APB__GDMA_REF_CTRL__SRCSEL {DPLL} \
CONFIG.PSU__CRF_APB__DPDMA_REF_CTRL__SRCSEL {DPLL} \
CONFIG.PSU__CRF_APB__TOPSW_MAIN_CTRL__SRCSEL {VPLL} \
CONFIG.PSU__CRF_APB__TOPSW_LSBUS_CTRL__SRCSEL {IOPLL} \
CONFIG.PSU__CRF_APB__GTGREF0_REF_CTRL__SRCSEL {NA} \
CONFIG.PSU__CRF_APB__DBG_TSTMP_CTRL__SRCSEL {IOPLL} \
CONFIG.PSU__CRL_APB__IOPLL_CTRL__SRCSEL {PSS_REF_CLK} \
CONFIG.PSU__CRL_APB__RPLL_CTRL__SRCSEL {PSS_REF_CLK} \
CONFIG.PSU__CRL_APB__GEM0_REF_CTRL__SRCSEL {IOPLL} \
CONFIG.PSU__CRL_APB__GEM1_REF_CTRL__SRCSEL {IOPLL} \
CONFIG.PSU__CRL_APB__GEM2_REF_CTRL__SRCSEL {IOPLL} \
CONFIG.PSU__CRL_APB__GEM3_REF_CTRL__SRCSEL {IOPLL} \
CONFIG.PSU__CRL_APB__GEM_TSU_REF_CTRL__SRCSEL {IOPLL} \
CONFIG.PSU__CRL_APB__USB0_BUS_REF_CTRL__SRCSEL {IOPLL} \
CONFIG.PSU__CRL_APB__USB1_BUS_REF_CTRL__SRCSEL {IOPLL} \
CONFIG.PSU__CRL_APB__QSPI_REF_CTRL__SRCSEL {IOPLL} \
CONFIG.PSU__CRL_APB__SDIO0_REF_CTRL__SRCSEL {RPLL} \
CONFIG.PSU__CRL_APB__SDIO1_REF_CTRL__SRCSEL {RPLL} \
CONFIG.PSU__CRL_APB__UART0_REF_CTRL__SRCSEL {IOPLL} \
CONFIG.PSU__CRL_APB__UART1_REF_CTRL__SRCSEL {IOPLL} \
CONFIG.PSU__CRL_APB__I2C0_REF_CTRL__SRCSEL {IOPLL} \
CONFIG.PSU__CRL_APB__I2C1_REF_CTRL__SRCSEL {IOPLL} \
CONFIG.PSU__CRL_APB__SPI0_REF_CTRL__SRCSEL {RPLL} \
CONFIG.PSU__CRL_APB__SPI1_REF_CTRL__SRCSEL {RPLL} \
CONFIG.PSU__CRL_APB__CAN0_REF_CTRL__SRCSEL {IOPLL} \
CONFIG.PSU__CRL_APB__CAN1_REF_CTRL__SRCSEL {IOPLL} \
CONFIG.PSU__CRL_APB__DEBUG_R5_ATCLK_CTRL__SRCSEL {RPLL} \
CONFIG.PSU__CRL_APB__CPU_R5_CTRL__SRCSEL {IOPLL} \
CONFIG.PSU__CRL_APB__OCM_MAIN_CTRL__SRCSEL {IOPLL} \
CONFIG.PSU__CRL_APB__IOU_SWITCH_CTRL__SRCSEL {RPLL} \
CONFIG.PSU__CRL_APB__CSU_PLL_CTRL__SRCSEL {SysOsc} \
CONFIG.PSU__CRL_APB__PCAP_CTRL__SRCSEL {DPLL} \
CONFIG.PSU__CRL_APB__LPD_LSBUS_CTRL__SRCSEL {IOPLL} \
CONFIG.PSU__CRL_APB__LPD_SWITCH_CTRL__SRCSEL {RPLL} \
CONFIG.PSU__CRL_APB__DBG_LPD_CTRL__SRCSEL {IOPLL} \
CONFIG.PSU__CRL_APB__NAND_REF_CTRL__SRCSEL {IOPLL} \
CONFIG.PSU__CRL_APB__ADMA_REF_CTRL__SRCSEL {IOPLL} \
CONFIG.PSU__CRL_APB__DLL_REF_CTRL__SRCSEL {IOPLL} \
CONFIG.PSU__CRL_APB__AMS_REF_CTRL__SRCSEL {IOPLL} \
CONFIG.PSU__CRL_APB__TIMESTAMP_REF_CTRL__SRCSEL {PSS_REF_CLK} \
CONFIG.PSU__CRL_APB__AFI6_REF_CTRL__SRCSEL {IOPLL} \
CONFIG.PSU__CRL_APB__USB3_DUAL_REF_CTRL__SRCSEL {IOPLL} \
CONFIG.PSU__IOU_SLCR__WDT_CLK_SEL__SELECT {APB} \
CONFIG.PSU__FPD_SLCR__WDT_CLK_SEL__SELECT {APB} \
CONFIG.PSU__IOU_SLCR__IOU_TTC_APB_CLK__TTC0_SEL {APB} \
CONFIG.PSU__IOU_SLCR__IOU_TTC_APB_CLK__TTC1_SEL {APB} \
CONFIG.PSU__IOU_SLCR__IOU_TTC_APB_CLK__TTC2_SEL {APB} \
CONFIG.PSU__IOU_SLCR__IOU_TTC_APB_CLK__TTC3_SEL {APB} \
CONFIG.PSU__CRF_APB__APLL_FRAC_CFG__ENABLED {0} \
CONFIG.PSU__CRF_APB__VPLL_FRAC_CFG__ENABLED {0} \
CONFIG.PSU__CRF_APB__DPLL_FRAC_CFG__ENABLED {0} \
CONFIG.PSU__CRL_APB__IOPLL_FRAC_CFG__ENABLED {0} \
CONFIG.PSU__CRL_APB__RPLL_FRAC_CFG__ENABLED {0} \
CONFIG.PSU__CRF_APB__DP_VIDEO__FRAC_ENABLED {0} \
CONFIG.PSU__CRF_APB__DP_AUDIO__FRAC_ENABLED {0} \
CONFIG.PSU__CRF_APB__ACPU__FRAC_ENABLED {0} \
CONFIG.PSU__OVERRIDE__BASIC_CLOCK {1} \
CONFIG.PSU__DLL__ISUSED {1} \
CONFIG.PSU__PL_CLK0_BUF {TRUE} \
CONFIG.PSU__CRF_APB__APLL_CTRL__FRACFREQ {27.138} \
CONFIG.PSU__CRF_APB__VPLL_CTRL__FRACFREQ {27.138} \
CONFIG.PSU__CRF_APB__DPLL_CTRL__FRACFREQ {27.138} \
CONFIG.PSU__CRL_APB__IOPLL_CTRL__FRACFREQ {27.138} \
CONFIG.PSU__CRL_APB__RPLL_CTRL__FRACFREQ {27.138} \
CONFIG.PSU__IOU_SLCR__TTC0__ACT_FREQMHZ {100.000000} \
CONFIG.PSU__IOU_SLCR__TTC1__ACT_FREQMHZ {100.000000} \
CONFIG.PSU__IOU_SLCR__TTC2__ACT_FREQMHZ {100.000000} \
CONFIG.PSU__IOU_SLCR__TTC3__ACT_FREQMHZ {100.000000} \
CONFIG.PSU__IOU_SLCR__WDT0__ACT_FREQMHZ {100.000000} \
CONFIG.PSU__FPD_SLCR__WDT1__ACT_FREQMHZ {100.000000} \
CONFIG.PSU__LPD_SLCR__CSUPMU__ACT_FREQMHZ {100} \
CONFIG.PSU__CRF_APB__ACPU_CTRL__ACT_FREQMHZ {1200.000000} \
CONFIG.PSU__CRF_APB__DBG_TRACE_CTRL__ACT_FREQMHZ {250} \
CONFIG.PSU__CRF_APB__DBG_FPD_CTRL__ACT_FREQMHZ {250.000000} \
CONFIG.PSU__CRF_APB__APM_CTRL__ACT_FREQMHZ {1} \
CONFIG.PSU__CRF_APB__DP_VIDEO_REF_CTRL__ACT_FREQMHZ {300.000000} \
CONFIG.PSU__CRF_APB__DP_AUDIO_REF_CTRL__ACT_FREQMHZ {25.000000} \
CONFIG.PSU__CRF_APB__DP_STC_REF_CTRL__ACT_FREQMHZ {26.250000} \
CONFIG.PSU__CRF_APB__DDR_CTRL__ACT_FREQMHZ {600.000000} \
CONFIG.PSU__DDR__INTERFACE__FREQMHZ {600.000} \
CONFIG.PSU__CRF_APB__GPU_REF_CTRL__ACT_FREQMHZ {600.000000} \
CONFIG.PSU__CRF_APB__AFI0_REF_CTRL__ACT_FREQMHZ {667} \
CONFIG.PSU__CRF_APB__AFI1_REF_CTRL__ACT_FREQMHZ {667} \
CONFIG.PSU__CRF_APB__AFI2_REF_CTRL__ACT_FREQMHZ {667} \
CONFIG.PSU__CRF_APB__AFI3_REF_CTRL__ACT_FREQMHZ {667} \
CONFIG.PSU__CRF_APB__AFI4_REF_CTRL__ACT_FREQMHZ {667} \
CONFIG.PSU__CRF_APB__AFI5_REF_CTRL__ACT_FREQMHZ {667} \
CONFIG.PSU__CRF_APB__SATA_REF_CTRL__ACT_FREQMHZ {250.000000} \
CONFIG.PSU__CRF_APB__PCIE_REF_CTRL__ACT_FREQMHZ {125.000000} \
CONFIG.PSU__CRL_APB__PL0_REF_CTRL__ACT_FREQMHZ {100.000000} \
CONFIG.PSU__CRL_APB__PL1_REF_CTRL__ACT_FREQMHZ {149.999969} \
CONFIG.PSU__CRL_APB__PL2_REF_CTRL__ACT_FREQMHZ {100} \
CONFIG.PSU__CRL_APB__PL3_REF_CTRL__ACT_FREQMHZ {100} \
CONFIG.PSU__CRF_APB__GDMA_REF_CTRL__ACT_FREQMHZ {600.000000} \
CONFIG.PSU__CRF_APB__DPDMA_REF_CTRL__ACT_FREQMHZ {600.000000} \
CONFIG.PSU__CRF_APB__TOPSW_MAIN_CTRL__ACT_FREQMHZ {525.000000} \
...
This file has been truncated, please download it to see its full contents.
/*
* Injects and error to the RPU in locked step mode
*/
#include "xil_printf.h"
#include "xil_io.h"
void inject_error (void) {
Xil_Out32(0xFFD805A0 , 0xC0);
xil_printf("Enable Lockstep Error, ERROR_EN_1: 0x%0X\r\n", Xil_In32(0x00FFD805A0));
xil_printf("ERROR_STATUS_1 register value before error: 0x%0X\r\n", Xil_In32(0xFFD80530 ));
xil_printf("Trigger the Lock-step error\r\n");
Xil_Out32(0xFF9A0020, 0xFFF);
Xil_Out32(0xFF9A0020, 0x0); //reset the RPU_ERR_INJ register
}
12 projects • 27 followers
Electronics engineer focused on FPGA for accelerated computing and ML but with a wide background in electronics design and software design
Comments
