Distance Sensor and OLED

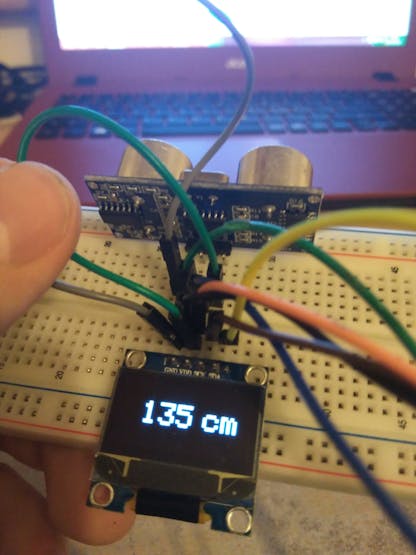

Short and easy, read distance 2 - 400 cm and plot it in I2C OLED screen.

BeginnerFull instructions provided1 hour29,536

Things used in this project

Hardware components

Arduino UNO & Genuino UNO
Arduino UNO & Genuino UNO
×1
Ultrasonic Sensor - HC-SR04 (Generic)
Ultrasonic Sensor - HC-SR04 (Generic)
×1
Adafruit 128X64 LED LCD OLED
×1

Software apps and online services

Arduino IDE
Arduino IDE

Story

Read more

Schematics

Schematic

Code

Distance ultrasound measure and display

Arduino
Main code
//CODE BY Javier Muñoz Sáez,05/11/2016 questions to javimusama@gmail.com
#include <SPI.h>
#include <Wire.h>
#include <Adafruit_GFX.h>
#include <Adafruit_SSD1306.h>

#define CommonSenseMetricSystem
//#define ImperialNonsenseSystem

#define trigPin 13
#define echoPin 12

#define OLED_RESET 4
Adafruit_SSD1306 display(OLED_RESET);

void setup() {
  Serial.begin (9600);
  pinMode(trigPin, OUTPUT);
  pinMode(echoPin, INPUT);
  display.begin(SSD1306_SWITCHCAPVCC, 0x3C); //initialize with the I2C addr 0x3C (128x64)
  display.clearDisplay();

}

void loop() {
  long duration, distance;

  digitalWrite(trigPin, LOW);  //PULSE ___|---|___
  delayMicroseconds(2);
  digitalWrite(trigPin, HIGH);
  delayMicroseconds(10);
  digitalWrite(trigPin, LOW);

  duration = pulseIn(echoPin, HIGH);

  #ifdef CommonSenseMetricSystem
  distance = (duration/2) / 29.1;
  #endif
  #ifdef ImperialNonsenseSystem
  distance = (duration/2) / 73.914;
  #endif

  display.setCursor(22,20);  //oled display
  display.setTextSize(3);
  display.setTextColor(WHITE);
  display.println(distance);
  display.setCursor(85,20);
  display.setTextSize(3);

  #ifdef CommonSenseMetricSystem
  display.println("cm");
  #endif
  #ifdef ImperialNonsenseSystem
  display.println("in");
  #endif

  display.display();

  delay(500);
  display.clearDisplay();

  Serial.println(distance);//debug



}
