#include "main.h"
#include "drv_lcd.h"
#include "drv_aht21.h"
#include <stdlib.h>
#define FILTER_SIZE 10
SRAM_HandleTypeDef hsram1;
void SystemClock_Config(void);
static void MX_GPIO_Init(void);
static void MX_FSMC_Init(void);
/**
* SECTION 1: CUSTOM DISPLAY FUNCTIONS
* We implemented custom drawing and printing functions to avoid using the standard
* <stdio.h> library (sprintf/printf), which is very heavy on Flash memory (~20KB).
* Our custom implementation uses less than 1KB.
*/
// Draws a hollow rectangle (used for UI borders)
void LCD_DrawRect(uint16_t x1, uint16_t y1, uint16_t x2, uint16_t y2, uint16_t color) {
LCD_DrawPixel(x1, y1, color);
LCD_DrawPixel(x2, y2, color);
// Draw Horizontal Lines
for (uint16_t x = x1; x <= x2; x++) {
LCD_DrawPixel(x, y1, color);
LCD_DrawPixel(x, y2, color);
}
// Draw Vertical Lines
for (uint16_t y = y1; y <= y2; y++) {
LCD_DrawPixel(x1, y, color);
LCD_DrawPixel(x2, y, color);
}
}
// Recursive function to print integers digit by digit
void LCD_ShowNum(uint16_t x, uint16_t y, int num, uint16_t color, uint16_t back_color) {
char buf[12]; int i = 0;
if (num == 0) { LCD_ShowChar(x, y, '0', color, back_color); return; }
// Handle negative numbers
if (num < 0) { LCD_ShowChar(x, y, '-', color, back_color); x += 8; num = -num; }
// Extract digits into buffer
while (num > 0) { buf[i++] = (num % 10) + '0'; num /= 10; }
// Print in reverse order (MSB first)
while (--i >= 0) { LCD_ShowChar(x, y, buf[i], color, back_color); x += 8; }
}
/**
* @brief Manually renders a float value to the screen.
* @why Handling floats usually requires the FPU and heavy libraries.
* Here, we simply split the float into two Integers:
* 1. The Integer Part (e.g., 25)
* 2. The Decimal Part (e.g., .43)
* Then we print them separately with a dot in between.
*/
void LCD_ShowFloatManual(uint16_t x, uint16_t y, float val, uint16_t color, uint16_t back_color) {
// 1. Extract Integer Part
int intPart = (int)val;
LCD_ShowNum(x, y, intPart, color, back_color);
// Calculate cursor offset based on number length (for the decimal point)
int offset = 8;
if (intPart < 0) offset += 8;
if (abs(intPart) > 9) offset += 8;
if (abs(intPart) > 99) offset += 8;
// 2. Print Decimal Point
LCD_ShowChar(x + offset, y, '.', color, back_color);
// 3. Extract Decimal Part (2 decimal places)
// Multiply by 100 to convert .43 to 43
int decPart = (int)((val - (float)intPart) * 100.0f);
if (decPart < 0) decPart = -decPart;
// Handle leading zeros (e.g., .05 should not print as .5)
if (decPart < 10) {
LCD_ShowChar(x + offset + 8, y, '0', color, back_color);
LCD_ShowNum(x + offset + 16, y, decPart, color, back_color);
} else {
LCD_ShowNum(x + offset + 8, y, decPart, color, back_color);
}
}
/*
* SECTION 2: SIGNAL PROCESSING (Digital Filter)
* Raw sensor data is often noisy due to electrical interference or airflow.
* This Moving Average Filter smooths the data for a stable display.
*/
float Filter_Value(float new_val, float *buffer, uint8_t *index, uint8_t *count) {
// STEP 1: SPIKE REJECTION (Sanity Check)
// If the sensor reads >100C or <-40C, it is physically impossible.
// This is likely an I2C bit error or electrical glitch. Ignore it.
if (new_val > 100.0f || new_val < -40.0f) {
if (*count > 0) {
// Return the previous valid average instead
float sum = 0;
for(int i=0; i<*count; i++) sum += buffer[i];
return sum / *count;
}
return new_val; // Fallback if it's the very first reading
}
// STEP 2: UPDATE BUFFER
buffer[*index] = new_val;
*index = (*index + 1) % FILTER_SIZE; // Circular buffer wrap-around
if (*count < FILTER_SIZE) (*count)++;
// STEP 3: CALCULATE AVERAGE
float sum = 0;
for (uint8_t i = 0; i < *count; i++) {
sum += buffer[i];
}
return sum / (float)(*count);
}
// --- MAIN APPLICATION LOOP ---
int main(void)
{
// 1. Initialize Core Hardware
HAL_Init();
SystemClock_Config();
MX_GPIO_Init(); // Configures Pins
MX_FSMC_Init(); // Configures External Memory Bus for LCD
// 2. Initialize LCD
LCD_Init();
LCD_Clear(WHITE);
// 3. Draw User Interface (Static Elements)
LCD_DrawRect(5, 5, 235, 40, BLUE);

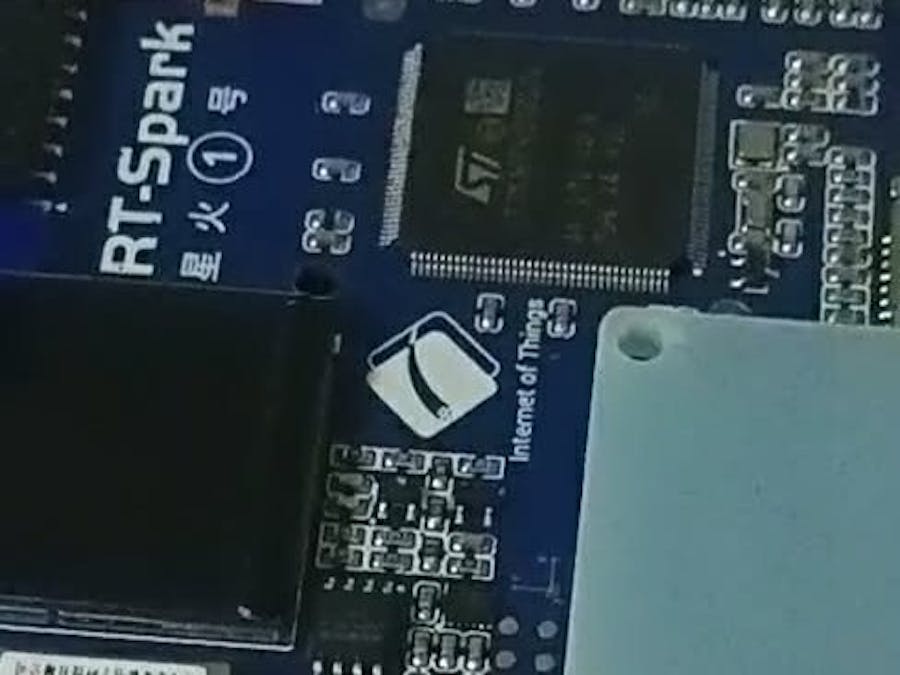

LCD_ShowString(40, 15, "RT-Spark AHT21", BLUE, WHITE);
LCD_ShowString(20, 80, "Temp:", BLACK, WHITE);
LCD_ShowString(20, 140, "Hum:", BLACK, WHITE);
LCD_ShowString(20, 200, "Sensor Active ", GREEN, WHITE);
// 4. Initialize Sensor (Sends Calibration Command 0xBE)
AHT21_Init();
// Variables for Data Processing
float raw_temp = 0.0f;
float raw_hum = 0.0f;
float final_temp = 0.0f;
float final_hum = 0.0f;
// Circular Buffers for Filtering
float temp_history[FILTER_SIZE] = {0};
float hum_history[FILTER_SIZE] = {0};
uint8_t temp_idx = 0, hum_idx = 0;
uint8_t temp_cnt = 0, hum_cnt = 0;
uint8_t count = 0;
while (1)
{
// 5. Acquire Data
uint8_t status = AHT21_Read(&raw_temp, &raw_hum);
if (status == 1)
{
// 6. Process Data (Apply Filter)
final_temp = Filter_Value(raw_temp, temp_history, &temp_idx, &temp_cnt);
final_hum = Filter_Value(raw_hum, hum_history, &hum_idx, &hum_cnt);
// 7. Refresh Display
// Note: We overwrite the old value area with spaces to "clear" it
// before printing the new value to prevent flickering.
LCD_ShowString(90, 100, " ", WHITE, WHITE);
LCD_ShowString(90, 160, " ", WHITE, WHITE);
// Print Temperature (Red for Heat)
LCD_ShowFloatManual(90, 100, final_temp, RED, WHITE);
LCD_ShowString(160, 100, "C", RED, WHITE);
// Print Humidity (Blue for Water)
LCD_ShowFloatManual(90, 160, final_hum, BLUE, WHITE);
LCD_ShowString(160, 160, "%", BLUE, WHITE);
// 8. System Heartbeat
// Blinks a single pixel to show the main loop is running and not stuck
if (count++ % 2) LCD_DrawPixel(230, 230, RED);
else LCD_DrawPixel(230, 230, WHITE);
}
else
{
// Error Handling: If I2C fails, show error and try to reset sensor
LCD_ShowString(120, 200, "Read Err", RED, WHITE);
HAL_Delay(100);
AHT21_Init();
}
// Update Rate: 1Hz (Every 1000ms)
// This is fast enough for environmental data but slow enough to be readable.
HAL_Delay(1000);
}
}
/*
* SECTION 3: PERIPHERAL CONFIGURATION (Auto-Generated Logic)
*/
void SystemClock_Config(void) {
RCC_OscInitTypeDef RCC_OscInitStruct = {0};
RCC_ClkInitTypeDef RCC_ClkInitStruct = {0};
__HAL_RCC_PWR_CLK_ENABLE();
__HAL_PWR_VOLTAGESCALING_CONFIG(PWR_REGULATOR_VOLTAGE_SCALE1);
RCC_OscInitStruct.OscillatorType = RCC_OSCILLATORTYPE_HSI;
RCC_OscInitStruct.HSIState = RCC_HSI_ON;
RCC_OscInitStruct.HSICalibrationValue = RCC_HSICALIBRATION_DEFAULT;
RCC_OscInitStruct.PLL.PLLState = RCC_PLL_NONE;
HAL_RCC_OscConfig(&RCC_OscInitStruct);
RCC_ClkInitStruct.ClockType = RCC_CLOCKTYPE_HCLK|RCC_CLOCKTYPE_SYSCLK|RCC_CLOCKTYPE_PCLK1|RCC_CLOCKTYPE_PCLK2;
RCC_ClkInitStruct.SYSCLKSource = RCC_SYSCLKSOURCE_HSI;
RCC_ClkInitStruct.AHBCLKDivider = RCC_SYSCLK_DIV1;
RCC_ClkInitStruct.APB1CLKDivider = RCC_HCLK_DIV1;
RCC_ClkInitStruct.APB2CLKDivider = RCC_HCLK_DIV1;
HAL_RCC_ClockConfig(&RCC_ClkInitStruct, FLASH_LATENCY_0);
}
static void MX_FSMC_Init(void) {
FSMC_NORSRAM_TimingTypeDef Timing = {0};
hsram1.Instance = FSMC_NORSRAM_DEVICE;
hsram1.Extended = FSMC_NORSRAM_EXTENDED_DEVICE;
hsram1.Init.NSBank = FSMC_NORSRAM_BANK3;
hsram1.Init.DataAddressMux = FSMC_DATA_ADDRESS_MUX_DISABLE;
hsram1.Init.MemoryType = FSMC_MEMORY_TYPE_SRAM;
/**
* CRITICAL CONFIGURATION: 8-BIT BUS WIDTH
* The RT-Spark schematic shows only D0-D7 connected to the LCD.
* If we select 16-bit here, the MCU will try to send data on D8-D15,
* which are not connected, resulting in corrupted colors.
*/
hsram1.Init.MemoryDataWidth = FSMC_NORSRAM_MEM_BUS_WIDTH_8;
hsram1.Init.WriteOperation = FSMC_WRITE_OPERATION_ENABLE;
hsram1.Init.ExtendedMode = FSMC_EXTENDED_MODE_DISABLE;
hsram1.Init.AsynchronousWait = FSMC_ASYNCHRONOUS_WAIT_DISABLE;
hsram1.Init.WriteBurst = FSMC_WRITE_BURST_DISABLE;
hsram1.Init.PageSize = FSMC_PAGE_SIZE_NONE;
// Timing Parameters (Tuned for ST7789)
Timing.AddressSetupTime = 15;
Timing.AddressHoldTime = 15;
Timing.DataSetupTime = 60;
Timing.BusTurnAroundDuration = 5;
Timing.CLKDivision = 16;
Timing.DataLatency = 17;
Timing.AccessMode = FSMC_ACCESS_MODE_A;
HAL_SRAM_Init(&hsram1, &Timing, NULL);
}
static void MX_GPIO_Init(void) {
GPIO_InitTypeDef GPIO_InitStruct = {0};
__HAL_RCC_GPIOF_CLK_ENABLE();
__HAL_RCC_GPIOE_CLK_ENABLE();
__HAL_RCC_GPIOD_CLK_ENABLE();
__HAL_RCC_GPIOG_CLK_ENABLE();
// Initial Pin States
HAL_GPIO_WritePin(GPIOF, GPIO_PIN_9, GPIO_PIN_RESET); // Backlight Off initially
HAL_GPIO_WritePin(GPIOD, GPIO_PIN_3, GPIO_PIN_SET); // Reset High (Inactive)
// Configure LCD Pins (Backlight & Reset)
GPIO_InitStruct.Pin = GPIO_PIN_9;
GPIO_InitStruct.Mode = GPIO_MODE_OUTPUT_PP;
GPIO_InitStruct.Pull = GPIO_NOPULL;
GPIO_InitStruct.Speed = GPIO_SPEED_FREQ_LOW;
HAL_GPIO_Init(GPIOF, &GPIO_InitStruct);
GPIO_InitStruct.Pin = GPIO_PIN_3;
HAL_GPIO_Init(GPIOD, &GPIO_InitStruct);
// Configure Sensor Pins (Bit-Banging I2C)
// Must be Open-Drain (OD) to allow the line to be pulled Low by both MCU and Sensor
HAL_GPIO_WritePin(GPIOE, GPIO_PIN_0|GPIO_PIN_1, GPIO_PIN_SET);
GPIO_InitStruct.Pin = GPIO_PIN_0|GPIO_PIN_1;
GPIO_InitStruct.Mode = GPIO_MODE_OUTPUT_OD;
GPIO_InitStruct.Pull = GPIO_PULLUP;
GPIO_InitStruct.Speed = GPIO_SPEED_FREQ_VERY_HIGH;
HAL_GPIO_Init(GPIOE, &GPIO_InitStruct);
}
void Error_Handler(void) { __disable_irq(); while (1) {} }
