DPU Vivado + Petalinux flow 2025.2

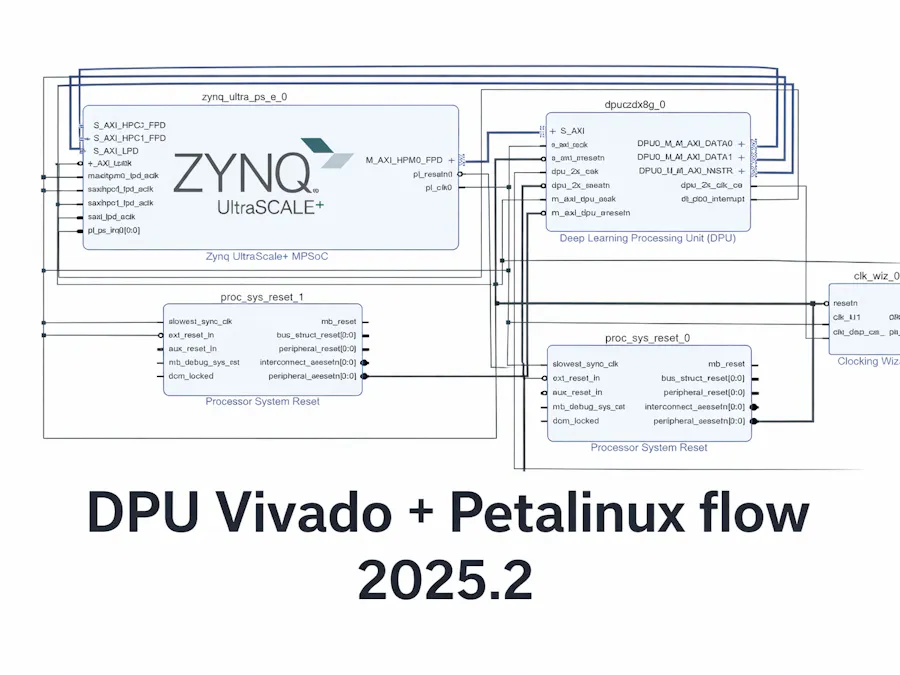

Creating the block design

For this first build, the goal is to keep the design as simple as possible so you can quickly validate the Vitis AI libraries before adding extra interfaces like MIPI and DisplayPort later.Create a minimal block design in Vivado focused on getting the DPU running.At this stage, avoid optional peripherals so debugging is easier and implementation is faster.

Configuring the block design

Because the target is the Ultra96-V2, choose conservative settings:

• Number of DPU cores:1
• DPU architecture:B2304
• RAM usage: keep low

This gives you a practical baseline while leaving room for future features.

In the DPU advanced settings:

• Enable clock gating
• Set the DSP clock to Buffer with CE
• Keep DSP48 usage low

This helps reduce unnecessary power and resource overhead while still supporting initial testing.

Validate Design

You may see validation errors caused by bus width differences:

• DPU slave AXI width = 32-bit
• MPSoC master AXI width = 128-bit

Update the AXI configuration so the interfaces are compatible.After correcting widths, run Validate Design again.

Once validation passes:

• Run Synthesis
• Run Implementation
• Generate the Bitstream

This produces a hardware design ready for software platform creation.

Exporting the Hardware Design

Export the hardware and include the bitstream.

This generates the Xilinx Support Archive (XSA), which is required by:

• Vitis (to build software platforms)
• PetaLinux (to build Linux-based platforms)

Creating the PetaLinux project

First, source the PetaLinux settings script for the 2025.2 toolchain (<petalinux_folder>/settings.sh), then create the base project for the Ultra96-V2 DPU design:petalinux-create --type project --template zynqMP --name ultra96v2_dpu

Configure the project

Before configuring the PetaLinux project, make sure to copy your exported XSA file (named ultra96v2_dpu.xsa) into a convenient location.Now change into your new project directory:

cd ultra96v2_dpu

To configure the hardware, pass your XSA file to the project:

petalinux-config --get-hw-description ../ultra96v2_dpu.xsa

Setting Serial and Filesystem

Next, configure the serial port settings to use UART1 and ensure that all relevant serial console options are set correctly for the Ultra96V2.

Subsystem AUTO Hardware Settings → Serial Settings

• Primary stdin : psu_uart_1
• Primary stdout : psu_uart_1
• Primary stderr : psu_uart_1
• Serial port : psu_uart_1

For filesystem configuration, select ext4 as the root filesystem type:

Image Packaging Configuration → Root filesystem type

• Select: ext4


Device-tree: Set Machine Name

You will also want to set the machine name in the device tree settings to ensure compatibility with the Ultra96-V2 board.

Add meta-vitis Yocto layer

You can get this from AMD’s public GitHub repository: Xilinx/meta-vitis (rel-v2024.2) .

Then, in petalinux-config, add meta-vitis as a user layer:

• Yocto Settings → User Layers

After adding the layer, open project-spec/meta-user/meta-vitis/recipes-vai/vart/vart_3.5.bb and ensure the following line is commented out:

# PACKAGECONFIG:append = " vitis"

Add replacement recipes-vai

As a final preparation step before building, add the replacement recipes-vai folder provided by AMD into project-spec/meta-user/ as well. (This part was referenced from LogicTronix’s hackster.io Project)

Update Kernel BSP

In your BSP layer under recipes-kernel/linux/linux-xlnx, make sure the kernel configuration enables enough CMA memory and the DPU driver:

CONFIG_CMA_SIZE_MBYTES=1024
CONFIG_XILINX_DPU=y

Enable rootfs packages for Vitis AI and tooling

First, make sure the key packages are listed in project-spec/meta-user/conf/user-rootfsconfig so they are always selected when you run the rootfs config:

CONFIG_gpio-demo
CONFIG_peekpoke
CONFIG_packagegroup-vitisai
CONFIG_vart
CONFIG_xir
CONFIG_unilog
CONFIG_dnf
CONFIG_nfs-utils
CONFIG_resize-part
CONFIG_vitis-ai-library-dev
CONFIG_vitis-ai-library-dbg

Then, in the root filesystem configuration (petalinux-config -c rootfs), enable the following options to pull in the required system, Vitis AI, debugging and convenience packages:

CONFIG_system-zynqmp=y
CONFIG_dnf=y
CONFIG_e2fsprogs-mke2fs=y
CONFIG_fpga-manager-script=y
CONFIG_mtd-utils=y
CONFIG_can-utils=y
CONFIG_nfs-utils=y
CONFIG_pciutils=y
CONFIG_run-postinsts=y
CONFIG_libdfx=y
CONFIG_xrt=y
CONFIG_xrt-dev=y
CONFIG_xrt-dbg=y
CONFIG_zocl=y
CONFIG_zocl-dev=y
CONFIG_zocl-dbg=y
CONFIG_udev-extraconf=y
CONFIG_linux-xlnx-udev-rules=y
CONFIG_packagegroup-core-boot=y
CONFIG_tcf-agent=y
CONFIG_bridge-utils=y
CONFIG_dosfstools=y
CONFIG_resize-part=y
CONFIG_u-boot-tools=y
CONFIG_imagefeature-ssh-server-openssh=y
CONFIG_imagefeature-hwcodecs=y
CONFIG_imagefeature-package-management=y
CONFIG_imagefeature-empty-root-password=y
CONFIG_imagefeature-serial-autologin-root=y
CONFIG_Init-manager-systemd=y
CONFIG_packagegroup-vitisai=y
CONFIG_unilog=yk
CONFIG_vart=y
CONFIG_vitis-ai-library-dbg=y
CONFIG_vitis-ai-library-dev=y
CONFIG_xir=y

Add DPU drivers

Clone the DPU driver repository directly into project-spec/meta-user/recipes-kernel/ so the recipes are picked up by the build. Use: JackBonnellDevelopment/Xilinx_DPU_Driver .

Update the device tree for DPU

Before building, update the system-user.dtsi so that the DPU node in pl.dtsi is extended with the correct compatible string and properties. Replace the contents of project-spec/meta-user/recipes-bsp/device-tree/files/system-user.dtsi with:

/include/ "system-conf.dtsi"

/* Extend the auto-generated DPU node from pl.dtsi */
&dpuczdx8g_0 {
	compatible = "xlnx,dpuczdx8g-4.1", "xilinx,dpu";
	core-num = <1>;
};

This ensures the DPU kernel module can correctly bind to the DPU instance in your design.

Build and package images

With the configuration and device tree updates complete, build the PetaLinux project and generate the boot files and WIC image (following the same flow described in the test-pattern-generator pipeline post):

petalinux-build
petalinux-package --boot --format BIN \
  --fsbl ./images/linux/zynqmp_fsbl.elf \
  --u-boot \
  --pmufw ./images/linux/pmufw.elf \
  --fpga \
  --dtb ./images/linux/system.dtb \
  --force
petalinux-package --wic --force

This will generate the full .wic image file, typically in images/linux/, suitable for direct writing to your SD card.Write the WIC Image to SD Card

Now that you have the .wic image, you can write it to your SD card using balenaEtcher or a similar tool:

• Insert the SD card into your PC.
• Open balenaEtcher.
• Select the generated .wic image file (e.g., images/linux/plnx-aarch64.wic).
• Choose your SD card as the target.
• Click “Flash” to program the SD card.

After Etcher completes, safely eject the SD card and insert it into your Ultra96-V2 board to boot your new image.

Verify the DPU is running

Once the board has booted, you can connect to the Linux console over serial (for example, using PuTTY on Windows):

• Open PuTTY and select the Serial connection type.

Set the Serial line to the COM port used by your Ultra96-V2 (for example, COM6).

• Baud rate:115200
• Data bits:8
• Stop bits:1
• Parity:None
• Flow control:None
• Set the Serial line to the COM port used by your Ultra96-V2 (for example, COM6).Baud rate:115200
Data bits:8
Stop bits:1
Parity:None
Flow control:None

• Click Open, log in to the board, and run:

xdputil query

This should print out information about the DPU core, confirming that the accelerator is visible and configured correctly.
