Setup Kria KV260 to access Remote Desktop

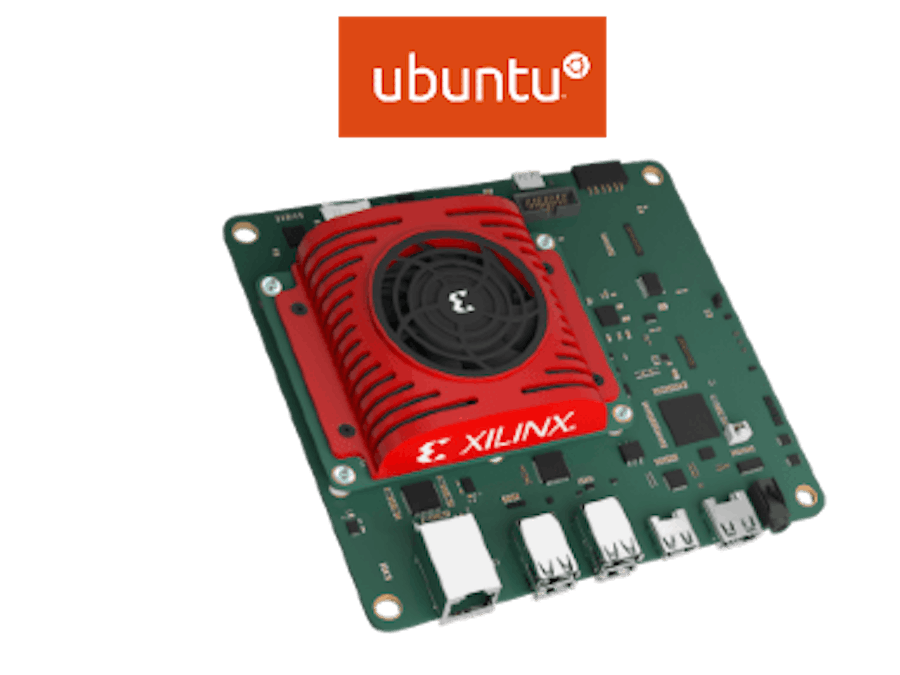

Recently, Xilinx releases Ubuntu version for KRIA KV260. I am excited and want to share some experiences about it.

In this project, I want to connect Kria KV260 through an ethernet port because I don’t have any additional monitors. There are different ways to access a remote desktop on Kria KV260. This is one of the ways.

I have done all the steps on my pc which runs Ubuntu18.

How it work

Setup the image file

Firstly, you need to setup SD card image ubuntu

Download the ubuntu image iot-kria-classic-desktop-2004-x03-20211110-98.img.xz from

https://ubuntu.com/download/xilinx

Download balena Etcher for flashing ubuntu image

https://www.balena.io/etcher/

Run balena Etcher and flash .image to SD card.

First run Linux

When your card is flashed then put it in KV260 slot and turn it on. Then, we can connect the board using UART with putty.

sudo putty /dev/ttyUSB1 -serial -sercfg 115200,8,n,1,N

First login default

Username: ubuntu

Password: ubuntu

Then the system asks you to change the password.

From the terminal, you can see what is the IP address of the board. In this KV260, the IP address is 192.168.0.170

Connect via ethernet

First, set the ip of the client (our pc).

nm-connection-editor

Select the ethx that connects to the board and change ip address to be in the same local network. For my pc I use:

Don’t forget to change the method to Shared to other computers for connecting to the internet.

Now, try ping 192.168.0.123 on the KV260 to check that it successfully connects to the PC.

Install X2Go on Server (KV260)

To access the remote desktop, we need to install X2Go for both server (KV260) and the client (PC). First, let install it on the server by running this:

sudo apt-get install software-properties-common

Add X2GO PPA repository then update and install it.

sudo add-apt-repository ppa:x2go/stable
sudo apt-get update
sudo apt-get install x2goserver x2goserver-xsession

Install X2Go on Client (PC)

We need to install X2Go on the client so that we can connect to the KV260.

sudo apt-get install x2goclient

Before running x2go, we need to install a desktop environment. There are several graphic desktop environments that are available for x2go. But, I prefer to install minimal environments, MATE. You can install the full version or only binding environments.

To install MATE environment run:

sudo apt-get install x2gomatebindings

Or full MATE:

sudo apt install mate-core mate-desktop-environment mate-notification-daemon

Now, we are ready to run the application

sudo x2goclient

You will see :

Setting:

Host: ip address of KV260

Login: ubuntu

SSH port: default is 22. You can change your settings on /etc/ssh/sshd_config

Session type: choose the environment that you installed.

Click ok then you will get a login screen.

Log in with the password that you set on KV260.

Then

Now, you can access the remote desktop with MATE graphics on KV260.

Details

For x2go

https://wiki.x2go.org/doku.php

For ubuntu on kv260

https://www.xilinx.com/products/som/kria/kv260-vision-starter-kit/kv260-getting-started/getting-started.ht
