For FPGA training I needed a 4-digit 7 Segment display with a PMOD connector. The design uses through-hole components to allow for simple self-assembly.
Embed the widget on your own site

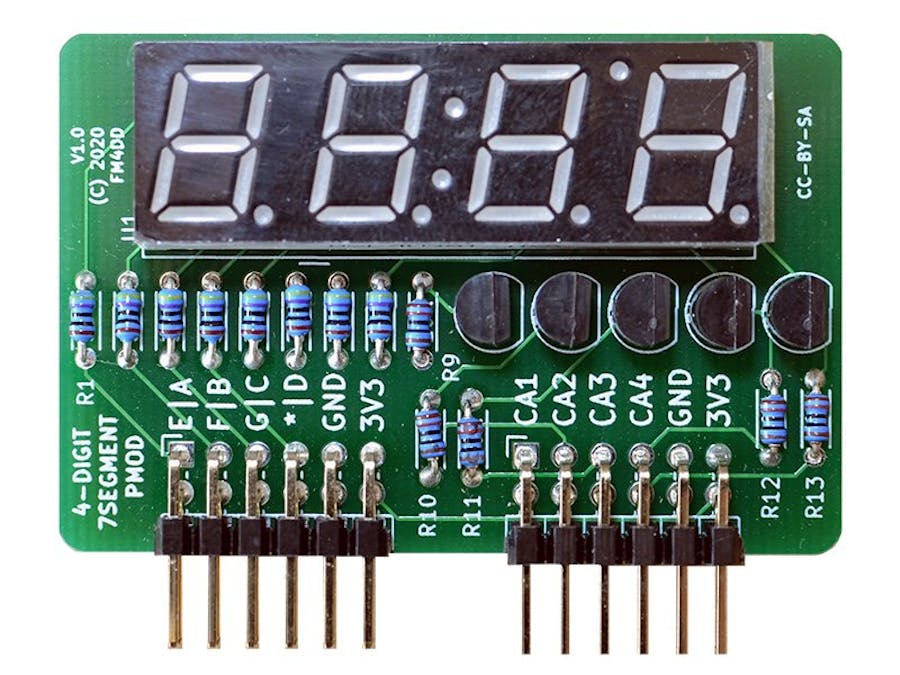

PMOD module for 4x7 Segment display
This PMOD provides a multiplexed four-digit 7-segment LED display output to FPGA designs via two double-row PMOD ports (quad-row).
