MicroBlaze MCS Seven-Segment Counter on Basys 3 FPGA

Story

Introduction

This project demonstrates how to implement a MicroBlaze MCS (Micro Controller System) soft-core processor on the Digilent Basys 3 FPGA board, running a bare-metal C application that drives a 4-digit seven-segment counter (0000–9999). The project is a practical introduction to embedded soft-core processor design on FPGAs, bridging the gap between pure HDL design and software-driven embedded systems.

The MicroBlaze MCS is AMD/Xilinx's all-in-one embedded processor IP — it packages the MicroBlaze CPU core, local BRAM memory, and configurable GPIO into a single block, making it ideal for simple control applications without the complexity of a full AXI-based system.

Why MicroBlaze MCS?

When you need a simple microcontroller on an FPGA, you have several options: write everything in HDL, use the full MicroBlaze with AXI interconnect, or use the MicroBlaze MCS. The MCS variant is perfect for beginners and small projects because:

• Single IP block — no AXI interconnect, no address map headaches
• Built-in BRAM — up to 64KB on Artix-7, no external memory needed
• Integrated GPIO — up to 4 channels, configurable as input or output
• C programming — write your application logic in C, not Verilog

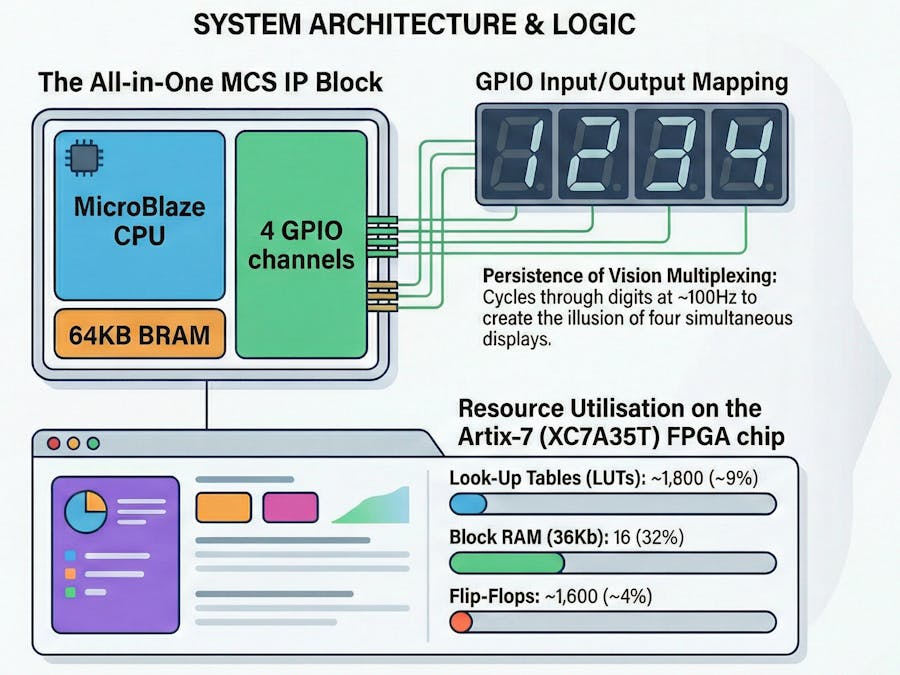

System Architecture

The design uses the MicroBlaze MCS with four GPIO channels:GPIO1 drives the seven-segment cathodes (active-low encoding)

• GPIO2 controls the anode multiplexing (one digit at a time)
• GPIO3 reads the 16 slide switches for runtime configuration
• GPIO4 reads the 5 push buttons for counter control

The Seven-Segment Challenge

The Basys 3 has 4 common-anode, multiplexed seven-segment displays. You can't drive all 4 digits simultaneously — instead, you rapidly cycle through each digit (one at a time), switching the anode enable and cathode pattern fast enough that persistence of vision creates the illusion of all 4 digits being lit. The C code handles this multiplexing in a tight loop with ~2.5ms per digit, giving a ~100Hz refresh rate.

Key implementation details:

• Active-low encoding: On the Basys 3, writing a '0' to a cathode turns the segment ON
• Anode selection: Writing a '0' to an anode enables that digit
• Anti-ghosting: All anodes are turned off briefly before switching to prevent bleed-through

Software Features

The C application provides interactive control via switches and buttons:

Control Function

SW[0] Count direction: 0 = up, 1 = down

SW[7:1] Speed control (0 = fast, 127 = slow)

btnU Reset counter to 0000

btnD Reset counter to 9999

btnL Hold to pause counting

Hardware Setup

Step 1: Create Vivado Project

• Open Vivado 2024.1 → Create Project
• Select Basys 3 board (xc7a35tcpg236-1)
• Create Block Design → Add MicroBlaze MCS IP

Step 2: Configure MicroBlaze MCS

• Input Clock: 100 MHz
• Memory Size: 64 KB
• GPIO1: 8-bit output (segments)
• GPIO2: 4-bit output (anodes)
• GPIO3: 16-bit input (switches)
• GPIO4: 5-bit input (buttons)

Step 3: Create Top-Level Wrapper

A Verilog wrapper connects the MCS GPIO ports to physical Basys 3 pins:

module basys3_mcs_top(
    input  wire        clk,
    input  wire        btnC,       // Reset
    output wire [6:0]  seg,        // Cathodes (active low)
    output wire        dp,         // Decimal point
    output wire [3:0]  an,         // Anodes (active low)
    input  wire [15:0] sw,
    input  wire        btnU, btnL, btnR, btnD
);
    wire [7:0]  GPIO1_0_tri_o;
    wire [3:0]  GPIO2_0_tri_o;
    wire [15:0] GPIO3_0_tri_i;
    wire [4:0]  GPIO4_0_tri_i;

    assign seg = GPIO1_0_tri_o[6:0];
    assign dp  = GPIO1_0_tri_o[7];
    assign an  = GPIO2_0_tri_o;
    assign GPIO3_0_tri_i = sw;
    assign GPIO4_0_tri_i = {btnC, btnU, btnL, btnR, btnD};

    mcs_system_wrapper u_mcs (
        .Clk_0          (clk),
        .Reset_0        (btnC),
        .GPIO1_0_tri_o  (GPIO1_0_tri_o),
        .GPIO2_0_tri_o  (GPIO2_0_tri_o),
        .GPIO3_0_tri_i  (GPIO3_0_tri_i),
        .GPIO4_0_tri_i  (GPIO4_0_tri_i)
    );
endmodule

Important note on port names: Vivado appends _0 to all external port names when using "Make External" on block design pins. Always check the auto-generated mcs_system_wrapper.v for the exact names.

Step 4: Pin Constraints

Apply the Basys 3 XDC constraints mapping to physical pins (W5 for clock, W7/W6/U8/V8/U5/V5/U7 for segments, U2/U4/V4/W4 for anodes, etc.)

Step 5: Generate Bitstream & Export Hardware

Run Synthesis → Implementation → Generate Bitstream → Export Hardware (.xsa) with bitstream included.

Software Development

Step 6: Launch Vitis Classic

Important: Use Vitis Classic (not the Unified IDE) for MicroBlaze MCS projects in 2024.1. The Unified IDE has known BSP generation issues with MCS.

Launch via: Start Menu → Vitis Classic 2024.1

Step 7: Create Application

• File → New → Application Project
• Select your exported.xsa file
• Processor: microblaze_mcs_0_microblaze_I
• OS: standalone
• Template: Empty Application (C)

Step 8: Add C Source

The core of the application is a multiplexed display driver with a counter:

#include "xparameters.h"
#include "xiomodule.h"

static XIOModule io_mod;

// Seven-segment LUT (active LOW for Basys 3 common anode)
static const uint8_t SEG7_LUT[10] = {
    0x40, 0x79, 0x24, 0x30, 0x19,  // 0-4
    0x12, 0x02, 0x78, 0x00, 0x10   // 5-9
};

static const uint8_t ANODE_SEL[4] = {
    0x0E, 0x0D, 0x0B, 0x07  // One-hot inverted
};

static void display_one_cycle(uint8_t digits[4]) {
    for (int i = 0; i < 4; i++) {
        XIOModule_DiscreteWrite(&io_mod, 2, 0x0F);      // All off
        XIOModule_DiscreteWrite(&io_mod, 1,
            SEG7_LUT[digits[i]] | 0x80);                 // Set segments
        XIOModule_DiscreteWrite(&io_mod, 2, ANODE_SEL[i]); // Enable digit
        delay_us(2500);                                   // ~2.5ms hold
    }
}

int main(void) {
    uint16_t counter = 0;
    XIOModule_Initialize(&io_mod, XPAR_IOMODULE_0_DEVICE_ID);

    while (1) {
        uint8_t digits[4];
        digits[0] = counter % 10;
        digits[1] = (counter / 10) % 10;
        digits[2] = (counter / 100) % 10;
        digits[3] = (counter / 1000) % 10;

        display_one_cycle(digits);

        counter++;
        if (counter > 9999) counter = 0;
    }
}

Step 9: Build, Associate ELF, Program

• Build in Vitis → generates.elf file
• In Vivado: Tools → Associate ELF Files → select the.elf
• Re-generate Bitstream (now includes C program in BRAM)
• Program the Basys 3 via Hardware Manager

Lessons Learned & Troubleshooting

1. Vivado port name mismatch: Vivado's block design automation appends _0 to external port names. Always verify against the generated wrapper file before writing your top-level module.

2. Vitis IDE selection matters: The Unified IDE (VS Code-based) in Vitis 2024.1 has BSP generation failures with MicroBlaze MCS on Windows due to path length issues. Use Vitis Classic mode instead.

3. Windows path length: Keep your project path short (e.g., C:\fpga\mcs\) — deeply nested paths exceed Windows' 260-character limit and cause build failures.

4. Active-low display encoding: The Basys 3 seven-segment display is common anode, active low. A '0' turns a segment ON. Getting this wrong produces garbage on the display.

5. Don't add C files to Vivado: The C source code belongs in Vitis only. Vivado handles hardware (Verilog/VHDL + block design). Vitis handles software (C code + BSP).
