Timer for UV light box

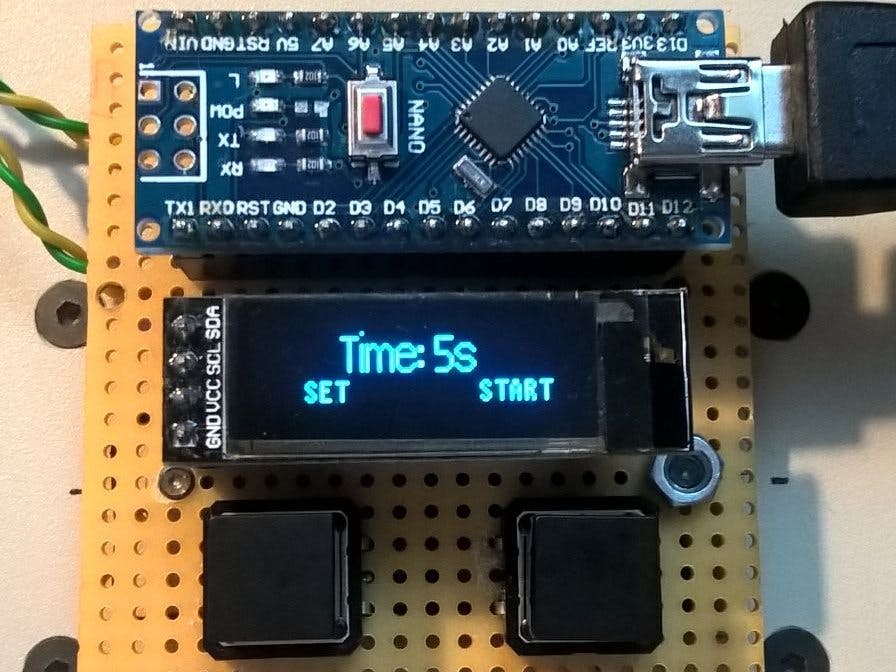

Timer to set a custom time for developing of UV sensitive PCBs with built in safety feature.

BeginnerShowcase (no instructions)3 hours8,625
Timer for UV light box

Things used in this project

Hardware components

I2C OLED SCREEN 128x32
×1
Arduino Nano R3
Arduino Nano R3
×1
Omron B3F-4055 + B32-1210
pushbutton
×2
MOSFET Transistor, N Channel
MOSFET Transistor, N Channel
Any N-mosfet will do, as long as it has enough voltage and current handling capability for a relay.
×1
Small Signal Diode, Switching Diode
Small Signal Diode, Switching Diode
diode across relay inputs
×1
Resistor 100k ohm
Resistor 100k ohm
For pulldown all buttons.
×5

Hand tools and fabrication machines

Soldering iron (generic)
Soldering iron (generic)
Drill / Driver, Cordless
Drill / Driver, Cordless

Story

Read more

Code

Untitled file

Arduino
There could be some improvements in the code but i don't care...
#include <Arduino.h>
#include <U8g2lib.h>

#ifdef U8X8_HAVE_HW_SPI
#include <SPI.h>
#endif
#ifdef U8X8_HAVE_HW_I2C
#include <Wire.h>
#endif

U8G2_SSD1306_128X32_UNIVISION_F_HW_I2C u8g2(U8G2_R0, /* reset=*/ U8X8_PIN_NONE, /* clock=*/ SCL, /* data=*/ SDA);

const int B_SET =  7;     //button set pin
const int B_START =  8;   //button start / reset pin
const int B_SAFTY =  3;   //button interlock
const int UV_OUT =  10;   //output for relay control
int set_t = 34;           //after boot time is set to 34 seconds for my UV box, you can change it here for your need

//x+y dimensions of SET menu
int menu_1x = 20 ;
int menu_1y = 32 ;

//x+y dimensions of START menu
int menu_2x = 90 ;
int menu_2y = 32 ;

void setup(void) {
  pinMode(B_SET,INPUT);
  pinMode(B_START,INPUT);
  pinMode(B_SAFTY,INPUT);
  pinMode(UV_OUT,OUTPUT);
  pinMode(LED_BUILTIN,OUTPUT);

  //used for starting of a nano, also to stabilise power source voltage
  //mainly just for fun
  u8g2.begin();
  u8g2.setFont(u8g2_font_calibration_gothic_nbp_tf);
  u8g2.setCursor(10,20);
  u8g2.print("Booting.");   //just a joke... it is not needed here but gives a more sophisticated look
  u8g2.sendBuffer();
  delay(100);
  for (int j=1; j<5; j++){
    u8g2.print(".");
    u8g2.sendBuffer();
    delay(200);
  }
}

void loop(void) {
  //clear screen
  u8g2.clearBuffer();

  //print menu SET
  u8g2.setFont(u8g2_font_t0_11_mf);
  u8g2.setCursor(menu_1x,menu_1y);
  u8g2.print("SET");

  //print menu START
  u8g2.setFont(u8g2_font_t0_11_mf);
  u8g2.setCursor(menu_2x,menu_2y);
  u8g2.print("START");

  //detect if button SET is active, make SET font bold
  if(digitalRead(B_SET) == HIGH){
  u8g2.setFont(u8g2_font_t0_11b_mf);
  u8g2.setCursor(menu_1x,menu_1y);
  u8g2.print("SET");
  u8g2.sendBuffer();
  //increment timer
  set_t ++;
    //if button is still pressed...
    while(digitalRead(B_SET) == HIGH){
      //print incremented time
      printTime();
      //print RESET menu
      for (int k = 1; k == 1 ;k++){
      u8g2.setFont(u8g2_font_t0_11_mf);
      u8g2.setCursor(menu_2x,menu_2y);
      u8g2.print("RESET");
      u8g2.sendBuffer();
      }
      //and if SET and START are pressed both, make RESET font bold
      if(digitalRead(B_START) == HIGH){
      u8g2.setCursor(menu_2x,menu_2y);
      u8g2.setFont(u8g2_font_t0_11b_mf);
      u8g2.print("RESET");
      u8g2.sendBuffer();
        //and reset timer to 0
        set_t = 0;
        delay(500);
      }
      delay(10);
    }
  }

  //if button START is active, print START font as bold
  if(digitalRead(B_START) == HIGH){
  u8g2.setFont(u8g2_font_t0_11b_mf);
  u8g2.setCursor(menu_2x,menu_2y);
  u8g2.print("START");
  u8g2.sendBuffer();
    while(digitalRead(B_START) == HIGH){
     delay(10);
    }
    //activate output for UV light relay
    digitalWrite(UV_OUT, HIGH);
    //activate visual output using LED on arduino
    digitalWrite(LED_BUILTIN, HIGH);
    //if timer value is higher than zero, start countdown :...
    while(set_t != 0){
      //...show two warning thunderbolts...
      u8g2.clearBuffer();
      u8g2.setFont(u8g2_font_open_iconic_embedded_4x_t);
      u8g2.setCursor(0, 32);
      u8g2.print((char)67);
      u8g2.setCursor(96, 32);
      u8g2.print((char)67);
      //...and timer countdown
      printTime();
      //each one milisecond test if safety interlock is activated
      //this takes roughly one second, so timer stay almost accurate
      for (int k=1; k<1000; k++){
        //if interlock is active, activate warning subroutine safety_lock
        while(digitalRead(B_SAFTY) == HIGH){
          safety_lock();
        }
        //this activates UV and LED again after interlock was activated
        digitalWrite(UV_OUT, HIGH);
        digitalWrite(LED_BUILTIN, HIGH);
        delay(1);
      }
      //decrement the timer one second down
      set_t --;
    }
    //if here, set_t is zero, countdown ended
    //deactivate the outputs
    digitalWrite(UV_OUT, LOW);
    digitalWrite(LED_BUILTIN, LOW);
    //clear the screen and write confirmation message
    u8g2.clearBuffer();
    u8g2.setFont(u8g2_font_calibration_gothic_nbp_tf);
    u8g2.setCursor(30,20);
    u8g2.print("Done :)");
    u8g2.sendBuffer();
    //message stays on for 1.5second
    delay(1500);
  }

  //subroutine that shows set time value on main screen
  printTime();
  u8g2.sendBuffer();
  delay(10);
}

//subroutine for printing a set / remaining time
void printTime(){
  u8g2.setFont(u8g2_font_calibration_gothic_nbp_tf);
  u8g2.setCursor(35,20);
  u8g2.print("Time: ");
  u8g2.print(set_t);
  u8g2.print("s");
  u8g2.sendBuffer();
}

//safety lock subroutine
//deactivates UV output, blinks arduino LED and shows warning message
void safety_lock(){
  digitalWrite(UV_OUT, LOW);
  digitalWrite(LED_BUILTIN, HIGH);
  delay(100);
  digitalWrite(LED_BUILTIN, LOW);
  delay(100);
  digitalWrite(LED_BUILTIN, HIGH);
  delay(100);
  digitalWrite(LED_BUILTIN, LOW);
  delay(100);
  u8g2.clearBuffer();
  u8g2.setFont(u8g2_font_calibration_gothic_nbp_tf);
  u8g2.setCursor(10,20);
  u8g2.print("SAFETY LOCK");
  u8g2.sendBuffer();
}

Credits

dingo27 Mobile

dingo27 Mobile

4 projects • 6 followers
Just some working man with electronics as hobby in what is left of free time. Recently doing things exclusively with Python and Raspbery Pi
Thanks to Oli Kraus u8g2.
