Things used in this project

Hardware components:
Pi 3 02
Raspberry Pi Raspberry Pi 3 Model B
×1

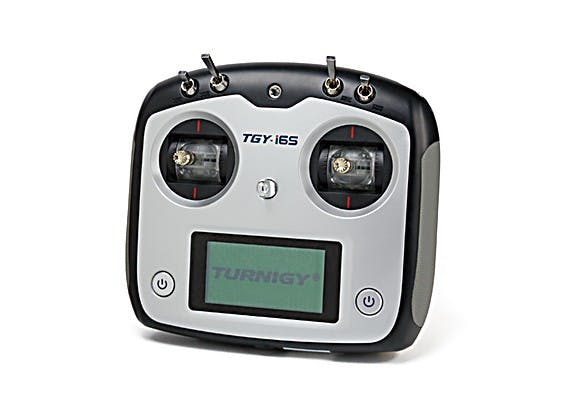

Turnigy TGY-i6S RC Transmitter
×1

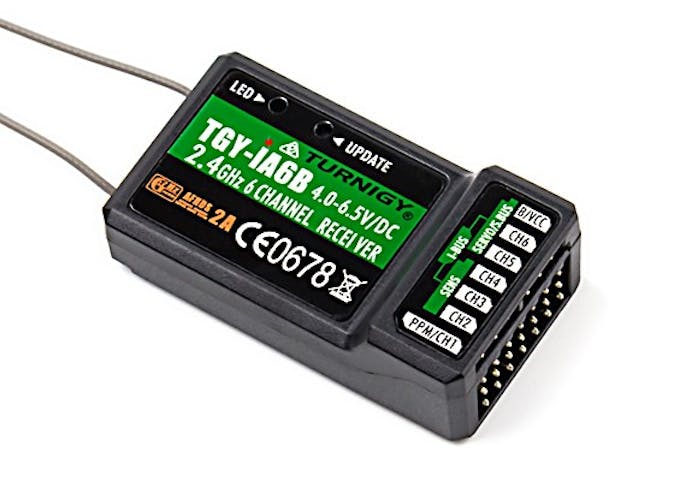

Turnigy TGY-iA6B 6 channel receiver PWM
×1
ARM Cortex-M3 STM32F103C8T6 STM32 Minimun System Development Board
×1

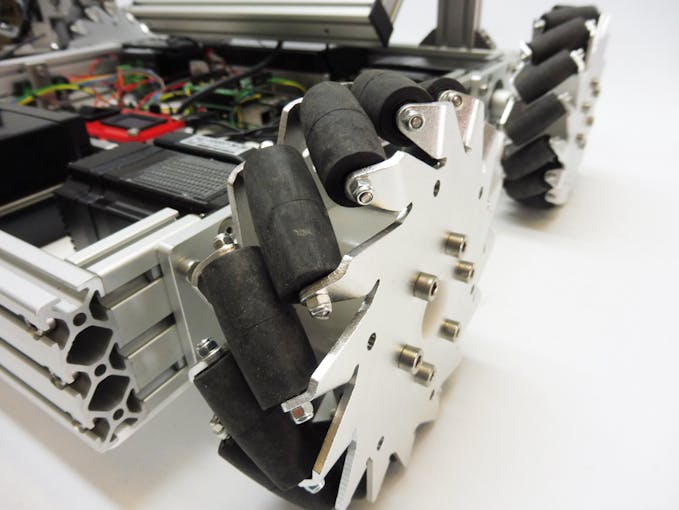

Mecanum Wheels 152mm diameter
With hubs for 8mm motor shafts
×4
JMC ihss57-36-20 Motors
Same motors we use on CNC machines and Coil Winders. High torque but not cheap. Smaller motors could be used.
×4
EAGLE 200 DC 12V 8AH battery
Joined in series to give 24V for motors
×2
LM2596 DC-DC Regulator Module
24v-5v regulator
×2
0-99V LED Digital Display Volt Meter
×1
10" universal LCD with HDMI interface and capacitive multi-touch
×1
Aluminium Profile 20x40 I-Type slot 5
Various suppliers
×1
Aluminium Profile 20x60 I-Type slot 5
Various suppliers
×1
5mm Cast Acrylic
×1
Home 0f9tdq25l6

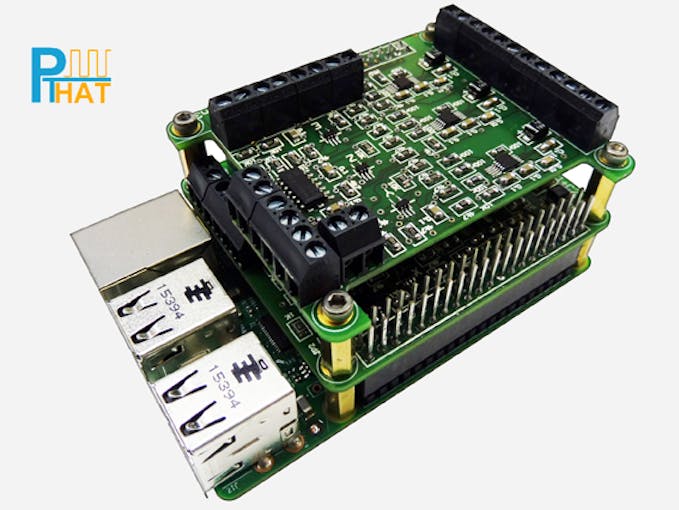

Pulse Train Hat
×1
Software apps and online services:
10
Microsoft Windows 10 IoT Core

Schematics

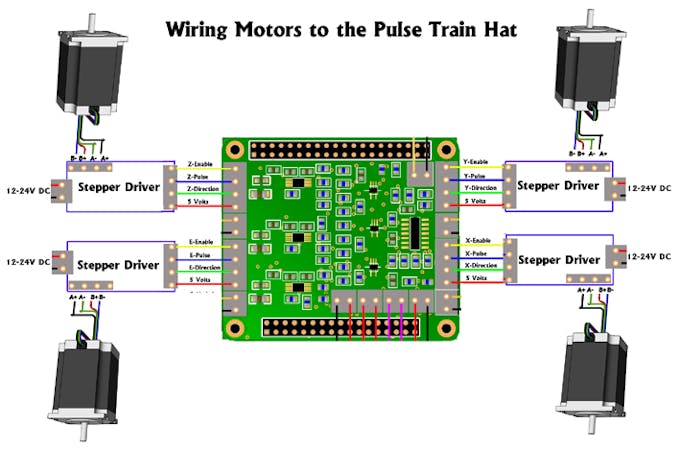

Motor Connections to Pulse Train Hat
Mecanum bot4 qln2z9qswp

Code

Pulse Train Hat RC Transmitter/Receiver Mecanum Bot Code
