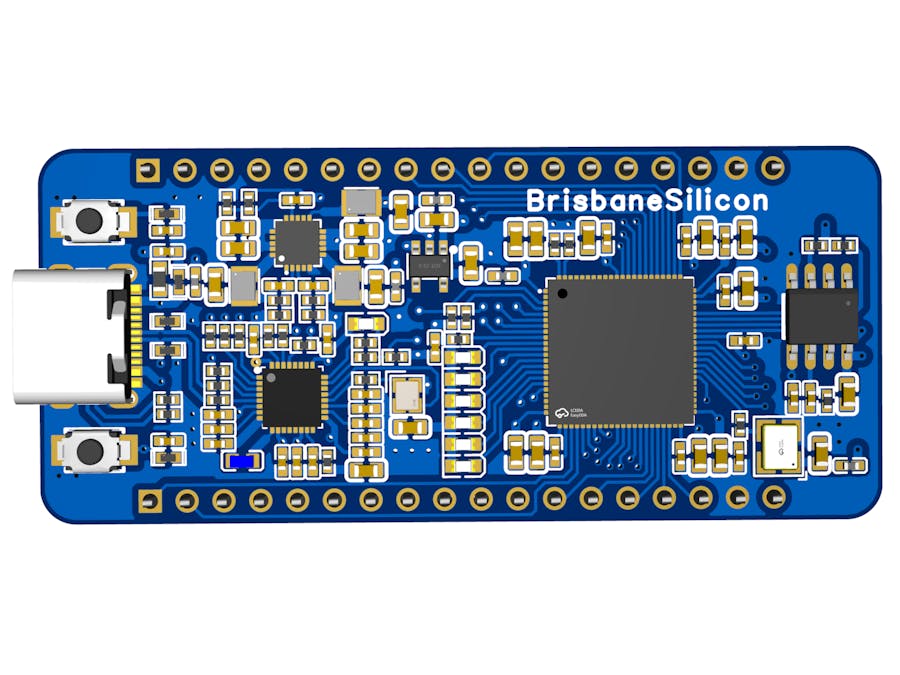

BRS-100-GW1NR9: cheap, scripted-workflow, FPGA dev board

The BRS-100-GW1NR9 is a FPGA development board. Key features include:

GOWIN GW1NR-9FPGA.

• 8MB internal PSRAM.
• Internal bitstream Flash with AUTO BOOT.
• GOWIN GW1NR-9FPGA.8MB internal PSRAM.Internal bitstream Flash with AUTO BOOT.

Non-volatile memory.

• 8 MB User Flash.
• Non-volatile memory.8 MB User Flash.

Peripherals

• 16 x User GPIO.
• 6 x User LED.
• 2 x User Pushbuttons.
• Peripherals16 x User GPIO.6 x User LED.2 x User Pushbuttons.

USB-C connector

• UART over USB (FTDI)
• JTAG over USB
• USB-C connectorUART over USB (FTDI)JTAG over USB
• 1 x Power LED.
• 3.3V and 5V rails.

Example projectwith a fully scripted workflow.

• Includes a guided setup of the build prerequisites and environment.
• Demonstrates board features (PSRAM, Flash, Peripherals etc).
• Extensible, i.e. user can add their own application specific RTL modules.
• No GUI-based program required.
• Simple buildand programworkflow stages.
• Example projectwith a fully scripted workflow.Includes a guided setup of the build prerequisites and environment.Demonstrates board features (PSRAM, Flash, Peripherals etc).Extensible, i.e. user can add their own application specific RTL modules.No GUI-based program required.Simple buildand programworkflow stages.
