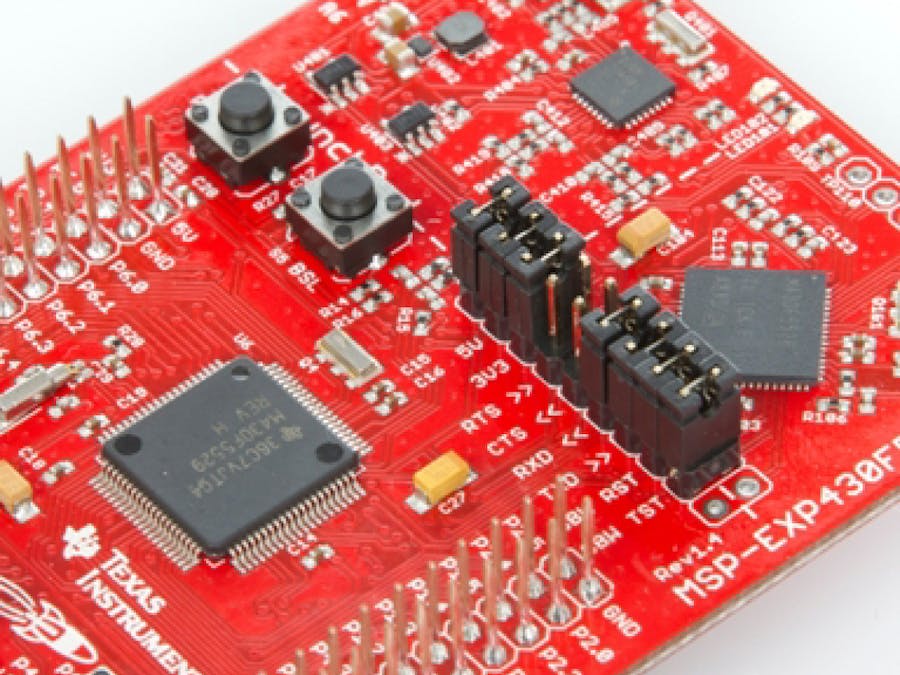

TI MSP430F5529 LaunchPad for Beginners

A quick start up guide for those interested in programming microcontrollers **This is a quick demo showing the blink example**

BeginnerProtip4,248
TI MSP430F5529 LaunchPad for Beginners

Things used in this project

Story

Read more

Code

Blink Example

C/C++
This is the example code for the MSP430F5529 LaunchPad
/*
  Blink
  The basic Energia example.
  Turns on an LED on for one second, then off for one second, repeatedly.
  Change the LED define to blink other LEDs.

  Hardware Required:
  * LaunchPad with an LED

  This example code is in the public domain.
*/

// most launchpads have a red LED
#define LED RED_LED

//see pins_energia.h for more LED definitions
//#define LED GREEN_LED

// the setup routine runs once when you press reset:
void setup() {
  // initialize the digital pin as an output.
  pinMode(LED, OUTPUT);
}

// the loop routine runs over and over again forever:
void loop() {
  digitalWrite(LED, HIGH);   // turn the LED on (HIGH is the voltage level)
  delay(1000);               // wait for a second
  digitalWrite(LED, LOW);    // turn the LED off by making the voltage LOW
  delay(1000);               // wait for a second
}
