Smart City Air Monitor

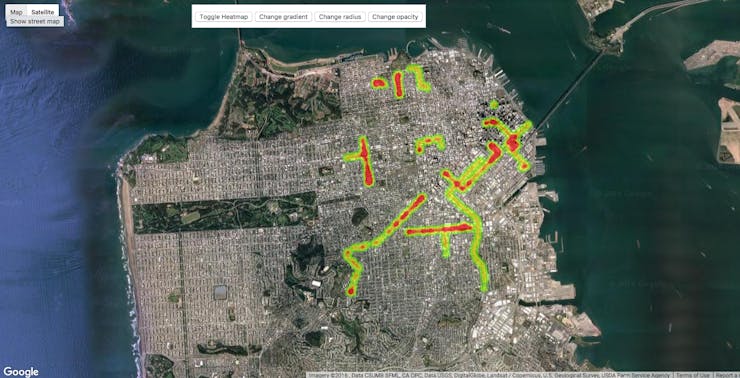

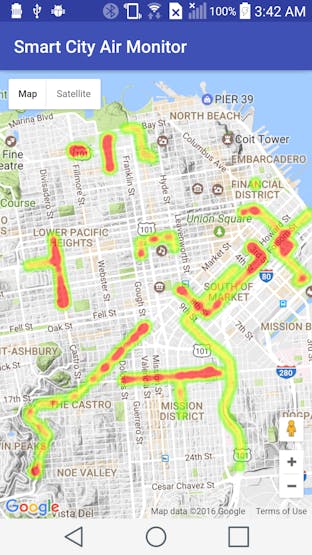

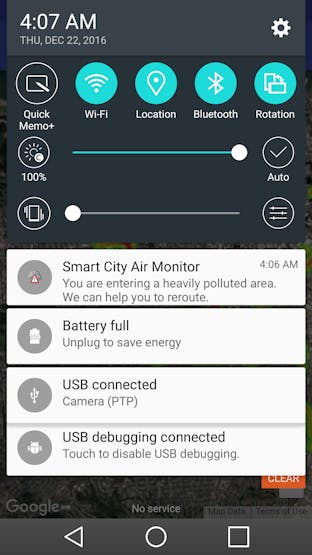

Using vehicles to monitor the air quality throughout the city in real time.

AdvancedWork in progress10 hours1,526
Smart City Air Monitor

Things used in this project

Hardware components

AT&T Starter Kit
×1
Intel Edison
Intel Edison
×1

Software apps and online services

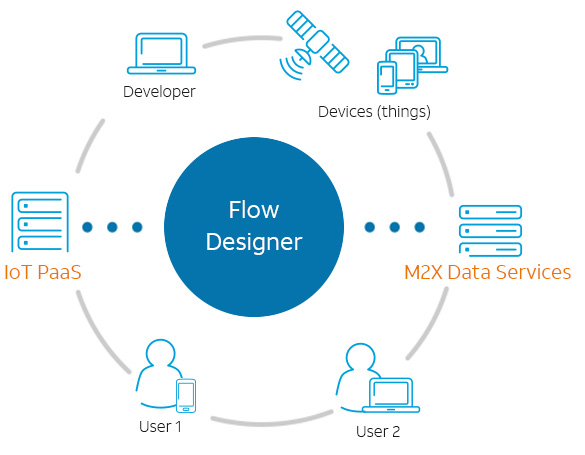

AT&T Flow
AT&T Flow

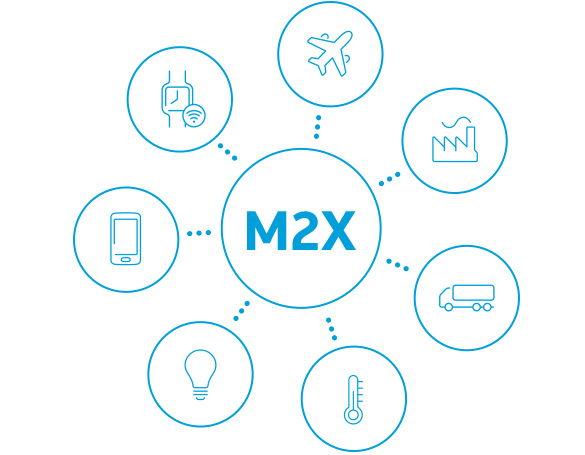

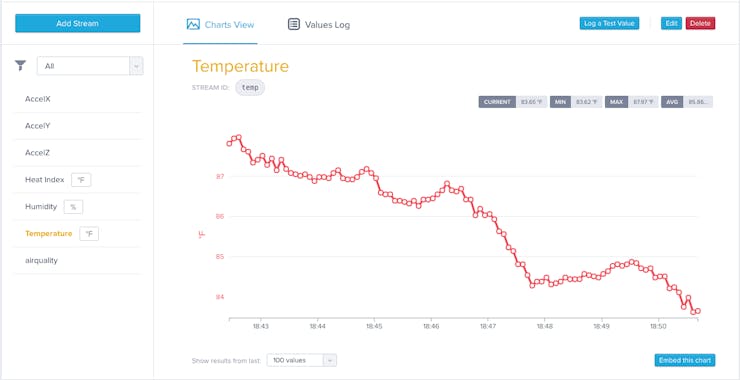

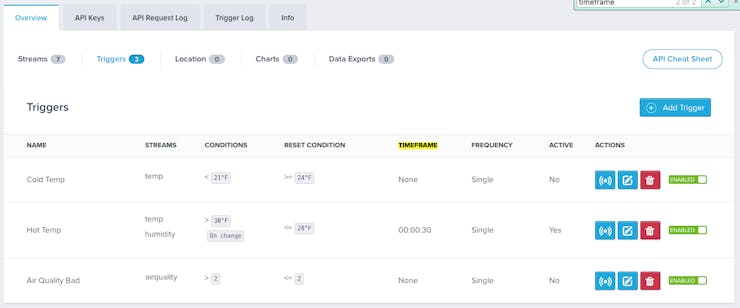

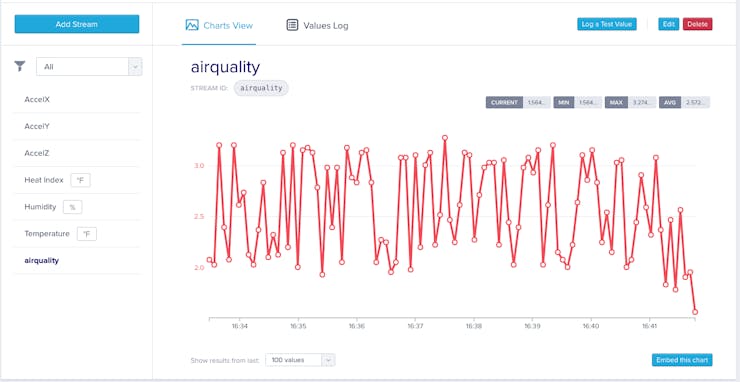

AT&T M2X
AT&T M2X
AT&T Drive

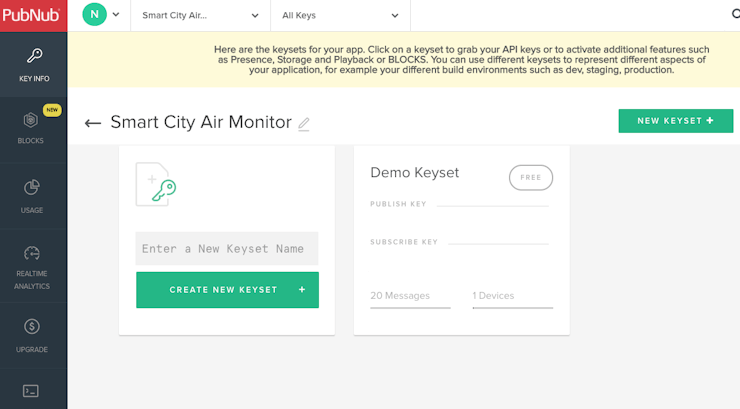

PubNub Publish/Subscribe API
PubNub Publish/Subscribe API
Watson
IBM Watson

Hand tools and fabrication machines

3D Printer (generic)
3D Printer (generic)

Story

Read more

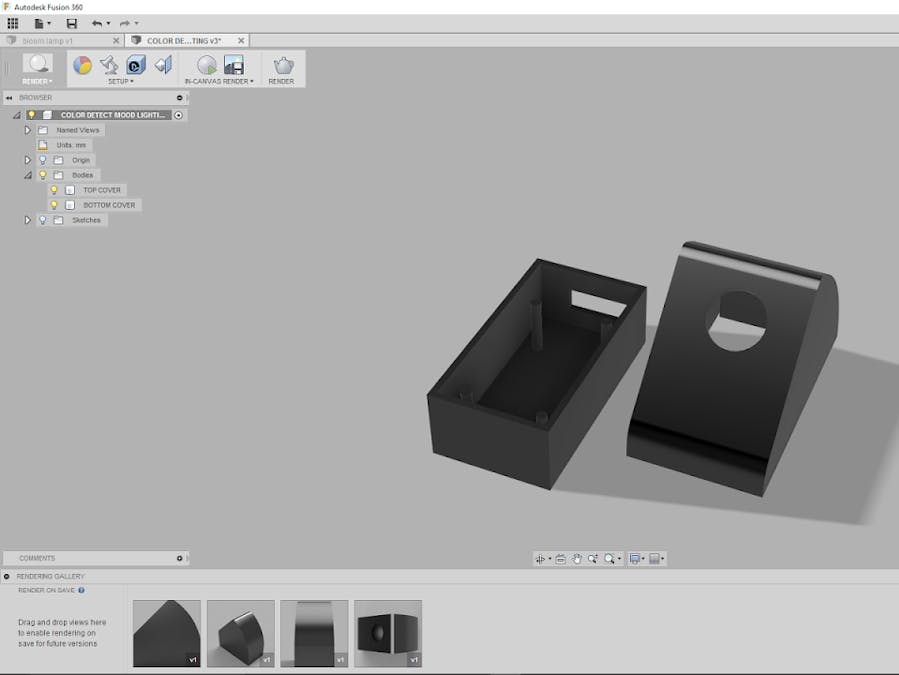

Custom parts and enclosures

Air Monitor

This is the top cover for the air monitor

Air Monitor Bottom

This is the Bottom that will be holding the AT&T Starter Kits and the components

Schematics

AT&T Starter Kit Board

Using this board along with Air Quality Sensor and GPS
Gomiva09ef3fkvgm87oo

Code

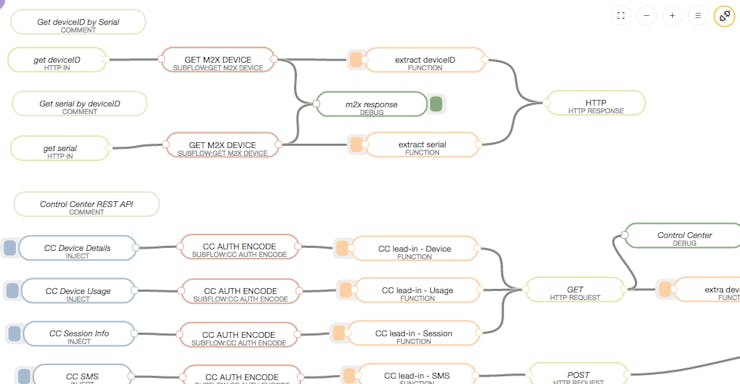

ATT Flow

JSON
ATT Flow code for Smart City Air Monitor
[
  {
