Use I2C_LCD to Debug Your Project

About: Hello, the author of the project is an Application Engineer of Seeed Studio. It's great to share this project with the Hackster maker community. I hope you like Seeed Studio, a hardware enabler for IoT applications, which provides services that enable IoT developers to quickly prototype... More information about Seeed Studio »

The serial monitor is a useful debugger for Arduino, it can print logs on the computer screen. so that, if you want to get running log of you project, you need to take a computer with you anywhere. Now, you can use I2C_LCD to get running logs anywhere, it will be more convenient.

Step 1: Prepare the Materials

We need a control here to show you how to print the log via a LCD. We choose Lotus here.

Seeeduino Lotus

Lotus is an ATmega328 Microcontroller development board. It is a combination of Seeeduino and Base Shield. It uses Atmel ATMEGA328P-MU and CH340. ATMEGA328P-MU is a high performance, low power 8-Bit AVR Microcontroller. CH340 is an USB bus converter chip that can realize an USB to serial interface. Seeeduino Lotus has 14 digital input/output (6 of which can output PWM) and 7 analog input/output, a micro USB connection, an ICSP header, 12 Grove connections, a reset button.

I2C_LCD

I2C_LCD is an easy-to-use display module, It can make display easier. Using it can reduce the difficulty of make, so that makers can focus on the core of the work.We developed the Arduino library for I2C_LCD, user just need a few lines of the code can achieve complex graphics and text display features.

Add TipAsk QuestionCommentDownload

Step 2: NSTALL THE ARDUINO LIBRARY FOR I2C_LCD

First connect I2C_LCD to the Grove port of Lotus.

Then you can download from here

How to install the library? please refer to the "How to use?" section of wiki page.

Add TipAsk QuestionCommentDownload

Step 3: TO USE LCD.PRINT() FUNCTION AS SERIAL.PRINT().

The following are extracted from: https://www.arduino.cc/en/Serial/Print

LCD.print()

Description

Prints data to the I2C_LCD as human-readable ASCII text. This command can take many forms. Numbers are printed using an ASCII character for each digit. Floats are similarly printed as ASCII digits, defaulting to two decimal places. Bytes are sent as a single character. Characters and strings are sent as is.

For example:

LCD.print(78) gives "78"

LCD.print(1.23456) gives "1.23"

LCD.print('N') gives "N"

LCD.print("Hello world.") gives "Hello world."

An optional second parameter specifies the base (format) to use; permitted values are BIN (binary, or base 2), OCT (octal, or base 8), DEC (decimal, or base 10), HEX (hexadecimal, or base 16). For floating point numbers, this parameter specifies the number of decimal places to use.

For example:

LCD.print(78, BIN) gives "1001110"LCD.print(78, OCT) gives "116"

LCD.print(78, DEC) gives "78"

LCD.print(78, HEX) gives "4E"

LCD.println(1.23456, 0) gives "1"

LCD.println(1.23456, 2) gives "1.23"

LCD.println(1.23456, 4) gives "1.2346"

You can pass flash-memory based strings to LCD.print() by wrapping them with F().

For example :

LCD.print(F(“Hello World”))

To send a single byte, use LCD.write().

Syntax

LCD.print(val)LCD.print(val, format)

Parameters

val: the value to print - any data typeformat: specifies the number base (for integral data types) or number of decimal places (for floating point types)

Returns

size_t (long): print() returns the number of bytes written, though reading that number is optional

NOTE

Different from Serial.print(), you need to set the position coordinates before print:LCD.CharGotoXY(0, 20);

LCD.print("Hello world.") ;

Add TipAsk QuestionCommentDownload

Step 4: EXAMPLE

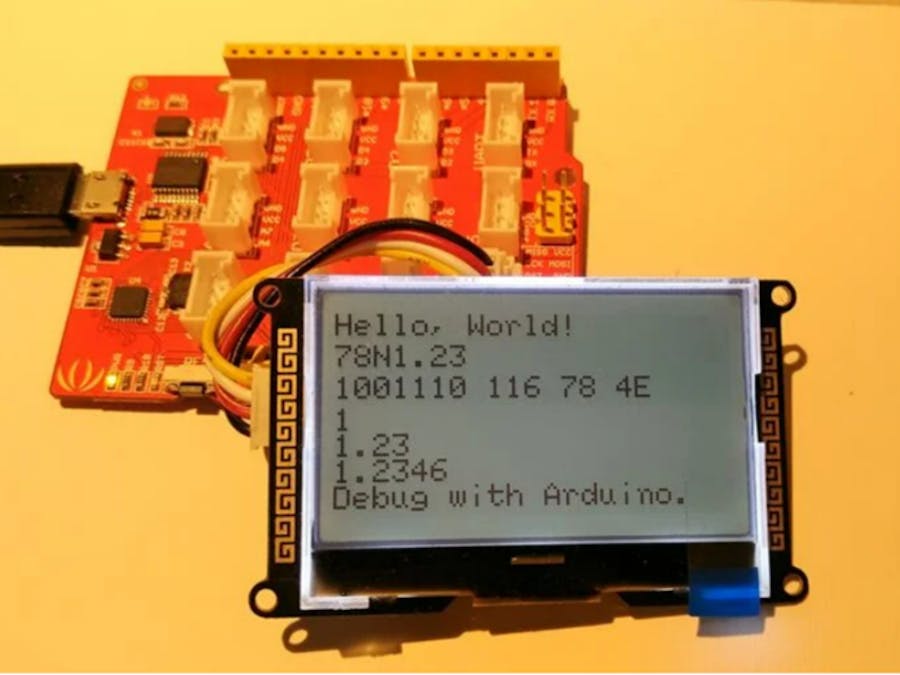

Try to upload the below test code, then you will it's very easy and useful.

#include <Wire.h>#include <I2C_LCD.h>//For detials of the function useage, please refer to "I2C_LCD User Manual".I2C_LCD LCD;

uint8_t I2C_LCD_ADDRESS = 0x51; //Device address setting, default: 0x51

void setup(void){ Wire.begin(); //I2C controler init.}

void loop(void){ LCD.CleanAll(WHITE); //Erase all. delay(1000); //Delay for 1s. //8*16 font size, auto new line, black character on white back ground. LCD.FontModeConf(Font_6x8, FM_ANL_AAA, BLACK_BAC); //Set the start coordinate. LCD.CharGotoXY(0, 0); //Print string on I2C_LCD at the start coordinate. LCD.print("Hello, World!"); //Set the start coordinate. LCD.CharGotoXY(0, 10); LCD.print(78); //gives "78" LCD.print('N'); //gives "N" LCD.print(1.23456); //gives "1.23" //Set the start coordinate. LCD.CharGotoXY(0, 20); LCD.print(78, BIN); //gives "1001110" LCD.print(' '); //gives " " LCD.print(78, OCT); //gives "116" LCD.print(' '); //gives " " LCD.print(78, DEC); //gives "78" LCD.print(' '); //gives " " LCD.print(78, HEX); //gives "4E" LCD.print(' '); //gives " " //Set the start coordinate. LCD.CharGotoXY(0, 30); LCD.println(1.23456, 0); //gives "1" LCD.println(1.23456, 2); //gives "1.23" LCD.println(1.23456, 4); //gives "1.2346" LCD.print("Debug with Arduino."); while(1); //Wait for ever.}

#include <Wire.h>
#include <I2C_LCD.h>
//For detials of the function useage, please refer to "I2C_LCD User Manual".

I2C_LCD LCD;uint8_t I2C_LCD_ADDRESS = 0x51; //Device address setting, default: 0x51
void setup(void)
{
    Wire.begin();           //I2C controler init.
}
void loop(void)
{
    LCD.CleanAll(WHITE);    //Erase all.
    delay(1000);            //Delay for 1s.
    //8*16 font size, auto new line, black character on white back ground.
    LCD.FontModeConf(Font_6x8, FM_ANL_AAA, BLACK_BAC);
    //Set the start coordinate.
    LCD.CharGotoXY(0, 0);
    //Print string on I2C_LCD at the start coordinate.
    LCD.print("Hello, World!");
    //Set the start coordinate.
    LCD.CharGotoXY(0, 10);
    LCD.print(78);              //gives "78"
    LCD.print('N');             //gives "N"
    LCD.print(1.23456);         //gives "1.23"
    //Set the start coordinate.
    LCD.CharGotoXY(0, 20);
    LCD.print(78, BIN);         //gives "1001110"
    LCD.print(' ');             //gives " "
    LCD.print(78, OCT);         //gives "116"
    LCD.print(' ');             //gives " "
    LCD.print(78, DEC);         //gives "78"
    LCD.print(' ');             //gives " "
    LCD.print(78, HEX);         //gives "4E"
    LCD.print(' ');             //gives " "
    //Set the start coordinate.
    LCD.CharGotoXY(0, 30);
    LCD.println(1.23456, 0);    //gives "1"
    LCD.println(1.23456, 2);    //gives "1.23"
    LCD.println(1.23456, 4);    //gives "1.2346"
    LCD.print("Debug with Arduino.");
    while(1);     //Wait for ever.
}
