Light Up Your Valentine with Sparkling RGB Matrix

Hardware Connection

In this project, we use a water sensor to detecte water, if there is water, a beating heart will be displayed in RGB LED Matrix.

In order to achieve this effect, you need to connect Grove - Water Sensor to D2 port in Base Shield, and also connect Grove - RGB LED Matrix to I2C port in it. Then plug Base Shield to Seeeduino, just like the picture above.

Software Programming

To use RGB LED matrix in your program, you need to add it's library to your Arduino IDE. The library can be downloaded in

Seeed_RGB_LED_Matrix

After adding the library, include matrix's header file in your code:

#include "grove_two_rgb_led_matrix.h"

Definning macros is a good habit, it can make your code easier to read or modify. For example, you can define macros to indicate which port the water sensor connected to, or what speed should the beating heart show.

#define SENSOR_PIN  2
#define INTERVAL    500

When everything is done, declare a matrix instance for later use.

GroveTwoRGBLedMatrixClass matrix;

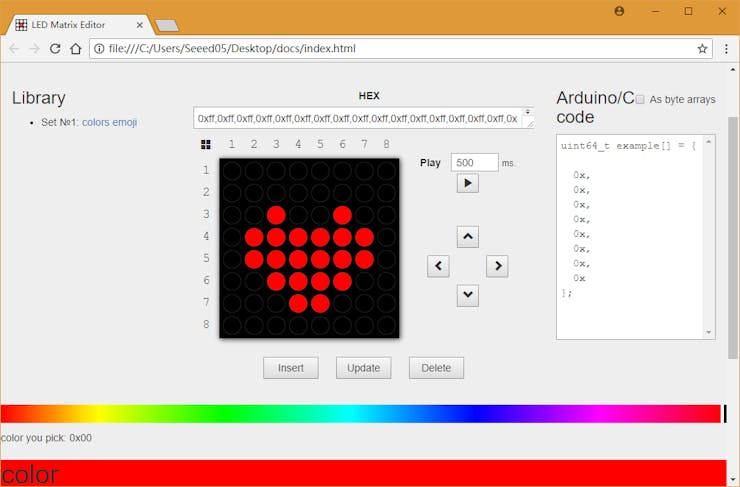

And click here to get image editor to create your own images. Choosing color in color bar, clicking dots in drawing area to draw, and pushing Update or Insert button in bottom of drawing area, your image will be converted to code and display in the box on the right.

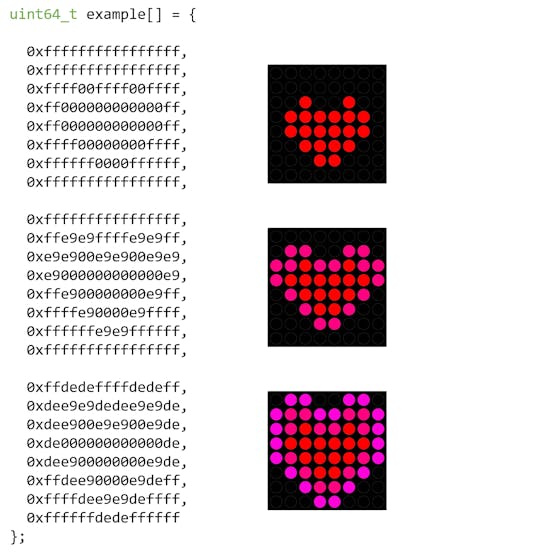

My image looks like below. You can copy that code displayed to your project, and then show them in RGB LED matrix by coding.

The setup() procedure will be run once when your program starts, so we initialize matrix and water sensor's pin in it.

void setup() {
   Wire.begin();
   pinMode(SENSR_PIN, INPUT);
   WAIT_MATRIX_READY();
}

The loop() procedure will run repeatedly, so we use it to detected if there is water or not by following code:

if (digitalRead(SENSOR_PIN) == LOW) {
}

When water sensor outputs LOW, it means there is water, so beating heart should be displayed in RGB LED matrix

for (uint8_t i = 0; i < EMOJI_COUNT(example); ++i) {
   matrix.displayFrames(EMOJI(example, i), INTERVAL, false, 1);
   delay(INTERVAL);
}

The completed loop() procedure looks like below, and you can download the complete code at the end of this article.

void loop() {
 if (digitalRead(SENSOR_PIN) == LOW) {
   for (uint8_t i = 0; i < EMOJI_COUNT(example); ++i) {
     matrix.displayFrames(EMOJI(example, i), INTERVAL, false, 1);
     delay(INTERVAL);
   }
 }
}

Click Upload button in Arduino IDE to upload your program to Seeeduino, and try to put something wet to water sensor, see what happens.

IMPORTANT:

In this version firmware of RGB LED matrix if you want to diy your own image with UNO serial you need to modify the file of arduino. If you use mega or lotus, the change will not be needed.

Locate the arduino setup folder xxxxx\Arduino\hardware\arduino\avr\libraries\Wire\src, open the Wire.h file

change

#define BUFFER_LENGTH 32

into

#define BUFFER_LENGTH 128

Then locate the arduino setup folder xxxxx\Arduino\hardware\arduino\avr\libraries\Wire\src\utility, open the twi.h file.

change

#define TWI_BUFFER_LENGTH 32

into

#define TWI_BUFFER_LENGTH 128
