# 🛰️ RikMakersHub Pulse Sentinel: Value-Engineered Off-Grid Crop Defense

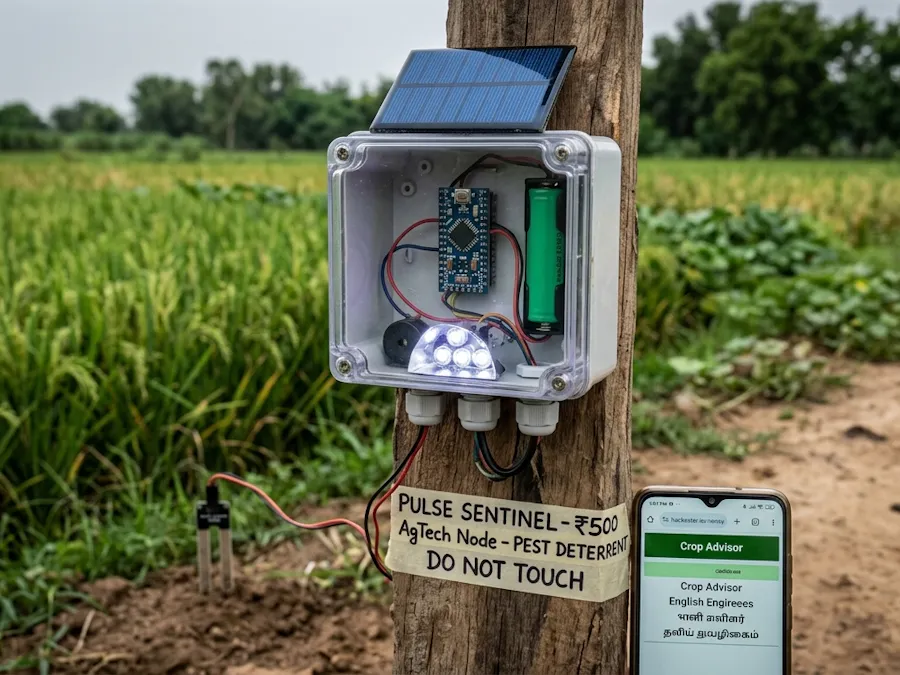

The **Pulse Sentinel** is an ultra-low-cost (~₹450), ruggedized edge device engineered to protect agricultural boundary lines from monkeys, elephants, cattle, and wild boars. It operates completely off-grid without high-voltage fence installations or external network overheads.

---

## 📊 Value Engineering & Hardware Strategy

To keep the Bill of Materials (BOM) under ₹500, every element is value-optimized for long-term open-source deployment:

* **MCU Core:** Arduino Pro Mini 3.3V (Runs localized randomized loop arrays)

* **Acoustic:** High-Decibel Piezo Buzzer (Generates aggressive 2-12kHz variable sweeps)

* **Optic:** 1W White LED + BC547 Transistor (Erratic high-intensity night strobe)

* **Power Storage:** Recycled 18650 Li-Ion Cell (Salvaged high-capacity power pool)

* **Solar Module:** 5V Epoxy Panel (100mA passive trickle charging)

* **Enclosure:** IP65 PVC Junction Box (Weatherproof structural housing)

---

## 💾 Firmware Architecture & Anti-Habituation

Animals easily adapt to repeating, predictable noises. To combat this, the firmware utilizes a floating pin seed (`randomSeed(analogRead(A0))`) to generate dynamic, erratic audio-visual patterns.

Each burst fires at variable intervals between 3 to 8 seconds, sweeping frequencies randomly from 2kHz to 12kHz, paired with fluctuating strobe pulses. When multiple cross-fire nodes are deployed diagonally along field borders (e.g., Northwest and Southeast field lines), they trigger completely out of sync, preventing pests from habituating to the defense shield.

---

## 🔋 Power Optimization & Deployment Best Practices

1. **Hardware Current Drop:** To maximize the life of the 18650 Li-Ion cell, remember to desolder the onboard PWR SMD power LED on the Arduino Pro Mini. This reduces passive standby current down into critical micro-amperes.

2. **Weatherproofing:** When mounting your hardware in the IP65 enclosure, drill your acoustic sound escape port strictly on the bottom face. This safeguards the internal piezo element from heavy tropical rainfall pooling.

---

## 🌐 Trilingual Crop Advisor Web Ecosystem

The hardware edge nodes work alongside a mobile-friendly, trilingual crop advisor web interface. This application allows farmers to switch between regional languages, track edge safety zones, and access localized agricultural advisories directly from their smartphones while managing their plots in real time.

For full schematics, live code updates, and community portals, check out the main repository page: [RikAgriculture-Pro Portal](https://rikmakershub.github.io/RikAgriculture-Pro/sentinel.html).
