1. Introduction & The Real-World Problem
"Radiation frost manifests silently when vegetative leaf structures radiate thermal vectors into clear night skies, dropping below standard ambient temperature profiles. Standard, macro-scale weather forecasting APIs completely fail to resolve these crucial micro-climate variances across local agricultural topographies.
To bridge this gap, I designed RikAgriFrost-Sentinel-Pro. This project brings professional-grade, edge-computed micro-climate predictive monitoring down to a value-engineered, sub-₹450 budget, making frost prevention accessible to low-income agricultural operations."
2. The Tech Stack: Localized Math & Zero-DHCP Communication
"To achieve a true standalone off-grid lifecycle, the system deploys two core software optimization frameworks:
- Edge Analytics: The firmware runs the mathematical Magnus-Tetens approximation locally on the ESP8266 register stack to calculate the precise Dew Point temperature. If the dew point drops to \(T_{\text{dew}} \le 2^\circ\text{C}\), frost formation is mathematically imminent.
- ESP-NOW Protocol Engine: Instead of wasting 3 to 5 seconds of active power connecting to a local Wi-Fi router, the node broadcasts raw layer-2 MAC frames in under 300 milliseconds before dropping straight back into deep sleep."
3. Deep-Sleep Hardware Hack (20µA Target)
"Standard ESP8266 development boards feature an onboard power indicator SMD LED that continuously leaks 3mA to 5mA of current. To reach my 20µA quiescent deep-sleep benchmark, I manually flicked off the onboard power LED and its current-limiting resistor using a hot soldering iron tip. This small hardware hack extends standalone 18650 battery runtime from just a few days to several months on a single charge."

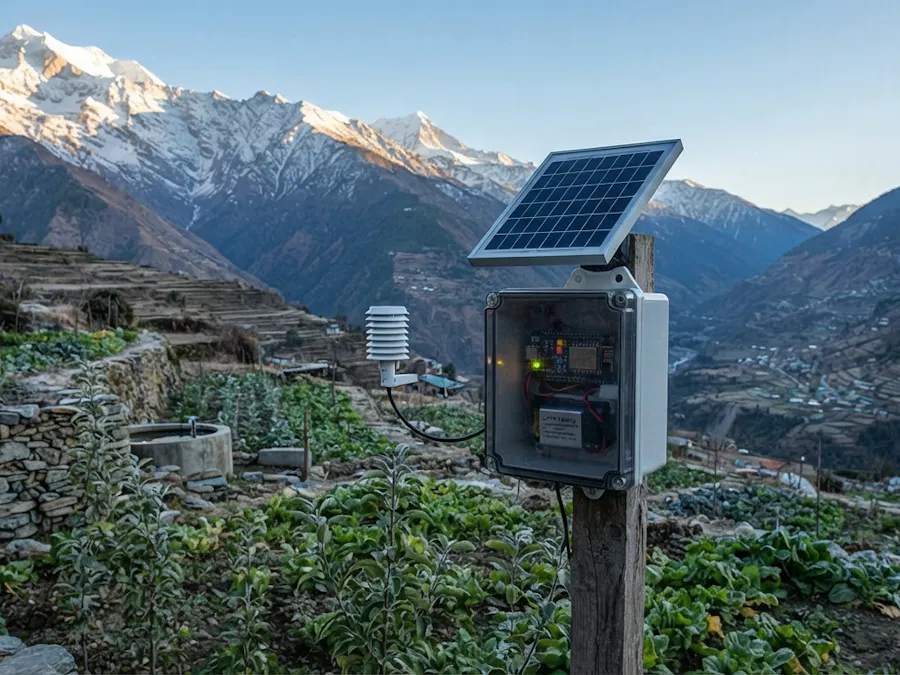

4. Field Assembly & Implementation Strategy
"The electronics are enclosed in a rugged, 3-inch PVC weatherproof junction box, sealed with heavy-duty silicone to protect against monsoonal humidity. The AHT20 sensor is mounted flat, shielded from direct wind currents while retaining open ambient airflow access. The node is deployed on a field stake near the crop canopy baseline, facing downward to eliminate direct midday solar radiant heat vectors."
🔗 Project Links:
Live Documentation Server(Definitely visit to get code, BOM and other instruction manuals):
https://rikmakershub.github.io/RikAgriFrost-Sentinel-Pro/
GitHub Repository Codebase:https://github.com/RikMakersHub/RikAgriFrost-Sentinel-Pro
