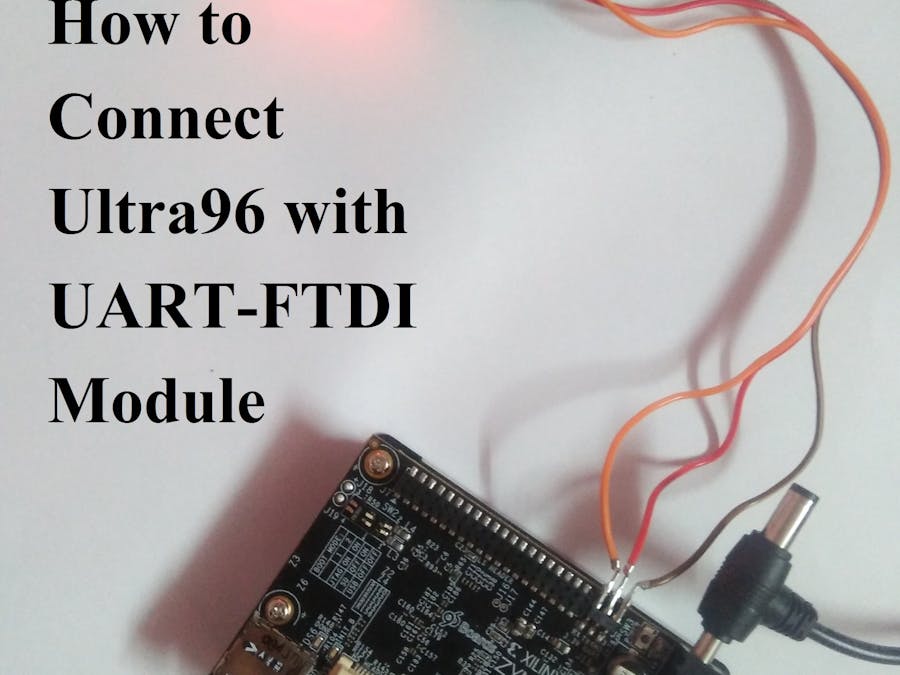

How to Connect Ultra96 FPGA with FTDI UART-Arduino Module

Tutorial for connection of Arduino-based FTDI UART module with Ultra96 so if you don't have the Avnet UART-JTAG module you can work with it.

BeginnerFull instructions provided9 minutes1,449

Things used in this project

Tera Term

We have showed up the process of interconnecting the FTDI module with Ultra96 [FTDI module is an alternative of: Avnet JTAG-UART Module].

The FTDI module we have used is as shown in figure below. You can find the exact same type of FTDI module on Amazon or eBay:

FTDI-UART Module [Picture Source: Amazon]

This FTDI module is similar to: FTDI Basic Breakout - 3.3V

For interconnection between Ultra96 and FTDI module, here are the steps:

Set your FTDI module on 3.3v, if you put it on 5v then it might harm your Ultra96
Connect the FTDI [TXD] pin with Ultra96[Rx]
Connect FTDI [RXD] with Ultra96[Tx]
Connect the FTDI [GND] with Ultra96[GND]

See the UART port of Ultra96 FPGA Board:

Ultra96 UART Port [Picture: Avnet]

Here is the video demo of Ultra96 FPGA with FTDI-UARTmModule [working on 3.3 v mode]:

Video Tutorial on "How to interface Ultra96 with FTDI UART Module

For any queries, please write to us at: info@logictronix.com or digitronixnepali@gmail.com.

You can get in-depth tutorial on Ultra96 at: ZedBoard.org
