Deephi DNNDK Tutorial for Ultra96

This tutorial is on how to install the DNNDK Desktop Stretch on Ultra96 and how to use the DNNDK sample application with it. For this implementation, we are going to use the xilinx-ultra96-desktop-stretch-2018-12-10.img.zip and xilinx_dnndk_v2.08.

You can download the complete tutorial from here: LogicTronix Deephi DNNDK Tutorial for Ultra96

Run the "video_analysis" application with command:

1. To run video_analysis app, change the directory to:

~/Ultra96/samples/video_analysis

2. Run ‘make’ command.

3. Then run command:

./video_analysis ./video/structure.mp4

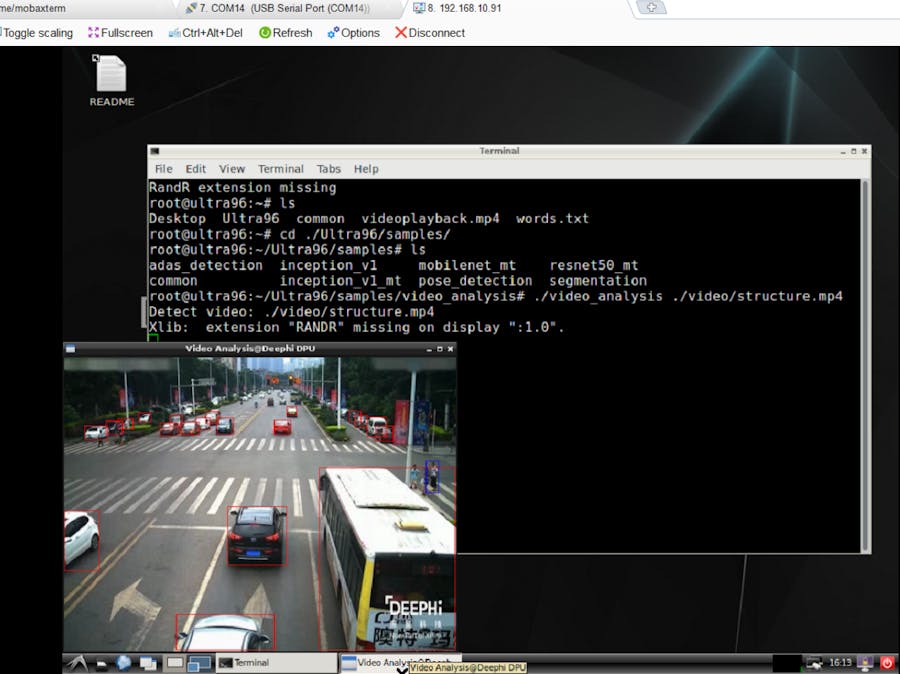

4. You will see video display with object detection as shown below:

We also have included the session on:

A. How to set up WiFi on Ultra96 with Desktop Stretch using the command interface [without GUI or mini displayport interface]

1. Create a file wpa_supplicant.conf file inside/etc.

vi /etc/wpa_supplicant.conf

2. You put your SSID and password into /etc/wpa_supplicant.conf (requires sudo if not as root user).

network={
ssid=“ssid_name”
psk=“password”
}

3. Save the file and run following commands:

sudo wpa_supplicant -B -i wlan0 -c/etc/wpa_supplicant.conf -D wext
sudo dhclient wlan0

4. WiFi will be connected in few minutes.

5. Check IP by running command ‘ifconfig'

B. How to set up the VNC viewer and MobaXterm on Ultra96 FPGA board

Please review the Tutorial attached below for this step:

Download the complete tutorial: LogicTronix Deephi DNNDK Tutorial for Ultra96

Watch the Demo Video Tutorial:
