Erle-Brain 2, Live Video Streaming into the Web-browser.

Connecting to Erle-Brain 2

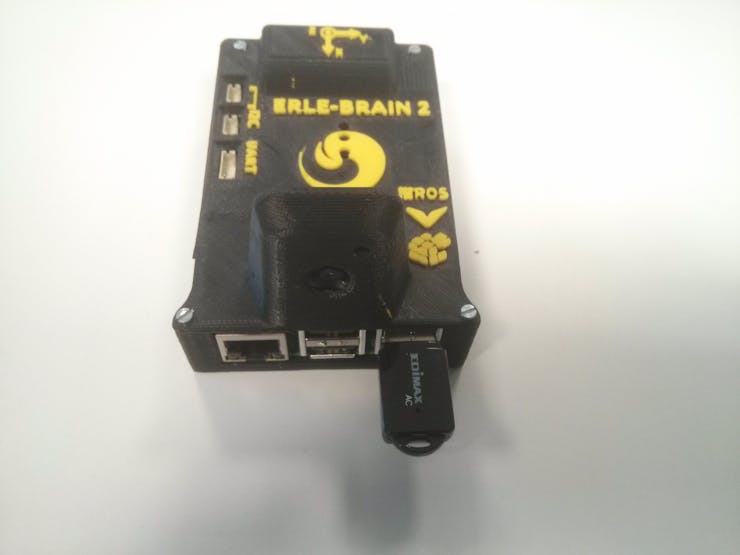

There're several ways to access Erle-Brain 2 but let's assume that you've purchased the WiFi dongle adapter and the brain itself is creating a WiFi network. Connect to it by using the password: holaerle

Once connected, type:

ssh [email protected]

and use again the same password: holaerle.

Running ROS-service

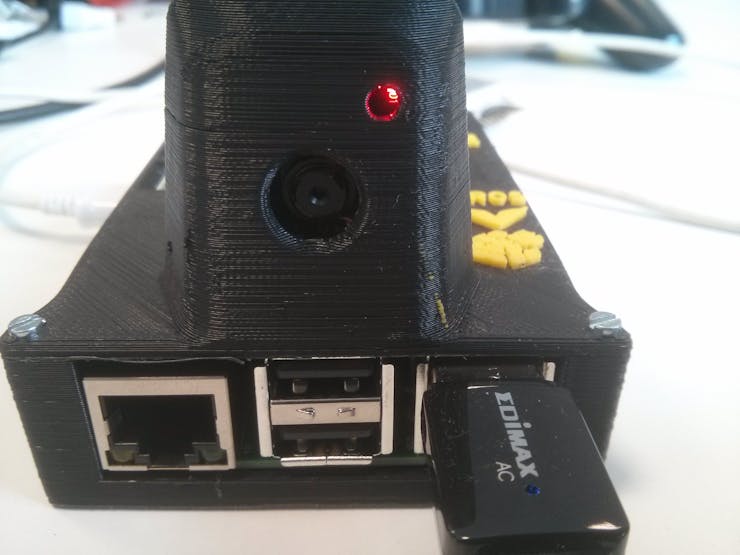

erle@erle-brain-2 ~ $ rosservice call /camera/start_capture

Terminal shows:

No handlers could be found for logger "rosout"

In the Erle-Brain:

Launch the following script:

#!/usr/bin/env python
# Python libs
import sys, time
# numpy and scipy
import numpy as np
from scipy.ndimage import filters
# OpenCV
import cv2
# Ros libraries
import roslib
import rospy
# Ros Messages
from sensor_msgs.msg import CompressedImage
import string,cgi,time
from os import curdir, sep
from BaseHTTPServer import BaseHTTPRequestHandler, HTTPServer
from SocketServer import ThreadingMixIn
import cv
import re
from threading import Thread, Lock
VERBOSE=True
import copy
mutex = Lock()
topic_name = "/camera/image/compressed"
class web_video_server:
    def __init__(self):
        '''Initialize ros publisher, ros subscriber'''
        # subscribed Topic
        self.subscriber = rospy.Subscriber(topic_name,
            CompressedImage, self.callback,  queue_size = 1)
        if VERBOSE :
            print "subscribed to " + topic_name
    def getCompressedImage(self):
        mutex.acquire(1)
        result = copy.deepcopy(self.np_arr);
        mutex.release()
        return result;
    def callback(self, ros_data):
        '''Callback function of subscribed topic. '''
        mutex.acquire(1)
        self.np_arr = ros_data.data;
        mutex.release()
class MyHandler(BaseHTTPRequestHandler):
    def do_GET(self):
        try:
            self.path=re.sub('[^.a-zA-Z0-9]', "",str(self.path))
            if self.path=="" or self.path==None or self.path[:1]==".":
                return
            if self.path.endswith(".html"):
                f = open(curdir + sep + self.path)
                self.send_response(200)
                self.send_header('Content-type',    'text/html')
                self.end_headers()
                self.wfile.write(f.read())
                f.close()
                return
            if self.path.endswith(".mjpeg"):
                self.send_response(200)
                self.wfile.write("Content-Type: multipart/x-mixed-replace; boundary=--aaboundary")
                self.wfile.write("\r\n\r\n")
                while 1:
                  JpegData=self.ic.getCompressedImage();
                  self.wfile.write("--aaboundary\r\n")
                  self.wfile.write("Content-Type: image/jpeg\r\n")
                  self.wfile.write("Content-length: "+str(len(JpegData))+"\r\n\r\n" )
                  self.wfile.write(JpegData)
                  self.wfile.write("\r\n\r\n\r\n")
                  time.sleep(0.05)
                return
            if self.path.endswith("*.jpeg"):
                self.send_response(200)
                self.wfile.write("Content-Type: multipart/x-mixed-replace; boundary=--aaboundary")
                self.wfile.write("\r\n\r\n")
                JpegData=self.ic.getCompressedImage();
                self.wfile.write("--aaboundary\r\n")
                self.wfile.write("Content-Type: image/jpeg\r\n")
                self.wfile.write("Content-length: "+str(len(JpegData))+"\r\n\r\n" )
                self.wfile.write(JpegData)
                self.wfile.write("\r\n\r\n\r\n")
                return
            return
        except IOError:
            self.send_error(404,'File Not Found: %s' % self.path)
        except :
            pass
class ThreadedHTTPServer(ThreadingMixIn, HTTPServer):
    """Handle requests in a separate thread."""
def main_server(args, ic):
    try:
        MyHandler.ic = ic
        server = ThreadedHTTPServer(('0.0.0.0', 8080), MyHandler)
        print 'started httpserver...'
        server.serve_forever()
    except KeyboardInterrupt:
        print '^C received, shutting down server'
        server.socket.close()
def main_ros(args):
    '''Initializes and cleanup ros node'''
    rospy.init_node('web_video_server', anonymous=False)
    print 'started ROS...'
    try:
        rospy.spin()
    except KeyboardInterrupt:
        print "Shutting down ROS Image feature detector module"
    cv2.destroyAllWindows()
if __name__ == '__main__':
    ic = web_video_server()
    t = Thread(target=main_server, args=(sys.argv, ic))
    t.start()
    main_ros(sys.argv)

Launch the script:

python cameraWeb.py

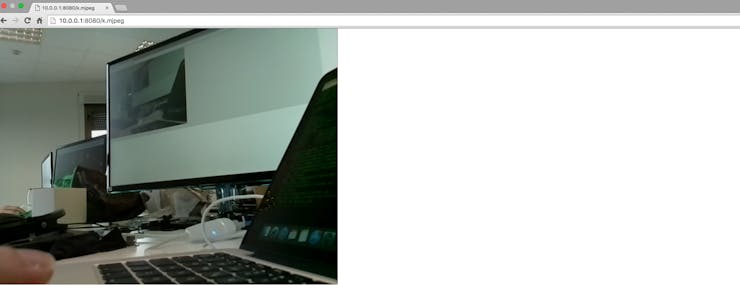

Web-Browser URL: http://10.0.0.1:8080/video.mjpeg
