SensorTile Home/Apartment Monitoring Board

When I though of this project I was thinking on how to covertly monitor my property without anyone knowing that they were being monitored.

IntermediateWork in progress10 hours1,809

Things used in this project

Hardware components

Arduino UNO & Genuino UNO
Arduino UNO & Genuino UNO
×1
Laird RN191 Bluetooth & LoRa Board
×1
STMicroelectronics SensorTile
×1
Electronics Pieces
×1

Software apps and online services

BlueApp.io
BlueApp.io

Hand tools and fabrication machines

Soldering iron (generic)
Soldering iron (generic)
solder Paste
Toaster Oven

Story

Read more

Custom parts and enclosures

Board Gerber File

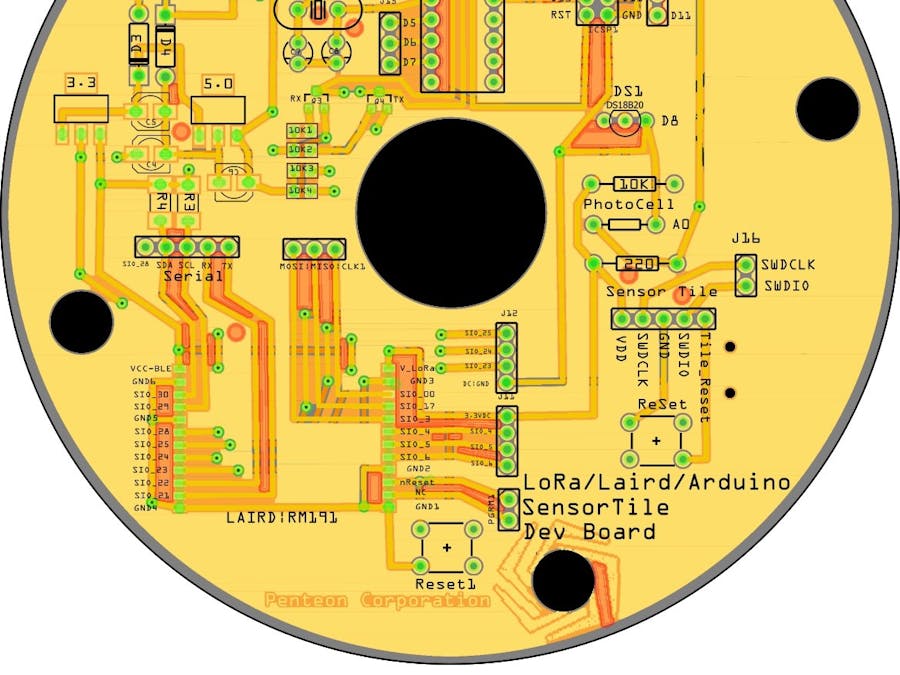

This File can be directly uploaded to PCBWay or any other PCB manufacturer and ordered.The dimensions of the board are 110x110 mm the rest is up to you on how many you want to make.

Bill Of Materials

This is a basic bill of materials for the the PCB, Do your own research ..Some parts are not as labled as I am just using them as holes basically
