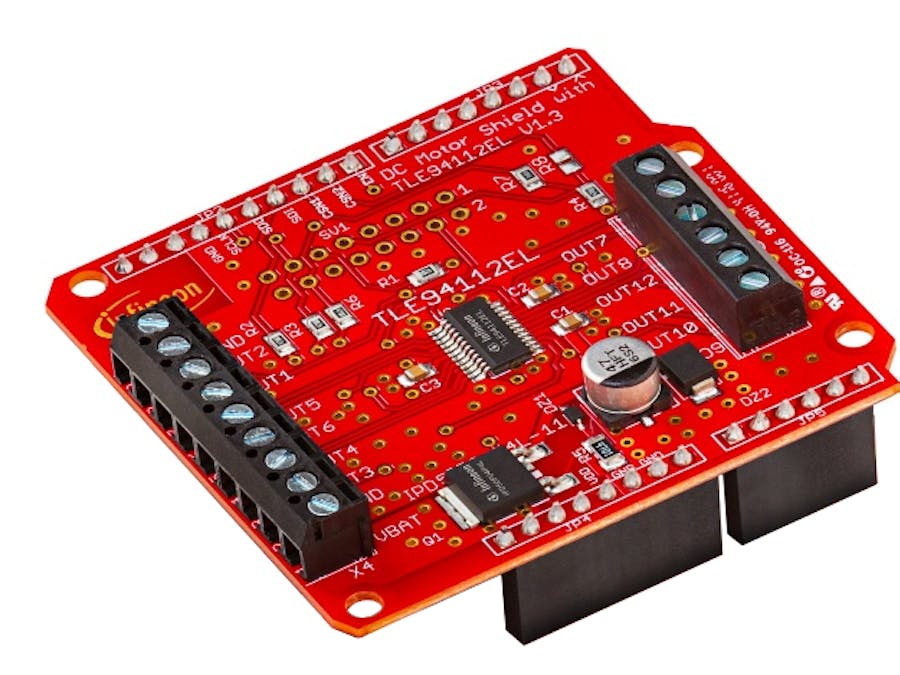

TLE94112 Multi-Half-Bridge - Control up to 12 Motors or LEDs

0. Theorie

The TLE94112 multi-half-bridge board allows you, as the name suggests, to control peripherals through a half-bridge. Two of these half-bridges come together to form one H-Bridge. A H-Bridge consists of four switches (most often not actual switches, but transistors) as shown below.

S1 and S3 form a half-bridge, as well as S2 and S4. S1 and S2 are called high-side-switches, S3 and S4 are called low-side-switches.

By closing two of these switches and leaving the other two open, we can control the direction of the current through the motor and thereby the direction of rotation.

The TLE94112 takes care of setting the right switches, so that both switches of one half-bridge are never open simultaniously. This would short the power supply and potentially damage it.

If we open all four switches, no current can flow and the motor receives no power.

Further we can control the speed of the motor via PWM (Pulse-Width-Modulation). This works by switching the connection on and off for certain times. The ratio of on- and off-time is called duty-cycle and controls the power that is delivered to the motor. For more information on PWM see this wikipedia article on the topic.

1. Software Setup:

In order to use the library, we have to include it in the Arduino IDE. In the Arduino IDE, go to the menu Sketch > Include library > Library Manager. Type TLE94112 and install the library.

That’s it, not that complicated…

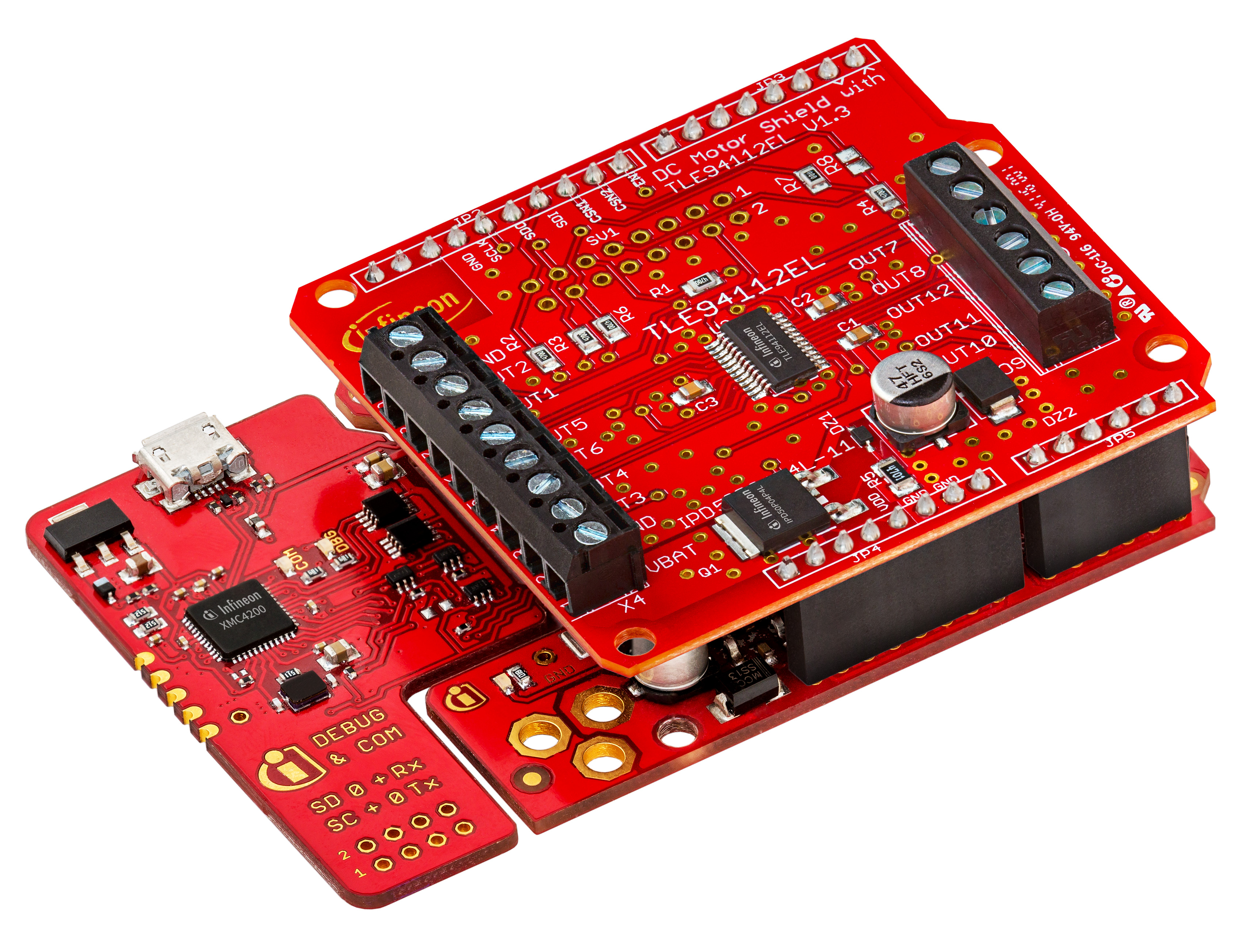

If you want more detailed instructions on how to use an XMC with the Arduino IDE, goto the Infineon XMC-for-Arduino gitub-page.

2. Hardware:

When using the shield for our projects, we need to supply some power.

This is done via the VBAT and GND screw-terminals of the shield.

Connect between 4V and 40V DC to VBAT and the negative Pin/GND of your power supply to GND of the shield. Important notice: The voltage-level you supply is also supplied to the connected DC-motors/stepper-motors/LEDS etc. so be careful not to overvoltage your peripherals.

Next, we connect our peripherals (motor, etc) to the shield, via the other screw-terminals. Each terminal corresponds to one half-bridge terminal and can supply up to 0.9A. An overcurrent event will trigger a safety-shutdown of the bridge (more on that later in the diagnostics section). However, up to 4 bridges can be connected in parallel, each supplying 0.9A, for a total of 3.6A.

3. DC Motor Control:

The main functionality of the Multi-Half-Bridge is DC-Motor Control. Here we have to be most careful about the maximum current draw of the motor.

Lets start with including our libraries in our Arduino.io file:

#include <tle94112-ino.hpp>
#include <tle94112-motor-ino.hpp>
#include "SPI.h"

Next, in order to use our motor, we have to initialize the controller and the motor: Then we need to enable the controller.

Tle94112Ino controller = Tle94112Ino(); //create the controller
Tle94112Motor motor(controller); /*create the motor and give it the controller*/
controller.begin(); //enable the controller

Next is an important step: We need to tell the controller which terminals should be used and which ones are connected in parallel. Remember: Each terminal can carry up to 0.9A, by connecting several in parallel, we can add up these maximum currents to 3.6A.

motor.initConnector(
    motor.HIGHSIDE,      //indicate, that this is the high-side connection
    controller.TLE_NOPWM,//connect PWM to Lowside as higside is active Free wheeling
    controller.TLE_HB1,  //output 1 is connected to HIGHSIDE
    controller.TLE_HB2,  //these two outputs are in parallel, to increase max. current
    controller.TLE_NOHB, //third and fourth connection options are not connected
    controller.TLE_NOHB
);
  motor.initConnector(
    motor.LOWSIDE,
    controller.TLE_PWM1,
    controller.TLE_HB3,
    controller.TLE_HB4,
    controller.TLE_NOHB,
    controller.TLE_NOHB
);
motor.begin(); //enable the motor we just initialized

This concludes the setup of our half-bridge and motor. Now comes the fun part: Controlling the motor.

Let's start with the easiest function: Coasting the motor.

motor.coast();

This function stops current flow through the motor. In most cases, this means it will slow down and stop rotating due to friction. If an external force is applied to the motor, it might however keep on spinning freely.

Next, we want to spin the motor with full speed in the forward direction:

motor.start(255);

This function can be called with different arguments between -255 and +255 to set the speed. Alternatively we can also use the function

motor.setSpeed(255);

These two are identical and are there to increase readability of your code.

To gradually increase the motor speed over a set amount of time, we have the function

motor.rampSpeed(255, 5000); //target speed, time interval
delay(5000); //wait for the ramp to complete

This one increases/decreases the speed from the current speed to the speed given as the first argument in a time interval (in milliseconds) given as the second argument.

4. LED-Control

In addition to motor-control, the Multi-Half-Bridge can also control LEDs. This is an interesting feature if the pin output current of the Arduino does not suffice to power up a LED. For the LED control, we will exclusively use terminal 1 an 2 of the board. These two terminals have a special LED-mode, where the threshold for an open-load error is reduced (more on error and diagnostics later).

First, we have to connect our hardware: A LED and a resistor. The value of the resistor depends on your LED and can be calculated by hand or using an online LED calculator. The relevant data should be found in the datasheet of you LED.

Now we can start with the software:

We need to include the library and create a controller. This time however, we don't need a motor.

#include <tle94112-ino.hpp>

Tle94112Ino controller = Tle94112Ino();
controller.begin();

We enable the LED-Mode for Half-Bridge 1.

controller.setLedMode(controller.TLE_HB1, 1); //to enable LED-Mode

Whereas last time we controlled a motor entity, now we give our commands directly to the controller:

controller.configHB(controller.TLE_HB1, controller.TLE_HIGH, controller.TLE_NOPWM); //  tie HB1 HIGH, powering the LED
controller.configHB(controller.TLE_HB1, controller.TLE_FLOATING, controller.TLE_NOPWM); // floating HB1 disables the LED

These lines enable/disable the LED completely. In order to dimm the LED with PWM, we have to configure the PWM source first and then assign it to an output.

controller.configPWM(controller.TLE_PWM1, controller.TLE_FREQ200HZ, 127);
/*
The options for the Frequency are: TLE_FREQOFF, TLE_FREQ80HZ, TLE_FREQ100HZ, TLE_FREQ200HZ
We reccomend the fastest mode, otherwise the LEDs starts flickering
*/

controller.configHB(controller.TLE_HB1, controller.TLE_HIGH, controller.TLE_PWM1);

5. Error and Diagnostics

Now we want to have a look at the error detection systems and diagnostic capabilities of the TLE94112 shield.

At first we request the content of the status-register:

uint8_t status = controller.getSysDiagnosis(); //status now contains bit-flags, where a one corresponds to a position-specific error

To check if a specific error was detected we simply do a bitwise-and comparison between status and a specific bit:

if (status & controller.TLE_SPI_ERROR)
{
    Serial.println("SPI error detected!");
    // Handle the SPI error here.
}

The following errors and their respektive bit-position are checkable. The library provides a shorthand for each error, so you don't have to remember the bit values.

TLE_SPI_ERROR = 0x80,     //1000 0000
TLE_LOAD_ERROR = 0x40,    //0100 0000
TLE_UNDER_VOLTAGE = 0x20, //0010 0000 etc.
TLE_OVER_VOLTAGE = 0x10,
TLE_POWER_ON_RESET = 0x08,
TLE_TEMP_SHUTDOWN = 0x04,
TLE_TEMP_WARNING = 0x02

All errors except the SPI_ERROR are latched and need to be cleared manually by calling:

controller.clearErrors();

The flag register will be cleared, as long as the error does not persist.

Let's go into each error and see, what the presence of that error means:

TLE_SPI_ERROR: This signifies, that the SPI communication to the shield is faulty. Check your cables/connections.

TLE_UNDER_VOLTAGE: The supply voltage to the board is too low (min. 4V). Increase your supply voltage. This error might also show up, if no supply voltage is connected. This error disables all outputs.

TLE_OVER_VOLTAGE: The supply voltage to the board is too high (max. 40V). This error disables all outputs.

TLE_POWER_ON_RESET: This error is thrown, if a power on reset is detected. This is probaly less important and too complex to be explained here in detail.

TLE_TEMP_WARNING: This error indicates, that the junction temperature of the bridge comes close to it's maximum.

TLE_TEMP_SHUTDOWN: This error indicates, that the junction temperature of the bridge exceeds it's maximum. This error disables all outputs.

TLE_LAOD_ERROR: This error is a bit more complex, because it signifies an error with one of up to twelve loads. We have to iterat over every halfBridge an check on the connected load to learn more:

for (uint8_t halfBridge = 1; halfBridge <= 12; halfBridge++)
{

First, we check the load for an overcurrent event:

uint8_t oc = controller.getHBOverCurrent((Tle94112::HalfBridge)halfBridge);
    //since the .getHBOverCurrent method expects a HalfBridge datatype we need to cast the uint8_t iterator into that.

This gives us a bit-field that can be checked with bitwise-and comparision, as before:

if (oc & controller.TLE_LOWSIDE)
    {
        Serial.print("\tHB");
        Serial.print(halfBridge);
        Serial.println(":\tOver-current detected in low-side switch.");
    }
    // Check for an over-current error on the high-side of this half bridge
    if (oc & controller.TLE_HIGHSIDE)
    {
        Serial.print("\tHB");
        Serial.print(halfBridge);
        Serial.println(":\tOver-current detected in high-side switch.");
    }

Next we check for an open load. Here we don't have to do a bitwise-and comparision, since we only have one relevant bit in the ol bit-field

uint8_t ol = controller.getHBOpenLoad((Tle94112::HalfBridge)halfBridge);
    if (ol)
    {
        Serial.print("\tHB");
        Serial.print(halfBridge);
        Serial.println(":\tOpen load detected.");
    }
}

6. Further Reading and more examples

We hope you were able to follow all the examples and code snippets we provide here. If you are interested in testing out the TLE94112 multi-half-bridge shield you should have a look at the github page with the source code of the library and even more examples on how to use it.

If you want to know, how to use the shield together with a raspberry-pi, have a look at our other hackster.io article on that topic.
