In robotics development, a chassis is more than a frame—it is the interface between digital logic and physical reality. It dictates how a robot perceives, navigates, and conquers complex environments.

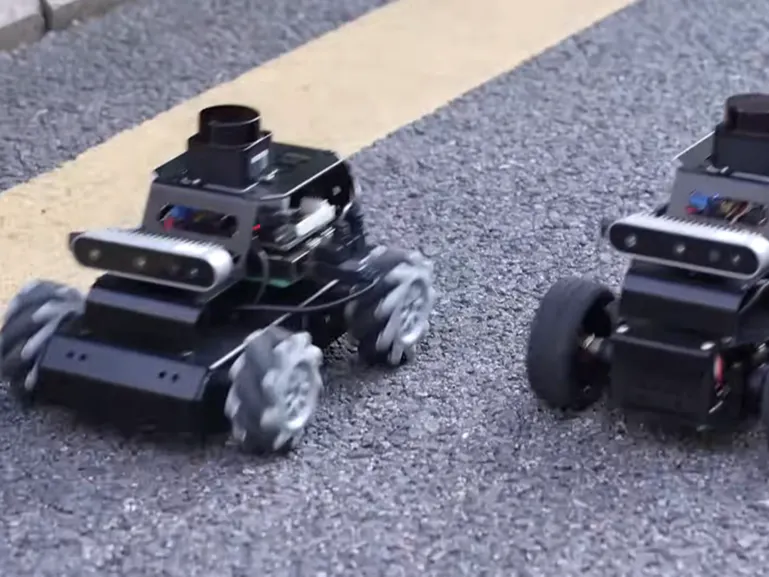

MentorPi is designed as a high-performance ROS 2 educational platform for university labs and hobbyists. To provide a truly multi-dimensional research experience, it offers three distinct drive configurations: Tracked, Mecanum, and Ackermann. Each embodies a unique philosophy in mobile robotics kinematics.
Tracked Chassis: The All-Terrain Stability ExpertThe Tracked version is built for rugged adaptability. Its secret weapon is a patented high-elasticity torsion spring suspension system.
- The Engineering: By combining high-tensile carbon steel springs with stainless steel bearings, the chassis actively absorbs ground impact.
- Precision Control: Closed-loop nylon tracks paired with high-torque encoder motors allow for millimeter-level movement accuracy.
- Use Case: Whether navigating indoor obstacles or tackling outdoor grass, gravel, and steep inclines, this chassis maintains a stable horizontal plane for sensitive sensors like LiDAR and Depth Cameras.
Mecanum Wheels: The Master of Omnidirectional AgilityThe Mecanum chassis is an engineering marvel of vector-summation. By precisely controlling the speed and direction of four independent rollers, it generates force vectors in any direction.
- Kinematic Freedom: Unlike traditional steering, Mecanum wheels allow for lateral (strafing) movement, diagonal paths, and zero-radius rotation.
- Durability: Featuring competition-grade fiber-reinforced nylon, these wheels offer high impact resistance and load capacity.
- Use Case: This is the ideal solution for precision indoor tasks and complex path planning in narrow, constrained spaces where traditional turning is impossible.
🚀Ready to master the "Walking Wisdom" of the MentorPi? Dive into our comprehensive MentorPi tutorials and launch your next ROS 2 project.
Ackermann Steering: The Research Sandbox for Autonomous DrivingThe Ackermann model replicates the standard steering geometry of modern automobiles. Its core value lies in its high-fidelity Steering Geometry Design.
- Vehicle Dynamics: The rear wheels remain parallel while the front wheels utilize a custom digital servo for differential angle control, ensuring superior tracking stability.
- Hardware Stack: Equipped with 310 DC geared encoder motors and 68mm anti-skid rubber tires, it provides a realistic vehicle control system.
- Use Case: Perfect for simulating self-driving algorithms, trajectory tracking, and studying vehicle dynamics in a controlled lab environment.
The "Why": A Multi-Dimensional PedagogyWhy design three different chassis? Because mobile robotics is a cross-disciplinary field involving mechanical design, motion control, and perception.
From an educational standpoint, these three structures represent the three pillars of mobile kinematics:
- Tracked: Differential drive principles and continuous trajectory tracking.
- Mecanum: Holistic omnidirectional models and motion planning under non-holonomic constraints.
- Ackermann: Classic car-like kinematic models for intelligent transportation research.
Beyond Hardware: A Full-Stack ROS 2 EcosystemMentorPi is more than just "wheels." It integrates the Raspberry Pi 5, TOF LiDAR, 3D Depth Cameras, and AI Voice modules to create a complete Embodied AI workflow.
From 2D SLAM and 3D Point Cloud Recognition to YOLO vision processing and Multimodal LLM deployment, MentorPi provides the professional hardware and open-source resources needed to explore the frontier of robotics. Grab the Source Code: Access our Hiwonder GitHub repositories.
