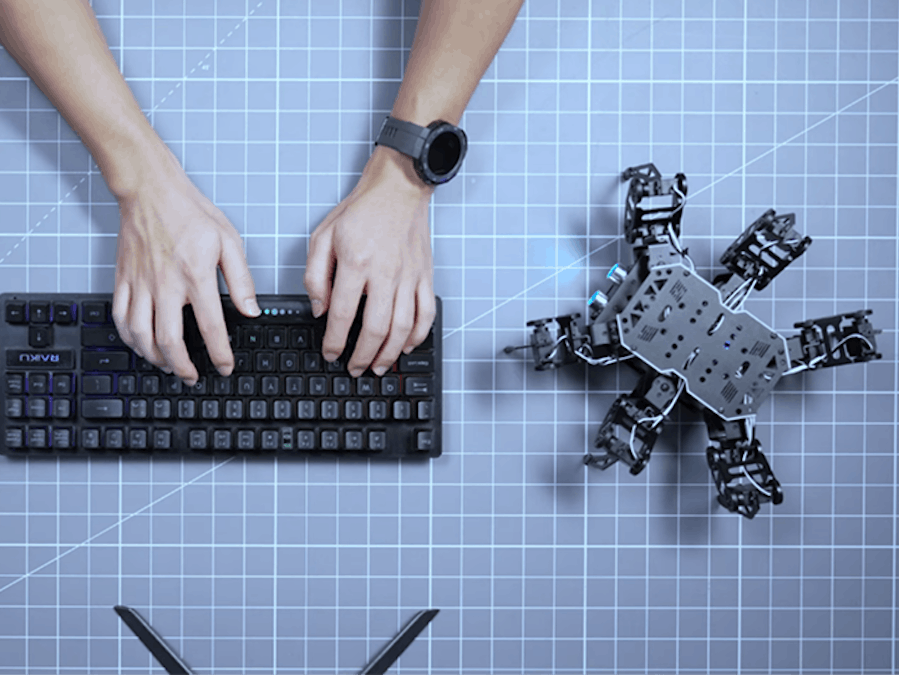

Hexapod robots serve as excellent platforms for exploring bionics and motion control algorithms. One fundamental and efficient walking pattern for such robots is the tripod gait. This article explains its biological inspiration, engineering implementation, and how modern approaches like inverse kinematics (IK) overcome the limitations of traditional pre-programmed methods. We'll use general hexapod concepts for illustration, applicable to platforms like the MiniHexa.
The Biological Inspiration: Stability in TriosObserve an insect walking—it doesn't move all 6 legs at once. Instead, it coordinates them into two alternating sets of three, forming stable tripods. Typically, legs are grouped as (Left Front, Left Rear, Right Middle) and (Right Front, Right Rear, Left Middle).
While one tripod is on the ground (stance phase), providing a stable, three-point support base, the other tripod is in the air (swing phase), moving forward. They then switch roles. This pattern offers high static stability, allowing the robot to remain balanced without complex dynamic control, making it robust on varied terrain.
Traditionally, implementing gaits like this often relied on pre-recorded motion sequences.
The "Frame-by-Frame" Method: Developers would manually define every servo angle for each phase of the step cycle, creating a fixed animation. While functional, this approach is rigid. The robot cannot dynamically adjust its stride length, turn smoothly, or change body height in real-time. It simply replays a recording, which limits adaptability.
A Modern Solution: Inverse Kinematics for Adaptive GaitsA more advanced and flexible method uses Inverse Kinematics (IK). Think of reaching for a cup: your brain effortlessly calculates the necessary joint angles for your arm. IK performs this calculation for a robot.
For a hexapod, you don't program individual leg joint angles. Instead, you define a high-level goal: "Move the body forward at 5 cm/s" or "Turn left." The IK algorithm then works backwards:
1. It calculates the desired foot tip trajectory in 3D space for each leg during its swing phase.
2. It solves the kinematic equations for each leg to determine the exact angles required at the hip, femur, and tibia joints to achieve that tip position.
This enables real-time adaptability:
- Omnidirectional Movement: Seamless forward, backward, strafing, and rotational motion.
- Dynamic Adjustments: The robot can change its body height, pitch, or roll on the fly to navigate obstacles or uneven ground.
- Smooth Trajectories: Continuous calculation results in fluid, natural-looking motion, far surpassing the "robotic" feel of pre-scripted sequences.
💡Get miniHexa tutorials here! Follow Hiwonder GitHub to learn more!Implementing on Your Platform
If you're building or programming a hexapod, here's how to approach implementing an IK-based tripod gait:
- Define the Gait Timing: Program the alternating timing of the two tripods. A common parameter is the duty factor (the fraction of a cycle a leg spends in the stance phase).
- Model Your Robot: Create a kinematic model. Define the leg's structure (link lengths) and how each leg is positioned relative to the body's center (the body frame).
- Calculate Foot Trajectories: Design the path the foot tip follows during its swing (a simple arc works well) and its motion during the stance phase (a straight line pushing the body).
- Apply Inverse Kinematics: For each foot tip position along its trajectory, use trigonometric functions or a geometric IK solver to compute the required servo angles for that leg.
- Iterate and Command: Update these calculations in a tight control loop and send the angles to your servos.
The tripod gait exemplifies how biological principles inspire robust robotic solutions. Moving from fixed sequences to IK-based control represents a significant leap, transforming a hexapod from a simple automaton into an adaptive, programmable platform.
