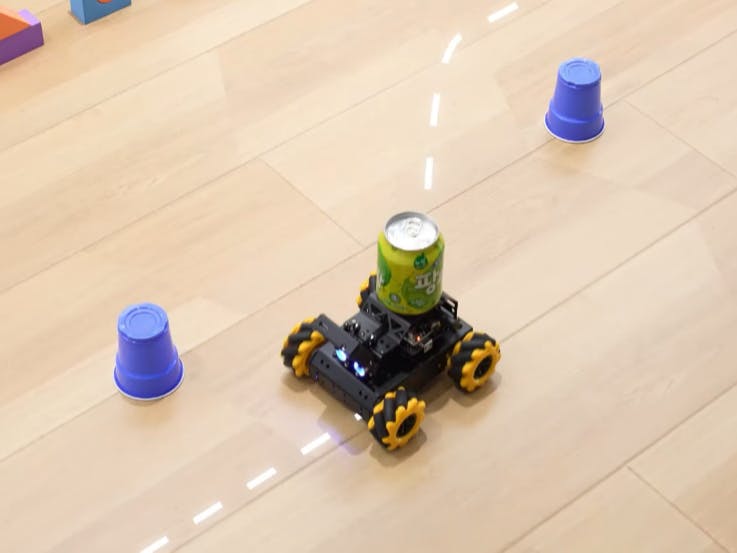

In robotics, "omnidirectional movement" represents the pinnacle of maneuverability. Imagine a robot that can strafe sideways, slide diagonally, or spin on a dime without a steering linkage. This isn't magic; it’s the result of clever vector physics applied to the Mecanum wheel.
From the agile TurboPi to the ROS-heavy RosOrin and the mobile manipulator LanderPi, we utilize Mecanum structures to turn theoretical agility into high-precision reality.
What Is a Mecanum Wheel?Invented in 1973 by Swedish engineer Bengt Ilon, the Mecanum wheel is a unique design where the main wheel rim features a series of rollers attached around its circumference. These rollers are typically oriented at a 45° angle to the plane of the wheel.
Unlike traditional wheels that only provide traction forward or backward, the Mecanum wheel generates a force vector that is angled relative to the robot's heading. By independently controlling the speed and direction of four such wheels, you can synthesize a resultant force in any direction.
The Physics: How Omnidirectionality Works1. Friction Vector Decomposition
The secret lies in how the force is split at the point where the roller touches the ground. When the main motor spins the hub, the resulting friction is decomposed into two vectors:
- Longitudinal Component: Acts along the circumference of the wheel. This provides the standard forward/backward thrust.
- Transverse (Lateral) Component: Acts along the axis of the free-spinning rollers.
Because the rollers are free to spin, they don't resist movement along their own axis. Instead, they create a "sliding tendency." It is the combination of this drive and slide that forms the physical basis for 360° motion.
Master 360° mobility: Dive into our miniAuto tutorials to explore the logic behind Mecanum wheels.
2. The "X-Configuration" Strategy
A standard platform uses four Mecanum wheels in what engineers call an "X-pattern." If you look at the robot from above, the rollers' contact points should form an "X" shape: the left wheels' rollers point outward (\), and the right wheels' rollers point outward (/).
By orchestrating the rotation of these four motors, you can cancel out or combine these lateral vectors:
- Strafing Sideways: All wheels spin such that the longitudinal forces cancel out, but the lateral vectors add up to push the robot perfectly to the left or right.
- Rotation: Wheels on one side spin forward while the other side spins backward, creating a pure torque around the center of gravity.
For a developer, a Mecanum chassis isn't just a cool feature; it’s an empowering platform for complex robotics tasks.
- Spatial Agility in Tight Quarters: In a "Smart Factory" simulation, a robot like the TurboPi needs to navigate narrow aisles. Mecanum wheels allow the robot to move with three degrees of freedom (longitudinal, lateral, and rotational) without needing space for a turning radius.
- Enhanced Manipulation Precision: For composite robots like the LanderPi, precision is everything. When the robotic arm needs to reach a specific coordinate, the chassis can perform micro-adjustments—strafing a few millimeters sideways—to align the base perfectly without disturbing the arm's momentum.
- The Ultimate Kinematics Lab: From an educational perspective, the Mecanum chassis is the perfect gateway to Vector Math and Kinematic Modeling. It challenges developers to master multi-motor synchronization, coordinate transformations, and path planning within ROS/ROS 2.
By integrating these wheels with LiDAR and depth cameras, we move from simple remote control to true autonomous navigation. Whether you are researching multi-robot swarms or building an automated sorter, the Mecanum wheel provides the high-fidelity mobility required for the next generation of automation.
