The world of legged robotics is often associated with complex, expensive platforms. The miniHexa project presents a contrasting approach: a compact, desktop-sized hexapod robot designed to be an accessible and hackable entry point for learning locomotion, sensor integration, and embedded AI. Built around an ESP32 controller and featuring 18 servo motors, it combines capable hardware with a fully open-source software stack.
Hardware Designed for ExperimentationDespite its small size, miniHexa is built for serious tinkering:
- 18-DOF Leg System: Each of its six legs has 3 degrees of freedom (one horizontal, two vertical), providing a solid foundation for exploring inverse kinematics and various gaits.
- Lightweight & Expandable: The chassis is made from lightweight aluminum and features an open-top design with multiple mounting points, encouraging hardware modifications and additions.
- Sensor-Ready Architecture: The platform is designed to seamlessly integrate expansion modules, including an ESP32-S3-based AI vision camera, ultrasonic sensors, touch sensors, and more.
A core goal of miniHexa is to lower the learning curve. It supports multiple programming environments to suit different skill levels:
- Beginner-Friendly: Graphical programming via Scratch and a dedicated PC-based control software allow users to create movement sequences and control the robot without writing code.
- For Developers: Full support for Arduino (C++) and MicroPython provides direct access to motor control, sensor reading, and algorithm implementation. All core libraries and examples are open-source.
The robot comes pre-loaded with gaits powered by inverse kinematics (IK) algorithms. This allows for high-level control where you specify the body's movement (e.g., "move forward 10 cm, turn 30 degrees"), and the IK solver calculates all 18 joint angles automatically. Key features include:
- Gait Flexibility: Switch between stable tripod gaits and smoother wave gaits directly in code.

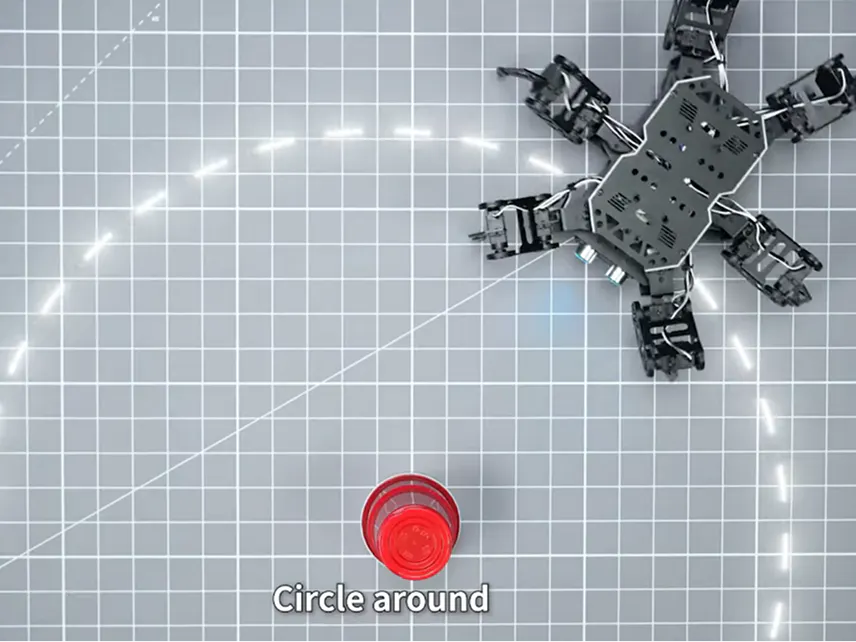

- Real-Time Adjustment: Dynamically control body height, tilt, and turning radius while walking.
- Learning Resource: The open-source IK library serves as a practical case study for understanding a fundamental robotics concept.
The true potential of miniHexa unfolds with its expansion modules, transforming it into a platform for embodied AI projects:
- Voice Interaction: Add the WonderEcho module for custom wake-word detection and voice command processing, enabling projects like voice-controlled navigation.
- Computer Vision: The AI camera module enables real-time object detection (using models like YOLO), color tracking, face recognition, and WiFi-based FPV (First-Person View) streaming. This allows for projects like vision-based line following or person tracking.
The miniHexa is more than a pre-assembled toy; it's a learning ecosystem:
- Comprehensive Documentation: miniHexa tutorials cover assembly, basic programming, gait theory, and advanced sensor integration.
- Community & Extensibility: As an open-source platform, users can share their own gait algorithms, 3D-printed attachments, and project code.
- From Simulation to Reality: The provided URDF model allows for initial testing in simulation environments like Gazebo before deploying to the physical robot.
For students, hobbyists, and developers interested in legged robotics, the miniHexa offers a unique value proposition. It packages the core challenges of multi-DOF control, sensor fusion, and AI into a small, affordable, and completely open-source platform. By lowering the barriers to entry, it empowers users to move from following tutorials to implementing their own creative robotics ideas.
