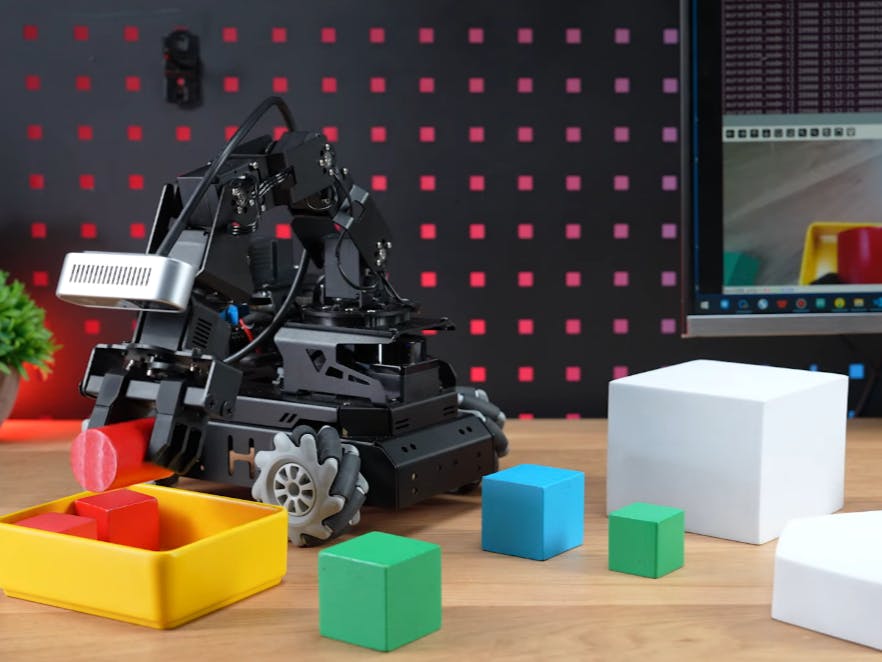

Hand-Eye Mastery: 3D Vision Meets Inverse Kinematics

In the realm of robotics, the transition from "seeing" an object to "grasping" it represents one of the most significant engineering hurdles. It requires a seamless fusion of computer vision and mechanical coordination. At Hiwonder, we’ve developed platforms like the ArmPi Ultra and LanderPi to bridge this gap, creating a deep integration between high-level Inverse Kinematics (IK) and 3D Hand-Eye coordination.

From Abstract Math to Precision Motion

One of the greatest challenges in robotics education is the "theory-practice gap." Students often spend months studying transformation matrices and Jacobian derivations without ever seeing how those formulas dictate a physical path.

By utilizing built-in high-order IK algorithms, our platforms turn abstract Cartesian coordinates into synchronized joint movements in real-time. This allows developers to observe how a target $(x, y, z)$ position is decomposed into specific angles for six different servos. It’s no longer just math on a whiteboard; it’s a tangible demonstration of how complex calculations result in industrial-grade positioning accuracy.

Explore Inverse Kinematics with LanderPi tutorials.

Elevating Perception: The Leap to 3D Spatial Awareness

Traditional 2D vision is limited to flat planes, but the real world exists in three dimensions. By incorporating 3D structured light depth cameras, we move beyond simple color-blob tracking.

With access to RGB-D data, students can experiment with depth maps, colored images, and raw point clouds. This setup enables advanced projects like distance estimation, 3D dimension measurement, and spatial pose analysis. Mastering these skills is essential for anyone looking to enter high-growth fields like smart manufacturing, autonomous driving, or warehouse automation, where the robot must understand the volume and orientation of its environment.

The "Perception-Decision-Execution" Loop

The true magic happens when IK and 3D vision are fused into a single system. This creates a complete "Perception-Decision-Execution" loop. A classic example is the intelligent material sorting project: the 3D vision system identifies the object’s features and spatial coordinates; the AI makes a decision on the sorting logic; and the IK algorithm plans the optimal trajectory for a precise pick-and-place.

This holistic approach forces the developer to think about the robot as a unified system rather than a collection of isolated parts. It cultivates the ability to solve complex, multi-layered engineering problems—skills that are highly sought after in the professional robotics industry.

A Scalable Sandbox for Researchers

For universities and R&D labs, this "hand-eye" integration offers a seamless path from foundational learning to cutting-edge research. In the early stages, the curriculum focuses on coordinate transforms and visual basics. As users progress, the open platform supports advanced topics like multi-target recognition, dynamic object tracking, and complex collision-avoidant path planning using MoveIt and ROS 2.

Whether you are working on a graduation project involving point cloud processing or researching multi-robot collaborative swarms, this integrated tech stack ensures you are working with industrial-standard tools. By breaking down the barriers between mechanics, electronics, and computer vision, we are empowering the next generation of engineers to build robots that don't just move, but truly interact with the world.
