SMD Reflow Oven (Part 2)

I have designed electronic side before. Now I build mechanic.

I didn't finish it completely.

I cut two disks to fix ceramic heater.

I drilled aliminium cooker. Placed ceramic blanket to make insulation between heater and cooker.

Ceramic blanket is placed to wall of cooker.

I decide to measure temperature by using two pt100 sensors. So I can measure temperature of top and bottom layer of pcb.

It is hard to place pt100s to paperclip.

I fixed jumo PT100 sensors with high temperature gasket silicone.

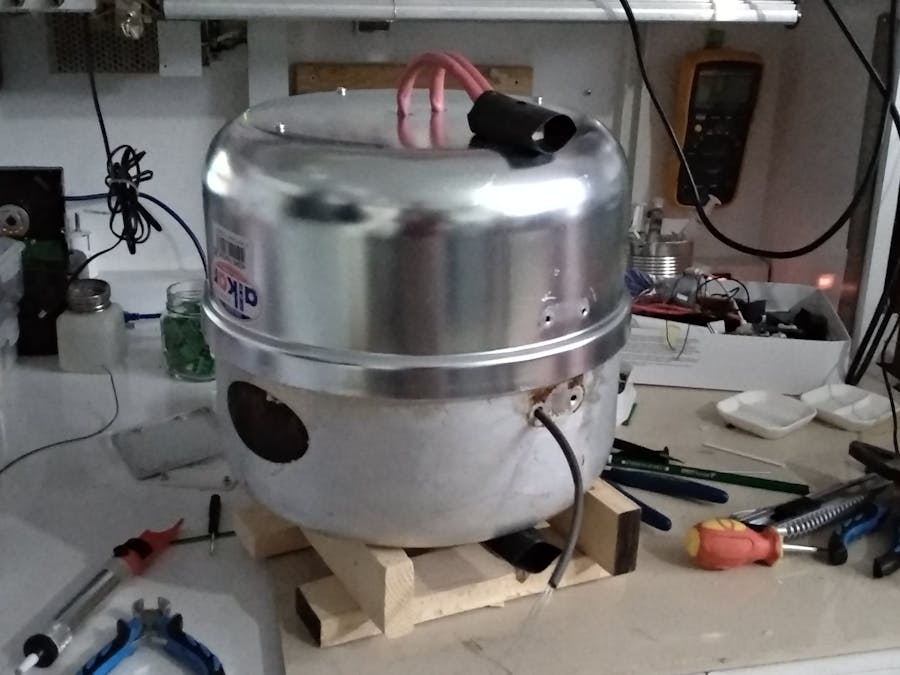

Finish assemble.

Aliminium panel (0, 2mm thick) is used to protect ceramic blanket against to be broken into pieces.
