Portable Environmental Monitoring Device

This project will help people who enjoy outdoor activities and being in contact with nature, helping them to preserve their health.

IntermediateFull instructions providedOver 1 day83

Portable Environmental Monitoring Device

Things used in this project

Hardware components

Espressif ESP32S

GPS-NEO6MV2

GPS module based on the NEO-6M module, capable of identifying global location via satellite (GPS) and reporting it via simple RS232 TTL (UART) communication. Operating voltage: 3.3 VDC; standard speed: 9600 Baud Rate; 50 channels; sensitivity: -146 dBm to -160 dBm; maximum altitude: 164,042 ft (50 km); maximum speed: 500 m/s.

Generic Ultraviolet Sensor

Developed for use with microcontroller systems, especially the Arduino and Raspberry Pi, demonstrating wide applicability and excellent results. It operates with voltages from 3.3V to 5V, sending analog signals to the microcontroller, varying its output voltage according to the level of UV rays detected. Output Voltage: DC 0-1 V; Accuracy: 1 UV INDEX; Response Wavelength: 200nm-370nm.

BME280

Measures atmospheric pressure, humidity, and temperature, also known as a barometer. High-capacity and high-resolution digital module. Supply voltage: 1.8 - 3.3V DC. Interface: I2C (up to 3.4MHz), SPI (up to 10MHz). Measurement ranges: Temperature: -40 to +85°C. Humidity: 0-100%. Pressure: 300-1100 hPa. Accuracy: Temperature: +-1°C. Humidity: +-3%. Pressure: +-1Pa

128x64 Pixel Blue OLED Display

1.3 Inch, 4 I2C Pins

SparkFun Pushbutton switch 12mm

Coin Cell Battery CR2032

3.7v Rechargeable Lithium Battery

if you don't want to use the CR2032 battery

TP4056 Lithium Battery Charger Module

If using a 3.7V rechargeable battery

Resistor 10k ohm

female to female jumper cables

Software apps and online services

Arduino IDE

Hand tools and fabrication machines

3D Printer (generic)

Story

With increasing health concerns, especially regarding skin, outdoor activities increasingly require constant monitoring.

To help people who engage in this type of leisure, I designed a portable device that would monitor ultraviolet rays, ambient temperature, humidity, and atmospheric pressure, keeping the user aware of the conditions surrounding their enjoyable activity and using the necessary skin protection and hydration products.

Since these activities often take place in places where we don't have access to cell phone networks, I considered including a GPS, which displays the date, time, latitude, longitude, and altitude.

This makes the device useful for mountaineers, hikers, runners, hikers, and others.

The device has not been assembled, but all bench tests have been successfully completed.

Custom parts and enclosures

Sketchfab still processing.

Structure

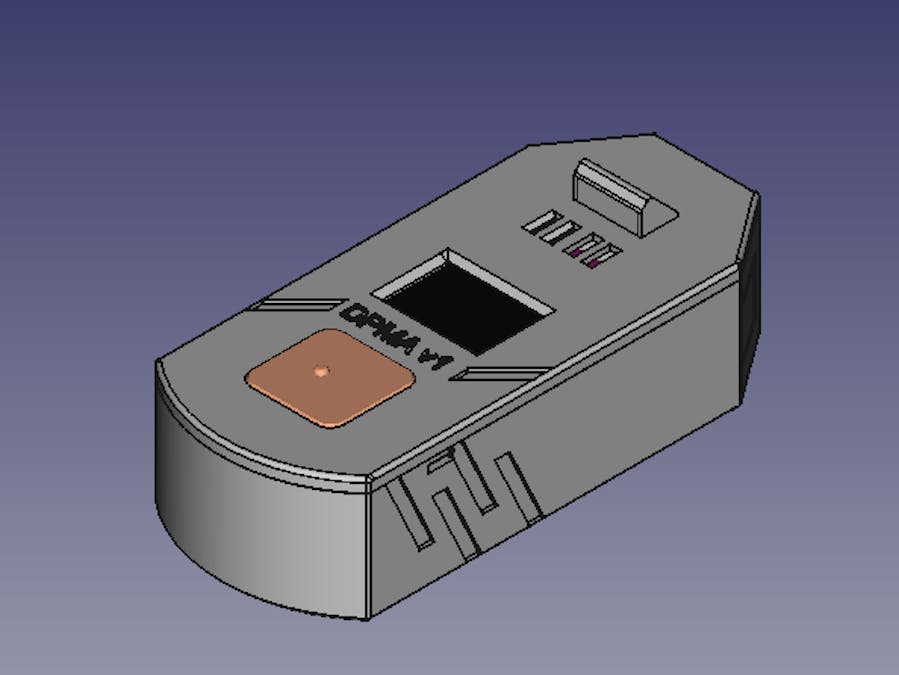

The structure was designed in FreeCAD and strives for maximum portability.
It is a rectangular object measuring 13cm x 5cm. It is easy to handle and can be carried in a small waist bag.
The connections between the components are made using female-to-female jumper cables.
The electronic components must be glued directly to the structure, partly on the body and partly on the lid.
The structure is divided into a body and lid, and there are two versions of the body: one for those who want to use a CR2032 battery and another for those who want to use a rechargeable 3.7V lithium battery.
The parts are available for 3D printing in PLA.
The attached images show the arrangement of the components in the structure.

Sketchfab still processing.

Schematics

Circuit Diagram of Portable Environmental Monitoring Device

The UV module is connected to the Rx and Tx pins of the ESP32.
The BMe280 sensor and the OLED display are connected to pins IO21 for the SDA port and IO22 for the SCL port.
The UV sensor is connected to pin IO02.
The pushbuttons are connected to pins IO18 and IO19, as well as GND.
The positive output of the battery is connected to a 10K resistor, which in turn is connected to the VIN and IO34 pins of the ESP32.
The battery charger is connected directly to the battery.

Code

DPMA1VF.ino

Arduino

As mentioned previously, the Arduino IDE was used.
The software structure is divided into six functions, in addition to the Setup and Loop functions: medUV (to measure the intensity of ultraviolet rays); GPS (for date, time, and geographic location information); medTPU (to measure temperature, humidity, and atmospheric pressure); DataHora (to indicate the local time and the day of the month and week); Menu (for navigating between functions); and gpsLoop (to check the GPS signal).
The loop() function calls the gpsLoop() function to check the GPS signal, the Menu() function to enable navigation, and a switch to access the functions.
The home screen is always the medUV() function.
I have attached the files for uploading to the ESP32.

/* Codigo adaptado com auxlio da IA CHATGPT*/

//BIBLIOTECA, VARIVEIS e DEFINIES-----------------------------------------------------------------------------

// Incluso de bibliotecas
#include <SPI.h>
#include <Wire.h>
#include <Adafruit_GFX.h>
#include <Adafruit_SSD1306.h>
#include <Adafruit_Sensor.h>
#include <Adafruit_BME280.h>
#include <SoftwareSerial.h> //Para os pinos do Esp32 funcionar como porta serial
#include <TinyGPS++.h>
#include <Pushbutton.h> //Configurao dos botes

//Bibliotecas e definies GPS
#define GPS_RX 16
#define GPS_TX 17
#define GPS_Serial_Baud 9600
SoftwareSerial gpsSerial(GPS_RX, GPS_TX); //Rx=16 e Tx=17
TinyGPSPlus gps;

//Variveis GPS
int k,kr, //Variveis relgio
		HHGST,MMGST,SSGST,HLST,HLT,HL,HH,MM,DL,Seg,DJ,Ano3; //Variveis da Hora Sideral
char c;
long satelites;
bool recebido = false;
unsigned long hora1,Dia,Mes,Ano,Mes2,Ano2;
float longit,MM1,SS1,mn2,Dia2,GMTh,EsteDia,GMST,Mes3,
      Hora,Minuto,Segundo,s2,
      regis_Z; //Varivel da inclinao

int satelitesant = 0, ano;
int AA;
double t,passo1,passo2,passo3,to,n1,h1,n2,latitude, longitude, altitude, curso, lat, lon;
long chs,a,b;
unsigned long data,horaRE;
byte mes, dia, hora, minuto, segundo, centesimo, horalocal;
float altitudeGPS, lat1, long1, lat2, long2, s;
float mn,hora2,d;
int Cg; //Curso geografico - dado pelo GPS
int Pg; //Posicao geografica - calculado
long lat3,lon3,latAnt=0,lonAnt=0; //Latitude e longitude
int ValorAlinha=0;
bool recCg = false;

//Variveis e definies do Sensor BME 280
#define SEALEVELPRESSURE_HPA (1013.25) //necessrio para a leitura da altitude
Adafruit_BME280 bme;
bool status;  // Cria uma varivel status de iniciao do sensor BME

// Definio da Altura e largura do display OLED
#define SCREEN_WIDTH 128 // Largura display, em pixels
#define SCREEN_HEIGHT 64 // Altura display, em pixels
// Declarao pino reset para I2C do display OLED
#define OLED_RESET 	-1 // Ser o mesmo reset da placa
#define SCREEN_ADDRESS 0x3C
Adafruit_SSD1306 display(SCREEN_WIDTH, SCREEN_HEIGHT, &Wire, OLED_RESET); // Criao objeto display

// Variveis Sensor de UV
int UVSensorPin = 2;// Conectado ao pino A0 (GPIO2)
float sensorValue;
int sensorUV;
int nivelUV;

//Biblioteca, variveis e definies dos botes
#define BUTTON_NAV 18     // Boto para navegao
#define BUTTON_SELECT 19  // Boto para seleo

// Variveis do Menu
int menuIndex = 0;
unsigned long ultimaLeitura = 0;
const unsigned long debounceDelay = 200;
static bool ultimaNaveg = HIGH;  //Boto de navegalo recebe  alto
static bool ultimaSelec = HIGH; //Boto de seleo recebe  alto

// Pino analgico que recebe a tenso da bateria (via divisor de tenso, ex: GPIO 34)
#define VBAT_PIN 34
// Tenso mxima e mnima da CR2032
#define VBAT_MAX 3.0
#define VBAT_MIN 2.0

//Declaraes das Funes
void medUv(); //Funo que mede o UV
void GPS(); //Funo GPS
void medTPU(); //Funo Temperatura,Presso e Umidade
void DataHora(); //Funo Data e Hora
void Menu(); //Funo Menu
void gpsLoop(); //Funo de verificao de conexo com GPS


//SETUP-------------------------------------------------------------------------------------------------------
void setup(){
	Serial.begin(115200); //Inicia a cominicao serial

  gpsSerial.begin(GPS_Serial_Baud); //Inicia a conexo com gps

  pinMode(BUTTON_NAV, INPUT_PULLUP); //Aloca os botes
  pinMode(BUTTON_SELECT, INPUT_PULLUP);

	if(!display.begin(SSD1306_SWITCHCAPVCC, SCREEN_ADDRESS)) { //Inicia OLED
    Serial.println(F("SSD1306 allocation failed"));
    for(;;);
  }

  status = bme.begin(0x76, &Wire); //Inicia o sensor TPU. Endereo 0x76

}
//LOOP-------------------------------------------------------------------------------------------------
void loop(){

  gpsLoop();
  Menu();

  switch (menuIndex) {
    case 0:
      medUV();
      break;
    case 1:
      medTPU();
      break;
    case 2:
      DataHora();
      break;
    case 3:
      GPS();
      break;
  }

}

/*Funo Menu*/

void Menu(){

  bool nav = digitalRead(BUTTON_NAV);
  bool select = digitalRead(BUTTON_SELECT);

  if (nav == LOW && ultimaNaveg == HIGH && millis() - ultimaLeitura > debounceDelay) {
    menuIndex = (menuIndex + 1) % 4;
    ultimaLeitura = millis();
  }

  if (select == LOW && ultimaSelec == HIGH && millis() - ultimaLeitura > debounceDelay) {
    menuIndex = 0; // Reinicia para UV aps seleo
    ultimaLeitura = millis();
  }
  ultimaNaveg = nav;
  ultimaSelec = select;
}

medUV.ino

Arduino

The medUV function is the device's main screen, where it displays the intensity of ultraviolet rays.
As you know, the most well-known solar radiation is the visible range. However, two other very important ranges are ultraviolet (UV) and infrared (IR). The ultraviolet range is more energetic than light (it has a shorter wavelength) and therefore penetrates the skin more deeply, causing burns when exposed to solar radiation for too long. The Ultraviolet Index (UVI) is a measure of the intensity of ultraviolet (UV) radiation incident on the Earth's surface and relevant to its effects on human skin. The UVI represents the maximum daily value of ultraviolet radiation, that is, during the period corresponding to solar noon, the time of maximum solar radiation intensity. The UVI is always displayed for clear sky conditions, that is, for the absence of clouds, which, in most cases, represents the maximum radiation intensity. This index is presented as an integer. According to the World Health Organization (WHO), UVI is grouped according to its intensity and duration of sun exposure. The ultraviolet index (UVI) categories are: Low (<2), Moderate (3 to 5), High (6 to 7), Very High (8 to 10), and Extreme (>11).
The UV sensor used in this project measures a wavelength range from 200 to 370nm, with an analog output of 0 to 1V, or 0 to 1000mV. Therefore, comparing the distribution of values received by the sensor and the UVI scale, we obtain:
a) Values below 226mV, UVI=0;
b) Values between 227 and 317mV, UVI=1;
c) Values between 318 and 407mV, UVI=2;
d) Values between 408 and 502mV, UVI=3;
e) Values between 503 and 605 mV, UVI=4;
f) Values between 606 and 695 mV, UVI=5;
g) Values between 696 and 794 mV, UVI=6;
h) Values between 795 and 880 mV, UVI=7;
i) Values between 881 and 975 mV, UVI=8;
j) Values between 976 and 1078 mV, UVI=9;
k) Values above 1079 mV, UVI=10 and 11.
For the iconic characterization of the UVI, icons were established with the drawing of the sun, with various expressions, as shown in the attached figures, and the initial letters of the categories, in Portuguese.
Thus, on the main screen, we have the UVI classification by number, on the left, and the representation by icon on the right.
At the top we have the representation, from left to right, of the battery percentage, the battery icon and the number of Volts remaining.
Os ícones foram feitos com a ajuda do site: https://javl.github.io/image2cpp/
