Lab 7: Maze Solver

Prerequisites

• Lab 6: IR Sensors and Line Following

All the hardware and software needed for this lab have been covered in the main project page, so they will not be listed here.

Introduction

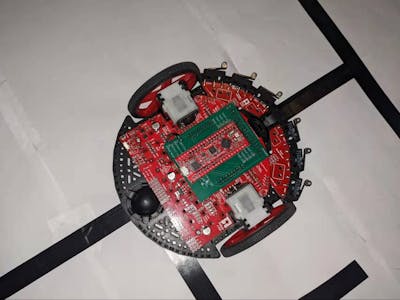

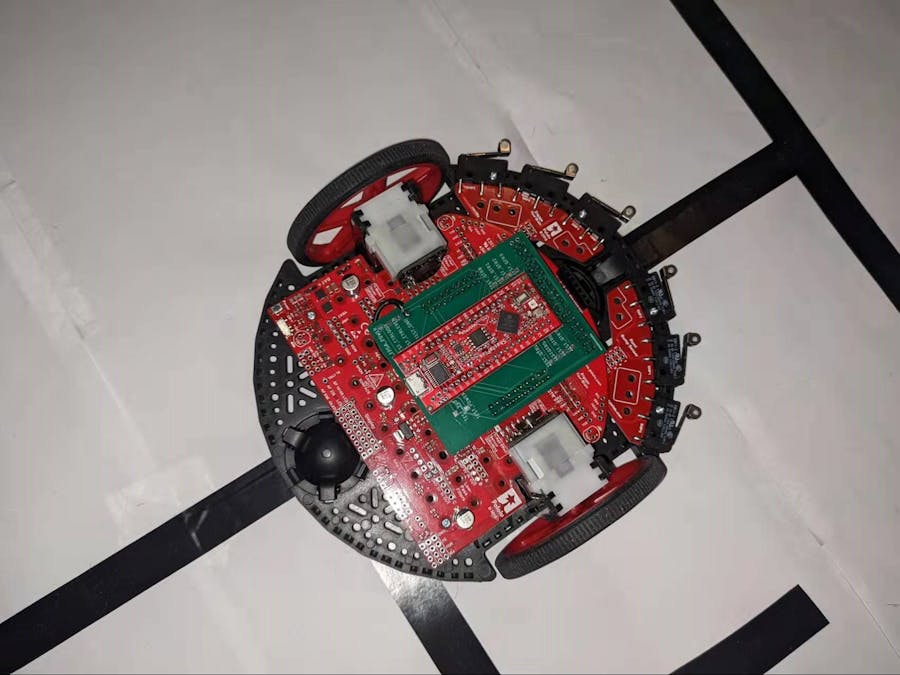

In this project we will build a maze solver using the TI-RSLK robotics kit, the IR line sensor, and a WebFPGA. To simplify the control logic, we will only target a specific type of mazes: the "perfect" ones.

Perfect Maze

A perfect maze contains no loops. Therefore, they can be solved using the right-hand rule, in which one would keep the right hand on the wall until an exit (a.k.a. the goal) is found. Our robot has no hand (unless you consider the bumper switches as "hands"), therefore we will use another strategy: turning right whenever possible. Note that this strategy is actually equivalent to the right-hand rule.

In this example, the maze would be drawn using black lines, and the goal would be a special pattern (three parallel lines). Alternatively, you could use the bumper switch to detect the goal (e.g., by placing a water bottle there).

Recognizing Patterns

Recall that the line sensor is essentially 8 infrared (IR) sensors in a row. These IR sensors would respond differently to black and white surface. For the sake of this discussion, we assume that the IR sensor would be 1 if it sees black, or 0 if it sees white. For example, the pattern

Sensor Index | 7 | 6 | 5 | 4 | 3 | 2 | 1 | 0 |
-------------|---|---|---|---|---|---|---|---|
Reading      | 0 | 0 | 0 | 1 | 1 | 0 | 0 | 0 |

would mean that only the two IR sensors in the middle are directly above a black line. This is also the "forward pattern" which indicates that the car can safely move forward.

We want the car to turn right whenever possible, but how would the robot know when it is possible to turn? The answer is when the line sensor sees a "right-turn pattern":

Sensor Index | 7 | 6 | 5 | 4 | 3 | 2 | 1 | 0 |
-------------|---|---|---|---|---|---|---|---|
Reading      | X | X | X | 1 | 1 | 1 | 1 | 1 |
(Note: The X's in this pattern means don't cares)

If we would like to have more tolerance, we could even consider IR sensor 4 and 3 to be don't cares. We encourage you to try out different patterns here to see which one works best in your case.

Similarly, there is the "left-turn only pattern" which we would like to ignore (because our maze-solving strategy states that the car should turn right whenever possible while ignoring left turns).

Sensor Index | 7 | 6 | 5 | 4 | 3 | 2 | 1 | 0 |
-------------|---|---|---|---|---|---|---|---|
Reading      | 1 | 1 | 1 | 1 | 1 | 0 | 0 | 0 |

If the car happens to reach the end of the road (the "empty pattern": all sensor readings are 0's), then we want the car to make a 180-degree turn. If a left turn was ignored right before reaching the end of the road, it would now become a right turn which the robot would take based on our strategy. However, Because the line sensor is not installed right at the centor of the car, the sensor would likely only see a "forward pattern" after the 180-degree turn is complete, even if a right turn is actually possible. To avoid missing these right turns, we want the robot to move backward a little to look for a "right-turn pattern".

To save you some work, we have found out that if we rotate the left wheel forward by 270 degrees, and the right wheel backward by 90 degrees, the car would make a near-perfect 90-degree right turn while staying on track. A 180-degree turn can be achieved by rotating one wheel forward by 360 degrees and the other one backward by 360 degrees.

Line Following

With pattern recognition and the corresponding control logic implemented, the robot should be able to solve small perfect mazes. However, it will likely fail when given large mazes because the non-perfect turns and initial position could mess up the direction. We could solve this problem by reusing the line-following control logic used in Lab 6. In the code example on GitHub, we made a state machine as the controller, there are two "LINE_FOLLOW" states designed for pattern recognition and direction adjustments.

Code Example

Before starting to program your own maze solver, feel free to try out the code example on GitHub. When powered on, the system needs to be initialized before it can properly recognize the black line. Place the car such that only some of the IR sensors cover the black line while the rest are above the white surface (background), then press and of the bump switches. After initialization, press the white button on the FPGA to start the car.

No starter code is provided this time because there are too many design choices one could make when implementing the control logic.
