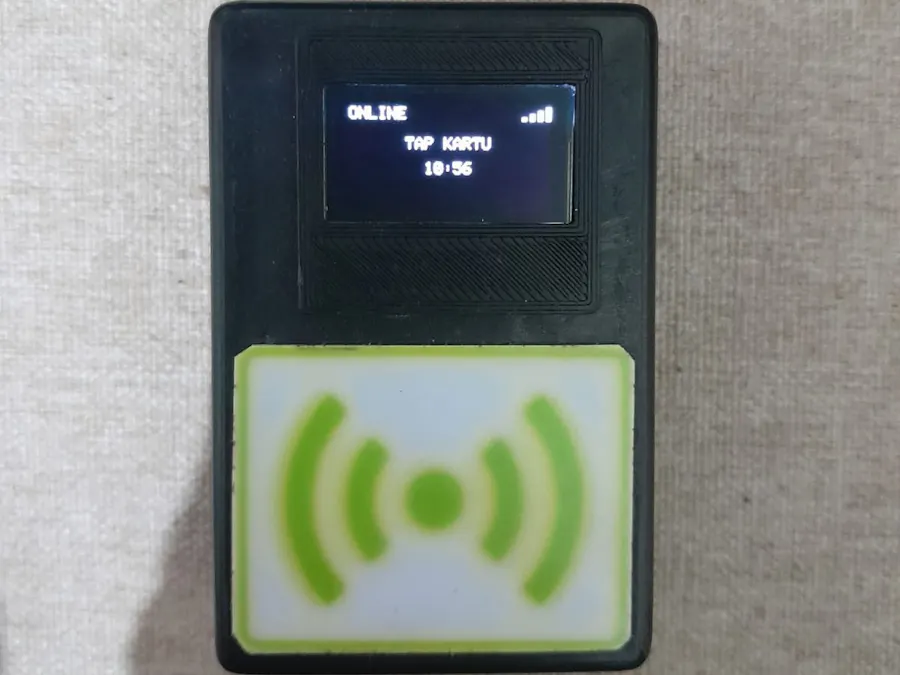

Smart Attendance Machine with ESP32-C3 & RFID (Hybrid IoT)

#include <WiFi.h>
#include <WiFiClientSecure.h>
#include <HTTPClient.h>
#include <Wire.h>
#include <MFRC522.h>
#include <SPI.h>
#include <Adafruit_SSD1306.h>
#include <ArduinoJson.h>
#include <time.h>
#include <SdFat.h>
#include <esp_mac.h>
#include <esp_efuse_table.h>
#include <esp_task_wdt.h>
#include <Preferences.h>
#include <Update.h>
#include <esp_ota_ops.h>
#include <WebServer.h>
#include <DNSServer.h>
#include <mbedtls/aes.h>
#include <mbedtls/md.h>
#include <freertos/FreeRTOS.h>
#include <freertos/task.h>
#include <freertos/semphr.h>
#include <freertos/queue.h>

#define PIN_SPI_SCK 4
#define PIN_SPI_MOSI 6
#define PIN_SPI_MISO 5
#define PIN_RFID_SS 7
#define PIN_RFID_RST 3
#define PIN_SD_CS 1
#define PIN_OLED_SDA 8
#define PIN_OLED_SCL 9
#define PIN_BUZZER 10
#define PIN_BOOT 9
#define SCREEN_WIDTH 128
#define SCREEN_HEIGHT 64
#define DEBOUNCE_TIME 150UL
#define SYNC_INTERVAL 300000UL
#define MAX_OFFLINE_AGE 31536000UL
#define MIN_REPEAT_INTERVAL 1800UL
#define TIME_SYNC_INTERVAL 1800000UL
#define RECONNECT_INTERVAL 60000UL
#define RECONNECT_TIMEOUT 20000UL
#define DISPLAY_UPDATE_INTERVAL 1000UL
#define PERIODIC_CHECK_INTERVAL 1000UL
#define OLED_SCHEDULE_CHECK_INTERVAL 60000UL
#define RFID_FEEDBACK_DISPLAY_MS 1800UL
#define SD_REDETECT_INTERVAL 30000UL
#define MAX_TIME_ESTIMATE_AGE 43200UL
#define OTA_CHECK_INTERVAL 30000UL
#define RFID_DB_CHECK_INTERVAL 30000UL
#define TELEMETRY_INTERVAL 300000UL
#define REMOTE_CONFIG_INTERVAL 600000UL
#define FACTORY_RESET_HOLD_MS 5000UL
#define PROVISIONING_TIMEOUT_MS 300000UL
#define WDT_TIMEOUT_SEC 60
#define WDT_SYNC_TIMEOUT_MS 180000UL
#define WDT_NORMAL_TIMEOUT_MS 90000UL
#define SD_MUTEX_TIMEOUT_MS 5000UL
#define MAX_RECORDS_PER_FILE 25
#define MAX_QUEUE_FILES 60000
#define MAX_DUPLICATE_CHECK_FILES 3
#define MAX_DUPLICATE_CHECK_LINES (MAX_RECORDS_PER_FILE + 1)
#define QUEUE_WARN_THRESHOLD 48000
#define METADATA_FILE "/queue_meta.txt"
#define MAX_SYNC_FILES_PER_CYCLE 5
#define MAX_SYNC_RETRIES 2
#define SYNC_RETRY_DELAY_MS 2000UL
#define FAILED_LOG_MAX_LINES 500
#define NVS_MAX_RECORDS 40
#define NVS_NAMESPACE "presensi"
#define NVS_KEY_COUNT "nvs_count"
#define NVS_KEY_PREFIX "rec_"
#define NVS_KEY_LAST_TIME "last_time"
#define NVS_KEY_RFID_VER "rfid_db_ver"
#define NVS_KEY_SCAN_DATE "scan_date"
#define NVS_KEY_SCAN_COUNT "scan_count"
#define NVS_NS_CONFIG "cfg"
#define NVS_KEY_SSID1 "ssid1"
#define NVS_KEY_PASS1 "pass1"
#define NVS_KEY_SSID2 "ssid2"
#define NVS_KEY_PASS2 "pass2"
#define NVS_KEY_SSID3 "ssid3"
#define NVS_KEY_PASS3 "pass3"
#define NVS_KEY_APIKEY "apikey"
#define NVS_KEY_DEVNAME "devname"
#define NVS_KEY_APIURL "apiurl"
#define NVS_KEY_CFG_SLP_S "slp_s"
#define NVS_KEY_CFG_SLP_E "slp_e"
#define NVS_KEY_CFG_DIM_S "dim_s"
#define NVS_KEY_CFG_DIM_E "dim_e"
#define NVS_KEY_CFG_SYNCIV "sync_iv"
#define NVS_KEY_CFG_OTAIV "ota_iv"
#define NVS_KEY_PROVISIONED "prov"
#define NVS_KEY_LAST_RFID "last_rfid"
#define NVS_KEY_LAST_SCAN_T "last_scan_t"
#define RFID_DB_FILE "/rfid_db.txt"
#define RFID_CACHE_MAX 5000
#define ADMIN_RFID_FILE "/admin_rfid.txt"
#define SLEEP_START_HOUR_DEFAULT 18
#define SLEEP_END_HOUR_DEFAULT 5
#define OLED_DIM_START_HOUR_DEFAULT 8
#define OLED_DIM_END_HOUR_DEFAULT 12
#define GMT_OFFSET_SEC 25200L
#define SIGNAL_THRESHOLD_WEAK -85
#define SIGNAL_THRESHOLD_CRITICAL -90
#define FIRMWARE_VERSION "2.3.0"
#define PROV_AP_SSID "ATTENDANCE MACHINE"
#define PROV_AP_PASS "P@ssw0rd"
#define PROV_DNS_PORT 53
#define CRC8_POLY 0x07
#define TASK_RFID_STACK 8192
#define TASK_SYNC_STACK 8192
#define TASK_DISPLAY_STACK 12288
#define TASK_RFID_PRIORITY 3
#define TASK_SYNC_PRIORITY 2
#define TASK_DISPLAY_PRIORITY 1
#define RFID_QUEUE_LEN 8
#define DEEP_SLEEP_TASK_WAIT_MS 5000UL
#define DEVICE_NAME_MAX_LEN 31

static const char NTP_SERVER_1[] PROGMEM = "pool.ntp.org";
static const char NTP_SERVER_2[] PROGMEM = "time.google.com";
static const char NTP_SERVER_3[] PROGMEM = "id.pool.ntp.org";

RTC_DATA_ATTR time_t lastValidTime = 0;
RTC_DATA_ATTR bool timeWasSynced = false;
RTC_DATA_ATTR unsigned long bootTime = 0;
RTC_DATA_ATTR bool bootTimeSet = false;
RTC_DATA_ATTR int currentQueueFile = 0;
RTC_DATA_ATTR bool rtcQueueFileValid = false;
RTC_DATA_ATTR uint64_t sleepDurationSeconds = 0;

enum ReconnectState
{
  RECONNECT_IDLE,
  RECONNECT_INIT,
  RECONNECT_TRYING,
  RECONNECT_SUCCESS,
  RECONNECT_FAILED
};
enum SaveResult
{
  SAVE_OK,
  SAVE_DUPLICATE,
  SAVE_QUEUE_FULL,
  SAVE_SD_ERROR
};
enum SyncFileResult
{
  SYNC_FILE_OK,
  SYNC_FILE_EMPTY,
  SYNC_FILE_HTTP_FAIL,
  SYNC_FILE_NO_WIFI
};

struct Timers
{
  unsigned long lastScan, lastSync, lastTimeSync, lastReconnect;
  unsigned long lastDisplayUpdate, lastPeriodicCheck, lastOLEDScheduleCheck;
  unsigned long lastSDRedetect, lastNvsSync, lastOtaCheck, lastRfidDbCheck;
  unsigned long lastTelemetry, lastRemoteConfig, lastFactoryCheck;
};
struct DisplayState
{
  bool isOnline;
  char time[6];
  int pendingRecords;
  int wifiSignal;
};
struct OfflineRecord
{
  char rfid[11];
  char timestamp[20];
  char deviceId[20];
  unsigned long unixTime;
};
struct SyncState
{
  int currentFile;
  bool inProgress;
  unsigned long startTime;
  int filesProcessed;
  int filesSucceeded;
};
struct RfidFeedback
{
  bool active;
  unsigned long shownAt;
  bool wasOledOff;
};
struct OtaState
{
  bool updateAvailable;
  char version[16];
  char url[128];
  char md5[36];
};
struct RfidScanEvent
{
  uint8_t uid[10];
  uint8_t uidLen;
};
struct RuntimeConfig
{
  int sleepStartHour;
  int sleepEndHour;
  int dimStartHour;
  int dimEndHour;
  unsigned long syncIntervalMs;
  unsigned long otaCheckIntervalMs;
};
struct EncryptedCredential
{
  uint8_t iv[16];
  uint8_t data[48];
  uint8_t len;
};

Adafruit_SSD1306 display(SCREEN_WIDTH, SCREEN_HEIGHT, &Wire, -1);
MFRC522 rfidReader(PIN_RFID_SS, PIN_RFID_RST);
SdFat sd;
FsFile file;
Preferences prefs;
WebServer provServer(80);
DNSServer dnsServer;

Timers timers = {};
DisplayState currentDisplay = {false, "00:00", 0, 0};
DisplayState previousDisplay = {false, "--:--", -1, -1};
SyncState syncState = {0, false, 0, 0, 0};
RfidFeedback rfidFeedback = {false, 0, false};
OtaState otaState = {false, "", "", ""};
RuntimeConfig rtCfg = {
    SLEEP_START_HOUR_DEFAULT, SLEEP_END_HOUR_DEFAULT,
    OLED_DIM_START_HOUR_DEFAULT, OLED_DIM_END_HOUR_DEFAULT,
    SYNC_INTERVAL, OTA_CHECK_INTERVAL};

char lastUID[11] = "";
char deviceId[20] = "";
char deviceName[DEVICE_NAME_MAX_LEN + 1] = "";
bool isOnline = false;
bool sdCardAvailable = false;
bool oledIsOn = true;
bool isProvisioned = false;
volatile bool wdtExtended = false;
portMUX_TYPE wdtMux = portMUX_INITIALIZER_UNLOCKED;
int cachedPendingRecords = 0;
bool pendingCacheDirty = true;
int cachedQueueFileCount = 0;

ReconnectState reconnectState = RECONNECT_IDLE;
unsigned long reconnectStartTime = 0;
int currentSsidIdx = 0;

char rfidCacheFlat[RFID_CACHE_MAX][11];
int rfidCacheCount = 0;
bool rfidCacheLoaded = false;
bool rfidDbValid = false;
char adminRfidList[5][11];
int adminRfidCount = 0;

TaskHandle_t hTaskRfid = nullptr;
TaskHandle_t hTaskSync = nullptr;
TaskHandle_t hTaskDisplay = nullptr;
TaskHandle_t hTaskLoop = nullptr;
SemaphoreHandle_t xSdMutex = nullptr;
SemaphoreHandle_t xDisplayMutex = nullptr;
QueueHandle_t xRfidQueue = nullptr;
volatile bool sleepRequested = false;

static uint8_t crc8(const uint8_t *data, size_t len)
{
  uint8_t crc = 0x00;
  for (size_t i = 0; i < len; i++)
  {
    crc ^= data[i];
    for (int b = 0; b < 8; b++)
      crc = (crc & 0x80) ? ((crc << 1) ^ CRC8_POLY) : (crc << 1);
  }
  return crc;
}

static uint8_t recordCrc8(const char *rfid, unsigned long t)
{
  uint8_t buf[14];
  memcpy(buf, rfid, 10);
  buf[10] = (t >> 24) & 0xFF;
  buf[11] = (t >> 16) & 0xFF;
  buf[12] = (t >> 8) & 0xFF;
  buf[13] = (t) & 0xFF;
  return crc8(buf, 14);
}

static void deriveAesKey(uint8_t key[16])
{
  Serial.println("[AES] Deriving AES key from eFuse MAC...");
  uint8_t mac[6];
  esp_efuse_mac_get_default(mac);
  uint8_t seed[22];
  memcpy(seed, mac, 6);
  const char *salt = "ZEDLABS_PRESENSI";
  memcpy(seed + 6, salt, 16);
  mbedtls_md_context_t ctx;
  mbedtls_md_init(&ctx);
  mbedtls_md_setup(&ctx, mbedtls_md_info_from_type(MBEDTLS_MD_SHA256), 0);
  mbedtls_md_starts(&ctx);
  mbedtls_md_update(&ctx, seed, 22);
  uint8_t hash[32];
  mbedtls_md_finish(&ctx, hash);
  mbedtls_md_free(&ctx);
  memcpy(key, hash, 16);
  Serial.println("[AES] Key derivation done.");
}

static bool encryptString(const char *plain, EncryptedCredential &out)
{
  Serial.printf("[ENC] Encrypting string (len=%d)...\n", strlen(plain));
  uint8_t key[16];
  deriveAesKey(key);
  size_t plen = strlen(plain);
  if (plen > 47)
  {
    Serial.println("[ENC] ERROR: string too long (>47)");
    return false;
  }
  uint8_t buf[48] = {};
  memcpy(buf, plain, plen);
  out.len = (uint8_t)plen;
  esp_fill_random(out.iv, 16);
  mbedtls_aes_context aes;
  mbedtls_aes_init(&aes);
  mbedtls_aes_setkey_enc(&aes, key, 128);
  uint8_t iv[16];
  memcpy(iv, out.iv, 16);
  mbedtls_aes_crypt_cbc(&aes, MBEDTLS_AES_ENCRYPT, 48, iv, buf, out.data);
  mbedtls_aes_free(&aes);
  Serial.println("[ENC] Encrypt OK.");
  return true;
}

static bool decryptString(const EncryptedCredential &in, char *plain, size_t maxLen)
{
  Serial.println("[DEC] Decrypting credential...");
  uint8_t key[16];
  deriveAesKey(key);
  uint8_t buf[48];
  uint8_t iv[16];
  memcpy(iv, in.iv, 16);
  mbedtls_aes_context aes;
  mbedtls_aes_init(&aes);
  mbedtls_aes_setkey_dec(&aes, key, 128);
  mbedtls_aes_crypt_cbc(&aes, MBEDTLS_AES_DECRYPT, 48, iv, in.data, buf);
  mbedtls_aes_free(&aes);
  size_t copyLen = (in.len < maxLen - 1) ? in.len : maxLen - 1;
  memcpy(plain, buf, copyLen);
  plain[copyLen] = '\0';
  Serial.println("[DEC] Decrypt OK.");
  return true;
}

static void saveEncryptedNvs(const char *ns, const char *key, const char *plain)
{
  Serial.printf("[NVS] saveEncrypted ns=%s key=%s\n", ns, key);
  EncryptedCredential ec;
  if (!encryptString(plain, ec))
  {
    Serial.println("[NVS] saveEncrypted FAILED (encrypt error)");
    return;
  }
  prefs.begin(ns, false);
  prefs.putBytes(key, &ec, sizeof(EncryptedCredential));
  prefs.end();
  Serial.println("[NVS] saveEncrypted done.");
}

static bool loadEncryptedNvs(const char *ns, const char *key, char *plain, size_t maxLen)
{
  Serial.printf("[NVS] loadEncrypted ns=%s key=%s\n", ns, key);
  prefs.begin(ns, true);
  size_t len = prefs.getBytesLength(key);
  if (len != sizeof(EncryptedCredential))
  {
    prefs.end();
    Serial.printf("[NVS] loadEncrypted FAILED: len mismatch (%d vs %d)\n", len, sizeof(EncryptedCredential));
    return false;
  }
  EncryptedCredential ec;
  prefs.getBytes(key, &ec, sizeof(EncryptedCredential));
  prefs.end();
  bool ok = decryptString(ec, plain, maxLen);
  Serial.printf("[NVS] loadEncrypted result=%d\n", ok);
  return ok;
}

struct WifiCredential
{
  char ssid[32];
  char pass[64];
};

static WifiCredential wifiCreds[3];

static char apiKey[48] = "";

static char apiBaseUrl[80] = "https://presensi.zedlabs.id";

static void loadCredentials()
{
  Serial.println("[CFG] Loading credentials from NVS...");
  loadEncryptedNvs(NVS_NS_CONFIG, NVS_KEY_SSID1, wifiCreds[0].ssid, sizeof(wifiCreds[0].ssid));
  loadEncryptedNvs(NVS_NS_CONFIG, NVS_KEY_PASS1, wifiCreds[0].pass, sizeof(wifiCreds[0].pass));
  loadEncryptedNvs(NVS_NS_CONFIG, NVS_KEY_SSID2, wifiCreds[1].ssid, sizeof(wifiCreds[1].ssid));
  loadEncryptedNvs(NVS_NS_CONFIG, NVS_KEY_PASS2, wifiCreds[1].pass, sizeof(wifiCreds[1].pass));
  loadEncryptedNvs(NVS_NS_CONFIG, NVS_KEY_SSID3, wifiCreds[2].ssid, sizeof(wifiCreds[2].ssid));
  loadEncryptedNvs(NVS_NS_CONFIG, NVS_KEY_PASS3, wifiCreds[2].pass, sizeof(wifiCreds[2].pass));
  loadEncryptedNvs(NVS_NS_CONFIG, NVS_KEY_APIKEY, apiKey, sizeof(apiKey));
  loadEncryptedNvs(NVS_NS_CONFIG, NVS_KEY_DEVNAME, deviceName, sizeof(deviceName));

  char tmpUrl[80] = "";
  if (loadEncryptedNvs(NVS_NS_CONFIG, NVS_KEY_APIURL, tmpUrl, sizeof(tmpUrl)))
  {
    if (strlen(tmpUrl) > 0)
    {
      int ul = strlen(tmpUrl);
      while (ul > 0 && tmpUrl[ul - 1] == '/')
        tmpUrl[--ul] = '\0';
      strncpy(apiBaseUrl, tmpUrl, sizeof(apiBaseUrl) - 1);
      apiBaseUrl[sizeof(apiBaseUrl) - 1] = '\0';
    }
  }

  prefs.begin(NVS_NS_CONFIG, true);
  int slpS = prefs.getInt(NVS_KEY_CFG_SLP_S, SLEEP_START_HOUR_DEFAULT);
  int slpE = prefs.getInt(NVS_KEY_CFG_SLP_E, SLEEP_END_HOUR_DEFAULT);
  int dimS = prefs.getInt(NVS_KEY_CFG_DIM_S, OLED_DIM_START_HOUR_DEFAULT);
  int dimE = prefs.getInt(NVS_KEY_CFG_DIM_E, OLED_DIM_END_HOUR_DEFAULT);
  prefs.end();

  auto clampHour = [](int h, int def)
  {
    return (h >= 0 && h <= 23) ? h : def;
  };
  rtCfg.sleepStartHour = clampHour(slpS, SLEEP_START_HOUR_DEFAULT);
  rtCfg.sleepEndHour = clampHour(slpE, SLEEP_END_HOUR_DEFAULT);
  rtCfg.dimStartHour = clampHour(dimS, OLED_DIM_START_HOUR_DEFAULT);
  rtCfg.dimEndHour = clampHour(dimE, OLED_DIM_END_HOUR_DEFAULT);

  Serial.printf("[CFG] apiBaseUrl: %s\n", apiBaseUrl);
  Serial.printf("[CFG] sleep: %d-%d, dim: %d-%d\n",
                rtCfg.sleepStartHour, rtCfg.sleepEndHour,
                rtCfg.dimStartHour, rtCfg.dimEndHour);
  Serial.println("[CFG] Credentials loaded.");
}

static void saveCredential(const char *key, const char *val)
{
  saveEncryptedNvs(NVS_NS_CONFIG, key, val);
}

static void markProvisioned()
{
  Serial.println("[PROV] Marking device as provisioned...");
  prefs.begin(NVS_NS_CONFIG, false);
  prefs.putBool(NVS_KEY_PROVISIONED, true);
  prefs.end();
  isProvisioned = true;
  Serial.println("[PROV] Device marked provisioned.");
}

static bool checkProvisioned()
{
  prefs.begin(NVS_NS_CONFIG, true);
  bool v = prefs.getBool(NVS_KEY_PROVISIONED, false);
  prefs.end();
  Serial.printf("[PROV] checkProvisioned=%d\n", v);
  return v;
}

static WiFiClientSecure _httpClient;

static WiFiClientSecure &getHttpClient()
{
  _httpClient.setInsecure();
  _httpClient.setHandshakeTimeout(10);
  return _httpClient;
}

inline bool acquireSD(TickType_t timeout = pdMS_TO_TICKS(SD_MUTEX_TIMEOUT_MS))
{
  return xSemaphoreTake(xSdMutex, timeout) == pdTRUE;
}

inline void releaseSD()
{
  xSemaphoreGive(xSdMutex);
}

inline void selectSD()
{
  digitalWrite(PIN_RFID_SS, HIGH);
  digitalWrite(PIN_SD_CS, LOW);
}

inline void deselectSD()
{
  digitalWrite(PIN_SD_CS, HIGH);
}

bool isWifiConnected()
{
  return WiFi.status() == WL_CONNECTED;
}

bool isSignalWeak()
{
  return !isWifiConnected() || WiFi.RSSI() < SIGNAL_THRESHOLD_WEAK;
}

bool isSignalCritical()
{
  return !isWifiConnected() || WiFi.RSSI() < SIGNAL_THRESHOLD_CRITICAL;
}

void extendWdtForSync()
{
  if (!hTaskRfid && !hTaskSync && !hTaskDisplay)
  {
    Serial.println("[WDT] Tasks not ready, skip extend.");
    return;
  }
  portENTER_CRITICAL(&wdtMux);
  if (wdtExtended)
  {
    portEXIT_CRITICAL(&wdtMux);
    return;
  }
  wdtExtended = true;
  portEXIT_CRITICAL(&wdtMux);

  if (hTaskLoop)
    esp_task_wdt_delete(hTaskLoop);
  if (hTaskRfid)
    esp_task_wdt_delete(hTaskRfid);
  if (hTaskSync)
    esp_task_wdt_delete(hTaskSync);
  if (hTaskDisplay)
    esp_task_wdt_delete(hTaskDisplay);

  TaskHandle_t idle0 = xTaskGetIdleTaskHandleForCore(0);
  if (idle0)
    esp_task_wdt_delete(idle0);

  esp_task_wdt_deinit();

  const esp_task_wdt_config_t cfg = {
      .timeout_ms = (uint32_t)WDT_SYNC_TIMEOUT_MS,
      .idle_core_mask = 0,
      .trigger_panic = true};
  esp_task_wdt_init(&cfg);

  if (hTaskLoop)
    esp_task_wdt_add(hTaskLoop);
  if (hTaskRfid)
    esp_task_wdt_add(hTaskRfid);
  if (hTaskSync)
    esp_task_wdt_add(hTaskSync);
  if (hTaskDisplay)
    esp_task_wdt_add(hTaskDisplay);

  Serial.println("[WDT] Extended to 180s for sync/OTA.");
}

void restoreWdtNormal()
{
  if (!hTaskRfid && !hTaskSync && !hTaskDisplay)
  {
    Serial.println("[WDT] Tasks not ready, skip restore.");
    return;
  }
  portENTER_CRITICAL(&wdtMux);
  if (!wdtExtended)
  {
    portEXIT_CRITICAL(&wdtMux);
    return;
  }
  wdtExtended = false;
  portEXIT_CRITICAL(&wdtMux);

  if (hTaskLoop)
    esp_task_wdt_delete(hTaskLoop);
  if (hTaskRfid)
    esp_task_wdt_delete(hTaskRfid);
  if (hTaskSync)
    esp_task_wdt_delete(hTaskSync);
  if (hTaskDisplay)
    esp_task_wdt_delete(hTaskDisplay);

  TaskHandle_t idle0 = xTaskGetIdleTaskHandleForCore(0);
  if (idle0)
    esp_task_wdt_delete(idle0);

  esp_task_wdt_deinit();

  const esp_task_wdt_config_t cfg = {
      .timeout_ms = WDT_NORMAL_TIMEOUT_MS,
      .idle_core_mask = 0,
      .trigger_panic = true};
  esp_task_wdt_init(&cfg);

  if (hTaskLoop)
    esp_task_wdt_add(hTaskLoop);
  if (hTaskRfid)
    esp_task_wdt_add(hTaskRfid);
  if (hTaskSync)
    esp_task_wdt_add(hTaskSync);
  if (hTaskDisplay)
    esp_task_wdt_add(hTaskDisplay);

  Serial.println("[WDT] Restored to 90s normal.");
}

void turnOffOLED()
{
  if (!oledIsOn)
    return;
  if (xSemaphoreTake(xDisplayMutex, pdMS_TO_TICKS(100)) == pdTRUE)
  {
    display.clearDisplay();
    display.display();
    display.ssd1306_command(SSD1306_DISPLAYOFF);
    oledIsOn = false;
    xSemaphoreGive(xDisplayMutex);
  }
}

void turnOnOLED()
{
  if (oledIsOn)
    return;
  if (xSemaphoreTake(xDisplayMutex, pdMS_TO_TICKS(100)) == pdTRUE)
  {
    display.ssd1306_command(SSD1306_DISPLAYON);
    oledIsOn = true;
    memset(previousDisplay.time, 0xFF, sizeof(previousDisplay.time));
    previousDisplay.pendingRecords = -1;
    previousDisplay.wifiSignal = -1;
    previousDisplay.isOnline = !currentDisplay.isOnline;
    xSemaphoreGive(xDisplayMutex);
  }
}

void showOLED(const __FlashStringHelper *l1, const char *l2)
{
  if (!oledIsOn)
    return;
  if (xSemaphoreTake(xDisplayMutex, pdMS_TO_TICKS(200)) != pdTRUE)
    return;
  display.clearDisplay();
  display.setTextSize(1);
  display.setTextColor(WHITE);
  int16_t x, y;
  uint16_t w, h;
  display.getTextBounds(l1, 0, 0, &x, &y, &w, &h);
  display.setCursor((SCREEN_WIDTH - w) / 2, 10);
  display.println(l1);
  display.getTextBounds(l2, 0, 0, &x, &y, &w, &h);
  display.setCursor((SCREEN_WIDTH - w) / 2, 30);
  display.println(l2);
  display.display();
  xSemaphoreGive(xDisplayMutex);
}

void showOLED(const __FlashStringHelper *l1, const __FlashStringHelper *l2)
{
  char buf[32];
  strncpy_P(buf, (const char *)l2, 31);
  buf[31] = '\0';
  showOLED(l1, buf);
}

void showProgress(const __FlashStringHelper *msg, int ms)
{
  if (!oledIsOn)
    return;
  if (xSemaphoreTake(xDisplayMutex, pdMS_TO_TICKS(200)) != pdTRUE)
    return;
  const int step = 8, total = 80;
  int perStep = ms / (total / step);
  int startX = (SCREEN_WIDTH - total) / 2;
  display.clearDisplay();
  display.setTextSize(1);
  display.setTextColor(WHITE);
  int16_t x, y;
  uint16_t w, h;
  display.getTextBounds(msg, 0, 0, &x, &y, &w, &h);
  display.setCursor((SCREEN_WIDTH - w) / 2, 20);
  display.println(msg);
  display.display();
  xSemaphoreGive(xDisplayMutex);
  for (int i = 0; i <= total; i += step)
  {
    esp_task_wdt_reset();
    if (xSemaphoreTake(xDisplayMutex, pdMS_TO_TICKS(50)) == pdTRUE)
    {
      display.fillRect(startX, 40, i, 4, WHITE);
      display.display();
      xSemaphoreGive(xDisplayMutex);
    }
    vTaskDelay(pdMS_TO_TICKS(perStep));
  }
  esp_task_wdt_reset();
  vTaskDelay(pdMS_TO_TICKS(300));
}

void playToneSuccess()
{
  for (int i = 0; i < 2; i++)
  {
    tone(PIN_BUZZER, 3000, 100);
    delay(150);
  }
  noTone(PIN_BUZZER);
}

void playToneError()
{
  for (int i = 0; i < 3; i++)
  {
    tone(PIN_BUZZER, 3000, 150);
    delay(200);
  }
  noTone(PIN_BUZZER);
}

void playToneNotify()
{
  tone(PIN_BUZZER, 3000, 100);
  delay(120);
  noTone(PIN_BUZZER);
}

void playStartupMelody()
{
  static const int mel[] = {2500, 3000, 2500, 3000};
  for (int i = 0; i < 4; i++)
  {
    tone(PIN_BUZZER, mel[i], 100);
    delay(150);
  }
  noTone(PIN_BUZZER);
}

void nvsSaveLastTime(time_t t)
{
  prefs.begin(NVS_NAMESPACE, false);
  prefs.putULong(NVS_KEY_LAST_TIME, (unsigned long)t);
  prefs.end();
}

time_t nvsLoadLastTime()
{
  prefs.begin(NVS_NAMESPACE, true);
  unsigned long t = prefs.getULong(NVS_KEY_LAST_TIME, 0);
  prefs.end();
  return (time_t)t;
}

void nvsBumpScanCount()
{
  prefs.begin(NVS_NAMESPACE, false);
  struct tm ti;
  time_t now = time(nullptr);
  localtime_r(&now, &ti);
  char today[9];
  snprintf(today, sizeof(today), "%04d%02d%02d", ti.tm_year + 1900, ti.tm_mon + 1, ti.tm_mday);
  char stored[9];
  strncpy(stored, prefs.getString(NVS_KEY_SCAN_DATE, "").c_str(), 8);
  stored[8] = '\0';
  int cnt = strcmp(stored, today) == 0 ? prefs.getInt(NVS_KEY_SCAN_COUNT, 0) : 0;
  prefs.putString(NVS_KEY_SCAN_DATE, today);
  prefs.putInt(NVS_KEY_SCAN_COUNT, cnt + 1);
  prefs.end();
}

int nvsGetScanCount()
{
  prefs.begin(NVS_NAMESPACE, true);
  int c = prefs.getInt(NVS_KEY_SCAN_COUNT, 0);
  prefs.end();
  return c;
}

int nvsGetCount()
{
  prefs.begin(NVS_NAMESPACE, true);
  int c = prefs.getInt(NVS_KEY_COUNT, 0);
  prefs.end();
  return c;
}

void nvsSetCount(int count)
{
  prefs.begin(NVS_NAMESPACE, false);
  prefs.putInt(NVS_KEY_COUNT, count);
  prefs.end();
}

bool nvsLoadRecord(int idx, OfflineRecord &rec)
{
  char key[16];
  snprintf(key, sizeof(key), "%s%d", NVS_KEY_PREFIX, idx);
  prefs.begin(NVS_NAMESPACE, true);
  size_t len = prefs.getBytesLength(key);
  if (len != sizeof(OfflineRecord))
  {
    prefs.end();
    return false;
  }
  prefs.getBytes(key, &rec, sizeof(OfflineRecord));
  prefs.end();
  return true;
}

bool nvsSaveRecord(int idx, const OfflineRecord &rec)
{
  char key[16];
  snprintf(key, sizeof(key), "%s%d", NVS_KEY_PREFIX, idx);
  prefs.begin(NVS_NAMESPACE, false);
  size_t w = prefs.putBytes(key, &rec, sizeof(OfflineRecord));
  prefs.end();
  return w == sizeof(OfflineRecord);
}

void nvsDeleteRecord(int idx)
{
  char key[16];
  snprintf(key, sizeof(key), "%s%d", NVS_KEY_PREFIX, idx);
  prefs.begin(NVS_NAMESPACE, false);
  prefs.remove(key);
  prefs.end();
}

bool nvsIsDuplicate(const char *rfid, unsigned long t)
{
  int cnt = nvsGetCount();
  for (int i = 0; i < cnt; i++)
  {
    OfflineRecord rec;
    if (!nvsLoadRecord(i, rec))
      continue;
    if (strcmp(rec.rfid, rfid) == 0 && t >= rec.unixTime && (t - rec.unixTime) < MIN_REPEAT_INTERVAL)
      return true;
  }
  return false;
}

bool nvsSaveToBuffer(const char *rfid, const char *ts, unsigned long t)
{
  int cnt = nvsGetCount();
  if (cnt >= NVS_MAX_RECORDS)
    return false;
  OfflineRecord rec;
  strncpy(rec.rfid, rfid, sizeof(rec.rfid) - 1);
  rec.rfid[sizeof(rec.rfid) - 1] = '\0';
  strncpy(rec.timestamp, ts, sizeof(rec.timestamp) - 1);
  rec.timestamp[sizeof(rec.timestamp) - 1] = '\0';
  strncpy(rec.deviceId, deviceId, sizeof(rec.deviceId) - 1);
  rec.deviceId[sizeof(rec.deviceId) - 1] = '\0';
  rec.unixTime = t;
  if (!nvsSaveRecord(cnt, rec))
    return false;
  nvsSetCount(cnt + 1);
  return true;
}

unsigned long nvsGetRfidDbVer()
{
  prefs.begin(NVS_NAMESPACE, true);
  unsigned long v = prefs.getULong(NVS_KEY_RFID_VER, 0);
  prefs.end();
  return v;
}

void nvsSetRfidDbVer(unsigned long ver)
{
  prefs.begin(NVS_NAMESPACE, false);
  prefs.putULong(NVS_KEY_RFID_VER, ver);
  prefs.end();
}

void nvsSaveLastScan(const char *rfid, unsigned long t)
{
  prefs.begin(NVS_NAMESPACE, false);
  prefs.putString(NVS_KEY_LAST_RFID, rfid);
  prefs.putULong(NVS_KEY_LAST_SCAN_T, t);
  prefs.end();
}

bool nvsIsRecentScan(const char *rfid, unsigned long t)
{
  prefs.begin(NVS_NAMESPACE, true);
  String storedRfid = prefs.getString(NVS_KEY_LAST_RFID, "");
  unsigned long storedT = prefs.getULong(NVS_KEY_LAST_SCAN_T, 0);
  prefs.end();
  if (storedRfid.length() == 0 || storedT == 0)
    return false;
  if (storedRfid != String(rfid))
    return false;
  return (t >= storedT && (t - storedT) < MIN_REPEAT_INTERVAL);
}

void clearRfidCache()
{
  memset(rfidCacheFlat, 0, sizeof(rfidCacheFlat));
  rfidCacheCount = 0;
  rfidCacheLoaded = false;
  rfidDbValid = false;
}

bool loadRfidCacheFromFileLocked()
{
  Serial.println("[RFID] Loading RFID cache from file...");
  clearRfidCache();
  if (!sd.exists(RFID_DB_FILE))
  {
    Serial.println("[RFID] rfid_db.txt not found.");
    return false;
  }
  FsFile f;
  if (!f.open(RFID_DB_FILE, O_RDONLY))
  {
    Serial.println("[RFID] Failed to open rfid_db.txt.");
    return false;
  }
  char line[12];
  int idx = 0;
  while (f.fgets(line, sizeof(line)) > 0 && idx < RFID_CACHE_MAX)
  {
    esp_task_wdt_reset();
    taskYIELD();
    int len = strlen(line);
    while (len > 0 && (line[len - 1] == '\n' || line[len - 1] == '\r'))
      line[--len] = '\0';
    if (len != 10)
      continue;
    bool ok = true;
    for (int j = 0; j < 10 && ok; j++)
      ok = isdigit((unsigned char)line[j]);
    if (!ok)
      continue;
    memcpy(rfidCacheFlat[idx], line, 10);
    rfidCacheFlat[idx][10] = '\0';
    idx++;
  }
  f.close();
  rfidCacheCount = idx;
  rfidCacheLoaded = (idx > 0);
  rfidDbValid = (idx > 0);
  Serial.printf("[RFID] Cache loaded: %d entries, valid=%d\n", rfidCacheCount, rfidDbValid);
  return rfidDbValid;
}

bool loadRfidCacheFromFile()
{
  if (!sdCardAvailable)
    return false;
  if (!acquireSD())
    return false;
  selectSD();
  bool ok = loadRfidCacheFromFileLocked();
  deselectSD();
  releaseSD();
  return ok;
}

bool isRfidInCache(const char *rfid)
{
  if (!rfidDbValid || !rfidCacheLoaded || rfidCacheCount == 0)
    return false;
  for (int i = 0; i < rfidCacheCount; i++)
    if (strcmp(rfidCacheFlat[i], rfid) == 0)
      return true;
  return false;
}

void loadAdminRfidList()
{
  Serial.println("[ADMIN] Loading admin RFID list...");
  adminRfidCount = 0;
  if (!sdCardAvailable)
  {
    Serial.println("[ADMIN] SD not available, skip.");
    return;
  }
  if (!acquireSD())
  {
    Serial.println("[ADMIN] SD mutex timeout.");
    return;
...

This file has been truncated, please download it to see its full contents.
