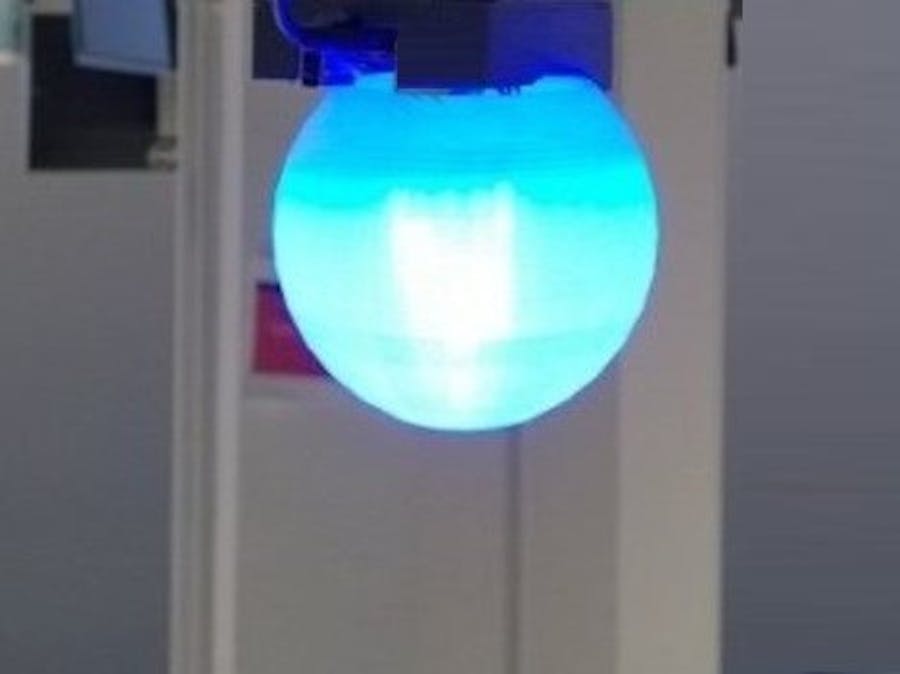

Automated Night Light

Buy electronic components with free shipping on utsource.net

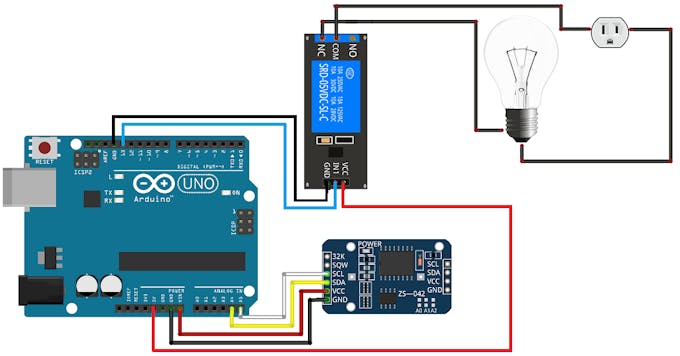

Step 1: Connect the Circuit as shown in the figure

Step 2: Upload the Code

Link to .ino (Arduino software File):

// Date and time functions using RX8025 RTC connected via I2C and Wire lib
#include <Wire.h>
#include "Sodaq_DS3231.h"
char weekDay[][4] = {"Sun", "Mon", "Tue", "Wed", "Thu", "Fri", "Sat" };
const int ledPin = 13;
void setup ()
{
   Serial.begin(57600);
   Wire.begin();
   rtc.begin();
}
uint32_t old_ts;
void loop ()
{
   DateTime now = rtc.now(); //get the current date-time
   uint32_t ts = now.getEpoch();
   if (old_ts == 0 || old_ts != ts) {
	old_ts = ts;
	Serial.print(now.year(), DEC);
	Serial.print('/');
	Serial.print(now.month(), DEC);
	Serial.print('/');
	Serial.print(now.date(), DEC);
	Serial.print(' ');
	Serial.print(now.hour(), DEC);
	Serial.print(':');
	Serial.print(now.minute(), DEC);
	Serial.print(':');
	Serial.print(now.second(), DEC);
	Serial.print(' ');
	Serial.print(weekDay[now.dayOfWeek()]);
	Serial.println();
	Serial.print("Seconds since Unix Epoch: ");
	Serial.print(ts, DEC);
	Serial.println();
   }
   delay(1000);
   if (now.hour() > 17 || now.hour() < 7)
   {
    digitalWrite(ledPin, HIGH);
   }
   else
   {
    digitalWrite(ledPin, LOW);
   }
}
