Created February 8, 2017

Thermal therapy

This project was based on therapeutic benefit through heat therapy in people suffering from idiopathic scoliosis

Things used in this project

Hardware components

Cypress PSoC Analog Coprocessor Pioneer Kit

Relay (generic)

lm35

General Purpose Transistor NPN

Texas Instruments General Purpose Quad Op-Amp

Software apps and online services

Cypress PSoC Creator

Story

Idiopathic Scoliosis

The term scoliosis was introduced by Hippocrates in which `` scoliosis '' means curved and then Galen defined it as an abnormal curvature of the spine. Kleinberg in 1922 spoke about idiopathic scoliosis used in patients who present this deformity, but this one is of unknown origin, that is, without a specific cause. Today idiopathic scoliosis (EI) is defined as a three-dimensional deformity of the spine that includes lateral deviation of more than 10 ° in the frontal plane, rotation in the transverse plane and inversion of lordosis in the sagittal plane, That is, there is a reduction or disappearance of physiological dorsal kyphosis and lumbar lordosis. The etiology of (EI) is not yet known although there are several theories making it a pathology of multifactorial origin.

My sister's anecdote of life

She was diagnosed with idiopathic scoliosis in 2016, his therapies were performed every day in the hospital an hour from our home and then resumed his studies in the afternoon, this required an economic expense for transportation and for the implementation of a product Therapeutic which is a pillow for the area of the coccyx, at the end of their therapies should be done at home so that unorthodox methods were used which made them difficult because we could not get exactly the right temperature and causing the cloth quickly Used for this zone will cool or be at a high temperature will cause a minor degree burn. This project was based on the therapeutic benefit through heat therapy in people suffering from idiopathic scoliosis to develop a better way individual therapies in the home and prevent the progression of this deformity, allowing the person suffering from this disease Get more comfort when doing your therapies allowing you to save time and money.

Therapeutic body treatment

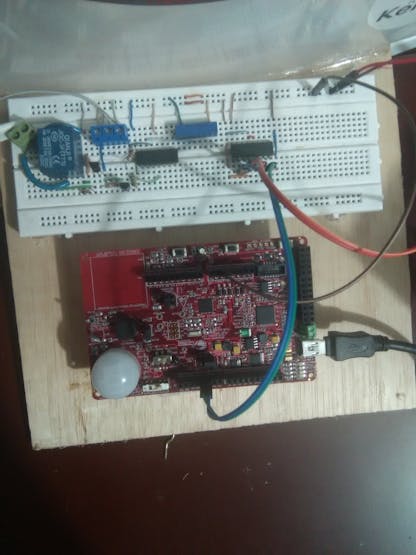

Based on the above described use of the Analog Coprocessor card, to control the access to a blanket at a predefined temperature in order to be able to develop a therapeutic treatment by thermal transfer for this we will use the Lm35 a voltage comparator an inverter and A relay to generate a feedback system to be able to reach the temperature in the blanket evenly, the motion sensor will enable the use of said blanket by means of a motor, in addition the light intensity in the environment will allow to activate a source of Light in this case a green led in low light conditions.

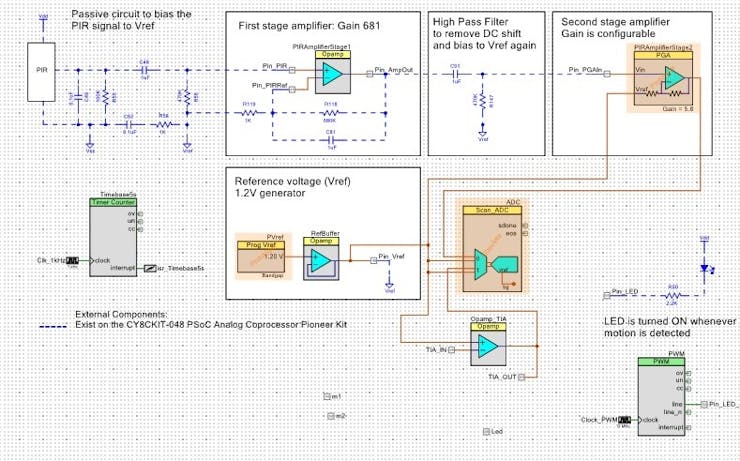

Later we will configure in the Psoc Creator the parameters of the blocks in the image it can be observed that basically the sample codes of the PIR and ALS sensors were added in order to work them simultaneously. The gain in the motion sensor was increased to make sure That the sensor detects with a higher sensitivity.

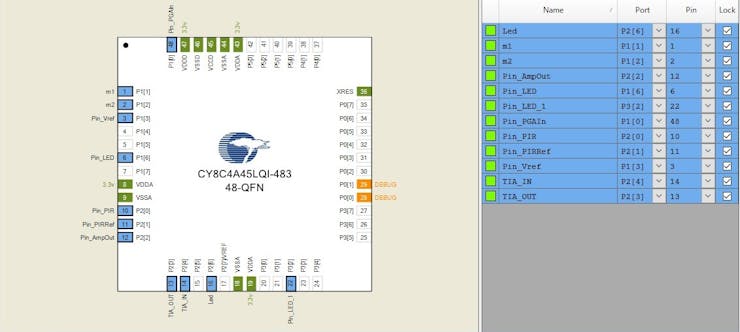

In the code you can see in more detail how these two sensors were connected and the parameters for their operation in the following image the corresponding pin assignment is observed.

In the video you can see how to detect the movement the card allows to open the cube to be able to have the towel for the therapy in addition the light sensor is configured to turn on the LED in low and medium light conditions and turn it off if it has A high percentage of light in the environment, it is to clarify that the system is self-regulated and the control for access to the towel is made by means of a bridge H.

Results

The PSoC Analog Coprocessor is a great tool and in fact has a great scope, in this project it showed a part of what it can get to do and it is tried to improve the system making a total use of the capacity of the card.

Code

Code

/* Header File Includes */
#include <project.h>

//ALS
/* IIR Filter coefficient */
/* Cut off frequency = fs/(2 * pi * iir_filter_constant).  In this project fs ~= 1 ksps.
This results in a cut-off frequency of 15.91 Hz.  We are using IIR filter as FIR requires
more order of filter to get the same cut-off frequency*/
#define FILTER_COEFFICIENT_ALS			        (10)

/* Constants for photodiode current calculation */
/* Scale Factor = (VREF / (2048 * 220K)) * 10^9 nA = 2.6633
   As the TIA produces a negative voltage, the scale factor is made
   negative */
#define ALS_CURRENT_SCALE_FACTOR_NUMERATOR		(-26633)
#define ALS_CURRENT_SCALE_FACTOR_DENOMINATOR	(10000)

/* Constants for ambient light calculation */
/* Scale Factor = 10000Lx / 3000nA = 3.333 */
#define ALS_LIGHT_SCALE_FACTOR_NUMERATOR		(3333)
#define ALS_LIGHT_SCALE_FACTOR_DENOMINATOR		(1000)

#define PWM_DUTY_SCALE	         (1u)
#define PWM_DUTY_OFFSET	         (25)
#define ADC_CHANNEL_ALS          (1u)


/* Structure that holds the ALS current and the ambient light illuminance value  */
/* Use __attribute__((packed)) for GCC and MDK compilers to pack structures      */
/* For other compilers use the corresponding directive.                          */
/* For example, for IAR use the following directive                              */
/* typedef __packed struct {..}struct_name;                                      */
typedef struct __attribute__((packed))
{
	int16 alsCurrent;			/* Ambient light sensor current output */
	uint16 illuminance; 		/* Ambient light illuminance */
}als_sensor_data;

//PIR

#define LED_ON                      (0u)
#define LED_OFF                     (1u)
#define MOTION_DETECTED             (1u)
#define MOTION_NOT_DETECTED         (0u)
#define THREE_FEET                  (3u)
#define TEN_FEET                    (10u)
#define TWENTY_FEET                 (20u)
#define ADC_CHANNEL_PIR             (0u)
#define SENSOR_RAW_INITIAL          (0)


/* High and low thresholds for the motion detection are determined
	through experiments */

/* High Threshold for 3 feet detection (80% of positive peak count) */
#define PIR_WINDOW_HIGH_3FT         (60)
/* Low Threshold for 3 feet detection (80% of negative peak count) */
#define PIR_WINDOW_LOW_3FT          (-60)
/* High Threshold for 10 feet detection (80% of positive peak count) */
#define PIR_WINDOW_HIGH_10FT        (30)
/* Low Threshold for 10 feet detection (80% of negative peak count) */
#define PIR_WINDOW_LOW_10FT         (-30)
/* High Threshold for 20 feet detection (80% of positive peak count) */
#define PIR_WINDOW_HIGH_20FT        (60)
/* Low Threshold for 20 feet detection (80% of negative peak count) */
#define PIR_WINDOW_LOW_20FT         (-60)

/* Structure that holds the sensor values                                        */
/* Use __attribute__((packed)) for GCC and MDK compilers to pack structures      */
/* For other compilers use the corresponding directive.                          */
/* For example, for IAR use the following directive                              */
/* typedef __packed struct {..}struct_name;                                      */
typedef struct __attribute__((packed))
{
    uint8 detectionDistance;      	/* PIR detection distance */
	int16 sensorRawValue;        	/* ADC result */
	int16 highThreshold;		    /* High threshold for motion detection */
	int16 lowThreshold;			    /* Low threshold for motion detection */
    uint8 motionDetected;		    /* Motion detection flag */
}pir_sensor_data;


/* Function Prototypes */
void InitResources(void );
CY_ISR(TIMEBASE_ISR);



int main()
{

    //ALS
    /* This variable is used to store the ADC result */
	int16 adcResult;

	/* These are used for firmware low pass filter input and output */
	int16 filterInput;
	int32 filterOutput = 0;

    /* Variable to store sensor current and light illuminance */
    int16 alsCurrent;
    uint16 illuminance;

	/* Variable to store the PWM Duty Cycle */
	unsigned int pwmDutyCycle;




    //PIR

	/* Sensor raw value */
	int16 sensorRawValue = 0;

	/* Motion detection thresholds */
	int16 highThreshold = PIR_WINDOW_HIGH_3FT;
	int16 lowThreshold = PIR_WINDOW_LOW_3FT;

    /* Variable that stores the previous detection distance, used for checking if
        the detection distance is changed by the master(BCP) */
    uint8 prevDetectionDistance = THREE_FEET;

    /* Variable to store the status returned by CyEnterCriticalSection() */
    uint8 interruptState = 0;

    /* Enable global interrupts */
    CyGlobalIntEnable;

    /* Initialize all the hardware resources */
    InitResources();

    /* Infinite Loop */
    for(;;)
    {
        //ALS
        /* Check if the ADC data is ready */
		if(ADC_IsEndConversion(ADC_RETURN_STATUS))
		{
			/* Get the ADC result */
			adcResult = ADC_GetResult16(ADC_CHANNEL_ALS);

			/* Low pass filter the ADC result */
			filterInput = adcResult;
    		filterOutput = (filterInput + (FILTER_COEFFICIENT_ALS - 1)*filterOutput)/FILTER_COEFFICIENT_ALS;

			/* Calculate the photodiode current */
			alsCurrent = (filterOutput * ALS_CURRENT_SCALE_FACTOR_NUMERATOR)/ALS_CURRENT_SCALE_FACTOR_DENOMINATOR;

			/* If the calculated current is negative, limit it to zero */
			if(alsCurrent < 0)
			{
				alsCurrent = 0;
			}

			/* Calculate the light illuminance */
			illuminance = (alsCurrent * ALS_LIGHT_SCALE_FACTOR_NUMERATOR)/ALS_LIGHT_SCALE_FACTOR_DENOMINATOR;

            /* Get the PWM duty cycle from the light illuminance value */
			pwmDutyCycle = ((unsigned int)illuminance*PWM_DUTY_SCALE)+PWM_DUTY_OFFSET;

			/* Limit the duty cycle */
			if(pwmDutyCycle>PWM_PWM_PERIOD_VALUE)
                pwmDutyCycle = PWM_PWM_PERIOD_VALUE;




			/* Update the PWM duty cycle */
			PWM_WriteCompare(PWM_PWM_PERIOD_VALUE-pwmDutyCycle);

			if(pwmDutyCycle < 600){ //Low and medium Ligth
            Led_Write(0);
            }else{//High Ligth
            Led_Write(1);
            }
		}

        //PIR
        /* If the master(BCP) changed the detection distance, change the second stage
            amplifier (PGA) gain and the thresholds for the required detection distance*/

        /* Check if ADC data is ready */
        if(ADC_IsEndConversion(ADC_RETURN_STATUS))
        {
            /* Read ADC result */
            sensorRawValue = ADC_GetResult16(ADC_CHANNEL_PIR);

            /* Check if motion is detected */
            if((sensorRawValue > highThreshold) ||
               (sensorRawValue < lowThreshold))
            {

				/* Stop the timer */
                Timebase5s_Stop();

				/* Reload the counter */
				Timebase5s_WriteCounter(Timebase5s_TC_PERIOD_VALUE);

				/* Start the 5s timer */
                Timebase5s_Start();



               // Pin_LED_Write(LED_ON);
                m1_Write(1); //Move motor
                m2_Write(0);
            }
        }

		/* Exit critical section */
        CyExitCriticalSection(interruptState);
    }
}


void InitResources(void)
{
    //ALS

    /* Start the trans-impedance amplifier (TIA) */
	Opamp_TIA_Start();

	/* Start PWM */
	PWM_Start();

    //PIR
    /* Enable LED timebase ISR */
    isr_Timebase5s_Start();
    isr_Timebase5s_StartEx(TIMEBASE_ISR);

    /* Start the Scanning SAR ADC Component and start conversion */
    ADC_Start();
    ADC_StartConvert();

    /* Start the Reference Buffer */
    RefBuffer_Start();

    /* Start Programmable Voltage Reference */
    PVref_Start();

    /* Enable Programmable Voltage Reference */
    PVref_Enable();

    /* Start the first stage amplifier */
    PIRAmplifierStage1_Start();

    /* Start the second stage amplifier (PGA) */
    PIRAmplifierStage2_Start();

 }


CY_ISR(TIMEBASE_ISR)
{

    m1_Write(0); //Move motor
    m2_Write(1);
    /* Stop the 5s timer */
    Timebase5s_Stop();
}
