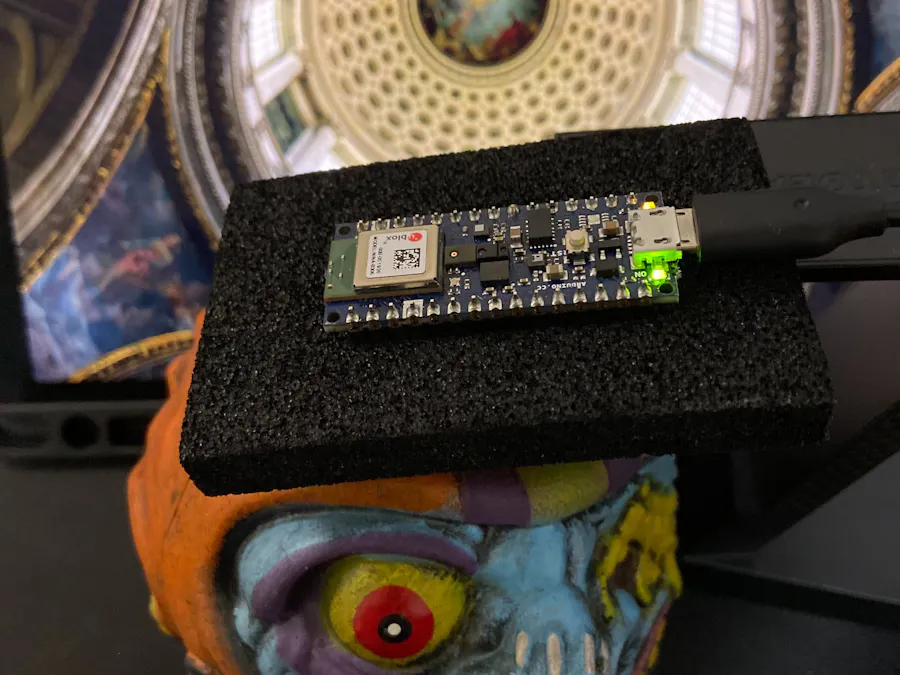

COMP554_TinyML_WAKEWORD_DETECTION_OWLWO

# Copyright 2017 The TensorFlow Authors. All Rights Reserved.
#
# Licensed under the Apache License, Version 2.0 (the "License");
# you may not use this file except in compliance with the License.
# You may obtain a copy of the License at
#
#     http://www.apache.org/licenses/LICENSE-2.0
#
# Unless required by applicable law or agreed to in writing, software
# distributed under the License is distributed on an "AS IS" BASIS,
# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
# See the License for the specific language governing permissions and
# limitations under the License.
# ==============================================================================
r"""Saves out a .wav file with synthesized conversational data and labels.

The best way to estimate the real-world performance of an audio recognition
model is by running it against a continuous stream of data, the way that it
would be used in an application. Training evaluations are only run against
discrete individual samples, so the results aren't as realistic.

To make it easy to run evaluations against audio streams, this script uses
samples from the testing partition of the data set, mixes them in at random
positions together with background noise, and saves out the result as one long
audio file.

Here's an example of generating a test file:

bazel run tensorflow/examples/speech_commands:generate_streaming_test_wav -- \
--data_dir=/tmp/my_wavs --background_dir=/tmp/my_backgrounds \
--background_volume=0.1 --test_duration_seconds=600 \
--output_audio_file=/tmp/streaming_test.wav \
--output_labels_file=/tmp/streaming_test_labels.txt

Once you've created a streaming audio file, you can then use the
test_streaming_accuracy tool to calculate accuracy metrics for a model.
"""
from __future__ import absolute_import
from __future__ import division
from __future__ import print_function

import argparse
import math
import sys

import numpy as np
import tensorflow as tf

import input_data
import models

FLAGS = None


def mix_in_audio_sample(track_data, track_offset, sample_data, sample_offset,
                        clip_duration, sample_volume, ramp_in, ramp_out):
  """Mixes the sample data into the main track at the specified offset.

  Args:
    track_data: Numpy array holding main audio data. Modified in-place.
    track_offset: Where to mix the sample into the main track.
    sample_data: Numpy array of audio data to mix into the main track.
    sample_offset: Where to start in the audio sample.
    clip_duration: How long the sample segment is.
    sample_volume: Loudness to mix the sample in at.
    ramp_in: Length in samples of volume increase stage.
    ramp_out: Length in samples of volume decrease stage.
  """
  ramp_out_index = clip_duration - ramp_out
  track_end = min(track_offset + clip_duration, track_data.shape[0])
  track_end = min(track_end,
                  track_offset + (sample_data.shape[0] - sample_offset))
  sample_range = track_end - track_offset
  for i in range(sample_range):
    if i < ramp_in:
      envelope_scale = i / ramp_in
    elif i > ramp_out_index:
      envelope_scale = (clip_duration - i) / ramp_out
    else:
      envelope_scale = 1
    sample_input = sample_data[sample_offset + i]
    track_data[track_offset
               + i] += sample_input * envelope_scale * sample_volume


def main(_):
  words_list = input_data.prepare_words_list(FLAGS.wanted_words.split(','))
  model_settings = models.prepare_model_settings(
      len(words_list), FLAGS.sample_rate, FLAGS.clip_duration_ms,
      FLAGS.window_size_ms, FLAGS.window_stride_ms, FLAGS.feature_bin_count,
      'mfcc')
  audio_processor = input_data.AudioProcessor(
      '', FLAGS.data_dir, FLAGS.silence_percentage, 10,
      FLAGS.wanted_words.split(','), FLAGS.validation_percentage,
      FLAGS.testing_percentage, model_settings, FLAGS.data_dir)

  output_audio_sample_count = FLAGS.sample_rate * FLAGS.test_duration_seconds
  output_audio = np.zeros((output_audio_sample_count,), dtype=np.float32)

  # Set up background audio.
  background_crossover_ms = 500
  background_segment_duration_ms = (
      FLAGS.clip_duration_ms + background_crossover_ms)
  background_segment_duration_samples = int(
      (background_segment_duration_ms * FLAGS.sample_rate) / 1000)
  background_segment_stride_samples = int(
      (FLAGS.clip_duration_ms * FLAGS.sample_rate) / 1000)
  background_ramp_samples = int(
      ((background_crossover_ms / 2) * FLAGS.sample_rate) / 1000)

  # Mix the background audio into the main track.
  how_many_backgrounds = int(
      math.ceil(output_audio_sample_count / background_segment_stride_samples))
  for i in range(how_many_backgrounds):
    output_offset = int(i * background_segment_stride_samples)
    background_index = np.random.randint(len(audio_processor.background_data))
    background_samples = audio_processor.background_data[background_index]
    background_offset = np.random.randint(
        0, len(background_samples) - model_settings['desired_samples'])
    background_volume = np.random.uniform(0, FLAGS.background_volume)
    mix_in_audio_sample(output_audio, output_offset, background_samples,
                        background_offset, background_segment_duration_samples,
                        background_volume, background_ramp_samples,
                        background_ramp_samples)

  # Mix the words into the main track, noting their labels and positions.
  output_labels = []
  word_stride_ms = FLAGS.clip_duration_ms + FLAGS.word_gap_ms
  word_stride_samples = int((word_stride_ms * FLAGS.sample_rate) / 1000)
  clip_duration_samples = int(
      (FLAGS.clip_duration_ms * FLAGS.sample_rate) / 1000)
  word_gap_samples = int((FLAGS.word_gap_ms * FLAGS.sample_rate) / 1000)
  how_many_words = int(
      math.floor(output_audio_sample_count / word_stride_samples))
  all_test_data, all_test_labels = audio_processor.get_unprocessed_data(
      -1, model_settings, 'testing')
  for i in range(how_many_words):
    output_offset = (
        int(i * word_stride_samples) + np.random.randint(word_gap_samples))
    output_offset_ms = (output_offset * 1000) / FLAGS.sample_rate
    is_unknown = np.random.randint(100) < FLAGS.unknown_percentage
    if is_unknown:
      wanted_label = input_data.UNKNOWN_WORD_LABEL
    else:
      wanted_label = words_list[2 + np.random.randint(len(words_list) - 2)]
    test_data_start = np.random.randint(len(all_test_data))
    found_sample_data = None
    index_lookup = np.arange(len(all_test_data), dtype=np.int32)
    np.random.shuffle(index_lookup)
    for test_data_offset in range(len(all_test_data)):
      test_data_index = index_lookup[(
          test_data_start + test_data_offset) % len(all_test_data)]
      current_label = all_test_labels[test_data_index]
      if current_label == wanted_label:
        found_sample_data = all_test_data[test_data_index]
        break
    mix_in_audio_sample(output_audio, output_offset, found_sample_data, 0,
                        clip_duration_samples, 1.0, 500, 500)
    output_labels.append({'label': wanted_label, 'time': output_offset_ms})

  input_data.save_wav_file(FLAGS.output_audio_file, output_audio,
                           FLAGS.sample_rate)
  tf.compat.v1.logging.info('Saved streaming test wav to %s',
                            FLAGS.output_audio_file)

  with open(FLAGS.output_labels_file, 'w') as f:
    for output_label in output_labels:
      f.write('%s, %f\n' % (output_label['label'], output_label['time']))
  tf.compat.v1.logging.info('Saved streaming test labels to %s',
                            FLAGS.output_labels_file)


if __name__ == '__main__':
  parser = argparse.ArgumentParser()
  parser.add_argument(
      '--data_url',
      type=str,
      # pylint: disable=line-too-long
      default='https://storage.googleapis.com/download.tensorflow.org/data/speech_commands_v0.01.tar.gz',
      # pylint: enable=line-too-long
      help='Location of speech training data')
  parser.add_argument(
      '--data_dir',
      type=str,
      default='/tmp/speech_dataset',
      help="""\
      Where to download the speech training data to.
      """)
  parser.add_argument(
      '--background_dir',
      type=str,
      default='',
      help="""\
      Path to a directory of .wav files to mix in as background noise during training.
      """)
  parser.add_argument(
      '--background_volume',
      type=float,
      default=0.1,
      help="""\
      How loud the background noise should be, between 0 and 1.
      """)
  parser.add_argument(
      '--background_frequency',
      type=float,
      default=0.8,
      help="""\
      How many of the training samples have background noise mixed in.
      """)
  parser.add_argument(
      '--silence_percentage',
      type=float,
      default=10.0,
      help="""\
      How much of the training data should be silence.
      """)
  parser.add_argument(
      '--testing_percentage',
      type=int,
      default=10,
      help='What percentage of wavs to use as a test set.')
  parser.add_argument(
      '--validation_percentage',
      type=int,
      default=10,
      help='What percentage of wavs to use as a validation set.')
  parser.add_argument(
      '--sample_rate',
      type=int,
      default=16000,
      help='Expected sample rate of the wavs.',)
  parser.add_argument(
      '--clip_duration_ms',
      type=int,
      default=1000,
      help='Expected duration in milliseconds of the wavs.',)
  parser.add_argument(
      '--window_size_ms',
      type=float,
      default=30.0,
      help='How long each spectrogram timeslice is',)
  parser.add_argument(
      '--window_stride_ms',
      type=float,
      default=10.0,
      help='How long the stride is between spectrogram timeslices',)
  parser.add_argument(
      '--feature_bin_count',
      type=int,
      default=40,
      help='How many bins to use for the MFCC fingerprint',
  )
  parser.add_argument(
      '--wanted_words',
      type=str,
      default='yes,no,up,down,left,right,on,off,stop,go',
      help='Words to use (others will be added to an unknown label)',)
  parser.add_argument(
      '--output_audio_file',
      type=str,
      default='/tmp/speech_commands_train/streaming_test.wav',
      help='File to save the generated test audio to.')
  parser.add_argument(
      '--output_labels_file',
      type=str,
      default='/tmp/speech_commands_train/streaming_test_labels.txt',
      help='File to save the generated test labels to.')
  parser.add_argument(
      '--test_duration_seconds',
      type=int,
      default=600,
      help='How long the generated test audio file should be.',)
  parser.add_argument(
      '--word_gap_ms',
      type=int,
      default=2000,
      help='How long the average gap should be between words.',)
  parser.add_argument(
      '--unknown_percentage',
      type=int,
      default=30,
      help='What percentage of words should be unknown.')

  FLAGS, unparsed = parser.parse_known_args()
  tf.compat.v1.app.run(main=main, argv=[sys.argv[0]] + unparsed)

# Copyright 2017 The TensorFlow Authors. All Rights Reserved.
#
# Licensed under the Apache License, Version 2.0 (the "License");
# you may not use this file except in compliance with the License.
# You may obtain a copy of the License at
#
#     http://www.apache.org/licenses/LICENSE-2.0
#
# Unless required by applicable law or agreed to in writing, software
# distributed under the License is distributed on an "AS IS" BASIS,
# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
# See the License for the specific language governing permissions and
# limitations under the License.
# ==============================================================================
r"""Runs a trained audio graph against WAVE files and reports the results.

The model, labels and .wav files specified in the arguments will be loaded, and
then the predictions from running the model against the audio data will be
printed to the console. This is a useful script for sanity checking trained
models, and as an example of how to use an audio model from Python.

Here's an example of running it:

python tensorflow/examples/speech_commands/label_wav_dir.py \
--graph=/tmp/my_frozen_graph.pb \
--labels=/tmp/speech_commands_train/conv_labels.txt \
--wav_dir=/tmp/speech_dataset/left

"""
from __future__ import absolute_import
from __future__ import division
from __future__ import print_function

import argparse
import glob
import sys

import tensorflow as tf


FLAGS = None


def load_graph(filename):
  """Unpersists graph from file as default graph."""
  with tf.io.gfile.GFile(filename, 'rb') as f:
    graph_def = tf.compat.v1.GraphDef()
    graph_def.ParseFromString(f.read())
    tf.import_graph_def(graph_def, name='')


def load_labels(filename):
  """Read in labels, one label per line."""
  return [line.rstrip() for line in tf.io.gfile.GFile(filename)]


def run_graph(wav_dir, labels, input_layer_name, output_layer_name,
              num_top_predictions):
  """Runs the audio data through the graph and prints predictions."""
  with tf.compat.v1.Session() as sess:
    # Feed the audio data as input to the graph.
    #   predictions  will contain a two-dimensional array, where one
    #   dimension represents the input image count, and the other has
    #   predictions per class
    for wav_path in glob.glob(wav_dir + '/*.wav'):
      if not wav_path or not tf.io.gfile.exists(wav_path):
        raise ValueError('Audio file does not exist at {0}'.format(wav_path))
      with open(wav_path, 'rb') as wav_file:
        wav_data = wav_file.read()

      softmax_tensor = sess.graph.get_tensor_by_name(output_layer_name)
      predictions, = sess.run(softmax_tensor, {input_layer_name: wav_data})

      # Sort to show labels in order of confidence
      print('\n%s' % (wav_path.split('/')[-1]))
      top_k = predictions.argsort()[-num_top_predictions:][::-1]
      for node_id in top_k:
        human_string = labels[node_id]
        score = predictions[node_id]
        print('%s (score = %.5f)' % (human_string, score))

    return 0


def label_wav(wav_dir, labels, graph, input_name, output_name, how_many_labels):
  """Loads the model and labels, and runs the inference to print predictions."""
  if not labels or not tf.io.gfile.exists(labels):
    raise ValueError('Labels file does not exist at {0}'.format(labels))

  if not graph or not tf.io.gfile.exists(graph):
    raise ValueError('Graph file does not exist at {0}'.format(graph))

  labels_list = load_labels(labels)

  # load graph, which is stored in the default session
  load_graph(graph)

  run_graph(wav_dir, labels_list, input_name, output_name, how_many_labels)


def main(_):
  """Entry point for script, converts flags to arguments."""
  label_wav(FLAGS.wav_dir, FLAGS.labels, FLAGS.graph, FLAGS.input_name,
            FLAGS.output_name, FLAGS.how_many_labels)


if __name__ == '__main__':
  parser = argparse.ArgumentParser()
  parser.add_argument(
      '--wav_dir', type=str, default='', help='Audio file to be identified.')
  parser.add_argument(
      '--graph', type=str, default='', help='Model to use for identification.')
  parser.add_argument(
      '--labels', type=str, default='', help='Path to file containing labels.')
  parser.add_argument(
      '--input_name',
      type=str,
      default='wav_data:0',
      help='Name of WAVE data input node in model.')
  parser.add_argument(
      '--output_name',
      type=str,
      default='labels_softmax:0',
      help='Name of node outputting a prediction in the model.')
  parser.add_argument(
      '--how_many_labels',
      type=int,
      default=3,
      help='Number of results to show.')

  FLAGS, unparsed = parser.parse_known_args()
  tf.compat.v1.app.run(main=main, argv=[sys.argv[0]] + unparsed)

# Copyright 2017 The TensorFlow Authors. All Rights Reserved.
#
# Licensed under the Apache License, Version 2.0 (the "License");
# you may not use this file except in compliance with the License.
# You may obtain a copy of the License at
#
#     http://www.apache.org/licenses/LICENSE-2.0
#
# Unless required by applicable law or agreed to in writing, software
# distributed under the License is distributed on an "AS IS" BASIS,
# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
# See the License for the specific language governing permissions and
# limitations under the License.
# ==============================================================================
r"""Runs a trained audio graph against a WAVE file and reports the results.

The model, labels and .wav file specified in the arguments will be loaded, and
then the predictions from running the model against the audio data will be
printed to the console. This is a useful script for sanity checking trained
models, and as an example of how to use an audio model from Python.

Here's an example of running it:

python tensorflow/examples/speech_commands/label_wav.py \
--graph=/tmp/my_frozen_graph.pb \
--labels=/tmp/speech_commands_train/conv_labels.txt \
--wav=/tmp/speech_dataset/left/a5d485dc_nohash_0.wav

"""
from __future__ import absolute_import
from __future__ import division
from __future__ import print_function

import argparse
import sys

import tensorflow as tf


FLAGS = None


def load_graph(filename):
  """Unpersists graph from file as default graph."""
  with tf.io.gfile.GFile(filename, 'rb') as f:
    graph_def = tf.compat.v1.GraphDef()
    graph_def.ParseFromString(f.read())
    tf.import_graph_def(graph_def, name='')


def load_labels(filename):
  """Read in labels, one label per line."""
  return [line.rstrip() for line in tf.io.gfile.GFile(filename)]


def run_graph(wav_data, labels, input_layer_name, output_layer_name,
              num_top_predictions):
  """Runs the audio data through the graph and prints predictions."""
  with tf.compat.v1.Session() as sess:
    # Feed the audio data as input to the graph.
    #   predictions  will contain a two-dimensional array, where one
    #   dimension represents the input image count, and the other has
    #   predictions per class
    softmax_tensor = sess.graph.get_tensor_by_name(output_layer_name)
    predictions, = sess.run(softmax_tensor, {input_layer_name: wav_data})

    # Sort to show labels in order of confidence
    top_k = predictions.argsort()[-num_top_predictions:][::-1]
    for node_id in top_k:
      human_string = labels[node_id]
      score = predictions[node_id]
      print('%s (score = %.5f)' % (human_string, score))

    return 0


def label_wav(wav, labels, graph, input_name, output_name, how_many_labels):
  """Loads the model and labels, and runs the inference to print predictions."""
  if not wav or not tf.io.gfile.exists(wav):
    raise ValueError('Audio file does not exist at {0}'.format(wav))
  if not labels or not tf.io.gfile.exists(labels):
    raise ValueError('Labels file does not exist at {0}'.format(labels))

  if not graph or not tf.io.gfile.exists(graph):
    raise ValueError('Graph file does not exist at {0}'.format(graph))

  labels_list = load_labels(labels)

  # load graph, which is stored in the default session
  load_graph(graph)

  with open(wav, 'rb') as wav_file:
    wav_data = wav_file.read()

  run_graph(wav_data, labels_list, input_name, output_name, how_many_labels)


def main(_):
  """Entry point for script, converts flags to arguments."""
  label_wav(FLAGS.wav, FLAGS.labels, FLAGS.graph, FLAGS.input_name,
            FLAGS.output_name, FLAGS.how_many_labels)


if __name__ == '__main__':
  parser = argparse.ArgumentParser()
  parser.add_argument(
      '--wav', type=str, default='', help='Audio file to be identified.')
  parser.add_argument(
      '--graph', type=str, default='', help='Model to use for identification.')
  parser.add_argument(
      '--labels', type=str, default='', help='Path to file containing labels.')
  parser.add_argument(
      '--input_name',
      type=str,
      default='wav_data:0',
      help='Name of WAVE data input node in model.')
  parser.add_argument(
      '--output_name',
      type=str,
      default='labels_softmax:0',
      help='Name of node outputting a prediction in the model.')
  parser.add_argument(
      '--how_many_labels',
      type=int,
      default=3,
      help='Number of results to show.')

  FLAGS, unparsed = parser.parse_known_args()
  tf.compat.v1.app.run(main=main, argv=[sys.argv[0]] + unparsed)

# Copyright 2017 The TensorFlow Authors. All Rights Reserved.
#
# Licensed under the Apache License, Version 2.0 (the "License");
# you may not use this file except in compliance with the License.
# You may obtain a copy of the License at
#
#     http://www.apache.org/licenses/LICENSE-2.0
#
# Unless required by applicable law or agreed to in writing, software
# distributed under the License is distributed on an "AS IS" BASIS,
# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
# See the License for the specific language governing permissions and
# limitations under the License.
# ==============================================================================
r"""Runs a trained audio graph against WAVE files and reports the results.

The model, labels and .wav files specified in the arguments will be loaded, and
then the predictions from running the model against the audio data will be
printed to the console. This is a useful script for sanity checking trained
models, and as an example of how to use an audio model from Python.

Here's an example of running it:

python tensorflow/examples/speech_commands/label_wav_dir.py \
--graph=/tmp/my_frozen_graph.pb \
--labels=/tmp/speech_commands_train/conv_labels.txt \
--wav_dir=/tmp/speech_dataset/left

"""
from __future__ import absolute_import
from __future__ import division
from __future__ import print_function

import argparse
import glob
import sys

import tensorflow as tf


FLAGS = None


def load_graph(filename):
  """Unpersists graph from file as default graph."""
  with tf.io.gfile.GFile(filename, 'rb') as f:
    graph_def = tf.compat.v1.GraphDef()
    graph_def.ParseFromString(f.read())
    tf.import_graph_def(graph_def, name='')


def load_labels(filename):
  """Read in labels, one label per line."""
  return [line.rstrip() for line in tf.io.gfile.GFile(filename)]


def run_graph(wav_dir, labels, input_layer_name, output_layer_name,
              num_top_predictions):
  """Runs the audio data through the graph and prints predictions."""
  with tf.compat.v1.Session() as sess:
    # Feed the audio data as input to the graph.
    #   predictions  will contain a two-dimensional array, where one
    #   dimension represents the input image count, and the other has
    #   predictions per class
    for wav_path in glob.glob(wav_dir + '/*.wav'):
      if not wav_path or not tf.io.gfile.exists(wav_path):
        raise ValueError('Audio file does not exist at {0}'.format(wav_path))
      with open(wav_path, 'rb') as wav_file:
        wav_data = wav_file.read()

      softmax_tensor = sess.graph.get_tensor_by_name(output_layer_name)
      predictions, = sess.run(softmax_tensor, {input_layer_name: wav_data})

      # Sort to show labels in order of confidence
      print('\n%s' % (wav_path.split('/')[-1]))
      top_k = predictions.argsort()[-num_top_predictions:][::-1]
      for node_id in top_k:
        human_string = labels[node_id]
        score = predictions[node_id]
        print('%s (score = %.5f)' % (human_string, score))

    return 0


def label_wav(wav_dir, labels, graph, input_name, output_name, how_many_labels):
  """Loads the model and labels, and runs the inference to print predictions."""
  if not labels or not tf.io.gfile.exists(labels):
    raise ValueError('Labels file does not exist at {0}'.format(labels))

  if not graph or not tf.io.gfile.exists(graph):
    raise ValueError('Graph file does not exist at {0}'.format(graph))

  labels_list = load_labels(labels)

  # load graph, which is stored in the default session
  load_graph(graph)

  run_graph(wav_dir, labels_list, input_name, output_name, how_many_labels)


def main(_):
  """Entry point for script, converts flags to arguments."""
  label_wav(FLAGS.wav_dir, FLAGS.labels, FLAGS.graph, FLAGS.input_name,
            FLAGS.output_name, FLAGS.how_many_labels)


if __name__ == '__main__':
  parser = argparse.ArgumentParser()
  parser.add_argument(
      '--wav_dir', type=str, default='', help='Audio file to be identified.')
  parser.add_argument(
      '--graph', type=str, default='', help='Model to use for identification.')
  parser.add_argument(
      '--labels', type=str, default='', help='Path to file containing labels.')
  parser.add_argument(
      '--input_name',
      type=str,
      default='wav_data:0',
      help='Name of WAVE data input node in model.')
  parser.add_argument(
      '--output_name',
      type=str,
      default='labels_softmax:0',
      help='Name of node outputting a prediction in the model.')
  parser.add_argument(
      '--how_many_labels',
      type=int,
      default=3,
      help='Number of results to show.')

  FLAGS, unparsed = parser.parse_known_args()
  tf.compat.v1.app.run(main=main, argv=[sys.argv[0]] + unparsed)

/* Copyright 2017 The TensorFlow Authors. All Rights Reserved.

Licensed under the Apache License, Version 2.0 (the "License");
you may not use this file except in compliance with the License.
You may obtain a copy of the License at

    http://www.apache.org/licenses/LICENSE-2.0

Unless required by applicable law or agreed to in writing, software
distributed under the License is distributed on an "AS IS" BASIS,
WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
See the License for the specific language governing permissions and
limitations under the License.
==============================================================================*/

#include <fstream>
#include <vector>

#include "tensorflow/core/framework/tensor.h"
#include "tensorflow/core/lib/io/path.h"
#include "tensorflow/core/platform/init_main.h"
#include "tensorflow/core/platform/logging.h"
#include "tensorflow/core/platform/types.h"
#include "tensorflow/core/public/session.h"
#include "tensorflow/core/util/command_line_flags.h"

// These are all common classes it's handy to reference with no namespace.
using tensorflow::Flag;
using tensorflow::int32;
using tensorflow::Status;
using tensorflow::string;
using tensorflow::Tensor;
using tensorflow::tstring;

namespace {

// Reads a model graph definition from disk, and creates a session object you
// can use to run it.
Status LoadGraph(const string& graph_file_name,
                 std::unique_ptr<tensorflow::Session>* session) {
  tensorflow::GraphDef graph_def;
  Status load_graph_status =
      ReadBinaryProto(tensorflow::Env::Default(), graph_file_name, &graph_def);
  if (!load_graph_status.ok()) {
    return tensorflow::errors::NotFound("Failed to load compute graph at '",
                                        graph_file_name, "'");
  }
  session->reset(tensorflow::NewSession(tensorflow::SessionOptions()));
  Status session_create_status = (*session)->Create(graph_def);
  if (!session_create_status.ok()) {
    return session_create_status;
  }
  return Status::OK();
}

// Takes a file name, and loads a list of labels from it, one per line, and
// returns a vector of the strings.
Status ReadLabelsFile(const string& file_name, std::vector<string>* result) {
  std::ifstream file(file_name);
  if (!file) {
    return tensorflow::errors::NotFound("Labels file ", file_name,
                                        " not found.");
  }
  result->clear();
  string line;
  while (std::getline(file, line)) {
    result->push_back(line);
  }
  return Status::OK();
}

// Analyzes the output of the graph to retrieve the highest scores and
// their positions in the tensor.
void GetTopLabels(const std::vector<Tensor>& outputs, int how_many_labels,
                  Tensor* out_indices, Tensor* out_scores) {
  const Tensor& unsorted_scores_tensor = outputs[0];
  auto unsorted_scores_flat = unsorted_scores_tensor.flat<float>();
  std::vector<std::pair<int, float>> scores;
  scores.reserve(unsorted_scores_flat.size());
  for (int i = 0; i < unsorted_scores_flat.size(); ++i) {
    scores.push_back(std::pair<int, float>({i, unsorted_scores_flat(i)}));
  }
  std::sort(scores.begin(), scores.end(),
            [](const std::pair<int, float>& left,
               const std::pair<int, float>& right) {
              return left.second > right.second;
            });
  scores.resize(how_many_labels);
  Tensor sorted_indices(tensorflow::DT_INT32, {how_many_labels});
  Tensor sorted_scores(tensorflow::DT_FLOAT, {how_many_labels});
  for (int i = 0; i < scores.size(); ++i) {
    sorted_indices.flat<int>()(i) = scores[i].first;
    sorted_scores.flat<float>()(i) = scores[i].second;
  }
  *out_indices = sorted_indices;
  *out_scores = sorted_scores;
}

}  // namespace

int main(int argc, char* argv[]) {
  string wav = "";
  string graph = "";
  string labels = "";
  string input_name = "wav_data";
  string output_name = "labels_softmax";
  int32 how_many_labels = 3;
  std::vector<Flag> flag_list = {
      Flag("wav", &wav, "audio file to be identified"),
      Flag("graph", &graph, "model to be executed"),
      Flag("labels", &labels, "path to file containing labels"),
      Flag("input_name", &input_name, "name of input node in model"),
      Flag("output_name", &output_name, "name of output node in model"),
      Flag("how_many_labels", &how_many_labels, "number of results to show"),
  };
  string usage = tensorflow::Flags::Usage(argv[0], flag_list);
  const bool parse_result = tensorflow::Flags::Parse(&argc, argv, flag_list);
  if (!parse_result) {
    LOG(ERROR) << usage;
    return -1;
  }

  // We need to call this to set up global state for TensorFlow.
  tensorflow::port::InitMain(argv[0], &argc, &argv);
  if (argc > 1) {
    LOG(ERROR) << "Unknown argument " << argv[1] << "\n" << usage;
    return -1;
  }

  // First we load and initialize the model.
  std::unique_ptr<tensorflow::Session> session;
  Status load_graph_status = LoadGraph(graph, &session);
  if (!load_graph_status.ok()) {
    LOG(ERROR) << load_graph_status;
    return -1;
  }

  std::vector<string> labels_list;
  Status read_labels_status = ReadLabelsFile(labels, &labels_list);
  if (!read_labels_status.ok()) {
    LOG(ERROR) << read_labels_status;
    return -1;
  }

  string wav_string;
  Status read_wav_status = tensorflow::ReadFileToString(
      tensorflow::Env::Default(), wav, &wav_string);
  if (!read_wav_status.ok()) {
    LOG(ERROR) << read_wav_status;
    return -1;
  }
  Tensor wav_tensor(tensorflow::DT_STRING, tensorflow::TensorShape({}));
  wav_tensor.scalar<tstring>()() = wav_string;

  // Actually run the audio through the model.
  std::vector<Tensor> outputs;
  Status run_status =
      session->Run({{input_name, wav_tensor}}, {output_name}, {}, &outputs);
  if (!run_status.ok()) {
    LOG(ERROR) << "Running model failed: " << run_status;
    return -1;
  }

  Tensor indices;
  Tensor scores;
  GetTopLabels(outputs, how_many_labels, &indices, &scores);
  tensorflow::TTypes<float>::Flat scores_flat = scores.flat<float>();
  tensorflow::TTypes<int32>::Flat indices_flat = indices.flat<int32>();
  for (int pos = 0; pos < how_many_labels; ++pos) {
    const int label_index = indices_flat(pos);
    const float score = scores_flat(pos);
    LOG(INFO) << labels_list[label_index] << " (" << label_index
              << "): " << score;
  }

  return 0;
}

/* Copyright 2017 The TensorFlow Authors. All Rights Reserved.

Licensed under the Apache License, Version 2.0 (the "License");
you may not use this file except in compliance with the License.
You may obtain a copy of the License at

    http://www.apache.org/licenses/LICENSE-2.0

Unless required by applicable law or agreed to in writing, software
distributed under the License is distributed on an "AS IS" BASIS,
WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
See the License for the specific language governing permissions and
limitations under the License.
==============================================================================*/

#include "tensorflow/examples/speech_commands/accuracy_utils.h"

#include <fstream>
#include <iomanip>
#include <unordered_set>

#include "tensorflow/core/lib/io/path.h"
#include "tensorflow/core/lib/strings/str_util.h"

namespace tensorflow {

Status ReadGroundTruthFile(const string& file_name,
                           std::vector<std::pair<string, int64>>* result) {
  std::ifstream file(file_name);
  if (!file) {
    return tensorflow::errors::NotFound("Ground truth file '", file_name,
                                        "' not found.");
  }
  result->clear();
  string line;
  while (std::getline(file, line)) {
    std::vector<string> pieces = tensorflow::str_util::Split(line, ',');
    if (pieces.size() != 2) {
      continue;
    }
    float timestamp;
    if (!tensorflow::strings::safe_strtof(pieces[1].c_str(), &timestamp)) {
      return tensorflow::errors::InvalidArgument(
          "Wrong number format at line: ", line);
    }
    string label = pieces[0];
    auto timestamp_int64 = static_cast<int64>(timestamp);
    result->push_back({label, timestamp_int64});
  }
  std::sort(result->begin(), result->end(),
            [](const std::pair<string, int64>& left,
               const std::pair<string, int64>& right) {
              return left.second < right.second;
            });
  return Status::OK();
}

void CalculateAccuracyStats(
    const std::vector<std::pair<string, int64>>& ground_truth_list,
    const std::vector<std::pair<string, int64>>& found_words,
    int64 up_to_time_ms, int64 time_tolerance_ms,
    StreamingAccuracyStats* stats) {
  int64 latest_possible_time;
  if (up_to_time_ms == -1) {
    latest_possible_time = std::numeric_limits<int64>::max();
  } else {
    latest_possible_time = up_to_time_ms + time_tolerance_ms;
  }
  stats->how_many_ground_truth_words = 0;
  for (const std::pair<string, int64>& ground_truth : ground_truth_list) {
    const int64 ground_truth_time = ground_truth.second;
    if (ground_truth_time > latest_possible_time) {
      break;
    }
    ++stats->how_many_ground_truth_words;
  }

  stats->how_many_false_positives = 0;
  stats->how_many_correct_words = 0;
  stats->how_many_wrong_words = 0;
  std::unordered_set<int64> has_ground_truth_been_matched;
  for (const std::pair<string, int64>& found_word : found_words) {
    const string& found_label = found_word.first;
    const int64 found_time = found_word.second;
    const int64 earliest_time = found_time - time_tolerance_ms;
    const int64 latest_time = found_time + time_tolerance_ms;
    bool has_match_been_found = false;
    for (const std::pair<string, int64>& ground_truth : ground_truth_list) {
      const int64 ground_truth_time = ground_truth.second;
      if ((ground_truth_time > latest_time) ||
          (ground_truth_time > latest_possible_time)) {
        break;
      }
      if (ground_truth_time < earliest_time) {
        continue;
      }
      const string& ground_truth_label = ground_truth.first;
      if ((ground_truth_label == found_label) &&
          (has_ground_truth_been_matched.count(ground_truth_time) == 0)) {
        ++stats->how_many_correct_words;
      } else {
        ++stats->how_many_wrong_words;
      }
      has_ground_truth_been_matched.insert(ground_truth_time);
      has_match_been_found = true;
      break;
    }
    if (!has_match_been_found) {
      ++stats->how_many_false_positives;
    }
  }
  stats->how_many_ground_truth_matched = has_ground_truth_been_matched.size();
}

void PrintAccuracyStats(const StreamingAccuracyStats& stats) {
  if (stats.how_many_ground_truth_words == 0) {
    LOG(INFO) << "No ground truth yet, " << stats.how_many_false_positives
              << " false positives";
  } else {
    float any_match_percentage =
        (stats.how_many_ground_truth_matched * 100.0f) /
        stats.how_many_ground_truth_words;
    float correct_match_percentage = (stats.how_many_correct_words * 100.0f) /
                                     stats.how_many_ground_truth_words;
    float wrong_match_percentage = (stats.how_many_wrong_words * 100.0f) /
                                   stats.how_many_ground_truth_words;
    float false_positive_percentage =
        (stats.how_many_false_positives * 100.0f) /
        stats.how_many_ground_truth_words;

    LOG(INFO) << std::setprecision(1) << std::fixed << any_match_percentage
              << "% matched, " << correct_match_percentage << "% correctly, "
              << wrong_match_percentage << "% wrongly, "
              << false_positive_percentage << "% false positives ";
  }
}

}  // namespace tensorflow

/* Copyright 2017 The TensorFlow Authors. All Rights Reserved.

Licensed under the Apache License, Version 2.0 (the "License");
you may not use this file except in compliance with the License.
You may obtain a copy of the License at

    http://www.apache.org/licenses/LICENSE-2.0

Unless required by applicable law or agreed to in writing, software
distributed under the License is distributed on an "AS IS" BASIS,
WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
See the License for the specific language governing permissions and
limitations under the License.
==============================================================================*/

#ifndef TENSORFLOW_EXAMPLES_SPEECH_COMMANDS_ACCURACY_UTILS_H_
#define TENSORFLOW_EXAMPLES_SPEECH_COMMANDS_ACCURACY_UTILS_H_

#include <vector>

#include "tensorflow/core/framework/tensor.h"
#include "tensorflow/core/platform/types.h"

namespace tensorflow {

struct StreamingAccuracyStats {
  StreamingAccuracyStats()
      : how_many_ground_truth_words(0),
        how_many_ground_truth_matched(0),
        how_many_false_positives(0),
        how_many_correct_words(0),
        how_many_wrong_words(0) {}
  int32 how_many_ground_truth_words;
  int32 how_many_ground_truth_matched;
  int32 how_many_false_positives;
  int32 how_many_correct_words;
  int32 how_many_wrong_words;
};

// Takes a file name, and loads a list of expected word labels and times from
// it, as comma-separated variables.
Status ReadGroundTruthFile(const string& file_name,
                           std::vector<std::pair<string, int64>>* result);

// Given ground truth labels and corresponding predictions found by a model,
// figure out how many were correct. Takes a time limit, so that only
// predictions up to a point in time are considered, in case we're evaluating
// accuracy when the model has only been run on part of the stream.
void CalculateAccuracyStats(
    const std::vector<std::pair<string, int64>>& ground_truth_list,
    const std::vector<std::pair<string, int64>>& found_words,
    int64 up_to_time_ms, int64 time_tolerance_ms,
    StreamingAccuracyStats* stats);

// Writes a human-readable description of the statistics to stdout.
void PrintAccuracyStats(const StreamingAccuracyStats& stats);

}  // namespace tensorflow

#endif  // TENSORFLOW_EXAMPLES_SPEECH_COMMANDS_ACCURACY_UTILS_H_

/* Copyright 2017 The TensorFlow Authors. All Rights Reserved.

Licensed under the Apache License, Version 2.0 (the "License");
you may not use this file except in compliance with the License.
You may obtain a copy of the License at

    http://www.apache.org/licenses/LICENSE-2.0

Unless required by applicable law or agreed to in writing, software
distributed under the License is distributed on an "AS IS" BASIS,
WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
See the License for the specific language governing permissions and
limitations under the License.
==============================================================================*/

#include "tensorflow/examples/speech_commands/accuracy_utils.h"

#include "tensorflow/core/framework/tensor_testutil.h"
#include "tensorflow/core/lib/core/status_test_util.h"
#include "tensorflow/core/lib/io/path.h"
#include "tensorflow/core/lib/strings/str_util.h"
#include "tensorflow/core/platform/env.h"
#include "tensorflow/core/platform/test.h"

namespace tensorflow {

TEST(AccuracyUtilsTest, ReadGroundTruthFile) {
  string file_name = tensorflow::io::JoinPath(tensorflow::testing::TmpDir(),
                                              "ground_truth.txt");
  string file_data = "a,10\nb,12\n";
  TF_ASSERT_OK(WriteStringToFile(Env::Default(), file_name, file_data));

  std::vector<std::pair<string, int64>> ground_truth;
  TF_ASSERT_OK(ReadGroundTruthFile(file_name, &ground_truth));
  ASSERT_EQ(2, ground_truth.size());
  EXPECT_EQ("a", ground_truth[0].first);
  EXPECT_EQ(10, ground_truth[0].second);
  EXPECT_EQ("b", ground_truth[1].first);
  EXPECT_EQ(12, ground_truth[1].second);
}

TEST(AccuracyUtilsTest, CalculateAccuracyStats) {
  StreamingAccuracyStats stats;
  CalculateAccuracyStats({{"a", 1000}, {"b", 9000}},
                         {{"a", 1200}, {"b", 5000}, {"a", 8700}}, 10000, 500,
                         &stats);
  EXPECT_EQ(2, stats.how_many_ground_truth_words);
  EXPECT_EQ(2, stats.how_many_ground_truth_matched);
  EXPECT_EQ(1, stats.how_many_false_positives);
  EXPECT_EQ(1, stats.how_many_correct_words);
  EXPECT_EQ(1, stats.how_many_wrong_words);
}

TEST(AccuracyUtilsTest, PrintAccuracyStats) {
  StreamingAccuracyStats stats;
  PrintAccuracyStats(stats);
}

}  // namespace tensorflow

# Copyright 2017 The TensorFlow Authors. All Rights Reserved.
#
# Licensed under the Apache License, Version 2.0 (the "License");
# you may not use this file except in compliance with the License.
# You may obtain a copy of the License at
#
#     http://www.apache.org/licenses/LICENSE-2.0
#
# Unless required by applicable law or agreed to in writing, software
# distributed under the License is distributed on an "AS IS" BASIS,
# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
# See the License for the specific language governing permissions and
# limitations under the License.
# ==============================================================================
"""Tests for data input for speech commands."""

from __future__ import absolute_import
from __future__ import division
from __future__ import print_function

import os.path

from tensorflow.examples.speech_commands import freeze
from tensorflow.python.framework import graph_util
from tensorflow.python.framework import test_util
from tensorflow.python.ops.variables import global_variables_initializer
from tensorflow.python.platform import test


class FreezeTest(test.TestCase):

  @test_util.run_deprecated_v1
  def testCreateInferenceGraphWithMfcc(self):
    with self.cached_session() as sess:
      freeze.create_inference_graph(
          wanted_words='a,b,c,d',
          sample_rate=16000,
          clip_duration_ms=1000.0,
          clip_stride_ms=30.0,
          window_size_ms=30.0,
          window_stride_ms=10.0,
          feature_bin_count=40,
          model_architecture='conv',
          preprocess='mfcc')
      self.assertIsNotNone(sess.graph.get_tensor_by_name('wav_data:0'))
      self.assertIsNotNone(
          sess.graph.get_tensor_by_name('decoded_sample_data:0'))
      self.assertIsNotNone(sess.graph.get_tensor_by_name('labels_softmax:0'))
      ops = [node.op for node in sess.graph_def.node]
      self.assertEqual(1, ops.count('Mfcc'))

  @test_util.run_deprecated_v1
  def testCreateInferenceGraphWithoutMfcc(self):
    with self.cached_session() as sess:
      freeze.create_inference_graph(
          wanted_words='a,b,c,d',
          sample_rate=16000,
          clip_duration_ms=1000.0,
          clip_stride_ms=30.0,
          window_size_ms=30.0,
          window_stride_ms=10.0,
          feature_bin_count=40,
          model_architecture='conv',
          preprocess='average')
      self.assertIsNotNone(sess.graph.get_tensor_by_name('wav_data:0'))
      self.assertIsNotNone(
          sess.graph.get_tensor_by_name('decoded_sample_data:0'))
      self.assertIsNotNone(sess.graph.get_tensor_by_name('labels_softmax:0'))
      ops = [node.op for node in sess.graph_def.node]
      self.assertEqual(0, ops.count('Mfcc'))

  @test_util.run_deprecated_v1
  def testCreateInferenceGraphWithMicro(self):
    with self.cached_session() as sess:
      freeze.create_inference_graph(
          wanted_words='a,b,c,d',
          sample_rate=16000,
          clip_duration_ms=1000.0,
          clip_stride_ms=30.0,
          window_size_ms=30.0,
          window_stride_ms=10.0,
          feature_bin_count=40,
          model_architecture='conv',
          preprocess='micro')
      self.assertIsNotNone(sess.graph.get_tensor_by_name('wav_data:0'))
      self.assertIsNotNone(
          sess.graph.get_tensor_by_name('decoded_sample_data:0'))
      self.assertIsNotNone(sess.graph.get_tensor_by_name('labels_softmax:0'))

  @test_util.run_deprecated_v1
  def testFeatureBinCount(self):
    with self.cached_session() as sess:
      freeze.create_inference_graph(
          wanted_words='a,b,c,d',
          sample_rate=16000,
          clip_duration_ms=1000.0,
          clip_stride_ms=30.0,
          window_size_ms=30.0,
          window_stride_ms=10.0,
          feature_bin_count=80,
          model_architecture='conv',
          preprocess='average')
      self.assertIsNotNone(sess.graph.get_tensor_by_name('wav_data:0'))
      self.assertIsNotNone(
          sess.graph.get_tensor_by_name('decoded_sample_data:0'))
      self.assertIsNotNone(sess.graph.get_tensor_by_name('labels_softmax:0'))
      ops = [node.op for node in sess.graph_def.node]
      self.assertEqual(0, ops.count('Mfcc'))

  @test_util.run_deprecated_v1
  def testCreateSavedModel(self):
    tmp_dir = self.get_temp_dir()
    saved_model_path = os.path.join(tmp_dir, 'saved_model')
    with self.cached_session() as sess:
      input_tensor, output_tensor = freeze.create_inference_graph(
          wanted_words='a,b,c,d',
          sample_rate=16000,
          clip_duration_ms=1000.0,
          clip_stride_ms=30.0,
          window_size_ms=30.0,
          window_stride_ms=10.0,
          feature_bin_count=40,
          model_architecture='conv',
          preprocess='micro')
      global_variables_initializer().run()
      graph_util.convert_variables_to_constants(
          sess, sess.graph_def, ['labels_softmax'])
      freeze.save_saved_model(saved_model_path, sess, input_tensor,
                              output_tensor)


if __name__ == '__main__':
  test.main()

# Copyright 2017 The TensorFlow Authors. All Rights Reserved.
#
# Licensed under the Apache License, Version 2.0 (the "License");
# you may not use this file except in compliance with the License.
# You may obtain a copy of the License at
#
#     http://www.apache.org/licenses/LICENSE-2.0
#
# Unless required by applicable law or agreed to in writing, software
# distributed under the License is distributed on an "AS IS" BASIS,
# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
# See the License for the specific language governing permissions and
# limitations under the License.
# ==============================================================================
"""Tests for test file generation for speech commands."""

from __future__ import absolute_import
from __future__ import division
from __future__ import print_function

import numpy as np

from tensorflow.examples.speech_commands import generate_streaming_test_wav
from tensorflow.python.platform import test


class GenerateStreamingTestWavTest(test.TestCase):

  def testMixInAudioSample(self):
    track_data = np.zeros([10000])
    sample_data = np.ones([1000])
    generate_streaming_test_wav.mix_in_audio_sample(
        track_data, 2000, sample_data, 0, 1000, 1.0, 100, 100)
    self.assertNear(1.0, track_data[2500], 0.0001)
    self.assertNear(0.0, track_data[3500], 0.0001)


if __name__ == "__main__":
  test.main()

# Copyright 2017 The TensorFlow Authors. All Rights Reserved.
#
# Licensed under the Apache License, Version 2.0 (the "License");
# you may not use this file except in compliance with the License.
# You may obtain a copy of the License at
#
#     http://www.apache.org/licenses/LICENSE-2.0
#
# Unless required by applicable law or agreed to in writing, software
# distributed under the License is distributed on an "AS IS" BASIS,
# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
# See the License for the specific language governing permissions and
# limitations under the License.
# ==============================================================================
"""Tests for data input for speech commands."""

from __future__ import absolute_import
from __future__ import division
from __future__ import print_function

import os

import numpy as np
import tensorflow as tf


from tensorflow.examples.speech_commands import input_data
from tensorflow.examples.speech_commands import models
from tensorflow.python.framework import test_util
from tensorflow.python.platform import test


class InputDataTest(test.TestCase):

  def _getWavData(self):
    with self.cached_session():
      sample_data = tf.zeros([32000, 2])
      wav_encoder = tf.audio.encode_wav(sample_data, 16000)
      wav_data = self.evaluate(wav_encoder)
    return wav_data

  def _saveTestWavFile(self, filename, wav_data):
    with open(filename, "wb") as f:
      f.write(wav_data)

  def _saveWavFolders(self, root_dir, labels, how_many):
    wav_data = self._getWavData()
    for label in labels:
      dir_name = os.path.join(root_dir, label)
      os.mkdir(dir_name)
      for i in range(how_many):
        file_path = os.path.join(dir_name, "some_audio_%d.wav" % i)
        self._saveTestWavFile(file_path, wav_data)

  def _model_settings(self):
    return {
        "desired_samples": 160,
        "fingerprint_size": 40,
        "label_count": 4,
        "window_size_samples": 100,
        "window_stride_samples": 100,
        "fingerprint_width": 40,
        "preprocess": "mfcc",
    }

  def _runGetDataTest(self, preprocess, window_length_ms):
    tmp_dir = self.get_temp_dir()
    wav_dir = os.path.join(tmp_dir, "wavs")
    os.mkdir(wav_dir)
    self._saveWavFolders(wav_dir, ["a", "b", "c"], 100)
    background_dir = os.path.join(wav_dir, "_background_noise_")
    os.mkdir(background_dir)
    wav_data = self._getWavData()
    for i in range(10):
      file_path = os.path.join(background_dir, "background_audio_%d.wav" % i)
      self._saveTestWavFile(file_path, wav_data)
    model_settings = models.prepare_model_settings(
        4, 16000, 1000, window_length_ms, 20, 40, preprocess)
    with self.cached_session() as sess:
      audio_processor = input_data.AudioProcessor(
          "", wav_dir, 10, 10, ["a", "b"], 10, 10, model_settings, tmp_dir)
      result_data, result_labels = audio_processor.get_data(
          10, 0, model_settings, 0.3, 0.1, 100, "training", sess)
      self.assertEqual(10, len(result_data))
      self.assertEqual(10, len(result_labels))

  def testPrepareWordsList(self):
    words_list = ["a", "b"]
    self.assertGreater(
        len(input_data.prepare_words_list(words_list)), len(words_list))

  def testWhichSet(self):
    self.assertEqual(
        input_data.which_set("foo.wav", 10, 10),
        input_data.which_set("foo.wav", 10, 10))
    self.assertEqual(
        input_data.which_set("foo_nohash_0.wav", 10, 10),
        input_data.which_set("foo_nohash_1.wav", 10, 10))

  @test_util.run_deprecated_v1
  def testPrepareDataIndex(self):
    tmp_dir = self.get_temp_dir()
    self._saveWavFolders(tmp_dir, ["a", "b", "c"], 100)
    audio_processor = input_data.AudioProcessor("", tmp_dir, 10, 10,
                                                ["a", "b"], 10, 10,
                                                self._model_settings(), tmp_dir)
    self.assertLess(0, audio_processor.set_size("training"))
    self.assertIn("training", audio_processor.data_index)
    self.assertIn("validation", audio_processor.data_index)
    self.assertIn("testing", audio_processor.data_index)
    self.assertEqual(input_data.UNKNOWN_WORD_INDEX,
                     audio_processor.word_to_index["c"])

  def testPrepareDataIndexEmpty(self):
    tmp_dir = self.get_temp_dir()
    self._saveWavFolders(tmp_dir, ["a", "b", "c"], 0)
    with self.assertRaises(Exception) as e:
      _ = input_data.AudioProcessor("", tmp_dir, 10, 10, ["a", "b"], 10, 10,
                                    self._model_settings(), tmp_dir)
    self.assertIn("No .wavs found", str(e.exception))

  def testPrepareDataIndexMissing(self):
    tmp_dir = self.get_temp_dir()
    self._saveWavFolders(tmp_dir, ["a", "b", "c"], 100)
    with self.assertRaises(Exception) as e:
      _ = input_data.AudioProcessor("", tmp_dir, 10, 10, ["a", "b", "d"], 10,
                                    10, self._model_settings(), tmp_dir)
    self.assertIn("Expected to find", str(e.exception))

  @test_util.run_deprecated_v1
  def testPrepareBackgroundData(self):
    tmp_dir = self.get_temp_dir()
    background_dir = os.path.join(tmp_dir, "_background_noise_")
    os.mkdir(background_dir)
    wav_data = self._getWavData()
    for i in range(10):
      file_path = os.path.join(background_dir, "background_audio_%d.wav" % i)
      self._saveTestWavFile(file_path, wav_data)
    self._saveWavFolders(tmp_dir, ["a", "b", "c"], 100)
    audio_processor = input_data.AudioProcessor("", tmp_dir, 10, 10,
                                                ["a", "b"], 10, 10,
                                                self._model_settings(), tmp_dir)
    self.assertEqual(10, len(audio_processor.background_data))

  def testLoadWavFile(self):
    tmp_dir = self.get_temp_dir()
    file_path = os.path.join(tmp_dir, "load_test.wav")
    wav_data = self._getWavData()
    self._saveTestWavFile(file_path, wav_data)
    sample_data = input_data.load_wav_file(file_path)
    self.assertIsNotNone(sample_data)

  def testSaveWavFile(self):
    tmp_dir = self.get_temp_dir()
    file_path = os.path.join(tmp_dir, "load_test.wav")
    save_data = np.zeros([16000, 1])
    input_data.save_wav_file(file_path, save_data, 16000)
    loaded_data = input_data.load_wav_file(file_path)
    self.assertIsNotNone(loaded_data)
    self.assertEqual(16000, len(loaded_data))

  @test_util.run_deprecated_v1
  def testPrepareProcessingGraph(self):
    tmp_dir = self.get_temp_dir()
    wav_dir = os.path.join(tmp_dir, "wavs")
    os.mkdir(wav_dir)
    self._saveWavFolders(wav_dir, ["a", "b", "c"], 100)
    background_dir = os.path.join(wav_dir, "_background_noise_")
    os.mkdir(background_dir)
    wav_data = self._getWavData()
    for i in range(10):
      file_path = os.path.join(background_dir, "background_audio_%d.wav" % i)
      self._saveTestWavFile(file_path, wav_data)
    model_settings = {
        "desired_samples": 160,
        "fingerprint_size": 40,
        "label_count": 4,
        "window_size_samples": 100,
        "window_stride_samples": 100,
        "fingerprint_width": 40,
        "preprocess": "mfcc",
    }
    audio_processor = input_data.AudioProcessor("", wav_dir, 10, 10, ["a", "b"],
                                                10, 10, model_settings, tmp_dir)
    self.assertIsNotNone(audio_processor.wav_filename_placeholder_)
    self.assertIsNotNone(audio_processor.foreground_volume_placeholder_)
    self.assertIsNotNone(audio_processor.time_shift_padding_placeholder_)
    self.assertIsNotNone(audio_processor.time_shift_offset_placeholder_)
    self.assertIsNotNone(audio_processor.background_data_placeholder_)
    self.assertIsNotNone(audio_processor.background_volume_placeholder_)
    self.assertIsNotNone(audio_processor.output_)

  @test_util.run_deprecated_v1
  def testGetDataAverage(self):
    self._runGetDataTest("average", 10)

  @test_util.run_deprecated_v1
  def testGetDataAverageLongWindow(self):
    self._runGetDataTest("average", 30)

  @test_util.run_deprecated_v1
  def testGetDataMfcc(self):
    self._runGetDataTest("mfcc", 30)

  @test_util.run_deprecated_v1
  def testGetDataMicro(self):
    self._runGetDataTest("micro", 20)

  @test_util.run_deprecated_v1
  def testGetUnprocessedData(self):
    tmp_dir = self.get_temp_dir()
    wav_dir = os.path.join(tmp_dir, "wavs")
    os.mkdir(wav_dir)
    self._saveWavFolders(wav_dir, ["a", "b", "c"], 100)
    model_settings = {
        "desired_samples": 160,
        "fingerprint_size": 40,
        "label_count": 4,
        "window_size_samples": 100,
        "window_stride_samples": 100,
        "fingerprint_width": 40,
        "preprocess": "mfcc",
    }
    audio_processor = input_data.AudioProcessor("", wav_dir, 10, 10, ["a", "b"],
                                                10, 10, model_settings, tmp_dir)
    result_data, result_labels = audio_processor.get_unprocessed_data(
        10, model_settings, "training")
    self.assertEqual(10, len(result_data))
    self.assertEqual(10, len(result_labels))

  @test_util.run_deprecated_v1
  def testGetFeaturesForWav(self):
    tmp_dir = self.get_temp_dir()
    wav_dir = os.path.join(tmp_dir, "wavs")
    os.mkdir(wav_dir)
    self._saveWavFolders(wav_dir, ["a", "b", "c"], 1)
    desired_samples = 1600
    model_settings = {
        "desired_samples": desired_samples,
        "fingerprint_size": 40,
        "label_count": 4,
        "window_size_samples": 100,
        "window_stride_samples": 100,
        "fingerprint_width": 40,
        "average_window_width": 6,
        "preprocess": "average",
    }
    with self.cached_session() as sess:
      audio_processor = input_data.AudioProcessor(
          "", wav_dir, 10, 10, ["a", "b"], 10, 10, model_settings, tmp_dir)
      sample_data = np.zeros([desired_samples, 1])
      for i in range(desired_samples):
        phase = i % 4
        if phase == 0:
          sample_data[i, 0] = 0
        elif phase == 1:
          sample_data[i, 0] = -1
        elif phase == 2:
          sample_data[i, 0] = 0
        elif phase == 3:
          sample_data[i, 0] = 1
      test_wav_path = os.path.join(tmp_dir, "test_wav.wav")
      input_data.save_wav_file(test_wav_path, sample_data, 16000)

      results = audio_processor.get_features_for_wav(test_wav_path,
                                                     model_settings, sess)
      spectrogram = results[0]
      self.assertEqual(1, spectrogram.shape[0])
      self.assertEqual(16, spectrogram.shape[1])
      self.assertEqual(11, spectrogram.shape[2])
      self.assertNear(0, spectrogram[0, 0, 0], 0.1)
      self.assertNear(200, spectrogram[0, 0, 5], 0.1)

  def testGetFeaturesRange(self):
    model_settings = {
        "preprocess": "average",
    }
    features_min, _ = input_data.get_features_range(model_settings)
    self.assertNear(0.0, features_min, 1e-5)

  def testGetMfccFeaturesRange(self):
    model_settings = {
        "preprocess": "mfcc",
    }
    features_min, features_max = input_data.get_features_range(model_settings)
    self.assertLess(features_min, features_max)


if __name__ == "__main__":
  test.main()
